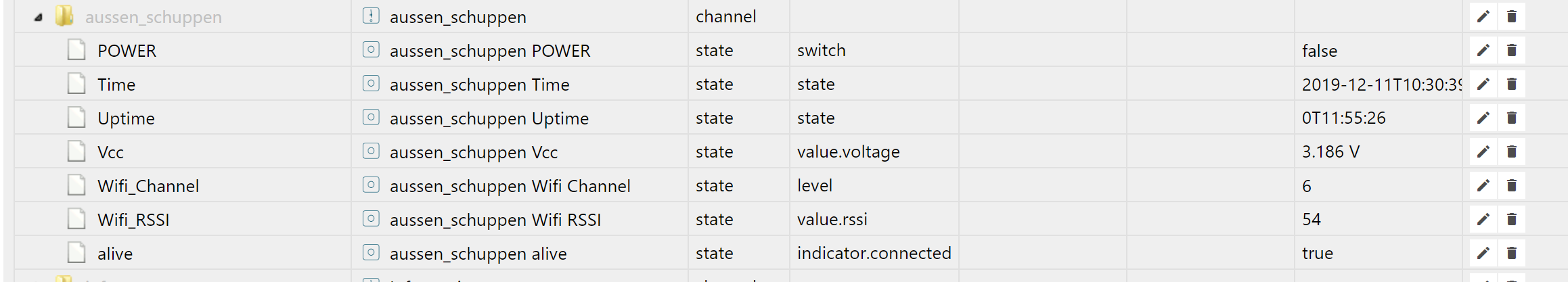

@Roelli sagte:
input;0800;output;0000;counter;126;111;0;0;0;0;0;0;0;0;0;0
Das hinter dem Semikolon "0800" ist wohl der hexadezimale Wert.
Versuche es mal so-
[image: 1576084139270-blockly_temp.jpg]
Spoiler
<xml xmlns="http://www.w3.org/1999/xhtml">
<variables>
<variable type="" id="+Wx]Q{.2Vkv!?A*?.tX6">hex</variable>
<variable type="" id="fV]_W~CP:]59f8qG-O4m">Liste</variable>
<variable type="" id="eELu()QjMt4,hC(NI7T(">inputs</variable>
<variable type="" id="mM]N!hc@{IM}8ekQy6:f">i</variable>
<variable type="" id="%JU_.mp8ag]0UW_idbv[">input</variable>
</variables>
<block type="on_ext" id="|g+DV6`6UQeauN+v5=|b" x="113" y="289">
<mutation items="1"></mutation>
<field name="CONDITION">ne</field>
<field name="ACK_CONDITION"></field>
<value name="OID0">
<shadow type="field_oid" id="3FjWqfGEYxtb8*I,E/4E">
<field name="oid">default</field>
</shadow>
</value>
<statement name="STATEMENT">
<block type="variables_set" id="OkT.UVUtc!i%^~`TO2?N">
<field name="VAR" id="fV]_W~CP:]59f8qG-O4m" variabletype="">Liste</field>
<value name="VALUE">
<block type="lists_split" id="i08=)H0_KB1Cf@cP;_4n">
<mutation mode="SPLIT"></mutation>
<field name="MODE">SPLIT</field>
<value name="INPUT">
<block type="on_source" id="E{t~gUjNjcUl(K%OppgA">
<field name="ATTR">state.val</field>
</block>
</value>
<value name="DELIM">
<shadow type="text" id="q_5%bEi2,UfYL=0tK^n6">
<field name="TEXT">;</field>
</shadow>
</value>
</block>
</value>
<next>
<block type="variables_set" id="]@iBF.d.u{_s:T3=;[8P">
<field name="VAR" id="eELu()QjMt4,hC(NI7T(" variabletype="">inputs</field>
<value name="VALUE">
<block type="procedures_callcustomreturn" id="kCs7#/d-5%XO2*:5zxf2">
<mutation name="hex2dec">
<arg name="hex"></arg>
</mutation>
<value name="ARG0">
<block type="lists_getIndex" id="biR1P_*+V^NEU=VIW2G3">
<mutation statement="false" at="true"></mutation>
<field name="MODE">GET</field>
<field name="WHERE">FROM_START</field>
<value name="VALUE">
<block type="variables_get" id="hO-UwvXU(@9ID!o?{=N!">
<field name="VAR" id="fV]_W~CP:]59f8qG-O4m" variabletype="">Liste</field>
</block>
</value>
<value name="AT">
<block type="math_number" id="y,Oz*A@(gel|Sk`Y,adn">
<field name="NUM">2</field>
</block>
</value>
</block>
</value>
</block>
</value>
<next>
<block type="controls_for" id="_.@hA-6H_F][RKc/LIjJ">
<field name="VAR" id="mM]N!hc@{IM}8ekQy6:f" variabletype="">i</field>
<value name="FROM">
<shadow type="math_number" id="dbD|@1[PxJMBLcuyaJxC">
<field name="NUM">1</field>
</shadow>
</value>
<value name="TO">
<shadow type="math_number" id="_P$t!8T*sVFcjqpV=2H.">
<field name="NUM">12</field>
</shadow>
</value>
<value name="BY">
<shadow type="math_number" id="`s0jmRRd,HbBJ=7{C(n.">
<field name="NUM">1</field>
</shadow>
</value>
<statement name="DO">
<block type="controls_if" id="XFoJ7*e~bRrj)B^cPDru">
<mutation else="1"></mutation>
<value name="IF0">
<block type="math_number_property" id="Zl#t@/WE5H1UR41l?~gC">
<mutation divisor_input="false"></mutation>
<field name="PROPERTY">ODD</field>
<value name="NUMBER_TO_CHECK">
<shadow type="math_number" id="S3.Q4ag!#PYlB`U4=(Zu">
<field name="NUM">0</field>
</shadow>
<block type="variables_get" id="oF-uzcGt`/wKKW8xujdW">
<field name="VAR" id="eELu()QjMt4,hC(NI7T(" variabletype="">inputs</field>
</block>
</value>
</block>
</value>
<statement name="DO0">
<block type="variables_set" id="fM@h*e!:[cV~,=xNNnkT">
<field name="VAR" id="%JU_.mp8ag]0UW_idbv[" variabletype="">input</field>
<value name="VALUE">
<block type="logic_boolean" id="S]y5e@]b8^R4r9X?x5-U">
<field name="BOOL">TRUE</field>
</block>
</value>
</block>
</statement>
<statement name="ELSE">
<block type="variables_set" id="QS_r{(*KSI?]!5W,W[Xq">
<field name="VAR" id="%JU_.mp8ag]0UW_idbv[" variabletype="">input</field>
<value name="VALUE">
<block type="logic_boolean" id="2x3]UTM~Sj/_o/XR=oWL">
<field name="BOOL">FALSE</field>
</block>
</value>
</block>
</statement>
<next>
<block type="control_ex" id="VlY,7}^qDvlRF%.hv(m]">
<field name="TYPE">true</field>
<field name="CLEAR_RUNNING">FALSE</field>
<value name="OID">
<shadow type="field_oid" id="WT]BKW#bT4,U{^7Gpn_Y">
<field name="oid">Object ID</field>
</shadow>
<block type="text_join" id="z[m8ZWQR#B!G)mj(T6:;">
<mutation items="2"></mutation>
<value name="ADD0">
<block type="text" id="=Y=8=,)oyTw(gkYJ5$Qt">
<field name="TEXT">0_userdata.0.iomodul.input</field>
</block>
</value>
<value name="ADD1">
<block type="variables_get" id="%#q7sr!LtiB(8L7U2(](">
<field name="VAR" id="mM]N!hc@{IM}8ekQy6:f" variabletype="">i</field>
</block>
</value>
</block>
</value>
<value name="VALUE">
<shadow type="logic_boolean" id="V5pb!@LAF{jKKKc]KBin">
<field name="BOOL">TRUE</field>
</shadow>
<block type="variables_get" id="@uShH_2Znnwjgasr2h8,">
<field name="VAR" id="%JU_.mp8ag]0UW_idbv[" variabletype="">input</field>
</block>
</value>
<value name="DELAY_MS">
<shadow type="math_number" id="l[~=5ireGI|.*R_I)K%k">
<field name="NUM">0</field>
</shadow>
</value>
<next>
<block type="variables_set" id="uwX9ZAPeLCjl65AL_uxX">
<field name="VAR" id="eELu()QjMt4,hC(NI7T(" variabletype="">inputs</field>
<value name="VALUE">
<block type="math_round" id="JqM+{NH2JJNL8pHI9b}n">
<field name="OP">ROUNDDOWN</field>
<value name="NUM">
<shadow type="math_number" id="zy)6PU~Pu1K5lR9,hllR">
<field name="NUM">3.1</field>
</shadow>
<block type="math_arithmetic" id="=biT14(x2b[Ds$5s:TF#">
<field name="OP">DIVIDE</field>
<value name="A">
<shadow type="math_number" id="+y4[u,GCBy/HjOmkZG$Z">
<field name="NUM">1</field>
</shadow>
<block type="variables_get" id="_(szGPd$*cli2aCRn[dd">
<field name="VAR" id="eELu()QjMt4,hC(NI7T(" variabletype="">inputs</field>
</block>
</value>
<value name="B">
<shadow type="math_number" id=":VHGmM0GxKp@D|!o?Y,b">
<field name="NUM">2</field>
</shadow>
</value>
</block>
</value>
</block>
</value>
</block>
</next>
</block>
</next>
</block>
</statement>
</block>
</next>
</block>
</next>
</block>
</statement>
</block>
<block type="procedures_defcustomreturn" id="o~vB.~:vTH*8{L}s{=xx" x="312" y="337">
<mutation statements="false">
<arg name="hex" varid="+Wx]Q{.2Vkv!?A*?.tX6"></arg>
</mutation>
<field name="NAME">hex2dec</field>
<field name="SCRIPT">cmV0dXJuIHBhcnNlSW50KGhleCwgMTYpOw==</field>
<comment pinned="false" h="80" w="160">Beschreibe diese Funktion …</comment>
</block>
</xml>
Die 12 Datenpunkte "0_userdata.0.iomodul.input1 .. 12" vom Typ "Logikwert" müssen vorher erzeugt werden.
