@biker1602 Hi,
es gab mal ein anschaulichen Beitrag (ich glaube von @haus-automatisierung?).
Da wurde der Unterschied von "steuere" und "aktualisiere" erläutert.
Wenn ich das noch richtig im Kopf habe, wird bei Dir das Ack Flag ("Bestätigt") nicht gesetzt. Daher die Warnung.
Probiere mal "aktualisiere" statt "steuere"
VG Torsten
Hallo,
ich bräuchte bitte mal einen Denkanstoß für folgendes Problem:
Ich möchte die Unwetter Warnungen vom Adapter "dwd" auf Mediola visualisieren.
Die Headline, bzw. den Text zu übertragen und als Text anzuzeigen funktioniert super.
Der nächste Schritt wäre, die Beginn und Endzeit einer Warnung anzuzeigen. Diese liegt als state vom Type
value.time vor.
Lese ich diese in Mediola ein, wird die unformatiert gelesen und logischerweise als fortlaufende Zahl ausgegeben.
Ich müsste diese Zeit irgendwie als state value.time in Text konvertieren.
Dazu habe ich aber noch nicht das passende Script zusammen bekommen...
VG Torsten
Hallo zusammen,
ich habe für meine Poolsteuerung Node red erkoren.
Erstens der Übersichtlichkeit halber und zweitens möchte ich mich unbedingt in Node Red einarbeiten.
Ich benütze sowohl eine Wärmepumpe und Solarplatten per Wärmetauscher.

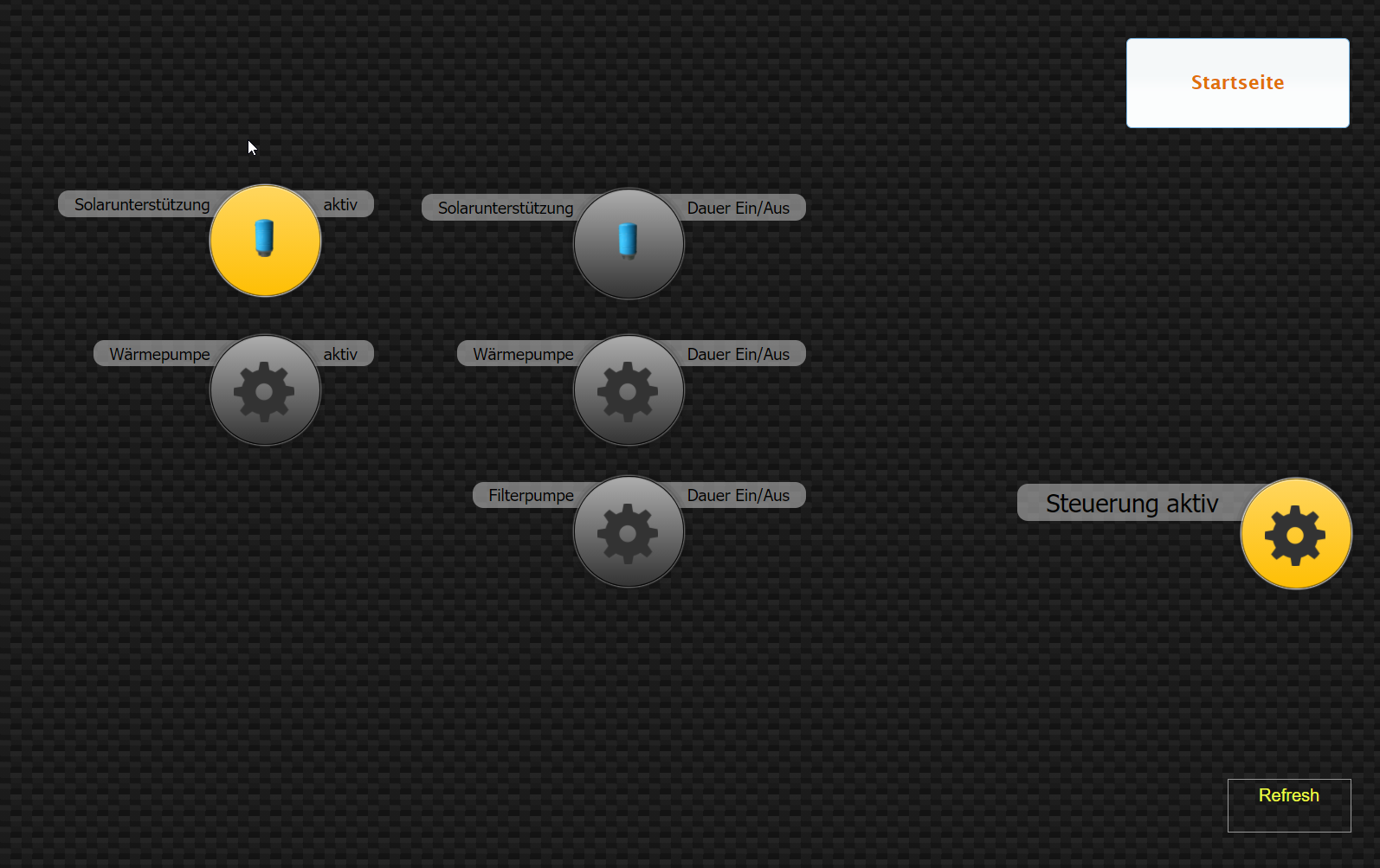

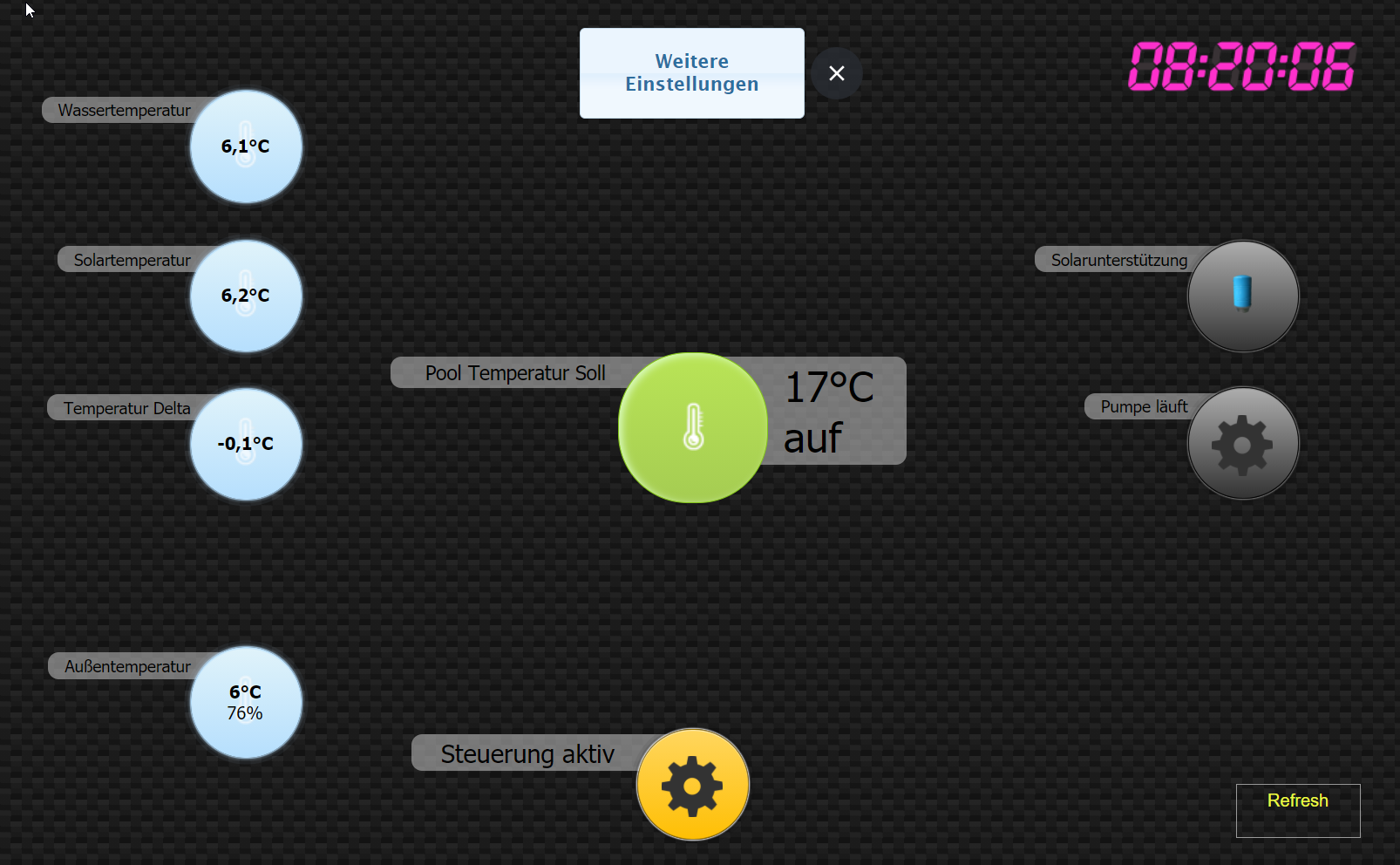

Die Hardware und die Visu steht, die Logik noch nicht.
Die Umwälzung läuft hardwaremäßig wenn die Wärmepumpe läuft.
Folgende Datenpunkte möchte ich verwenden:
Außentemperatur
Wassertemperatur
Solar Vorlauftemperatur
Delta der Wasser und Solar Temperatur
Energiebilanz
Badetemperatur als Sollwert
Mindest Umwälzung der Pumpe
Damit ich daraus was lernen kann, möchte ich gerne das schrittweise realisieren.
Zuerst mal:
„Wassertemperatur“ 2Grad unter „Badetemperatur Soll“ und „Energiebilanz“ >1kW steuere Ausgang 2 und schreibe die Laufzeit in eine Variable „Laufzeit Wärmepumpe/Tag“
Reset „Laufzeit Wärmepumpe/Tag“ um 0:00Uhr
Ich freue mich auf Euren Input, am besten mit Erklärungen.
Vielen Dank und liebe Grüße
Torsten

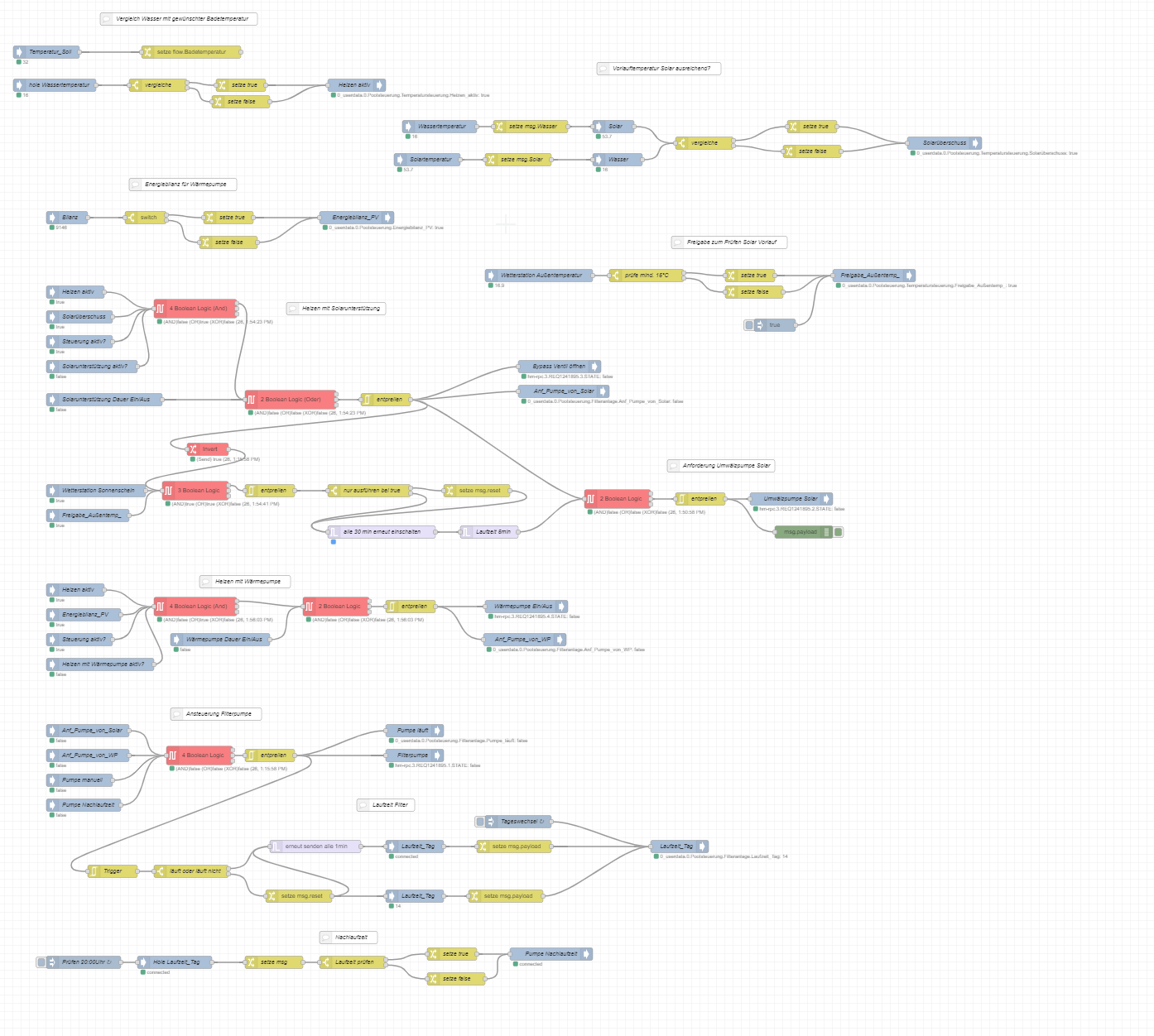

Update: ich habe hier die fertige Lösung als Flow und auch zum Import:
[
{
"id": "83e57a37.f03b48",
"type": "ioBroker in",
"z": "89394b0c.86b5a8",
"name": "hole Wassertemperatur",
"topic": "hm-rpc.3.OEQ0674784.2.TEMPERATURE",
"payloadType": "value",
"onlyack": "",
"func": "all",
"gap": "",
"fireOnStart": "true",
"x": 140,
"y": 220,
"wires": [
[
"f1ed6ee6.23b24"
]
]
},
{
"id": "caad3ebf.a4ed9",
"type": "ioBroker in",
"z": "89394b0c.86b5a8",
"name": "Temperatur_Soll",
"topic": "0_userdata.0.Poolsteuerung.Temperatursteuerung.Badetemperatur",
"payloadType": "value",
"onlyack": "",
"func": "all",
"gap": "",
"fireOnStart": "true",
"x": 120,
"y": 140,
"wires": [
[
"312b7f9f.134a6"
]
]
},
{
"id": "82194cc3.1ce8a",
"type": "ioBroker out",
"z": "89394b0c.86b5a8",
"name": "Heizen aktiv",
"topic": "0_userdata.0.Poolsteuerung.Temperatursteuerung.Heizen_aktiv",
"ack": "false",
"autoCreate": "false",
"stateName": "",
"role": "",
"payloadType": "",
"readonly": "",
"stateUnit": "",
"stateMin": "",
"stateMax": "",
"x": 870,
"y": 220,
"wires": []
},
{
"id": "312b7f9f.134a6",
"type": "change",
"z": "89394b0c.86b5a8",
"name": "",
"rules": [
{
"t": "set",
"p": "Badetemperatur",
"pt": "flow",
"to": "payload",
"tot": "msg"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 470,
"y": 140,
"wires": [
[]
]
},
{
"id": "a7bdd82b.f85928",
"type": "change",
"z": "89394b0c.86b5a8",
"name": "setze true",
"rules": [
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "true",
"tot": "bool"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 590,
"y": 220,
"wires": [
[
"82194cc3.1ce8a"
]
]
},
{
"id": "bb043664.16a778",
"type": "ioBroker out",
"z": "89394b0c.86b5a8",
"name": "Solarüberschuss",
"topic": "0_userdata.0.Poolsteuerung.Temperatursteuerung.Solarüberschuss",
"ack": "true",
"autoCreate": "false",
"stateName": "",
"role": "",
"payloadType": "",
"readonly": "",
"stateUnit": "",
"stateMin": "",
"stateMax": "",
"x": 2290,
"y": 360,
"wires": []
},
{
"id": "b875b414.953568",
"type": "change",
"z": "89394b0c.86b5a8",
"name": "setze true",
"rules": [
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "true",
"tot": "bool"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 1970,
"y": 320,
"wires": [
[
"bb043664.16a778"
]
]
},
{
"id": "d1ff32a2.67231",
"type": "change",
"z": "89394b0c.86b5a8",
"name": "setze false",
"rules": [
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "false",
"tot": "bool"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 1970,
"y": 380,
"wires": [
[
"bb043664.16a778"
]
]
},
{
"id": "af5f1bbf.240de8",
"type": "ioBroker in",
"z": "89394b0c.86b5a8",
"name": "Bilanz",
"topic": "hm-rega.0.18637",
"payloadType": "value",
"onlyack": "",
"func": "all",
"gap": "",
"fireOnStart": "true",
"x": 170,
"y": 540,
"wires": [
[
"eac7cff5.d486e"
]
]
},
{
"id": "eac7cff5.d486e",
"type": "switch",
"z": "89394b0c.86b5a8",
"name": "",
"property": "payload",
"propertyType": "msg",
"rules": [
{
"t": "gt",
"v": "1500",
"vt": "str"
},
{
"t": "lte",
"v": "1000",
"vt": "str"
}
],
"checkall": "true",
"repair": false,
"outputs": 2,
"x": 360,
"y": 540,
"wires": [
[
"f7b7a329.6e4c7"
],
[
"5c3bc74e.4e5518"
]
]
},
{
"id": "f7b7a329.6e4c7",
"type": "change",
"z": "89394b0c.86b5a8",
"name": "setze true",
"rules": [
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "true",
"tot": "bool"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 560,
"y": 540,
"wires": [
[
"fd8e9002.7f95"
]
]
},
{
"id": "fd8e9002.7f95",
"type": "ioBroker out",
"z": "89394b0c.86b5a8",
"name": "Energiebilanz_PV",
"topic": "0_userdata.0.Poolsteuerung.Energiebilanz_PV",
"ack": "true",
"autoCreate": "false",
"stateName": "",
"role": "",
"payloadType": "",
"readonly": "",
"stateUnit": "",
"stateMin": "",
"stateMax": "",
"x": 870,
"y": 540,
"wires": []
},
{
"id": "f7e5cf2d.5f8ed",
"type": "BooleanLogicUltimate",
"z": "89394b0c.86b5a8",
"name": "And",
"filtertrue": "both",
"persist": true,
"sInitializeWith": "false",
"triggertopic": "trigger",
"outputtriggeredby": "all",
"inputCount": "4",
"topic": "result",
"x": 480,
"y": 760,
"wires": [
[
"27231f4f.e8c2b"
],
[],
[]
]
},
{
"id": "b45122fd.32393",
"type": "ioBroker in",
"z": "89394b0c.86b5a8",
"name": "Heizen aktiv",
"topic": "0_userdata.0.Poolsteuerung.Temperatursteuerung.Heizen_aktiv",
"payloadType": "value",
"onlyack": "",
"func": "all",
"gap": "",
"fireOnStart": "false",
"x": 190,
"y": 720,
"wires": [
[
"f7e5cf2d.5f8ed"
]
]
},
{
"id": "3e9d17d2.e24e68",
"type": "ioBroker in",
"z": "89394b0c.86b5a8",
"name": "Solarüberschuss",
"topic": "0_userdata.0.Poolsteuerung.Temperatursteuerung.Solarüberschuss",
"payloadType": "value",
"onlyack": "",
"func": "all",
"gap": "",
"fireOnStart": "false",
"x": 200,
"y": 780,
"wires": [
[
"f7e5cf2d.5f8ed"
]
]
},
{
"id": "b22cf1e2.189de",
"type": "ioBroker out",
"z": "89394b0c.86b5a8",
"name": "Bypass Ventil öffnen",
"topic": "hm-rpc.3.REQ1241895.3.STATE",
"ack": "false",
"autoCreate": "false",
"stateName": "",
"role": "",
"payloadType": "",
"readonly": "",
"stateUnit": "",
"stateMin": "",
"stateMax": "",
"x": 1360,
"y": 900,
"wires": []
},
{
"id": "5c3bc74e.4e5518",
"type": "change",
"z": "89394b0c.86b5a8",
"name": "setze false",
"rules": [
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "false",
"tot": "bool"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 560,
"y": 600,
"wires": [
[
"fd8e9002.7f95"
]
]
},
{
"id": "8e24a9bf.1a8f18",
"type": "comment",
"z": "89394b0c.86b5a8",
"name": "Heizen mit Solarunterstützung",
"info": "",
"x": 820,
"y": 760,
"wires": []
},
{
"id": "7a7db09f.ea9fc",
"type": "ioBroker out",
"z": "89394b0c.86b5a8",
"name": "Anf_Pumpe_von_Solar",
"topic": "0_userdata.0.Poolsteuerung.Filteranlage.Anf_Pumpe_von_Solar",
"ack": "true",
"autoCreate": "false",
"stateName": "",
"role": "",
"payloadType": "",
"readonly": "",
"stateUnit": "",
"stateMin": "",
"stateMax": "",
"x": 1370,
"y": 960,
"wires": []
},
{
"id": "2300818d.73d40e",
"type": "BooleanLogicUltimate",
"z": "89394b0c.86b5a8",
"name": "And",
"filtertrue": "both",
"persist": true,
"sInitializeWith": "false",
"triggertopic": "trigger",
"outputtriggeredby": "all",
"inputCount": "4",
"topic": "result",
"x": 480,
"y": 1480,
"wires": [
[
"4e582112.bd9e5"
],
[],
[]
]
},
{
"id": "26777bfc.b1b7c4",
"type": "ioBroker in",
"z": "89394b0c.86b5a8",
"name": "Heizen aktiv",
"topic": "0_userdata.0.Poolsteuerung.Temperatursteuerung.Heizen_aktiv",
"payloadType": "value",
"onlyack": "",
"func": "all",
"gap": "",
"fireOnStart": "false",
"x": 190,
"y": 1440,
"wires": [
[
"2300818d.73d40e"
]
]
},
{
"id": "8b595b1c.d1ee58",
"type": "ioBroker in",
"z": "89394b0c.86b5a8",
"name": "Energiebilanz_PV",
"topic": "0_userdata.0.Poolsteuerung.Energiebilanz_PV",
"payloadType": "value",
"onlyack": "",
"func": "all",
"gap": "",
"fireOnStart": "false",
"x": 210,
"y": 1500,
"wires": [
[
"2300818d.73d40e"
]
]
},
{
"id": "4666bdd7.4b3044",
"type": "ioBroker out",
"z": "89394b0c.86b5a8",
"name": "Wärmepumpe Ein/Aus",
"topic": "hm-rpc.3.REQ1241895.4.STATE",
"ack": "false",
"autoCreate": "false",
"stateName": "",
"role": "",
"payloadType": "",
"readonly": "",
"stateUnit": "",
"stateMin": "",
"stateMax": "",
"x": 1280,
"y": 1480,
"wires": []
},
{
"id": "8e726e87.0d6b1",
"type": "comment",
"z": "89394b0c.86b5a8",
"name": "Heizen mit Wärmepumpe",
"info": "",
"x": 600,
"y": 1420,
"wires": []
},
{
"id": "64d819d.ac203e8",
"type": "ioBroker out",
"z": "89394b0c.86b5a8",
"name": "Anf_Pumpe_von_WP",
"topic": "0_userdata.0.Poolsteuerung.Filteranlage.Anf_Pumpe_von_WP",
"ack": "true",
"autoCreate": "false",
"stateName": "",
"role": "",
"payloadType": "",
"readonly": "",
"stateUnit": "",
"stateMin": "",
"stateMax": "",
"x": 1276,
"y": 1560,
"wires": []
},
{
"id": "e9863387.89ef9",
"type": "ioBroker in",
"z": "89394b0c.86b5a8",
"name": "Wetterstation Sonnenschein",
"topic": "hm-rpc.4.0017D709AE31BB.1.SUNSHINE_THRESHOLD_OVERRUN",
"payloadType": "value",
"onlyack": "",
"func": "all",
"gap": "",
"fireOnStart": "true",
"x": 240,
"y": 1200,
"wires": [
[
"d77dbeea.617e"
]
]
},
{
"id": "34121d84.0ee042",
"type": "ioBroker in",
"z": "89394b0c.86b5a8",
"name": "Wetterstation Außentemperatur",
"topic": "hm-rpc.4.0017D709AE31BB.1.ACTUAL_TEMPERATURE",
"payloadType": "value",
"onlyack": "",
"func": "all",
"gap": "",
"fireOnStart": "true",
"x": 1310,
"y": 680,
"wires": [
[
"72bfd438.8a8d3c"
]
]
},
{
"id": "72bfd438.8a8d3c",
"type": "switch",
"z": "89394b0c.86b5a8",
"name": "prüfe mind. 15°C",
"property": "payload",
"propertyType": "msg",
"rules": [
{
"t": "gte",
"v": "15",
"vt": "str"
},
{
"t": "lt",
"v": "12",
"vt": "str"
}
],
"checkall": "true",
"repair": false,
"outputs": 2,
"x": 1570,
"y": 680,
"wires": [
[
"423e48af.6e3878"
],
[
"ea104121.7f8e2"
]
]
},
{
"id": "d77dbeea.617e",
"type": "BooleanLogicUltimate",
"z": "89394b0c.86b5a8",
"name": "",
"filtertrue": "both",
"persist": true,
"sInitializeWith": "false",
"triggertopic": "trigger",
"outputtriggeredby": "all",
"inputCount": "3",
"topic": "result",
"x": 480,
"y": 1200,
"wires": [
[
"9da27ed0.eae5e"
],
[],
[]
]
},
{
"id": "389afbfa.d856b4",
"type": "ioBroker out",
"z": "89394b0c.86b5a8",
"name": "Freigabe_Außentemp_",
"topic": "0_userdata.0.Poolsteuerung.Temperatursteuerung.Freigabe_Außentemp_",
"ack": "false",
"autoCreate": "false",
"stateName": "",
"role": "",
"payloadType": "",
"readonly": "",
"stateUnit": "",
"stateMin": "",
"stateMax": "",
"x": 2120,
"y": 680,
"wires": []
},
{
"id": "423e48af.6e3878",
"type": "change",
"z": "89394b0c.86b5a8",
"name": "setze true",
"rules": [
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "true",
"tot": "bool"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 1820,
"y": 680,
"wires": [
[
"389afbfa.d856b4"
]
]
},
{
"id": "ea104121.7f8e2",
"type": "change",
"z": "89394b0c.86b5a8",
"name": "setze false",
"rules": [
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "false",
"tot": "bool"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 1830,
"y": 720,
"wires": [
[
"389afbfa.d856b4"
]
]
},
{
"id": "842cd1d0.98b48",
"type": "ioBroker in",
"z": "89394b0c.86b5a8",
"name": "Freigabe_Außentemp_",
"topic": "0_userdata.0.Poolsteuerung.Temperatursteuerung.Freigabe_Außentemp_",
"payloadType": "value",
"onlyack": "",
"func": "all",
"gap": "",
"fireOnStart": "true",
"x": 220,
"y": 1260,
"wires": [
[
"d77dbeea.617e"
]
]
},
{
"id": "d10301b7.ef0ef",
"type": "InvertUltimate",
"z": "89394b0c.86b5a8",
"name": "Invert",
"x": 510,
"y": 1100,
"wires": [
[
"d77dbeea.617e"
]
]
},
{
"id": "ff39afa.039565",
"type": "comment",
"z": "89394b0c.86b5a8",
"name": "Anforderung Umwälzpumpe Solar",
"info": "",
"x": 1750,
"y": 1140,
"wires": []
},
{
"id": "66f988a6.4ca578",
"type": "ioBroker in",
"z": "89394b0c.86b5a8",
"name": "Anf_Pumpe_von_Solar",
"topic": "0_userdata.0.Poolsteuerung.Filteranlage.Anf_Pumpe_von_Solar",
"payloadType": "value",
"onlyack": "",
"func": "rbe",
"gap": "",
"fireOnStart": "true",
"x": 220,
"y": 1780,
"wires": [
[
"26fc5e80.485f12"
]
]
},
{
"id": "426bfb66.27e944",
"type": "switch",
"z": "89394b0c.86b5a8",
"name": "läuft oder läuft nicht",
"property": "payload",
"propertyType": "msg",
"rules": [
{
"t": "true"
},
{
"t": "false"
}
],
"checkall": "true",
"repair": false,
"outputs": 2,
"x": 470,
"y": 2120,
"wires": [
[
"23347cd3.d823d4"
],
[
"770eb1d8.1b62"
]
]
},
{
"id": "2ccbe9ae.5de3b6",
"type": "ioBroker out",
"z": "89394b0c.86b5a8",
"name": "Laufzeit_Tag",
"topic": "0_userdata.0.Poolsteuerung.Filteranlage.Laufzeit_Tag",
"ack": "true",
"autoCreate": "false",
"stateName": "",
"role": "",
"payloadType": "",
"readonly": "",
"stateUnit": "",
"stateMin": "",
"stateMax": "",
"x": 1650,
"y": 2060,
"wires": []
},
{
"id": "23347cd3.d823d4",
"type": "trigger",
"z": "89394b0c.86b5a8",
"name": "",
"op1": "1",
"op2": "0",
"op1type": "num",
"op2type": "str",
"duration": "-1",
"extend": false,
"overrideDelay": false,
"units": "min",
"reset": "",
"bytopic": "all",
"topic": "topic",
"outputs": 1,
"x": 770,
"y": 2060,
"wires": [
[
"f0106a67.68ccf8"
]
]
},
{
"id": "f0106a67.68ccf8",
"type": "ioBroker get",
"z": "89394b0c.86b5a8",
"name": "Laufzeit_Tag",
"topic": "0_userdata.0.Poolsteuerung.Filteranlage.Laufzeit_Tag",
"attrname": "status",
"payloadType": "value",
"x": 1010,
"y": 2060,
"wires": [
[
"2fa05a36.5ded86"
]
]
},
{
"id": "2fa05a36.5ded86",
"type": "change",
"z": "89394b0c.86b5a8",
"name": "",
"rules": [
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "status + payload",
"tot": "jsonata"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 1250,
"y": 2060,
"wires": [
[
"2ccbe9ae.5de3b6"
]
]
},
{
"id": "770eb1d8.1b62",
"type": "change",
"z": "89394b0c.86b5a8",
"name": "",
"rules": [
{
"t": "set",
"p": "reset",
"pt": "msg",
"to": "true",
"tot": "bool"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 730,
"y": 2180,
"wires": [
[
"23347cd3.d823d4",
"a3796662.1b2288"
]
]
},
{
"id": "f50cbcdd.4df18",
"type": "inject",
"z": "89394b0c.86b5a8",
"name": "Tageswechsel",
"props": [
{
"p": "payload"
}
],
"repeat": "",
"crontab": "01 00 * * *",
"once": false,
"onceDelay": 0.1,
"topic": "",
"payload": "0",
"payloadType": "num",
"x": 1260,
"y": 2000,
"wires": [
[
"2ccbe9ae.5de3b6"
]
]
},
{
"id": "a3796662.1b2288",
"type": "ioBroker get",
"z": "89394b0c.86b5a8",
"name": "Laufzeit_Tag",
"topic": "0_userdata.0.Poolsteuerung.Filteranlage.Laufzeit_Tag",
"attrname": "status",
"payloadType": "value",
"x": 1010,
"y": 2180,
"wires": [
[
"c278734d.e25ed"
]
]
},
{
"id": "c278734d.e25ed",
"type": "change",
"z": "89394b0c.86b5a8",
"name": "",
"rules": [
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "status ",
"tot": "jsonata"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 1230,
"y": 2180,
"wires": [
[
"2ccbe9ae.5de3b6"
]
]
},
{
"id": "1ce956bc.969819",
"type": "comment",
"z": "89394b0c.86b5a8",
"name": "Laufzeit Filter",
"info": "",
"x": 940,
"y": 1960,
"wires": []
},
{
"id": "e7444e07.459cf",
"type": "ioBroker out",
"z": "89394b0c.86b5a8",
"name": "Pumpe läuft",
"topic": "0_userdata.0.Poolsteuerung.Filteranlage.Pumpe_läuft",
"ack": "false",
"autoCreate": "false",
"stateName": "",
"role": "",
"payloadType": "",
"readonly": "",
"stateUnit": "",
"stateMin": "",
"stateMax": "",
"x": 1010,
"y": 1780,
"wires": []
},
{
"id": "bda9097.228eff8",
"type": "ioBroker out",
"z": "89394b0c.86b5a8",
"name": "Umwälzpumpe Solar",
"topic": "hm-rpc.3.REQ1241895.2.STATE",
"ack": "false",
"autoCreate": "false",
"stateName": "",
"role": "",
"payloadType": "",
"readonly": "",
"stateUnit": "",
"stateMin": "",
"stateMax": "",
"x": 1920,
"y": 1220,
"wires": []
},
{
"id": "f1ed6ee6.23b24",
"type": "switch",
"z": "89394b0c.86b5a8",
"name": "vergleiche",
"property": "payload",
"propertyType": "msg",
"rules": [
{
"t": "jsonata_exp",
"v": "payload < $flowContext('Badetemperatur') - 1",
"vt": "jsonata"
},
{
"t": "jsonata_exp",
"v": "payload >= $flowContext('Badetemperatur') + 2",
"vt": "jsonata"
}
],
"checkall": "true",
"repair": false,
"outputs": 2,
"x": 390,
"y": 220,
"wires": [
[
"a7bdd82b.f85928"
],
[
"83dabc7e.f0fc3"
]
]
},
{
"id": "83dabc7e.f0fc3",
"type": "change",
"z": "89394b0c.86b5a8",
"name": "setze false",
"rules": [
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "false",
"tot": "bool"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 590,
"y": 260,
"wires": [
[
"82194cc3.1ce8a"
]
]
},
{
"id": "37e04735.ada178",
"type": "ioBroker in",
"z": "89394b0c.86b5a8",
"name": "Solartemperatur",
"topic": "hm-rpc.3.OEQ0674784.1.TEMPERATURE",
"payloadType": "value",
"onlyack": "",
"func": "all",
"gap": "",
"fireOnStart": "true",
"x": 1040,
"y": 400,
"wires": [
[
"340cade6.0d94d2"
]
]
},
{
"id": "f14c597d.b7db28",
"type": "change",
"z": "89394b0c.86b5a8",
"name": "setze msg.Wasser",
"rules": [
{
"t": "move",
"p": "payload",
"pt": "msg",
"to": "Wasser",
"tot": "msg"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 1290,
"y": 320,
"wires": [
[
"348acde4.602cd2"
]
]
},
{
"id": "340cade6.0d94d2",
"type": "change",
"z": "89394b0c.86b5a8",
"name": "setze msg.Solar",
"rules": [
{
"t": "move",
"p": "payload",
"pt": "msg",
"to": "Solar",
"tot": "msg"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 1260,
"y": 400,
"wires": [
[
"6a06a0d5.977a9"
]
]
},
{
"id": "348acde4.602cd2",
"type": "ioBroker get",
"z": "89394b0c.86b5a8",
"name": "Solar",
"topic": "hm-rpc.3.OEQ0674784.1.TEMPERATURE",
"attrname": "Solar",
"payloadType": "value",
"x": 1490,
"y": 320,
"wires": [
[
"fbef2e28.ca6e2"
]
]
},
{
"id": "6a06a0d5.977a9",
"type": "ioBroker get",
"z": "89394b0c.86b5a8",
"name": "Wasser",
"topic": "hm-rpc.3.OEQ0674784.2.TEMPERATURE",
"attrname": "Wasser",
"payloadType": "value",
"x": 1500,
"y": 400,
"wires": [
[
"fbef2e28.ca6e2"
]
]
},
{
"id": "858ad7b6.87a0d8",
"type": "ioBroker in",
"z": "89394b0c.86b5a8",
"name": "Wassertemperatur",
"topic": "hm-rpc.3.OEQ0674784.2.TEMPERATURE",
"payloadType": "value",
"onlyack": "",
"func": "all",
"gap": "",
"fireOnStart": "true",
"x": 1070,
"y": 320,
"wires": [
[
"f14c597d.b7db28"
]
]
},
{
"id": "fbef2e28.ca6e2",
"type": "switch",
"z": "89394b0c.86b5a8",
"name": "vergleiche",
"property": "payload",
"propertyType": "msg",
"rules": [
{
"t": "jsonata_exp",
"v": "Wasser + 10 < Solar",
"vt": "jsonata"
},
{
"t": "jsonata_exp",
"v": "Wasser + 8 >= Solar ",
"vt": "jsonata"
}
],
"checkall": "true",
"repair": false,
"outputs": 2,
"x": 1710,
"y": 360,
"wires": [
[
"b875b414.953568"
],
[
"d1ff32a2.67231"
]
]
},
{
"id": "f546f28e.70e08",
"type": "comment",
"z": "89394b0c.86b5a8",
"name": "Energiebilanz für Wärmepumpe",
"info": "",
"x": 450,
"y": 460,
"wires": []
},
{
"id": "17932509.7135ab",
"type": "comment",
"z": "89394b0c.86b5a8",
"name": "Vergleich Wasser mit gewünschter Badetemperatur",
"info": "",
"x": 440,
"y": 60,
"wires": []
},
{
"id": "5aa26bab.a24754",
"type": "comment",
"z": "89394b0c.86b5a8",
"name": "Vorlauftemperatur Solar ausreichend?",
"info": "",
"x": 1600,
"y": 180,
"wires": []
},
{
"id": "f38215c5.6e0af8",
"type": "comment",
"z": "89394b0c.86b5a8",
"name": "Freigabe zum Prüfen Solar Vorlauf",
"info": "",
"x": 1770,
"y": 600,
"wires": []
},
{
"id": "1a65125f.38c11e",
"type": "ioBroker in",
"z": "89394b0c.86b5a8",
"name": "Steuerung aktiv?",
"topic": "0_userdata.0.Poolsteuerung.Steuerung_aktiv",
"payloadType": "value",
"onlyack": "",
"func": "all",
"gap": "",
"fireOnStart": "true",
"x": 200,
"y": 840,
"wires": [
[
"f7e5cf2d.5f8ed"
]
]
},
{
"id": "683f53b1.de0e7c",
"type": "ioBroker in",
"z": "89394b0c.86b5a8",
"name": "Solarunterstützung aktiv?",
"topic": "0_userdata.0.Poolsteuerung.Temperatursteuerung.Solarunterstützung_aktiv",
"payloadType": "value",
"onlyack": "",
"func": "all",
"gap": "",
"fireOnStart": "true",
"x": 230,
"y": 900,
"wires": [
[
"f7e5cf2d.5f8ed"
]
]
},
{
"id": "bc5c5753.f8c1c8",
"type": "ioBroker in",
"z": "89394b0c.86b5a8",
"name": "Steuerung aktiv?",
"topic": "0_userdata.0.Poolsteuerung.Steuerung_aktiv",
"payloadType": "value",
"onlyack": "",
"func": "all",
"gap": "",
"fireOnStart": "true",
"x": 200,
"y": 1560,
"wires": [
[
"2300818d.73d40e"
]
]
},
{
"id": "eabe6b1.5bb8f98",
"type": "ioBroker in",
"z": "89394b0c.86b5a8",
"name": "Heizen mit Wärmepumpe aktiv?",
"topic": "0_userdata.0.Poolsteuerung.Temperatursteuerung.Wärmepumpe_aktiv",
"payloadType": "value",
"onlyack": "",
"func": "all",
"gap": "",
"fireOnStart": "true",
"x": 250,
"y": 1620,
"wires": [
[
"2300818d.73d40e"
]
]
},
{
"id": "27231f4f.e8c2b",
"type": "BooleanLogicUltimate",
"z": "89394b0c.86b5a8",
"name": "Oder",
"filtertrue": "both",
"persist": true,
"sInitializeWith": "WaitForPayload",
"triggertopic": "trigger",
"outputtriggeredby": "all",
"inputCount": 2,
"topic": "result",
"x": 710,
"y": 980,
"wires": [
[],
[
"6b46e83d.9f89b8"
],
[]
]
},
{
"id": "16a5792e.1472f7",
"type": "ioBroker in",
"z": "89394b0c.86b5a8",
"name": "Solarunterstützung Dauer Ein/Aus",
"topic": "0_userdata.0.Poolsteuerung.Temperatursteuerung.Solarunterstützung_manuell",
"payloadType": "value",
"onlyack": "",
"func": "all",
"gap": "",
"fireOnStart": "true",
"x": 260,
"y": 980,
"wires": [
[
"27231f4f.e8c2b"
]
]
},
{
"id": "4e582112.bd9e5",
"type": "BooleanLogicUltimate",
"z": "89394b0c.86b5a8",
"name": "",
"filtertrue": "both",
"persist": true,
"sInitializeWith": "WaitForPayload",
"triggertopic": "trigger",
"outputtriggeredby": "all",
"inputCount": 2,
"topic": "result",
"x": 820,
"y": 1480,
"wires": [
[],
[
"8a5de38e.7929e"
],
[]
]
},
{
"id": "591c2bb5.6016a4",
"type": "ioBroker in",
"z": "89394b0c.86b5a8",
"name": "Wärmepumpe Dauer E/n/Aus",
"topic": "0_userdata.0.Poolsteuerung.Temperatursteuerung.Wärmepumpe_manuell",
"payloadType": "value",
"onlyack": "",
"func": "all",
"gap": "",
"fireOnStart": "true",
"x": 540,
"y": 1560,
"wires": [
[
"4e582112.bd9e5"
]
]
},
{
"id": "151fbbd6.82ff64",
"type": "ioBroker out",
"z": "89394b0c.86b5a8",
"name": "Filterpumpe",
"topic": "hm-rpc.3.REQ1241895.1.STATE",
"ack": "false",
"autoCreate": "false",
"stateName": "",
"role": "",
"payloadType": "",
"readonly": "",
"stateUnit": "",
"stateMin": "",
"stateMax": "",
"x": 1010,
"y": 1840,
"wires": []
},
{
"id": "26fc5e80.485f12",
"type": "BooleanLogicUltimate",
"z": "89394b0c.86b5a8",
"name": "",
"filtertrue": "both",
"persist": true,
"sInitializeWith": "WaitForPayload",
"triggertopic": "trigger",
"outputtriggeredby": "all",
"inputCount": "4",
"topic": "result",
"x": 490,
"y": 1840,
"wires": [
[],
[
"ff9e5924.99fd08"
],
[]
]
},
{
"id": "a8db85c1.6843d8",
"type": "comment",
"z": "89394b0c.86b5a8",
"name": "Ansteuerung Filterpumpe",
"info": "",
"x": 530,
"y": 1740,
"wires": []
},
{
"id": "a4b0d5bc.a9fe48",
"type": "trigger",
"z": "89394b0c.86b5a8",
"name": "Laufzeit 5min",
"op1": "1",
"op2": "0",
"op1type": "str",
"op2type": "str",
"duration": "5",
"extend": false,
"overrideDelay": false,
"units": "min",
"reset": "",
"bytopic": "all",
"topic": "topic",
"outputs": 1,
"x": 1190,
"y": 1300,
"wires": [
[
"bc8faceb.0a56e"
]
]
},
{
"id": "9da27ed0.eae5e",
"type": "rbe",
"z": "89394b0c.86b5a8",
"name": "entprellen",
"func": "rbe",
"gap": "",
"start": "",
"inout": "out",
"septopics": true,
"property": "payload",
"x": 660,
"y": 1200,
"wires": [
[
"639840c5.cf2c"
]
]
},
{
"id": "893287f3.bbeac8",
"type": "trigger",
"z": "89394b0c.86b5a8",
"name": "alle 30 min erneut einschalten",
"op1": "1",
"op2": "0",
"op1type": "str",
"op2type": "str",
"duration": "-30",
"extend": false,
"overrideDelay": false,
"units": "min",
"reset": "",
"bytopic": "all",
"topic": "topic",
"outputs": 1,
"x": 930,
"y": 1300,
"wires": [
[
"a4b0d5bc.a9fe48"
]
]
},
{
"id": "6cae00d1.7bcd6",
"type": "inject",
"z": "89394b0c.86b5a8",
"name": "Prüfen 20:00Uhr",
"props": [
{
"p": "payload"
}
],
"repeat": "",
"crontab": "*/1 20-23 * * *",
"once": false,
"onceDelay": 0.1,
"topic": "",
"payload": "true",
"payloadType": "bool",
"x": 210,
"y": 2340,
"wires": [
[
"673accb8.5242a4"
]
]
},
{
"id": "673accb8.5242a4",
"type": "ioBroker get",
"z": "89394b0c.86b5a8",
"name": "Hole Laufzeit_Tag",
"topic": "0_userdata.0.Poolsteuerung.Filteranlage.Laufzeit_Tag",
"attrname": "payload",
"payloadType": "value",
"x": 430,
"y": 2340,
"wires": [
[
"dd3ddd1f.fa71b"
]
]
},
{
"id": "a1c375e7.71c418",
"type": "switch",
"z": "89394b0c.86b5a8",
"name": "Laufzeit prüfen",
"property": "payload",
"propertyType": "msg",
"rules": [
{
"t": "jsonata_exp",
"v": "gelaufen <= 300",
"vt": "jsonata"
},
{
"t": "jsonata_exp",
"v": "gelaufen > 300",
"vt": "jsonata"
}
],
"checkall": "true",
"repair": false,
"outputs": 2,
"x": 860,
"y": 2340,
"wires": [
[
"a6569b85.5478d8"
],
[
"c5b2c068.01f4a"
]
]
},
{
"id": "dd3ddd1f.fa71b",
"type": "change",
"z": "89394b0c.86b5a8",
"name": "setze msg",
"rules": [
{
"t": "move",
"p": "payload",
"pt": "msg",
"to": "gelaufen",
"tot": "msg"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 670,
"y": 2340,
"wires": [
[
"a1c375e7.71c418"
]
]
},
{
"id": "a6569b85.5478d8",
"type": "change",
"z": "89394b0c.86b5a8",
"name": "setze true",
"rules": [
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "true",
"tot": "bool"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 1100,
"y": 2320,
"wires": [
[
"32290619.37b98a"
]
]
},
{
"id": "83ea4baa.e261f8",
"type": "rbe",
"z": "89394b0c.86b5a8",
"name": "Trigger",
"func": "rbe",
"gap": "",
"start": "",
"inout": "out",
"septopics": true,
"property": "payload",
"x": 280,
"y": 2120,
"wires": [
[
"426bfb66.27e944"
]
]
},
{
"id": "32290619.37b98a",
"type": "ioBroker out",
"z": "89394b0c.86b5a8",
"name": "Pumpe Nachlaufzeit",
"topic": "0_userdata.0.Poolsteuerung.Filteranlage.Pumpe_Nachlaufzeit",
"ack": "true",
"autoCreate": "false",
"stateName": "",
"role": "",
"payloadType": "",
"readonly": "",
"stateUnit": "",
"stateMin": "",
"stateMax": "",
"x": 1340,
"y": 2320,
"wires": []
},
{
"id": "c5b2c068.01f4a",
"type": "change",
"z": "89394b0c.86b5a8",
"name": "setze false",
"rules": [
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "false",
"tot": "bool"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 1110,
"y": 2380,
"wires": [
[
"32290619.37b98a"
]
]
},
{
"id": "4aa9482f.e7c288",
"type": "ioBroker in",
"z": "89394b0c.86b5a8",
"name": "Pumpe Nachlaufzeit",
"topic": "0_userdata.0.Poolsteuerung.Filteranlage.Pumpe_Nachlaufzeit",
"payloadType": "value",
"onlyack": "",
"func": "all",
"gap": "",
"fireOnStart": "true",
"x": 210,
"y": 1960,
"wires": [
[
"26fc5e80.485f12"
]
]
},
{
"id": "e52739a4.f06978",
"type": "comment",
"z": "89394b0c.86b5a8",
"name": "Nachlaufzeit",
"info": "",
"x": 850,
"y": 2280,
"wires": []
},
{
"id": "ff9e5924.99fd08",
"type": "rbe",
"z": "89394b0c.86b5a8",
"name": "entprellen",
"func": "rbe",
"gap": "",
"start": "",
"inout": "out",
"septopics": true,
"property": "payload",
"x": 660,
"y": 1840,
"wires": [
[
"151fbbd6.82ff64",
"e7444e07.459cf",
"83ea4baa.e261f8"
]
]
},
{
"id": "8a5de38e.7929e",
"type": "rbe",
"z": "89394b0c.86b5a8",
"name": "entprellen",
"func": "rbe",
"gap": "",
"start": "",
"inout": "out",
"septopics": true,
"property": "payload",
"x": 1000,
"y": 1480,
"wires": [
[
"4666bdd7.4b3044",
"64d819d.ac203e8"
]
]
},
{
"id": "6b46e83d.9f89b8",
"type": "rbe",
"z": "89394b0c.86b5a8",
"name": "entprellen",
"func": "rbe",
"gap": "",
"start": "",
"inout": "out",
"septopics": true,
"property": "payload",
"x": 940,
"y": 980,
"wires": [
[
"b22cf1e2.189de",
"7a7db09f.ea9fc",
"d10301b7.ef0ef",
"bc8faceb.0a56e"
]
]
},
{
"id": "598cc201.e0e62c",
"type": "rbe",
"z": "89394b0c.86b5a8",
"name": "entprellen",
"func": "rbe",
"gap": "",
"start": "",
"inout": "out",
"septopics": true,
"property": "payload",
"x": 1700,
"y": 1220,
"wires": [
[
"bda9097.228eff8",
"72a0e2ab.04ea5c"
]
]
},
{
"id": "639840c5.cf2c",
"type": "switch",
"z": "89394b0c.86b5a8",
"name": "nur ausführen bei true",
"property": "payload",
"propertyType": "msg",
"rules": [
{
"t": "false"
},
{
"t": "true"
}
],
"checkall": "true",
"repair": false,
"outputs": 2,
"x": 900,
"y": 1200,
"wires": [
[
"537f0467.80407c"
],
[
"893287f3.bbeac8"
]
]
},
{
"id": "18da7235.f874ee",
"type": "ioBroker in",
"z": "89394b0c.86b5a8",
"name": "Anf_Pumpe_von_WP",
"topic": "0_userdata.0.Poolsteuerung.Filteranlage.Anf_Pumpe_von_WP",
"payloadType": "value",
"onlyack": "",
"func": "all",
"gap": "",
"fireOnStart": "true",
"x": 220,
"y": 1840,
"wires": [
[
"26fc5e80.485f12"
]
]
},
{
"id": "8c28dba9.cc42c8",
"type": "ioBroker in",
"z": "89394b0c.86b5a8",
"name": "Pumpe manuell",
"topic": "0_userdata.0.Poolsteuerung.Filteranlage.Pumpe_manuell",
"payloadType": "value",
"onlyack": "",
"func": "all",
"gap": "",
"fireOnStart": "true",
"x": 200,
"y": 1900,
"wires": [
[
"26fc5e80.485f12"
]
]
},
{
"id": "bc8faceb.0a56e",
"type": "BooleanLogicUltimate",
"z": "89394b0c.86b5a8",
"name": "",
"filtertrue": "both",
"persist": true,
"sInitializeWith": "false",
"triggertopic": "trigger",
"outputtriggeredby": "all",
"inputCount": 2,
"topic": "result",
"x": 1500,
"y": 1220,
"wires": [
[],
[
"598cc201.e0e62c"
],
[]
]
},
{
"id": "36244687.bf616a",
"type": "inject",
"z": "89394b0c.86b5a8",
"name": "",
"props": [
{
"p": "payload"
}
],
"repeat": "",
"crontab": "",
"once": false,
"onceDelay": 0.1,
"topic": "",
"payload": "true",
"payloadType": "bool",
"x": 1880,
"y": 800,
"wires": [
[
"389afbfa.d856b4"
]
]
},
{
"id": "72a0e2ab.04ea5c",
"type": "debug",
"z": "89394b0c.86b5a8",
"name": "",
"active": true,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "false",
"statusVal": "",
"statusType": "auto",
"x": 1950,
"y": 1300,
"wires": []
},
{
"id": "537f0467.80407c",
"type": "change",
"z": "89394b0c.86b5a8",
"name": "",
"rules": [
{
"t": "set",
"p": "reset",
"pt": "msg",
"to": "true",
"tot": "bool"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 1160,
"y": 1200,
"wires": [
[
"893287f3.bbeac8"
]
]
}
]
dazu habe ich eine einfach vis -läuft auf einen Raspi Zero mit 10.1" Toch Display im Edelstahl Gehäuße:
Zustand "Steuerung aus"
Zustand "Steuerung an"
Seite 2
Vielleicht kann der eine, oder ander hier was mitnehmen. Ich habe bei dem Projekt unheimlich viel gelernt.
Achtung: Ich habe noch einen Fehler endeckt: Das Schalten der Homematic Aktoren aus dem Node geht nur wenn wenn der Sendungstyp "command" ist, nicht "value"!
Danke an @mickym !!!
Update 26.04.2021: habe nun nach einigen Tagen live testen, noch ein paar bugs gefunden und den Export aktualisiert.
LG Torsten
Hi, habe es erst einmal mit dem Telegram Messenger gelöst.
Das war relativ einfach, dank der Anleitung von @haus-automatisierung. Besten Dank dafür
VG Torsten
@mickym said in Wert für alle Objekte in einem Order setzen:
Ja immer die Leute, die Sonderzeichen in Objekten verwenden.
jaja, schon verstanden, bisher war es kein Problem...
Aber nun zum wesentlichen: es funktioniert tatsächlich!
Dankeschön!!!
@accu
Wenn es nicht unbedingt ein Stream sein muss, ich habe das mit dem Telegramm Messenger umgesetzt.
Ich bekomme beim Klingeln eine Message aufs Smartphone geschickt, inkl. dem Snapshot meiner Kamera, die über dem Eingang im Vordach hängt.
Das funktioniert so zuverlässig, das ich erstmal die Anleitung raussuchen muss...
VG Torsten
mal wieder etwas Zeit gehabt:
Die Installation und auch den richtigen Pfad gefunden:
/home/pi/pyatv_venv/bin
Auch die AppleTVs habe ich jetzt gefunden und konnte mich sich verbinden:
atvremote --id XX:XX:XX:XX:XX --protocol companion pair
Enter PIN on screen: 2723
Pairing seems to have succeeded, yey!
You may now use these credentials: XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
(pyatv_venv) pi@raspberrypi:~ $ atvremote --id XX:XX:XX:XX:XX --protocol airplay pair
Enter PIN on screen: 5178
Pairing seems to have succeeded, yey!
You may now use these credentials: XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
leider bekomme ich jetzt im Debug Fehler:
Error: Got pyatv Error: Odd-length string
pyatv Stacktrace:
Traceback (most recent call last):
File "/home/pi/pyatv_venv/lib/python3.11/site-packages/pyatv/scripts/atvscript.py", line 395, in appstart
args.output(await _handle_command(args, abort_sem, storage, loop)),
^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
File "/home/pi/pyatv_venv/lib/python3.11/site-packages/pyatv/scripts/atvscript.py", line 273, in _handle_command
atv = await connect(config, loop, storage=storage)
^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
File "/home/pi/pyatv_venv/lib/python3.11/site-packages/pyatv/__init__.py", line 155, in connect
await atv.connect()
File "/home/pi/pyatv_venv/lib/python3.11/site-packages/pyatv/core/facade.py", line 723, in connect
if await setup_data.connect():
^^^^^^^^^^^^^^^^^^^^^^^^^^
File "/home/pi/pyatv_venv/lib/python3.11/site-packages/pyatv/protocols/companion/__init__.py", line 644, in _connect
await api.connect()
File "/home/pi/pyatv_venv/lib/python3.11/site-packages/pyatv/protocols/companion/api.py", line 151, in connect
await self._protocol.start()
File "/home/pi/pyatv_venv/lib/python3.11/site-packages/pyatv/protocols/companion/protocol.py", line 103, in start
self.srp.pairing_id = parse_credentials(self.service.credentials).client_id
^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
File "/home/pi/pyatv_venv/lib/python3.11/site-packages/pyatv/auth/hap_pairing.py", line 141, in parse_credentials
ltpk = binascii.unhexlify(split[0])
^^^^^^^^^^^^^^^^^^^^^^^^^^^^
binascii.Error: Odd-length string
Hallo Zusammen...
Hat irgendwer diese Kombi am laufen???
NodeRed findet die pyatv Installation nicht...
Grüße Torsten...
Hat ein wenig gedauert, aber irgendwie habe ich es (glaube ich) geschafft:
pi@raspberrypi:~ $ python3 -m venv pyatv_venv
pi@raspberrypi:~ $ source pyatv_venv/bin/activate
(pyatv_venv) pi@raspberrypi:~ $ pip3 install pyatv
Looking in indexes: https://pypi.org/simple, https://www.piwheels.org/simple
Collecting pyatv
Downloading https://www.piwheels.org/simple/pyatv/pyatv-0.15.1-py3-none-any.whl (455 kB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 455.8/455.8 kB 3.1 MB/s eta 0:00:00
Collecting aiohttp<5,>=3.8.3
Downloading aiohttp-3.10.9-cp311-cp311-manylinux_2_17_aarch64.manylinux2014_aarch64.whl (1.3 MB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 1.3/1.3 MB 7.0 MB/s eta 0:00:00
Collecting async-timeout>=4.0.2
Downloading https://www.piwheels.org/simple/async-timeout/async_timeout-4.0.3-py3-none-any.whl (5.7 kB)
Collecting cryptography>=43.0.0
Downloading cryptography-43.0.1-cp39-abi3-manylinux_2_28_aarch64.whl (3.8 MB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 3.8/3.8 MB 10.1 MB/s eta 0:00:00
Collecting chacha20poly1305-reuseable>=0.13.2
Downloading https://www.piwheels.org/simple/chacha20poly1305-reuseable/chacha20poly1305_reuseable-0.13.2-py3-none-any.whl (8.6 kB)
Collecting ifaddr>=0.1.7
Downloading https://www.piwheels.org/simple/ifaddr/ifaddr-0.2.0-py3-none-any.whl (12 kB)
Collecting mediafile>=0.8.1
Downloading https://www.piwheels.org/simple/mediafile/mediafile-0.12.0-py3-none-any.whl (21 kB)
Collecting miniaudio>=1.45
Downloading miniaudio-1.61.tar.gz (1.1 MB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 1.1/1.1 MB 9.7 MB/s eta 0:00:00
Installing build dependencies ... done
Getting requirements to build wheel ... done
Preparing metadata (pyproject.toml) ... done
Collecting protobuf>=4.25.3
Downloading protobuf-5.28.2-cp38-abi3-manylinux2014_aarch64.whl (316 kB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 316.5/316.5 kB 8.5 MB/s eta 0:00:00
Collecting pydantic>=1.10.10
Downloading https://www.piwheels.org/simple/pydantic/pydantic-2.9.2-py3-none-any.whl (434 kB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 434.9/434.9 kB 2.8 MB/s eta 0:00:00
Collecting requests>=2.23.0
Downloading https://www.piwheels.org/simple/requests/requests-2.32.3-py3-none-any.whl (64 kB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 64.9/64.9 kB 4.8 MB/s eta 0:00:00
Collecting srptools>=0.2.0
Downloading https://www.piwheels.org/simple/srptools/srptools-1.0.1-py2.py3-none-any.whl (13 kB)
Collecting tabulate>=0.9.0
Downloading https://www.piwheels.org/simple/tabulate/tabulate-0.9.0-py3-none-any.whl (35 kB)
Collecting zeroconf>=0.129.0
Downloading zeroconf-0.135.0-cp311-cp311-manylinux_2_17_aarch64.manylinux2014_aarch64.whl (11.3 MB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 11.3/11.3 MB 9.3 MB/s eta 0:00:00
Collecting aiohappyeyeballs>=2.3.0
Downloading https://www.piwheels.org/simple/aiohappyeyeballs/aiohappyeyeballs-2.4.3-py3-none-any.whl (14 kB)
Collecting aiosignal>=1.1.2
Downloading https://www.piwheels.org/simple/aiosignal/aiosignal-1.3.1-py3-none-any.whl (7.6 kB)
Collecting attrs>=17.3.0
Downloading https://www.piwheels.org/simple/attrs/attrs-24.2.0-py3-none-any.whl (63 kB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 63.0/63.0 kB 548.6 kB/s eta 0:00:00
Collecting frozenlist>=1.1.1
Downloading frozenlist-1.4.1-cp311-cp311-manylinux_2_17_aarch64.manylinux2014_aarch64.whl (273 kB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 273.3/273.3 kB 2.3 MB/s eta 0:00:00
Collecting multidict<7.0,>=4.5
Downloading multidict-6.1.0-cp311-cp311-manylinux_2_17_aarch64.manylinux2014_aarch64.whl (131 kB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 131.1/131.1 kB 2.1 MB/s eta 0:00:00
Collecting yarl<2.0,>=1.12.0
Downloading yarl-1.13.1-cp311-cp311-manylinux_2_17_aarch64.manylinux2014_aarch64.whl (486 kB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 486.1/486.1 kB 9.2 MB/s eta 0:00:00
Collecting cffi>=1.12
Using cached cffi-1.17.1-cp311-cp311-manylinux_2_17_aarch64.manylinux2014_aarch64.whl (469 kB)
Collecting six>=1.9
Downloading https://www.piwheels.org/simple/six/six-1.16.0-py2.py3-none-any.whl (11 kB)
Collecting mutagen>=1.46
Downloading https://www.piwheels.org/simple/mutagen/mutagen-1.47.0-py3-none-any.whl (194 kB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 194.4/194.4 kB 2.3 MB/s eta 0:00:00
Collecting annotated-types>=0.6.0
Downloading https://www.piwheels.org/simple/annotated-types/annotated_types-0.7.0-py3-none-any.whl (13 kB)
Collecting pydantic-core==2.23.4
Downloading pydantic_core-2.23.4-cp311-cp311-manylinux_2_17_aarch64.manylinux2014_aarch64.whl (1.8 MB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 1.8/1.8 MB 9.9 MB/s eta 0:00:00
Collecting typing-extensions>=4.6.1
Downloading https://www.piwheels.org/simple/typing-extensions/typing_extensions-4.12.2-py3-none-any.whl (37 kB)
Collecting charset-normalizer<4,>=2
Downloading charset_normalizer-3.3.2-cp311-cp311-manylinux_2_17_aarch64.manylinux2014_aarch64.whl (136 kB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 136.6/136.6 kB 7.4 MB/s eta 0:00:00
Collecting idna<4,>=2.5
Downloading https://www.piwheels.org/simple/idna/idna-3.10-py3-none-any.whl (70 kB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 70.4/70.4 kB 816.7 kB/s eta 0:00:00
Collecting urllib3<3,>=1.21.1
Downloading https://www.piwheels.org/simple/urllib3/urllib3-2.2.3-py3-none-any.whl (126 kB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 126.3/126.3 kB 2.4 MB/s eta 0:00:00
Collecting certifi>=2017.4.17
Downloading https://www.piwheels.org/simple/certifi/certifi-2024.8.30-py3-none-any.whl (167 kB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 167.3/167.3 kB 3.9 MB/s eta 0:00:00
Collecting pycparser
Using cached https://www.piwheels.org/simple/pycparser/pycparser-2.22-py3-none-any.whl (117 kB)
Building wheels for collected packages: miniaudio
Building wheel for miniaudio (pyproject.toml) ... done
Created wheel for miniaudio: filename=miniaudio-1.61-cp311-cp311-linux_aarch64.whl size=597319 sha256=b9034626511536625a0eb8316e3b2d7e95733645b55dfd65551e7363c4cdf158
Stored in directory: /home/pi/.cache/pip/wheels/bf/c6/74/74b9a73657919dacc46d28c1142195b5ef844dcd505c0c4e49
Successfully built miniaudio
Installing collected packages: ifaddr, zeroconf, urllib3, typing-extensions, tabulate, six, pycparser, protobuf, mutagen, multidict, idna, frozenlist, charset-normalizer, certifi, attrs, async-timeout, annotated-types, aiohappyeyeballs, yarl, srptools, requests, pydantic-core, mediafile, cffi, aiosignal, pydantic, miniaudio, cryptography, aiohttp, chacha20poly1305-reuseable, pyatv
Successfully installed aiohappyeyeballs-2.4.3 aiohttp-3.10.9 aiosignal-1.3.1 annotated-types-0.7.0 async-timeout-4.0.3 attrs-24.2.0 certifi-2024.8.30 cffi-1.17.1 chacha20poly1305-reuseable-0.13.2 charset-normalizer-3.3.2 cryptography-43.0.1 frozenlist-1.4.1 idna-3.10 ifaddr-0.2.0 mediafile-0.12.0 miniaudio-1.61 multidict-6.1.0 mutagen-1.47.0 protobuf-5.28.2 pyatv-0.15.1 pycparser-2.22 pydantic-2.9.2 pydantic-core-2.23.4 requests-2.32.3 six-1.16.0 srptools-1.0.1 tabulate-0.9.0 typing-extensions-4.12.2 urllib3-2.2.3 yarl-1.13.1 zeroconf-0.135.0
(pyatv_venv) pi@raspberrypi:~ $
jetzt mal schauen wie es weiter geht...
@david-g der zweite Befehl ging schon in die Hose:
pi@raspberrypi:~ $ sudo pip3 install --upgrade pyatv
error: externally-managed-environment
× This environment is externally managed
╰─> To install Python packages system-wide, try apt install
python3-xyz, where xyz is the package you are trying to
install.
If you wish to install a non-Debian-packaged Python package,
create a virtual environment using python3 -m venv path/to/venv.
Then use path/to/venv/bin/python and path/to/venv/bin/pip. Make
sure you have python3-full installed.
For more information visit http://rptl.io/venv
note: If you believe this is a mistake, please contact your Python installation or OS distribution provider. You can override this, at the risk of breaking your Python installation or OS, by passing --break-system-packages.
hint: See PEP 668 for the detailed specification.
@david-g Hallo David,
habe es mir mal angelesen. Sollte eigentlich gut funktionieren, könnte man das pyatv parallel auf der ioBroker Installation laufen lassen?
Soweit ich das sehe, läuft das nicht als Service im Autostart. So fit bin ich in Linux definitiv nicht...
$ sudo apt-get install build-essential libssl-dev libffi-dev python3-dev python3-pip python3-cryptography python3-wheel
$ sudo pip3 install --upgrade pyatv
Gruß Torsten
Hi,
gibt es einen Befehl, oder einen Adapter außerhalb HAS mit dem man den AppleTV aufwecken und bestenfalls auch in den Ruhezustand setzen kann?
Ich glaube mal irgendwas für den JS Adapter über einen exec Aufruf gelesen zu haben.
Geht das überhaupt und wie kann man das dann in Node Red umsetzen?
Wie gesagt, ich möchte keine extra HAS Installation aufsetzen dafür. Homekit geht automatisch über das IPad, aber der Yakkra Adapter geht nur in Richtung Homekit....
VG Torsten
@marc-berg @mickym wie peinlich........
Fehler 40
Dankeschöööön
...in der RaspberryMatic war auch noch so einiges im Argen... aber jetzt geht es
ohweh
Hi,
wie bekomme ich einen Wert in den Datenpunkt geschrieben? Sollte doch nicht so schwer sein...
[
{
"id": "edef4c96a10b11fe",
"type": "ioBroker in",
"z": "8cdeb15dbc64feb6",
"name": "Heizung Sollwert",
"attrname": "payload",
"topic": "0_userdata.0.Heizung_Kopplung_KNX-Hm.Wohnzimmer.Heizung_Sollwert",
"payloadType": "value",
"onlyack": "",
"func": "all",
"gap": "",
"fireOnStart": "true",
"outFormat": "MQTT",
"x": 840,
"y": 2760,
"wires": [
[
"37e06f1e3c11f17a",
"e69052d30d548373"
]
]
},
{
"id": "37e06f1e3c11f17a",
"type": "ioBroker get",
"z": "8cdeb15dbc64feb6",
"name": "SET_TEMPERATURE Fenster",
"topic": "hm-rpc.3.NEQ0876013.4.SET_TEMPERATURE",
"attrname": "payload",
"payloadType": "value",
"errOnInvalidState": "nothing",
"x": 1110,
"y": 2760,
"wires": [
[]
]
},
{
"id": "e69052d30d548373",
"type": "ioBroker get",
"z": "8cdeb15dbc64feb6",
"name": "SET_TEMPERATURE Sofa",
"topic": "hm-rpc.3.NEQ0876019.4.SET_TEMPERATURE",
"attrname": "payload",
"payloadType": "value",
"errOnInvalidState": "nothing",
"x": 1100,
"y": 2820,
"wires": [
[]
]
}
]
wenn ich den Datenpunkt in den ioBroker Objekten ändere, funktioniert das tadelos.
Auch der Datenpunkt MANU Mode SET.Temperatur reagiert genauso nur in den Objekten.
Ich finde einfach meinen Denkfehler nicht...
Danke und VG Torsten
@thomas-braun
Du hast Recht. Bei mir wohnte da nur noch gpio, vom rp2 Adapter.
In dem Fall also egal.
Ich nehme deinen Rat aber gerne an und korrigiere mich oben entsprechend.
Das /opt Verzeichnis wurde übrigens mit den richtigen Rechten wieder bei der Installation neu erstellt.
