[Rogni]

Ich bin grade dabei den FoxEss Wechselrichter per Modbus einzurichten. Hier einige Blockly Scripte:

Einmal die Solar Panel Leistung und einmal Einspeisung und Bezug.

Ich habe mal versucht den Eigenverbrauch zu ermitteln:

Keien Gewähr ob das so richtig ist. Laut meiner Tabelle würde der WR zwischen 100 und 150W verbrauchen.

P.S.: Die untere Rechnung passt auf jeden Fall nicht ;(

[Rogni]

@MrX552 @Homoran wie im vorigen Post angegeben habe ich ein paar kleine Blocklys gemacht, das letzte kann man ignorieren.

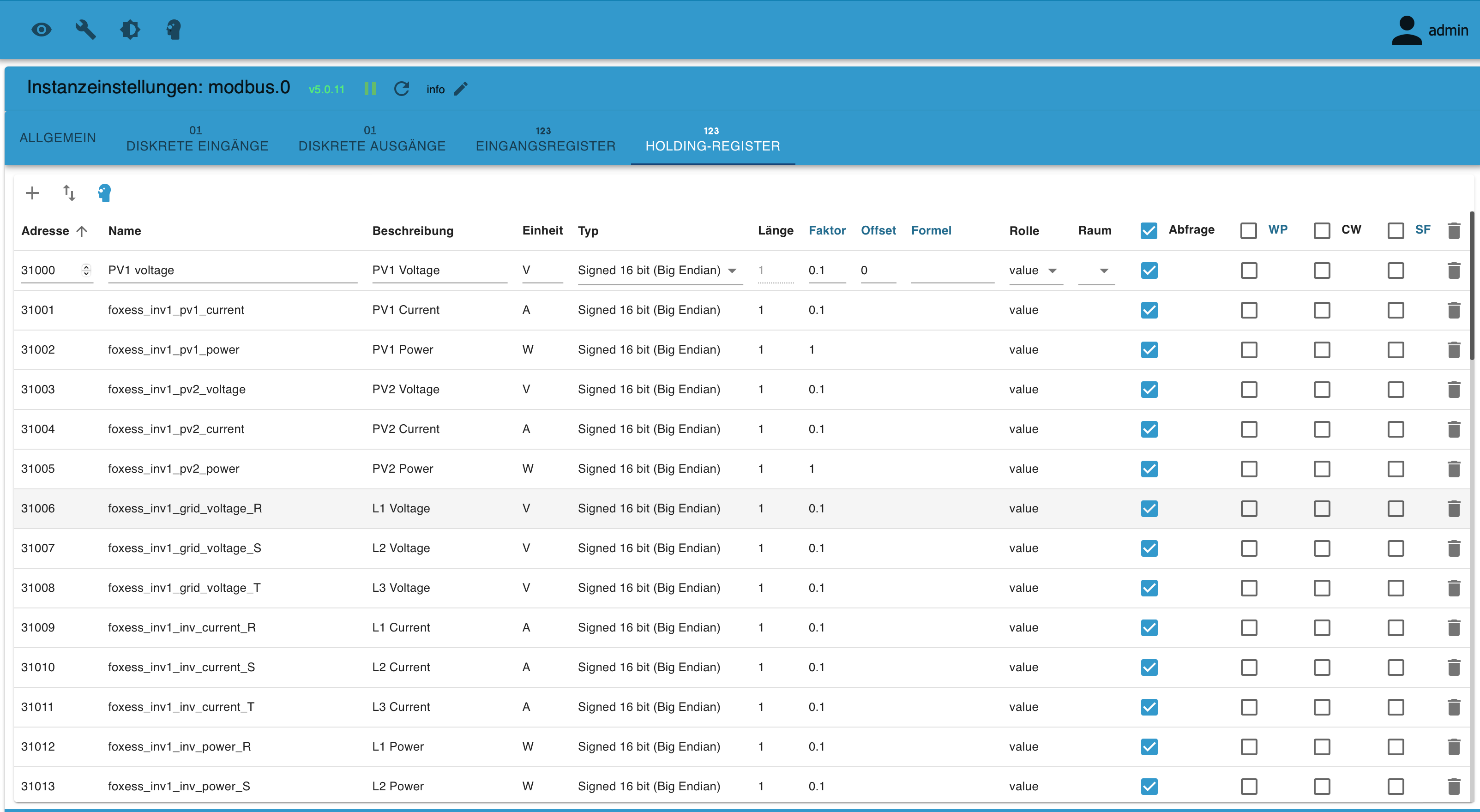

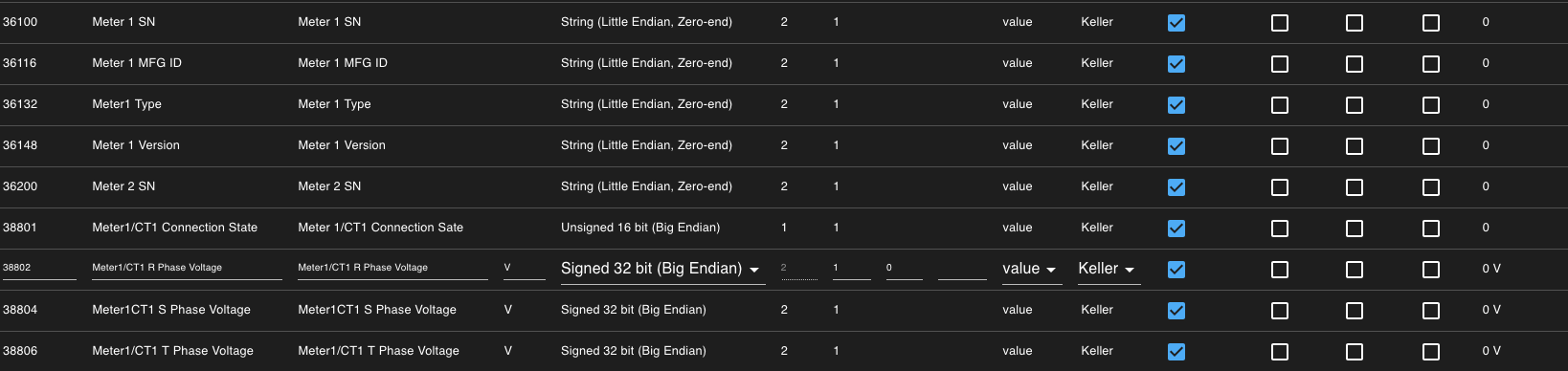

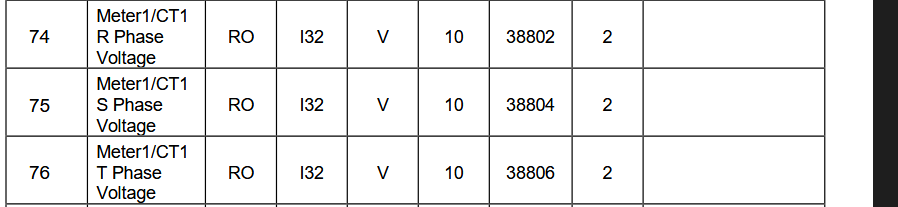

Auf Nachfrage bei FoxESS habe ich neue Register erhalten, wahrscheinlich die Abfrage vom Chint.

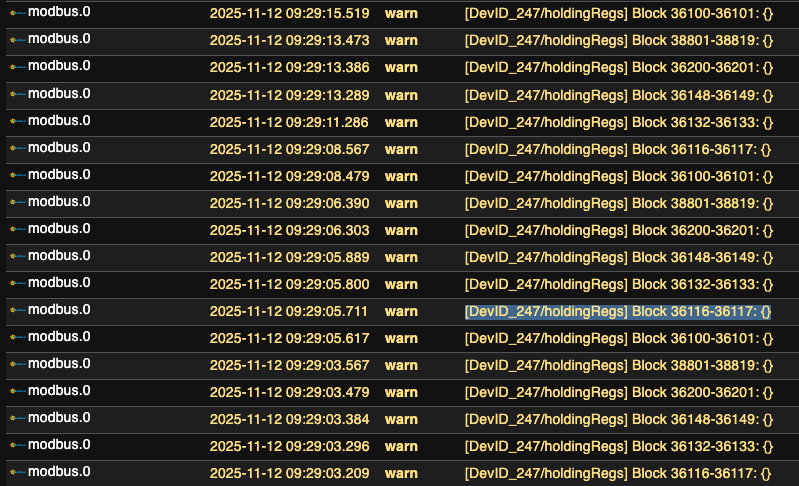

Allerdings bekomme ich hier keine Werte:

und Modbus gibt das zurück:

Damit kann ich für mich leider nix anfangen Evtl. könnt Ihr Licht ins Dinkel bringen??

[Homoran]

@rogni sagte in FoxEss H3 Wechselrichter per Modbus in ioBroker:

Damit kann ich für mich leider nix anfangen

ich auch nichts.
Logs und code bitte immer als Text in code-tags posten!
kleine schwarze Microfilme kann ich mobil nicht entziffern

[Rogni]

@homoran erstmal vielen Dank für die schnelle Antwort. Sorry, dann mach ich das in code. Habe Fox ESS nochmal angeschrieben und mir wurde nochmals bestätigt das es die richtigen Register sind. Aber ich denke da kann was net stimmen.

Hier nochmal den Log als Code:

modbus.0
	2025-11-12 10:47:50.223	warn	[DevID_247/holdingRegs] Block 38801-38819: {}
modbus.0
	2025-11-12 10:47:50.135	warn	[DevID_247/holdingRegs] Block 36200-36201: {}
modbus.0
	2025-11-12 10:47:50.045	warn	[DevID_247/holdingRegs] Block 36148-36149: {}
modbus.0
	2025-11-12 10:47:49.952	warn	[DevID_247/holdingRegs] Block 36132-36133: {}
modbus.0
	2025-11-12 10:47:49.859	warn	[DevID_247/holdingRegs] Block 36116-36117: {}
modbus.0
	2025-11-12 10:47:49.772	warn	[DevID_247/holdingRegs] Block 36100-36101: {}

[Homoran]

@rogni sagte in FoxEss H3 Wechselrichter per Modbus in ioBroker:

Habe Fox ESS nochmal angeschrieben und mit wurde nochmals bestätigt das es die richtigen Register sind.

hast du auch die entsprechende Firmware?

@rogni sagte in FoxEss H3 Wechselrichter per Modbus in ioBroker:

modbus.0 10:47:50.223 warn [DevID_247/holdingRegs] Block 38801-38819: {}

gibt es auch debug Ausgaben?

wer ist DevID 247?
wie sehen deine Grundeinstellungen aus?

was ist Register 38801-38819 (bzw. die anderen angemeckerten)?
fragst du die auch ab?
wie sehen da deine Grundeinstellungen aus?

Holdingregister sind üblicherweise 40xxx

[Rogni]

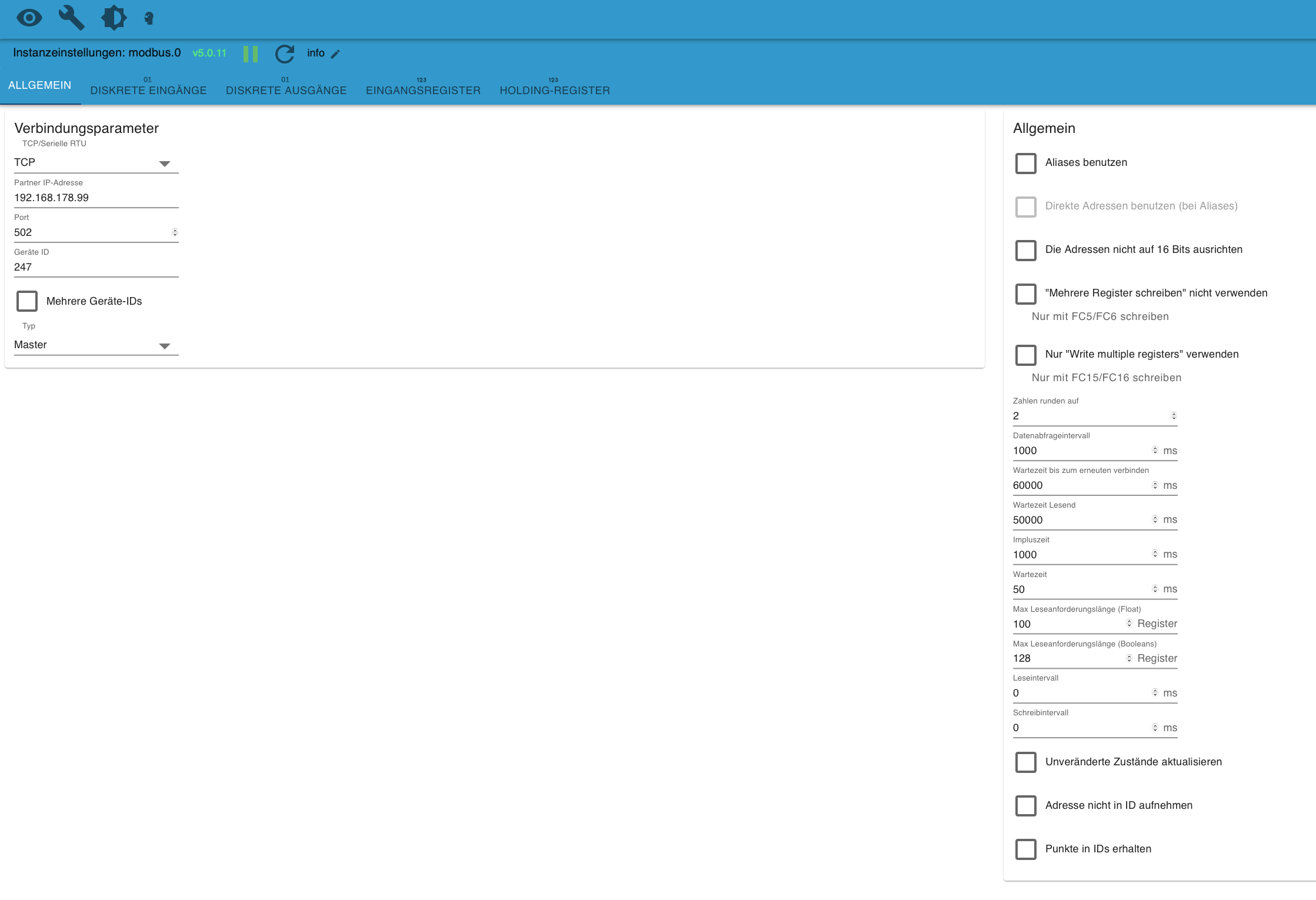

@homoran okay, Fehler von mir, ich hab alles unter Holding Register. kann ich die irgendwie rüberkopieren oder muß ich alle in per Hand in Eingangsregister eintragen?? Nochmal Danke, Hammer Antwortzeit !!! kann ich Dir dateien schicken?? Da ich unterschrieben habe das nicht zu veröffentlichen Firmware is ne gute Frage.. Register hab ich nur mal ein paar der angegeben eingetragen, sonst kommen da ja Fehler ohne Ende.

Dev ID ist die Geräte ID 247 (die muss auch so da stehen)

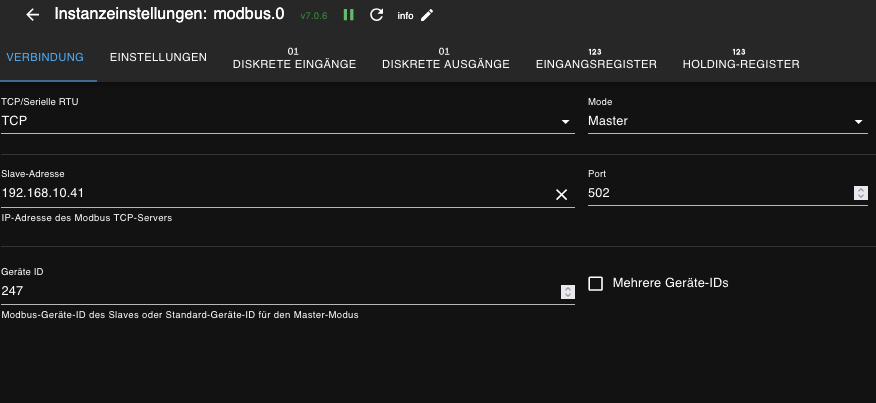

TCP/serielle = TCP
Mode = Master

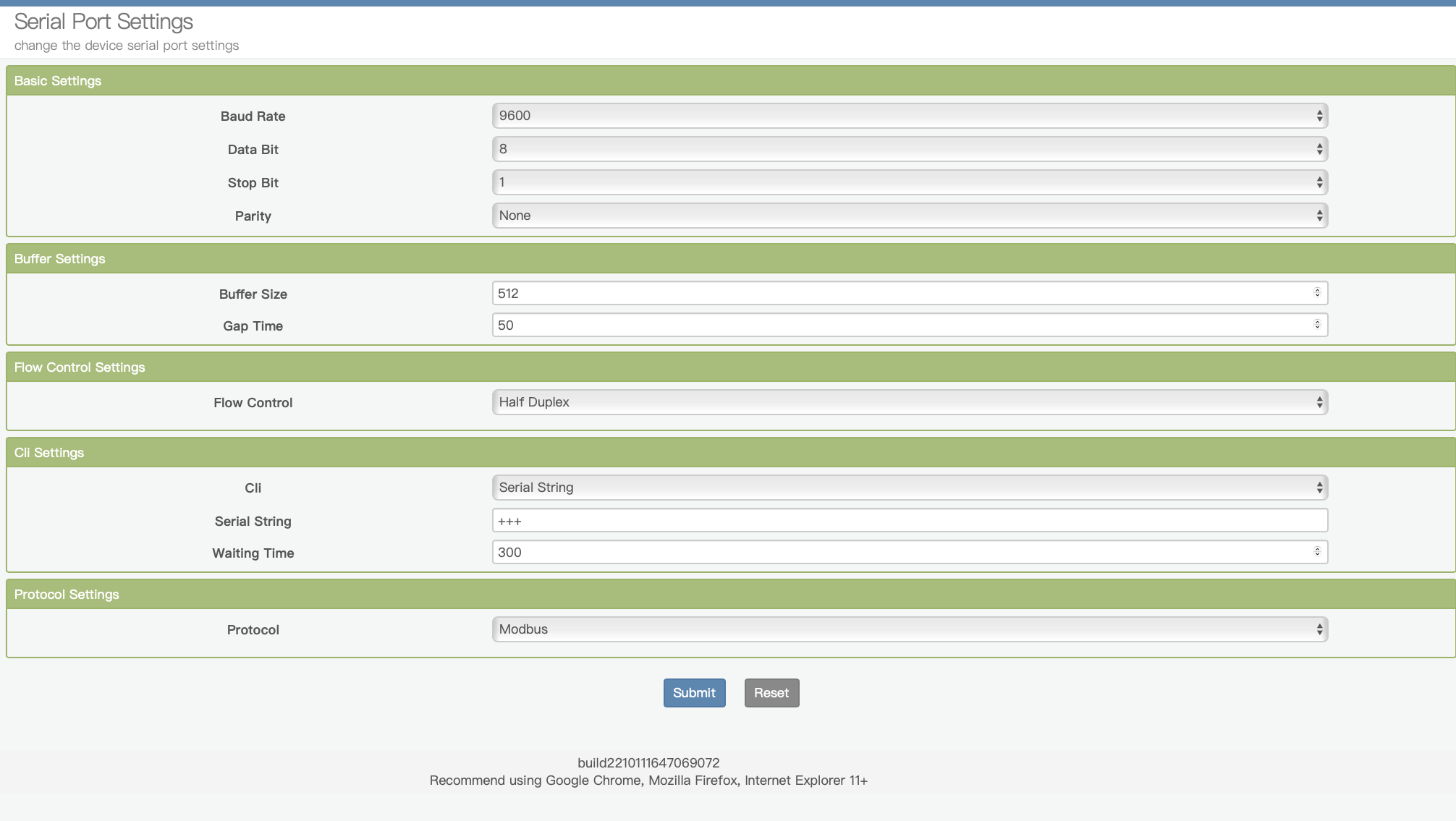

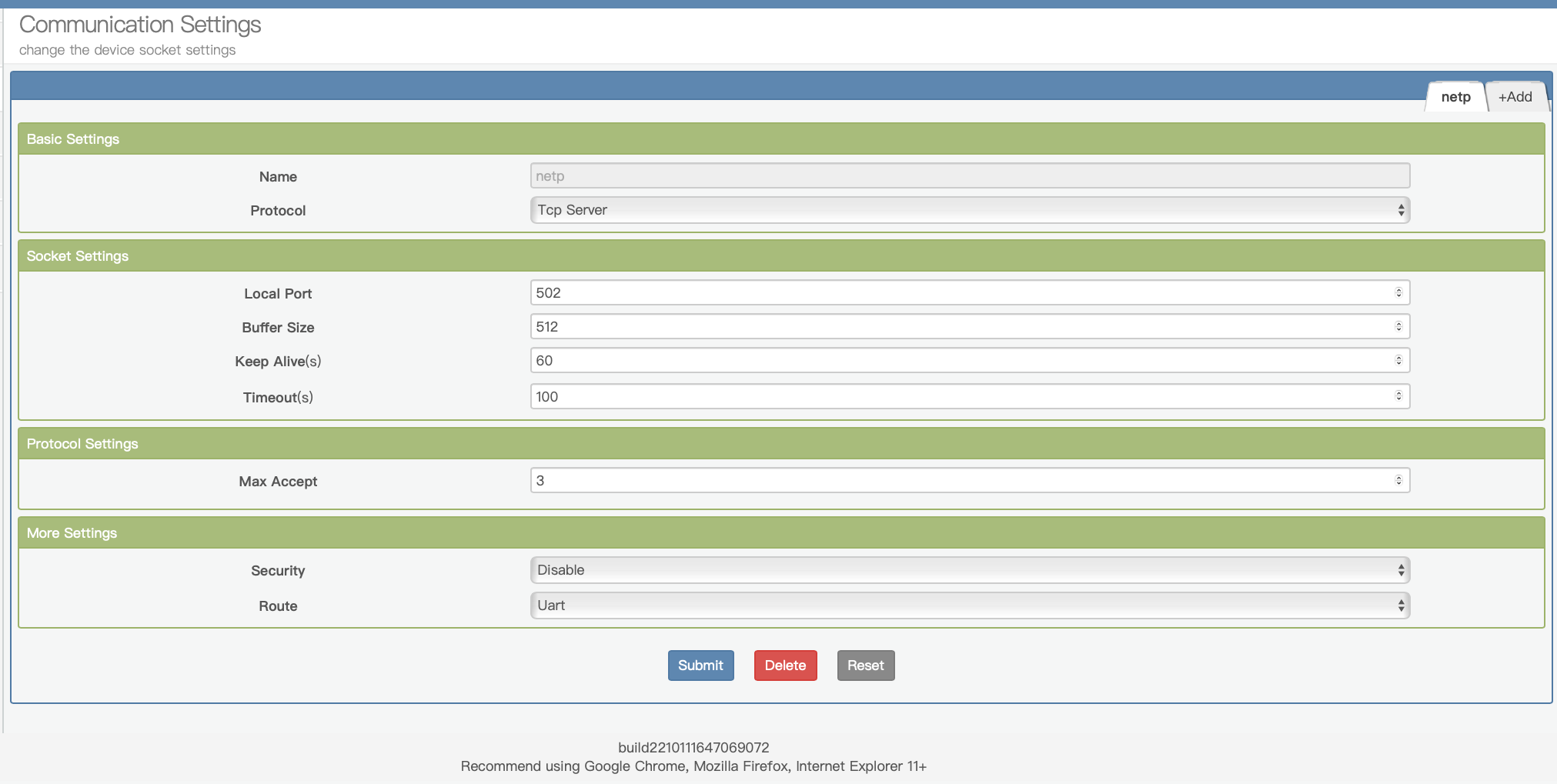

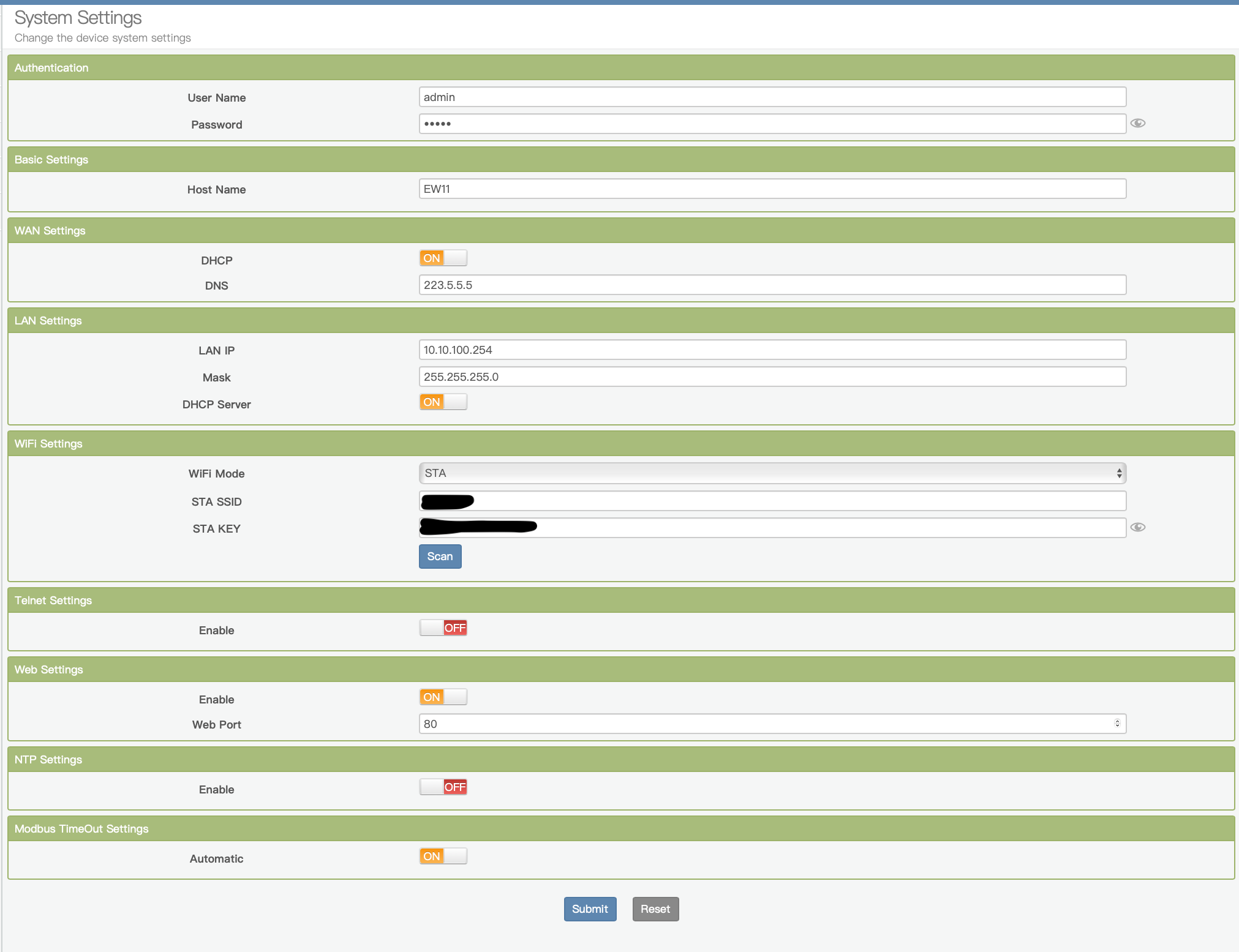

Slave Adresse = IP Adresse vom EW11
Port = 502
Geräte ID = 247

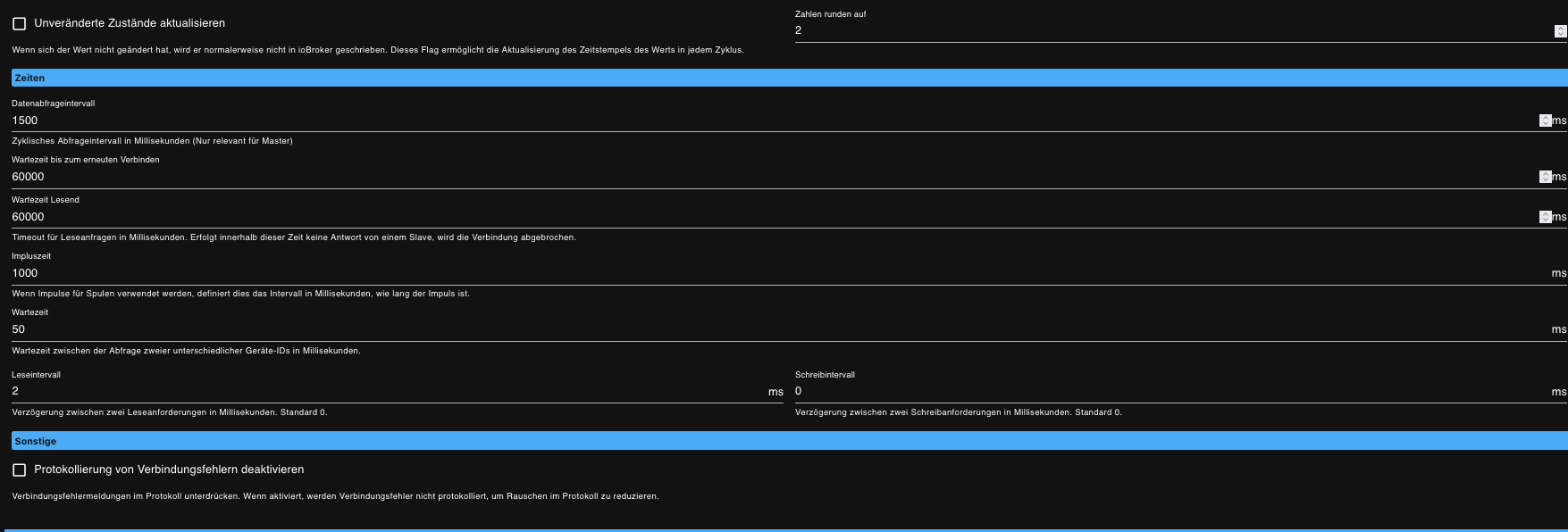

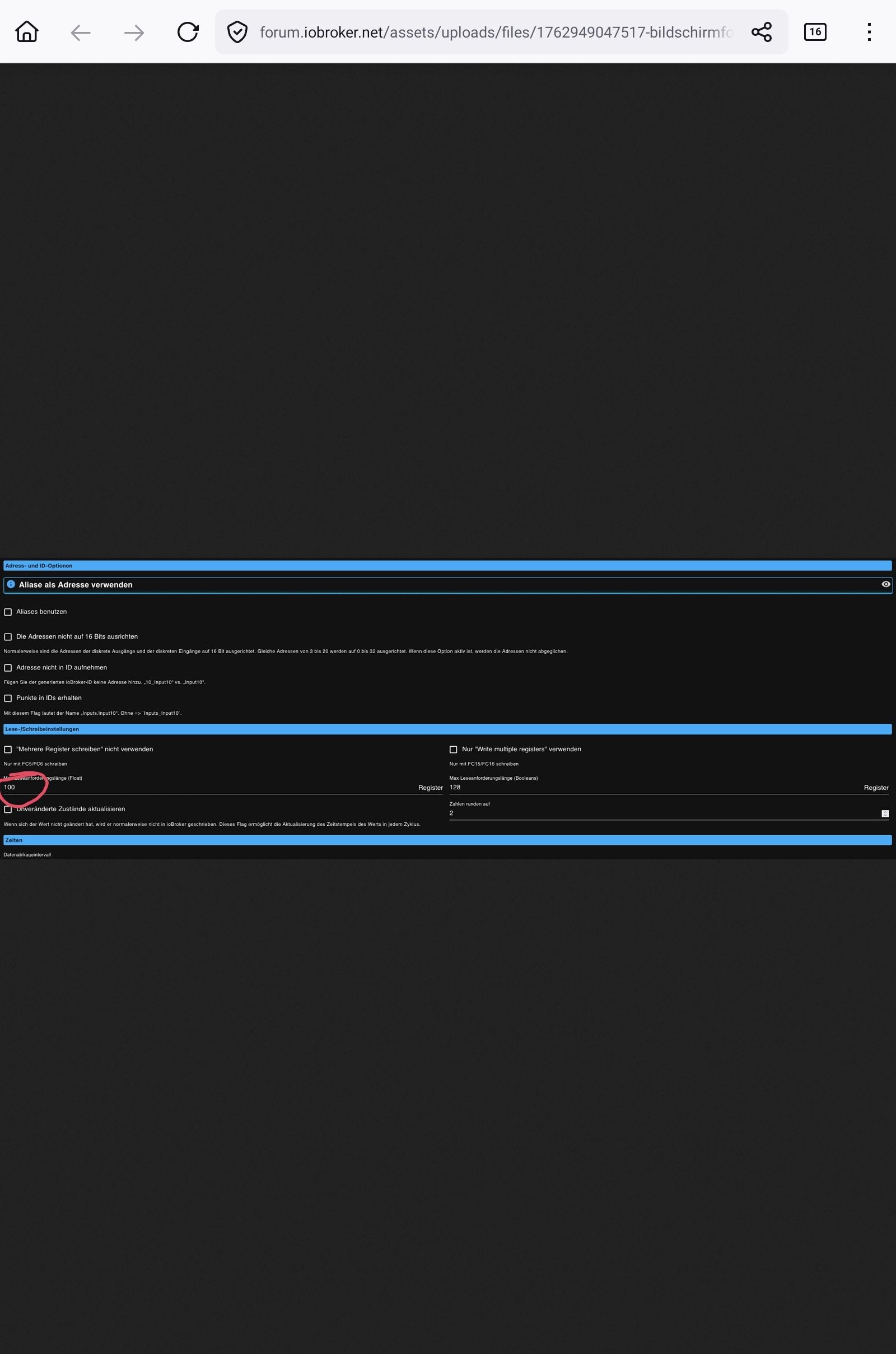

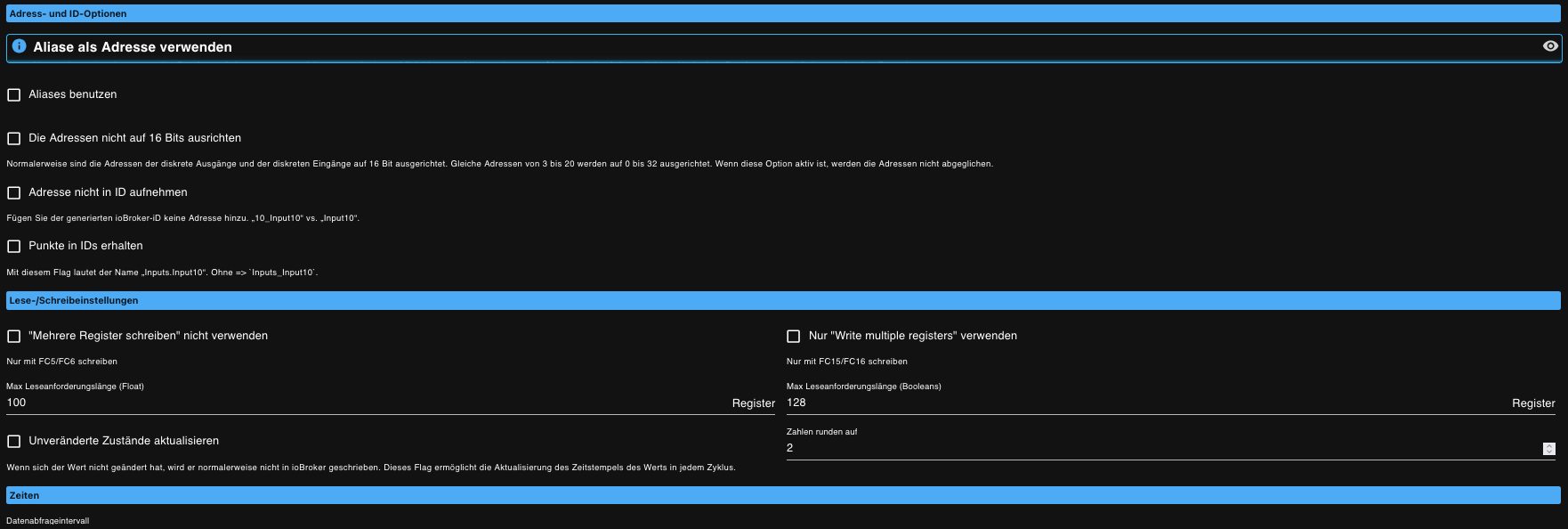

Register. Max Leseanforderungslänge (Booleans) 128
Register Unveränderte Zustände aktualisieren 100

Zahlen runden auf 2
Zeiten Datenabfrageintervall

Zyklisches Abfrageintervall in Millisekunden (Nur relevant für Master) = 1500
Wartezeit bis zum erneuten Verbinden 60000 ms

Timeout für Leseanfragen in Millisekunden. Erfolgt innerhalb dieser Zeit keine Antwort von einem Slave, wird die Verbindung abgebrochen.
Wartezeit Lesend= 60000 ms

Wenn Impulse für Spulen verwendet werden, definiert dies das Intervall in Millisekunden, wie lang der Impuls ist.
Impulszeit= 1000ms

Wartezeit zwischen der Abfrage zweier unterschiedlicher Geräte-IDs in Millisekunden.
Wartezeit = 50 ms

Verzögerung zwischen zwei Leseanforderungen in Millisekunden. Standard 0.
Leseintercall= 2 ms
Schreibintervall = 0 ms

Verzögerung zwischen zwei Schreibanforderungen in Millisekunden. Standard 0.
Sonstige
Protokollierung von Verbindungsfehlern deaktivieren

Nix angekreuzt

Ich habe 2 verschiedene PDF von Fox bekommen. Die eingetragenen aus dem "alten" Dokument funktionieren auch soweit alle. Mir fehlr da nur die Angabe von Meter (Chint). deswegen hatte ich Fox nochmal angeschrieben. in diesem Dokument sind die Register wieder ganz andere und der Teil den ich da abfrage funzt auch net.
hier nochmal der Debug:

modbus.0
	2025-11-12 12:15:34.551	info	terminating
modbus.0
	2025-11-12 12:15:34.394	debug	Cleaning up request fifo.
modbus.0
	2025-11-12 12:15:34.394	debug	Clearing timeout of the current request.
modbus.0
	2025-11-12 12:15:34.393	debug	Socket closed
modbus.0
	2025-11-12 12:15:34.116	info	State value to set for "modbus.0.info.connection" has to be type "boolean" but received type "string"
modbus.0
	2025-11-12 12:15:34.076	info	Terminated (ADAPTER_REQUESTED_TERMINATION): Without reason
modbus.0
	2025-11-12 12:15:34.076	debug	Plugin sentry destroyed
modbus.0
	2025-11-12 12:15:34.075	info	terminating
modbus.0
	2025-11-12 12:15:34.049	debug	Closing client on purpose.
modbus.0
	2025-11-12 12:15:34.047	info	Got terminate signal TERMINATE_YOURSELF
modbus.0
	2025-11-12 12:15:32.022	debug	[DevID_247/holdingRegs] Poll address 36148 - 2 registers
modbus.0
	2025-11-12 12:15:32.018	warn	[DevID_247/holdingRegs] Block 36132-36133: {}
modbus.0
	2025-11-12 12:15:32.017	debug	Received pdu describes an error.
modbus.0
	2025-11-12 12:15:28.151	debug	[DevID_247/holdingRegs] Poll address 36132 - 2 registers
modbus.0
	2025-11-12 12:15:28.147	warn	[DevID_247/holdingRegs] Block 36116-36117: {}
modbus.0
	2025-11-12 12:15:28.146	debug	Received pdu describes an error.
modbus.0
	2025-11-12 12:15:28.051	debug	[DevID_247/holdingRegs] Poll address 36116 - 2 registers
modbus.0
	2025-11-12 12:15:28.039	debug	[DevID_247/holdingRegs/32023] Calculation result = 6.7, type = number
modbus.0
	2025-11-12 12:15:28.039	debug	[DevID_247/holdingRegs/32023] Formula = x*0.1
modbus.0
	2025-11-12 12:15:28.039	debug	[DevID_247/holdingRegs/32023] Input Value = 67
modbus.0
	2025-11-12 12:15:28.038	debug	[DevID_247/holdingRegs/32021] Calculation result = 11696.2, type = number
modbus.0
	2025-11-12 12:15:28.038	debug	[DevID_247/holdingRegs/32021] Formula = x*0.1
modbus.0
	2025-11-12 12:15:28.038	debug	[DevID_247/holdingRegs/32021] Input Value = 116962
modbus.0
	2025-11-12 12:15:28.038	debug	[DevID_247/holdingRegs/32020] Calculation result = 0.1, type = number
modbus.0
	2025-11-12 12:15:28.038	debug	[DevID_247/holdingRegs/32020] Formula = x*0.1
modbus.0
	2025-11-12 12:15:28.038	debug	[DevID_247/holdingRegs/32020] Input Value = 1
modbus.0
	2025-11-12 12:15:28.038	debug	[DevID_247/holdingRegs/32018] Calculation result = 102, type = number
modbus.0
	2025-11-12 12:15:28.038	debug	[DevID_247/holdingRegs/32018] Formula = x*0.1
modbus.0
	2025-11-12 12:15:28.038	debug	[DevID_247/holdingRegs/32018] Input Value = 1020
modbus.0
	2025-11-12 12:15:28.037	debug	[DevID_247/holdingRegs/32017] Calculation result = 3.5, type = number
modbus.0
	2025-11-12 12:15:28.037	debug	[DevID_247/holdingRegs/32017] Formula = x*0.1
modbus.0
	2025-11-12 12:15:28.037	debug	[DevID_247/holdingRegs/32017] Input Value = 35
modbus.0
	2025-11-12 12:15:28.037	debug	[DevID_247/holdingRegs/32015] Calculation result = 15521.2, type = number
modbus.0
	2025-11-12 12:15:28.037	debug	[DevID_247/holdingRegs/32015] Formula = x*0.1
modbus.0
	2025-11-12 12:15:28.037	debug	[DevID_247/holdingRegs/32015] Input Value = 155212
modbus.0
	2025-11-12 12:15:28.037	debug	[DevID_247/holdingRegs/32014] Calculation result = 3.3000000000000003, type = number
modbus.0
	2025-11-12 12:15:28.037	debug	[DevID_247/holdingRegs/32014] Formula = x*0.1
modbus.0
	2025-11-12 12:15:28.037	debug	[DevID_247/holdingRegs/32014] Input Value = 33
modbus.0
	2025-11-12 12:15:28.037	debug	[DevID_247/holdingRegs/32012] Calculation result = 3473.3, type = number
modbus.0
	2025-11-12 12:15:28.037	debug	[DevID_247/holdingRegs/32012] Formula = x*0.1
modbus.0
	2025-11-12 12:15:28.037	debug	[DevID_247/holdingRegs/32012] Input Value = 34733
modbus.0
	2025-11-12 12:15:28.037	debug	[DevID_247/holdingRegs/32011] Calculation result = 0, type = number
modbus.0
	2025-11-12 12:15:28.037	debug	[DevID_247/holdingRegs/32011] Formula = x*0.1
modbus.0
	2025-11-12 12:15:28.037	debug	[DevID_247/holdingRegs/32011] Input Value = 0
modbus.0
	2025-11-12 12:15:28.037	debug	[DevID_247/holdingRegs/32009] Calculation result = 7047.400000000001, type = number
modbus.0
	2025-11-12 12:15:28.037	debug	[DevID_247/holdingRegs/32009] Formula = x*0.1
modbus.0
	2025-11-12 12:15:28.037	debug	[DevID_247/holdingRegs/32009] Input Value = 70474
modbus.0
	2025-11-12 12:15:28.036	debug	[DevID_247/holdingRegs/32008] Calculation result = 1.9000000000000001, type = number
modbus.0
	2025-11-12 12:15:28.036	debug	[DevID_247/holdingRegs/32008] Formula = x*0.1
modbus.0
	2025-11-12 12:15:28.036	debug	[DevID_247/holdingRegs/32008] Input Value = 19
modbus.0
	2025-11-12 12:15:28.036	debug	[DevID_247/holdingRegs/32006] Calculation result = 4532.8, type = number
modbus.0
	2025-11-12 12:15:28.036	debug	[DevID_247/holdingRegs/32006] Formula = x*0.1
modbus.0
	2025-11-12 12:15:28.036	debug	[DevID_247/holdingRegs/32006] Input Value = 45328
modbus.0
	2025-11-12 12:15:28.036	debug	[DevID_247/holdingRegs/32005] Calculation result = 6.2, type = number
modbus.0
	2025-11-12 12:15:28.036	debug	[DevID_247/holdingRegs/32005] Formula = x*0.1
modbus.0
	2025-11-12 12:15:28.036	debug	[DevID_247/holdingRegs/32005] Input Value = 62
modbus.0
	2025-11-12 12:15:28.036	debug	[DevID_247/holdingRegs/32003] Calculation result = 473.59000000000003, type = number
modbus.0
	2025-11-12 12:15:28.036	debug	[DevID_247/holdingRegs/32003] Formula = x*0.01
modbus.0
	2025-11-12 12:15:28.036	debug	[DevID_247/holdingRegs/32003] Input Value = 47359
modbus.0
	2025-11-12 12:15:28.034	debug	[DevID_247/holdingRegs/32002] Calculation result = 9.1, type = number
modbus.0
	2025-11-12 12:15:28.034	debug	[DevID_247/holdingRegs/32002] Formula = x*0.1
modbus.0
	2025-11-12 12:15:28.034	debug	[DevID_247/holdingRegs/32002] Input Value = 91
modbus.0
	2025-11-12 12:15:28.034	debug	[DevID_247/holdingRegs/32000] Calculation result = 17.9574, type = number
modbus.0
	2025-11-12 12:15:28.034	debug	[DevID_247/holdingRegs/32000] Formula = x*0.0001
modbus.0
	2025-11-12 12:15:28.034	debug	[DevID_247/holdingRegs/32000] Input Value = 179574
modbus.0
	2025-11-12 12:15:28.034	debug	[DevID_247/holdingRegs] Poll address 32000 DONE
modbus.0
	2025-11-12 12:15:27.882	debug	[DevID_247/holdingRegs] Poll address 32000 - 24 registers
modbus.0
	2025-11-12 12:15:27.869	debug	[DevID_247/holdingRegs/31037] Calculation result = 28, type = number
modbus.0
	2025-11-12 12:15:27.869	debug	[DevID_247/holdingRegs/31037] Formula = x*0.1
modbus.0
	2025-11-12 12:15:27.869	debug	[DevID_247/holdingRegs/31037] Input Value = 280
modbus.0
	2025-11-12 12:15:27.869	debug	[DevID_247/holdingRegs/31034] Calculation result = 242.60000000000002, type = number
modbus.0
	2025-11-12 12:15:27.868	debug	[DevID_247/holdingRegs/31034] Formula = x*0.1
modbus.0
	2025-11-12 12:15:27.868	debug	[DevID_247/holdingRegs/31034] Input Value = 2426
modbus.0
	2025-11-12 12:15:27.868	debug	[DevID_247/holdingRegs/31033] Calculation result = 55.6, type = number
modbus.0
	2025-11-12 12:15:27.868	debug	[DevID_247/holdingRegs/31033] Formula = x*0.1
modbus.0
	2025-11-12 12:15:27.868	debug	[DevID_247/holdingRegs/31033] Input Value = 556
modbus.0
	2025-11-12 12:15:27.868	debug	[DevID_247/holdingRegs/31032] Calculation result = 43, type = number
modbus.0
	2025-11-12 12:15:27.868	debug	[DevID_247/holdingRegs/31032] Formula = x*0.1
modbus.0
	2025-11-12 12:15:27.868	debug	[DevID_247/holdingRegs/31032] Input Value = 430
modbus.0
	2025-11-12 12:15:27.867	debug	[DevID_247/holdingRegs/31025] Calculation result = 50, type = number
modbus.0
	2025-11-12 12:15:27.867	debug	[DevID_247/holdingRegs/31025] Formula = x*0.01
modbus.0
	2025-11-12 12:15:27.867	debug	[DevID_247/holdingRegs/31025] Input Value = 5000
modbus.0
	2025-11-12 12:15:27.867	debug	[DevID_247/holdingRegs/31021] Calculation result = 0.30000000000000004, type = number
modbus.0
	2025-11-12 12:15:27.867	debug	[DevID_247/holdingRegs/31021] Formula = x*0.1
modbus.0
	2025-11-12 12:15:27.867	debug	[DevID_247/holdingRegs/31021] Input Value = 3
modbus.0
	2025-11-12 12:15:27.867	debug	[DevID_247/holdingRegs/31020] Calculation result = 0.4, type = number
modbus.0
	2025-11-12 12:15:27.867	debug	[DevID_247/holdingRegs/31020] Formula = x*0.1
modbus.0
	2025-11-12 12:15:27.867	debug	[DevID_247/holdingRegs/31020] Input Value = 4
modbus.0
	2025-11-12 12:15:27.866	debug	[DevID_247/holdingRegs/31019] Calculation result = 0.30000000000000004, type = number
modbus.0
	2025-11-12 12:15:27.866	debug	[DevID_247/holdingRegs/31019] Formula = x*0.1
modbus.0
	2025-11-12 12:15:27.866	debug	[DevID_247/holdingRegs/31019] Input Value = 3
modbus.0
	2025-11-12 12:15:27.866	debug	[DevID_247/holdingRegs/31018] Calculation result = 237.3, type = number
modbus.0
	2025-11-12 12:15:27.866	debug	[DevID_247/holdingRegs/31018] Formula = x*0.1
modbus.0
	2025-11-12 12:15:27.866	debug	[DevID_247/holdingRegs/31018] Input Value = 2373
modbus.0
	2025-11-12 12:15:27.866	debug	[DevID_247/holdingRegs/31017] Calculation result = 235.3, type = number
modbus.0
	2025-11-12 12:15:27.866	debug	[DevID_247/holdingRegs/31017] Formula = x*0.1
modbus.0
	2025-11-12 12:15:27.866	debug	[DevID_247/holdingRegs/31017] Input Value = 2353
modbus.0
	2025-11-12 12:15:27.865	debug	[DevID_247/holdingRegs/31016] Calculation result = 234, type = number
modbus.0
	2025-11-12 12:15:27.865	debug	[DevID_247/holdingRegs/31016] Formula = x*0.1
modbus.0
	2025-11-12 12:15:27.865	debug	[DevID_247/holdingRegs/31016] Input Value = 2340
modbus.0
	2025-11-12 12:15:27.865	debug	[DevID_247/holdingRegs/31015] Calculation result = 50, type = number
modbus.0
	2025-11-12 12:15:27.865	debug	[DevID_247/holdingRegs/31015] Formula = x*0.01
modbus.0
	2025-11-12 12:15:27.865	debug	[DevID_247/holdingRegs/31015] Input Value = 5000
modbus.0
	2025-11-12 12:15:27.864	debug	[DevID_247/holdingRegs/31011] Calculation result = 1.4000000000000001, type = number
modbus.0
	2025-11-12 12:15:27.864	debug	[DevID_247/holdingRegs/31011] Formula = x*0.1
modbus.0
	2025-11-12 12:15:27.864	debug	[DevID_247/holdingRegs/31011] Input Value = 14
modbus.0
	2025-11-12 12:15:27.864	debug	[DevID_247/holdingRegs/31010] Calculation result = 1.4000000000000001, type = number
modbus.0
	2025-11-12 12:15:27.864	debug	[DevID_247/holdingRegs/31010] Formula = x*0.1
modbus.0
	2025-11-12 12:15:27.864	debug	[DevID_247/holdingRegs/31010] Input Value = 14
modbus.0
	2025-11-12 12:15:27.864	debug	[DevID_247/holdingRegs/31009] Calculation result = 1.4000000000000001, type = number
modbus.0
	2025-11-12 12:15:27.864	debug	[DevID_247/holdingRegs/31009] Formula = x*0.1
modbus.0
	2025-11-12 12:15:27.864	debug	[DevID_247/holdingRegs/31009] Input Value = 14
modbus.0
	2025-11-12 12:15:27.864	debug	[DevID_247/holdingRegs/31008] Calculation result = 236.60000000000002, type = number
modbus.0
	2025-11-12 12:15:27.864	debug	[DevID_247/holdingRegs/31008] Formula = x*0.1
modbus.0
	2025-11-12 12:15:27.864	debug	[DevID_247/holdingRegs/31008] Input Value = 2366
modbus.0
	2025-11-12 12:15:27.864	debug	[DevID_247/holdingRegs/31007] Calculation result = 235.70000000000002, type = number
modbus.0
	2025-11-12 12:15:27.863	debug	[DevID_247/holdingRegs/31007] Formula = x*0.1
modbus.0
	2025-11-12 12:15:27.863	debug	[DevID_247/holdingRegs/31007] Input Value = 2357
modbus.0
	2025-11-12 12:15:27.863	debug	[DevID_247/holdingRegs/31006] Calculation result = 235.3, type = number
modbus.0
	2025-11-12 12:15:27.863	debug	[DevID_247/holdingRegs/31006] Formula = x*0.1
modbus.0
	2025-11-12 12:15:27.863	debug	[DevID_247/holdingRegs/31006] Input Value = 2353
modbus.0
	2025-11-12 12:15:27.863	debug	[DevID_247/holdingRegs/31004] Calculation result = 6.300000000000001, type = number
modbus.0
	2025-11-12 12:15:27.863	debug	[DevID_247/holdingRegs/31004] Formula = x*0.1
modbus.0
	2025-11-12 12:15:27.863	debug	[DevID_247/holdingRegs/31004] Input Value = 63
modbus.0
	2025-11-12 12:15:27.863	debug	[DevID_247/holdingRegs/31003] Calculation result = 379.8, type = number
modbus.0
	2025-11-12 12:15:27.863	debug	[DevID_247/holdingRegs/31003] Formula = x*0.1
modbus.0
	2025-11-12 12:15:27.863	debug	[DevID_247/holdingRegs/31003] Input Value = 3798
modbus.0
	2025-11-12 12:15:27.862	debug	[DevID_247/holdingRegs/31001] Calculation result = 1.3, type = number
modbus.0
	2025-11-12 12:15:27.862	debug	[DevID_247/holdingRegs/31001] Formula = x*0.1
modbus.0
	2025-11-12 12:15:27.862	debug	[DevID_247/holdingRegs/31001] Input Value = 13
modbus.0
	2025-11-12 12:15:27.862	debug	[DevID_247/holdingRegs/31000] Calculation result = 387.70000000000005, type = number
modbus.0
	2025-11-12 12:15:27.862	debug	[DevID_247/holdingRegs/31000] Formula = x*0.1
modbus.0
	2025-11-12 12:15:27.862	debug	[DevID_247/holdingRegs/31000] Input Value = 3877
modbus.0
	2025-11-12 12:15:27.862	debug	[DevID_247/holdingRegs] Poll address 31000 DONE
modbus.0
	2025-11-12 12:15:27.676	debug	[DevID_247/holdingRegs] Poll address 31000 - 43 registers
modbus.0
	2025-11-12 12:15:27.676	debug	[DevID_247] Poll start ---------------------
modbus.0
	2025-11-12 12:15:26.123	debug	[DevID_247/holdingRegs] Poll address 41000 DONE
modbus.0
	2025-11-12 12:15:26.037	debug	[DevID_247/holdingRegs] Poll address 41000 - 1 registers
modbus.0
	2025-11-12 12:15:26.035	warn	[DevID_247/holdingRegs] Block 38801-38819: {}
modbus.0
	2025-11-12 12:15:26.035	debug	Received pdu describes an error.
modbus.0
	2025-11-12 12:15:25.953	debug	[DevID_247/holdingRegs] Poll address 38801 - 19 registers
modbus.0
	2025-11-12 12:15:25.950	warn	[DevID_247/holdingRegs] Block 36200-36201: {}
modbus.0
	2025-11-12 12:15:25.950	debug	Received pdu describes an error.
modbus.0
	2025-11-12 12:15:25.864	debug	[DevID_247/holdingRegs] Poll address 36200 - 2 registers
modbus.0
	2025-11-12 12:15:25.862	warn	[DevID_247/holdingRegs] Block 36148-36149: {}
modbus.0
	2025-11-12 12:15:25.861	debug	Received pdu describes an error.
modbus.0
	2025-11-12 12:15:25.778	debug	[DevID_247/holdingRegs] Poll address 36148 - 2 registers
modbus.0
	2025-11-12 12:15:25.775	warn	[DevID_247/holdingRegs] Block 36132-36133: {}
modbus.0
	2025-11-12 12:15:25.774	debug	Received pdu describes an error.
modbus.0
	2025-11-12 12:15:25.409	debug	[DevID_247/holdingRegs] Poll address 36132 - 2 registers
modbus.0
	2025-11-12 12:15:25.407	warn	[DevID_247/holdingRegs] Block 36116-36117: {}
modbus.0
	2025-11-12 12:15:25.407	debug	Received pdu describes an error.
modbus.0
	2025-11-12 12:15:25.322	debug	[DevID_247/holdingRegs] Poll address 36116 - 2 registers
modbus.0
	2025-11-12 12:15:25.317	debug	[DevID_247/holdingRegs/32023] Calculation result = 6.7, type = number
modbus.0
	2025-11-12 12:15:25.317	debug	[DevID_247/holdingRegs/32023] Formula = x*0.1
modbus.0
	2025-11-12 12:15:25.317	debug	[DevID_247/holdingRegs/32023] Input Value = 67
modbus.0
	2025-11-12 12:15:25.317	debug	[DevID_247/holdingRegs/32021] Calculation result = 11696.2, type = number
modbus.0
	2025-11-12 12:15:25.317	debug	[DevID_247/holdingRegs/32021] Formula = x*0.1
modbus.0
	2025-11-12 12:15:25.317	debug	[DevID_247/holdingRegs/32021] Input Value = 116962
modbus.0
	2025-11-12 12:15:25.316	debug	[DevID_247/holdingRegs/32020] Calculation result = 0.1, type = number
modbus.0
	2025-11-12 12:15:25.316	debug	[DevID_247/holdingRegs/32020] Formula = x*0.1
modbus.0
	2025-11-12 12:15:25.316	debug	[DevID_247/holdingRegs/32020] Input Value = 1
modbus.0
	2025-11-12 12:15:25.316	debug	[DevID_247/holdingRegs/32018] Calculation result = 102, type = number
modbus.0
	2025-11-12 12:15:25.316	debug	[DevID_247/holdingRegs/32018] Formula = x*0.1
modbus.0
	2025-11-12 12:15:25.316	debug	[DevID_247/holdingRegs/32018] Input Value = 1020
modbus.0
	2025-11-12 12:15:25.316	debug	[DevID_247/holdingRegs/32017] Calculation result = 3.5, type = number
modbus.0
	2025-11-12 12:15:25.316	debug	[DevID_247/holdingRegs/32017] Formula = x*0.1
modbus.0
	2025-11-12 12:15:25.316	debug	[DevID_247/holdingRegs/32017] Input Value = 35
modbus.0
	2025-11-12 12:15:25.316	debug	[DevID_247/holdingRegs/32015] Calculation result = 15521.2, type = number
modbus.0
	2025-11-12 12:15:25.316	debug	[DevID_247/holdingRegs/32015] Formula = x*0.1
modbus.0
	2025-11-12 12:15:25.315	debug	[DevID_247/holdingRegs/32015] Input Value = 155212
modbus.0
	2025-11-12 12:15:25.315	debug	[DevID_247/holdingRegs/32014] Calculation result = 3.3000000000000003, type = number
modbus.0
	2025-11-12 12:15:25.315	debug	[DevID_247/holdingRegs/32014] Formula = x*0.1
modbus.0
	2025-11-12 12:15:25.315	debug	[DevID_247/holdingRegs/32014] Input Value = 33
modbus.0
	2025-11-12 12:15:25.315	debug	[DevID_247/holdingRegs/32012] Calculation result = 3473.3, type = number
modbus.0
	2025-11-12 12:15:25.315	debug	[DevID_247/holdingRegs/32012] Formula = x*0.1
modbus.0
	2025-11-12 12:15:25.315	debug	[DevID_247/holdingRegs/32012] Input Value = 34733
modbus.0
	2025-11-12 12:15:25.315	debug	[DevID_247/holdingRegs/32011] Calculation result = 0, type = number
modbus.0
	2025-11-12 12:15:25.315	debug	[DevID_247/holdingRegs/32011] Formula = x*0.1
modbus.0
	2025-11-12 12:15:25.315	debug	[DevID_247/holdingRegs/32011] Input Value = 0
modbus.0
	2025-11-12 12:15:25.315	debug	[DevID_247/holdingRegs/32009] Calculation result = 7047.400000000001, type = number
modbus.0
	2025-11-12 12:15:25.314	debug	[DevID_247/holdingRegs/32009] Formula = x*0.1
modbus.0
	2025-11-12 12:15:25.314	debug	[DevID_247/holdingRegs/32009] Input Value = 70474
modbus.0
	2025-11-12 12:15:25.314	debug	[DevID_247/holdingRegs/32008] Calculation result = 1.9000000000000001, type = number
modbus.0
	2025-11-12 12:15:25.314	debug	[DevID_247/holdingRegs/32008] Formula = x*0.1
modbus.0
	2025-11-12 12:15:25.314	debug	[DevID_247/holdingRegs/32008] Input Value = 19
modbus.0
	2025-11-12 12:15:25.314	debug	[DevID_247/holdingRegs/32006] Calculation result = 4532.8, type = number
modbus.0
	2025-11-12 12:15:25.314	debug	[DevID_247/holdingRegs/32006] Formula = x*0.1
modbus.0
	2025-11-12 12:15:25.314	debug	[DevID_247/holdingRegs/32006] Input Value = 45328
modbus.0
	2025-11-12 12:15:25.314	debug	[DevID_247/holdingRegs/32005] Calculation result = 6.2, type = number
modbus.0
	2025-11-12 12:15:25.313	debug	[DevID_247/holdingRegs/32005] Formula = x*0.1
modbus.0
	2025-11-12 12:15:25.313	debug	[DevID_247/holdingRegs/32005] Input Value = 62
modbus.0
	2025-11-12 12:15:25.313	debug	[DevID_247/holdingRegs/32003] Calculation result = 473.59000000000003, type = number
modbus.0
	2025-11-12 12:15:25.313	debug	[DevID_247/holdingRegs/32003] Formula = x*0.01
modbus.0
	2025-11-12 12:15:25.313	debug	[DevID_247/holdingRegs/32003] Input Value = 47359
modbus.0
	2025-11-12 12:15:25.313	debug	[DevID_247/holdingRegs/32002] Calculation result = 9.1, type = number
modbus.0
	2025-11-12 12:15:25.313	debug	[DevID_247/holdingRegs/32002] Formula = x*0.1
modbus.0
	2025-11-12 12:15:25.313	debug	[DevID_247/holdingRegs/32002] Input Value = 91
modbus.0
	2025-11-12 12:15:25.313	debug	[DevID_247/holdingRegs/32000] Calculation result = 17.9574, type = number
modbus.0
	2025-11-12 12:15:25.312	debug	[DevID_247/holdingRegs/32000] Formula = x*0.0001
modbus.0
	2025-11-12 12:15:25.312	debug	[DevID_247/holdingRegs/32000] Input Value = 179574
modbus.0
	2025-11-12 12:15:25.312	debug	[DevID_247/holdingRegs] Poll address 32000 DONE
modbus.0
	2025-11-12 12:15:25.174	debug	[DevID_247/holdingRegs] Poll address 32000 - 24 registers
modbus.0
	2025-11-12 12:15:25.166	debug	[DevID_247/holdingRegs/31037] Formula = x*0.1
modbus.0
	2025-11-12 12:15:25.166	debug	[DevID_247/holdingRegs/31034] Calculation result = 242.60000000000002, type = number
modbus.0
	2025-11-12 12:15:25.166	debug	[DevID_247/holdingRegs/31034] Input Value = 2426
modbus.0
	2025-11-12 12:15:25.166	debug	[DevID_247/holdingRegs/31034] Formula = x*0.1
modbus.0
	2025-11-12 12:15:25.166	debug	[DevID_247/holdingRegs/31037] Input Value = 280
modbus.0
	2025-11-12 12:15:25.166	debug	[DevID_247/holdingRegs/31037] Calculation result = 28, type = number
modbus.0
	2025-11-12 12:15:25.165	debug	[DevID_247/holdingRegs/31033] Calculation result = 55.6, type = number
modbus.0
	2025-11-12 12:15:25.165	debug	[DevID_247/holdingRegs/31033] Input Value = 556
modbus.0
	2025-11-12 12:15:25.165	debug	[DevID_247/holdingRegs/31032] Formula = x*0.1
modbus.0
	2025-11-12 12:15:25.165	debug	[DevID_247/holdingRegs/31025] Calculation result = 49.910000000000004, type = number
modbus.0
	2025-11-12 12:15:25.165	debug	[DevID_247/holdingRegs/31025] Input Value = 4991
modbus.0
	2025-11-12 12:15:25.165	debug	[DevID_247/holdingRegs/31021] Formula = x*0.1
modbus.0
	2025-11-12 12:15:25.165	debug	[DevID_247/holdingRegs/31020] Calculation result = 0.4, type = number
modbus.0
	2025-11-12 12:15:25.165	debug	[DevID_247/holdingRegs/31021] Input Value = 3
modbus.0
	2025-11-12 12:15:25.165	debug	[DevID_247/holdingRegs/31021] Calculation result = 0.30000000000000004, type = number
modbus.0
	2025-11-12 12:15:25.165	debug	[DevID_247/holdingRegs/31025] Formula = x*0.01
modbus.0
	2025-11-12 12:15:25.165	debug	[DevID_247/holdingRegs/31032] Input Value = 430
modbus.0
	2025-11-12 12:15:25.165	debug	[DevID_247/holdingRegs/31032] Calculation result = 43, type = number
modbus.0
	2025-11-12 12:15:25.165	debug	[DevID_247/holdingRegs/31033] Formula = x*0.1
modbus.0
	2025-11-12 12:15:25.164	debug	[DevID_247/holdingRegs/31020] Formula = x*0.1
modbus.0
	2025-11-12 12:15:25.164	debug	[DevID_247/holdingRegs/31019] Calculation result = 0.30000000000000004, type = number
modbus.0
	2025-11-12 12:15:25.164	debug	[DevID_247/holdingRegs/31019] Input Value = 3
modbus.0
	2025-11-12 12:15:25.164	debug	[DevID_247/holdingRegs/31018] Formula = x*0.1
modbus.0
	2025-11-12 12:15:25.164	debug	[DevID_247/holdingRegs/31017] Calculation result = 235.3, type = number
modbus.0
	2025-11-12 12:15:25.164	debug	[DevID_247/holdingRegs/31017] Input Value = 2353
modbus.0
	2025-11-12 12:15:25.164	debug	[DevID_247/holdingRegs/31016] Calculation result = 233.9, type = number
modbus.0
	2025-11-12 12:15:25.164	debug	[DevID_247/holdingRegs/31017] Formula = x*0.1
modbus.0
	2025-11-12 12:15:25.164	debug	[DevID_247/holdingRegs/31018] Input Value = 2372
modbus.0
	2025-11-12 12:15:25.164	debug	[DevID_247/holdingRegs/31018] Calculation result = 237.20000000000002, type = number
modbus.0
	2025-11-12 12:15:25.164	debug	[DevID_247/holdingRegs/31019] Formula = x*0.1
modbus.0
	2025-11-12 12:15:25.164	debug	[DevID_247/holdingRegs/31020] Input Value = 4
modbus.0
	2025-11-12 12:15:25.163	debug	[DevID_247/holdingRegs/31016] Input Value = 2339
modbus.0
	2025-11-12 12:15:25.163	debug	[DevID_247/holdingRegs/31015] Formula = x*0.01
modbus.0
	2025-11-12 12:15:25.163	debug	[DevID_247/holdingRegs/31011] Calculation result = 1.4000000000000001, type = number
modbus.0
	2025-11-12 12:15:25.163	debug	[DevID_247/holdingRegs/31011] Input Value = 14
modbus.0
	2025-11-12 12:15:25.163	debug	[DevID_247/holdingRegs/31010] Calculation result = 1.4000000000000001, type = number
modbus.0
	2025-11-12 12:15:25.163	debug	[DevID_247/holdingRegs/31011] Formula = x*0.1
modbus.0
	2025-11-12 12:15:25.163	debug	[DevID_247/holdingRegs/31015] Input Value = 4992
modbus.0
	2025-11-12 12:15:25.163	debug	[DevID_247/holdingRegs/31015] Calculation result = 49.92, type = number
modbus.0
	2025-11-12 12:15:25.163	debug	[DevID_247/holdingRegs/31016] Formula = x*0.1
modbus.0
	2025-11-12 12:15:25.162	debug	[DevID_247/holdingRegs/31010] Input Value = 14
modbus.0
	2025-11-12 12:15:25.162	debug	[DevID_247/holdingRegs/31009] Calculation result = 1.4000000000000001, type = number
modbus.0
	2025-11-12 12:15:25.162	debug	[DevID_247/holdingRegs/31010] Formula = x*0.1
modbus.0
	2025-11-12 12:15:25.161	debug	[DevID_247/holdingRegs/31009] Input Value = 14
modbus.0
	2025-11-12 12:15:25.161	debug	[DevID_247/holdingRegs/31008] Formula = x*0.1
modbus.0
	2025-11-12 12:15:25.161	debug	[DevID_247/holdingRegs/31007] Calculation result = 235.70000000000002, type = number
modbus.0
	2025-11-12 12:15:25.161	debug	[DevID_247/holdingRegs/31007] Input Value = 2357
modbus.0
	2025-11-12 12:15:25.161	debug	[DevID_247/holdingRegs/31006] Calculation result = 235.20000000000002, type = number
modbus.0
	2025-11-12 12:15:25.161	debug	[DevID_247/holdingRegs/31007] Formula = x*0.1
modbus.0
	2025-11-12 12:15:25.161	debug	[DevID_247/holdingRegs/31008] Input Value = 2364
modbus.0
	2025-11-12 12:15:25.161	debug	[DevID_247/holdingRegs/31008] Calculation result = 236.4, type = number
modbus.0
	2025-11-12 12:15:25.161	debug	[DevID_247/holdingRegs/31009] Formula = x*0.1

[Homoran]

@rogni sagte in FoxEss H3 Wechselrichter per Modbus in ioBroker:

ich hab alles unter Holding Register.

kann bei Chinesen durchaus sein.

@rogni sagte in FoxEss H3 Wechselrichter per Modbus in ioBroker:

Register hab ich nur mal ein paar der angegeben eingetragen, sonst kommen da ja Fehler ohne Ende.

man fängt üblicherweise mit einemzum testen an.
ein einziger Fehleintrag kann das Auslesen des gesamte Gerätes blockieren

zu der Konfig:
bitte keine Nacherzählungen, sondern Screenshots

ich hab da schon einen Verdacht

[Rogni]

@homoran
Einstellungen:

Verbindung:

[Homoran]

@rogni stell das

mal testweise auf 1

wenn das nichts hilft, bitte debug-log vom Instanzen Start

[Rogni]

@homoran den Wert auf 1 zu stellen hat nichts gebracht
hier der Log:

iobroker.current.html
