[skvarel]

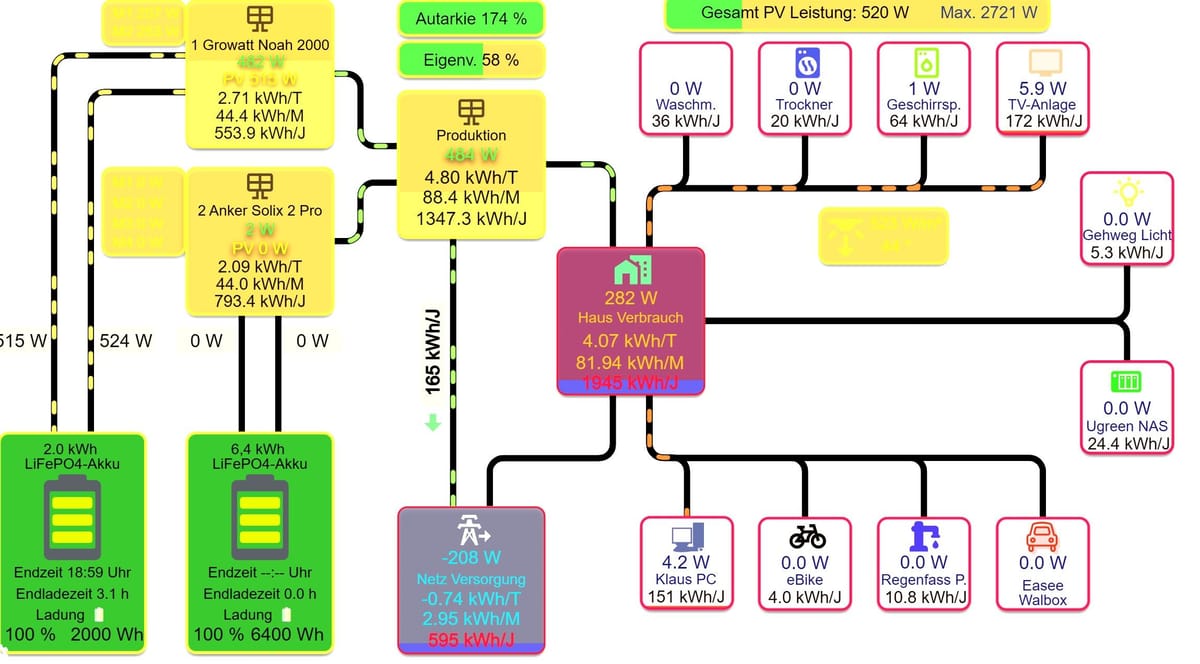

Ich bin immer wieder begeistert, wie gut der Adapter ist!

@skb .. vielen Dank für deine Arbeit.

Ich muss jetzt nur noch auf die gedrehten Rechtecke umbauen ;)

[Solardach]

@SKB Wenn ich auf Version 0.8.3 gehe, bekomme ich nur die Basic Konfiguration zur Ansicht.
Meine Eigene Konfiguration wird nicht mehr angezeigt. Auch nicht mit Wiederherstellung. Die wird zwar geladen und auch in der Live Ansicht korrekt dargestellt.
Aber ich kann die nicht mehr bearbeiten.
Zurück auf Version 0.8.2 geht alles wieder.

[SKB]

@Solardach Den Fehler kann ich nicht nachvollziehen.

Welche Fehler kommen vom Adapter, Browser-Konsole?

[Solardach]

@SKB Mit v0.8.3 in der console

[Config] Using Instance: energiefluss-erweitert.0
functions.min.js?v=0.8.2.1:8 [Language] Detected System-Language: de
functions.min.js?v=0.8.2.1:8 [Config] Loaded additional file: /_socket/info.js
socket.io.js:55 [2026-08-12T13:34:15.335Z] Try to connect
functions.min.js?v=0.8.2.1:8 [Socket] connected at 12.8.2026, 15:34:15
functions.min.js?v=0.8.2.1:8 [Socket] subscribed to: system.adapter.energiefluss-erweitert.0.alive at 12.8.2026, 15:34:15
functions.min.js?v=0.8.2.1:8 [Config] Trying to load configuration for instance 0 from state!
functions.min.js?v=0.8.2.1:8 [Proxy] Using Icon-Proxy for Icons
functions.min.js?v=0.8.2.1:8 [Proxy] Starting Icon Observer
functions.min.js?v=0.8.2.1:8 [Config] TypeError: Cannot convert undefined or null to object
(anonymous) @ functions.min.js?v=0.8.2.1:8
await in (anonymous)
findAnswer @ socket.io.js:267
socket.onmessage @ socket.io.js:188
functions.min.js?v=0.8.2.1:8 [Config] Loading Basic configuration from file!
functions.min.js?v=0.8.2.1:8 [Config] Loading initial Data
[NEW] Explain Console errors by using Copilot in Edge: click  to explain an error. Learn moreDon't show again
functions.min.js?v=0.8.2.1:8 [Config] Configuration loaded in 173.09999990463257 ms
functions.min.js?v=0.8.2.1:8 [Config] File loaded!
functions.min.js?v=0.8.2.1:8 [Config] Using direct load via iconify-API!
functions.min.js?v=0.8.2.1:8 [Config] Loaded additional file: js/iconify.min.js

[SKB]

Da wird die falsche Version der Datei geladen. Bitte mal Strg + F5 drücken, dann sollte die Datei erneut geladen werden.

[Solardach]

@SKB nach Strg + F5 sieht für mich genauso aus

[Config] Using Instance: energiefluss-erweitert.0
functions.min.js?v=0.8.2.1:8 [Language] Detected System-Language: de
functions.min.js?v=0.8.2.1:8 [Config] Loaded additional file: /_socket/info.js
socket.io.js:55 [2026-08-12T13:43:15.295Z] Try to connect
functions.min.js?v=0.8.2.1:8 [Socket] connected at 12.8.2026, 15:43:15
functions.min.js?v=0.8.2.1:8 [Socket] subscribed to: system.adapter.energiefluss-erweitert.0.alive at 12.8.2026, 15:43:15
functions.min.js?v=0.8.2.1:8 [Config] Trying to load configuration for instance 0 from state!
functions.min.js?v=0.8.2.1:8 [Proxy] Using Icon-Proxy for Icons
functions.min.js?v=0.8.2.1:8 [Proxy] Starting Icon Observer
functions.min.js?v=0.8.2.1:8 [Config] TypeError: Cannot convert undefined or null to object
(anonymous) @ functions.min.js?v=0.8.2.1:8
await in (anonymous)
findAnswer @ socket.io.js:267
socket.onmessage @ socket.io.js:188
[NEW] Explain Console errors by using Copilot in Edge: click  to explain an error. Learn moreDon't show again
functions.min.js?v=0.8.2.1:8 [Config] Loading Basic configuration from file!
functions.min.js?v=0.8.2.1:8 [Config] Loading initial Data
functions.min.js?v=0.8.2.1:8 [Config] Configuration loaded in 229.60000014305115 ms
functions.min.js?v=0.8.2.1:8 [Config] File loaded!
functions.min.js?v=0.8.2.1:8 [Config] Using direct load via iconify-API!
functions.min.js?v=0.8.2.1:8 [Config] Loaded additional file: js/iconify.min.js

[Solardach]

Jetzt nochmal auf drei verschiedenen PCs probiert, gleiches Ergebnis.

Ich hatte den Adapter auch schon komplett gelöscht.
Neu Inst. auf V0.8.1 alles OK
dann V0.8.2 alles OK
und mit V0.8.3 wieder das Problem.

[SKB]

@Solardach Wieso installierst Du denn verschiedene Versionen?
Installier einfach mal die Version 0.8.3. Dann einen manuellen Upload des Adapters machen und dann die Seite aufrufen und mit Strg + F5 einen reload der Live-Ansicht/Konfiguration durchführen.

[Solardach]

@SKB Live Ansicht

dann STRG+F5

Zur Konfig

nochmal STRG+F5
Bleibt bei der Standard Konfig

[Solardach]

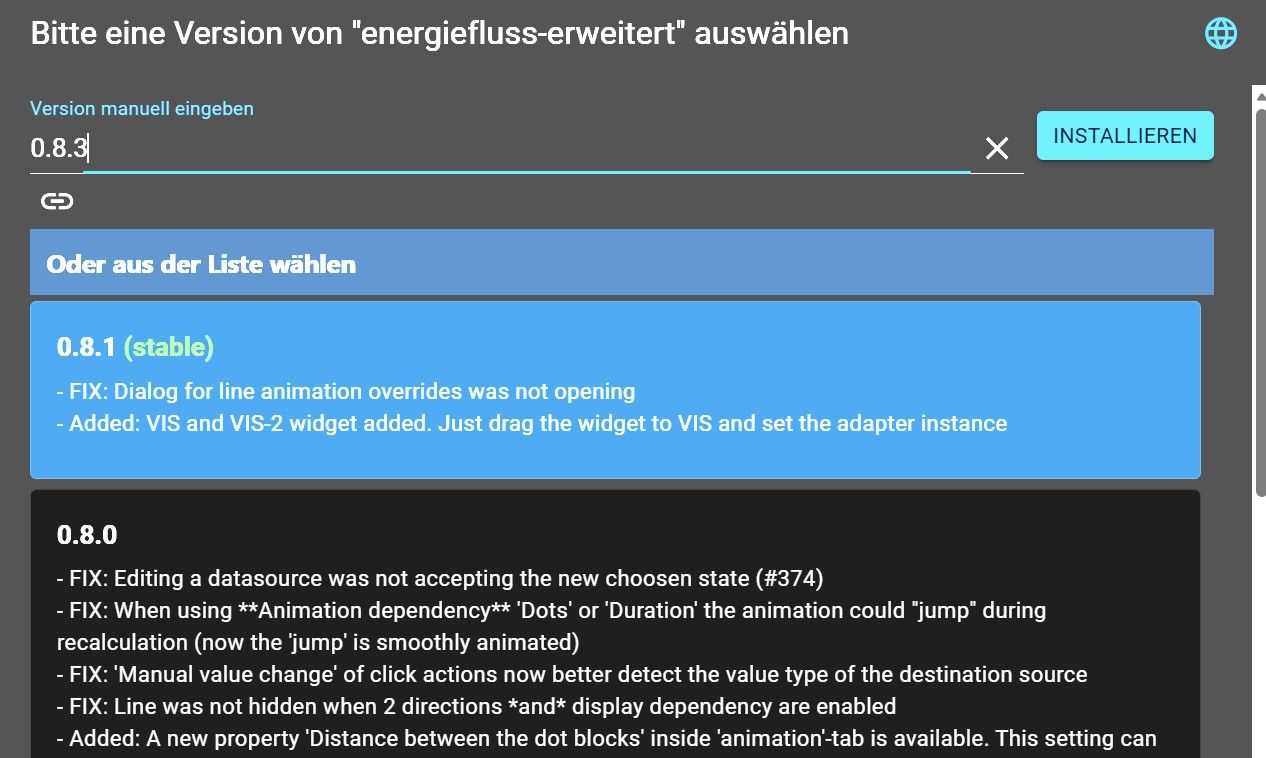

Installiert habe ich über Version manuell eingeben.

[SKB]

Dann läuft die Installation nicht richtig.
Bitte über die Github Katze auf "von NPM" und dann den Adapter auswählen.

[Solardach]

@SKB
Jetzt noch einmal über die Github Katze auf "von NPM" neu Inst. und auch noch einen Dateiupload gemacht.

Keine Änderung.

[SKB]

@Solardach Kannst Du vielleicht einmal die Konfiguration aus dem Datenpunkt configuration hier einstellen?

[Solardach]

@SKB Ja gerne:
Ich hoffe so ist es richtig.

v7.8.23

Objekte: 36461, Zustände: 34492
Objekt bearbeiten: energiefluss-erweitert.0.configuration
Wert:
{"basic":{"enable_grid":true,"enable_animation":false,"enable_area_catch":true,"enable_config_icon":true,"enable_last_id":false,"enable_icon_proxy":true,"enable_low_performance":false,"height":735,"width":1320,"styles":"","font":{"family":"\"Arial\", sans-serif","size":"20","color":"","fill":"","align":"middle"},"rect":{"height":100,"width":100,"corners":10},"circle":{"radius":50},"elm":{"stroke_width":3,"color":"rgb(242,14,64)","fill":"rgb(224,186,186)","pos_x":100,"pos_y":100},"icon":{"height":34,"width":34,"color":""},"background_color":"#474C5900","enable_show_coordinates":false,"enable_line_animation":true,"tourVisited":true,"enable_contextmenu":true},"calculation":{"battery":{"dod":45,"capacity":44,"percent":24,"charge":34,"charge_prop":false,"charge_kw":false,"discharge":25,"discharge_prop":false,"discharge_kw":false},"consumption":{"production":[41,13],"production_kw":false,"gridFeed":2,"gridFeed_kw":false,"gridFeed_prop":true,"gridConsume":2,"gridConsume_kw":false,"gridConsume_prop":false,"batteryCharge":-1,"batteryCharge_kw":false,"batteryCharge_prop":false,"batteryDischarge":-1,"batteryDischarge_kw":false,"batteryDischarge_prop":false}},"animation":{"stroke":"#ffce4a","stroke_dasharray":"10 17 10 17 10 72","stroke_width":5,"animation_duration":null,"stroke_linecap":"round","animation_timing_function":"linear"},"animation_configuration":{"dots":3,"distance":17,"length":10},"line":{"stroke_width":7,"stroke":"#000000"},"elements":{"2":{"position":53,"type":"text","subType":"datasource","id":2,"pos_x":295,"pos_y":93,"color":"none","fill":"rgb(242, 242, 10)","font_family":"Arial, sans-serif","font_size":18,"align":"middle","text":"ID 2","unit":"W","source":46,"source_option":-1,"source_display":"value","shadow":"rgb(0, 0, 0)","threshold":0,"calculate_kw":"auto","counter_animation":false,"convert":false,"decimal_places":0,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay","prepend":"PV"},"5":{"position":17,"type":"rect","id":5,"rx":10,"height":160,"width":160,"pos_x":215,"pos_y":7,"fill":"rgba(255, 182, 36, 0.8)","color":"rgb(255, 255, 46)","stroke":3,"shadow":"rgba(0, 0, 0, 0.7)","frame":"_overlay","fill_type":"value","fill_direction":90,"border_type":-1,"border_direction":"cw","border_style":"round","border_reverse":false,"border_start":null,"source":46,"threshold":0,"fill_value":"rgb(255, 206, 74)","fill_max":880},"6":{"position":14,"type":"icon","id":"6","icon":"mdi:solar-panel","width":34,"height":34,"color":"rgba(0, 0, 0, 0.7)","pos_x":278,"pos_y":10,"shadow":"","source":-1,"threshold":0,"frame":"_overlay","action":"none"},"7":{"position":19,"type":"rect","id":7,"rx":10,"height":160,"width":160,"pos_x":620,"pos_y":277,"fill":"rgba(128, 14, 67, 0.72)","color":"rgb(221, 13, 41)","stroke":2,"shadow":"rgba(0, 0, 0, 0.7)","frame":"_overlay","fill_type":"value","fill_direction":90,"border_type":-1,"border_direction":"cw","border_style":"round","border_reverse":false,"border_start":null,"source":12,"threshold":0,"fill_value":"rgb(74, 70, 176)","fill_max":3000},"10":{"position":49,"type":"text","id":10,"pos_x":295,"pos_y":55,"color":"none","fill":"rgb(0, 0, 0)","font_family":"Arial, sans-serif","font_size":16,"align":"middle","text":"1 Growatt Noah 2000","shadow":"","frame":"_overlay"},"11":{"position":48,"type":"text","id":11,"pos_x":700,"pos_y":353,"color":"none","fill":"rgb(252, 150, 15)","font_family":"Arial, sans-serif","font_size":16,"align":"middle","text":"Haus Verbrauch","shadow":"","frame":"_overlay"},"12":{"position":13,"type":"icon","id":"12","icon":"mdi:house-city","width":40,"height":40,"color":"rgba(79, 255, 120, 0.83)","pos_x":682,"pos_y":282,"shadow":"","source":-1,"threshold":0,"frame":"_overlay","action":"none"},"14":{"position":16,"type":"rect","id":14,"rx":10,"height":160,"width":160,"pos_x":446,"pos_y":560,"fill":"rgba(94, 93, 115, 0.78)","color":"rgb(221, 13, 41)","stroke":2,"shadow":"rgba(0, 0, 0, 0.7)","frame":"_overlay","fill_type":"value","fill_direction":90,"border_type":-1,"border_direction":"cw","border_style":"square","border_reverse":true,"border_start":"0","source":2,"threshold":0,"border_max":100,"border_reverse_value":"","border_value":"rgb(0, 181, 221)","fill_value":"rgb(74, 70, 176)","fill_max":3000},"19":{"position":47,"type":"text","subType":"datasource","id":19,"pos_x":526,"pos_y":615,"color":"none","fill":"rgb(0, 181, 221)","font_family":"Arial, sans-serif","font_size":20,"align":"middle","text":"ID 19","unit":"W","source":2,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":0,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"20":{"position":12,"type":"icon","id":"20","icon":"mdi:electricity-from-grid","width":40,"height":40,"color":"rgb(207, 207, 207)","pos_x":509,"pos_y":565,"shadow":"","source":-1,"threshold":0,"frame":"_overlay","action":"none"},"21":{"position":46,"type":"text","id":21,"pos_x":526,"pos_y":638,"color":"none","fill":"rgb(0, 181, 221)","font_family":"Arial, sans-serif","font_size":16,"align":"middle","text":"Netz Versorgung","shadow":"","frame":"_overlay"},"30":{"position":45,"type":"text","subType":"datasource","id":30,"pos_x":700,"pos_y":332,"color":"none","fill":"rgb(252, 150, 15)","font_family":"Arial, sans-serif","font_size":20,"align":"middle","text":"ID 30","unit":"W","source":1,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":0,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"33":{"position":13,"type":"rect","id":33,"rx":10,"height":100,"width":100,"pos_x":710,"pos_y":53,"fill":"rgb(224, 186, 186)","color":"rgb(242, 14, 64)","stroke":3,"shadow":"rgba(0, 0, 0, 0.7)","frame":"_overlay","fill_type":"value","fill_direction":90,"border_type":-1,"border_direction":"cw","border_style":"round","border_reverse":false,"border_start":180,"source":4,"threshold":0,"fill_value":"rgba(255, 66, 28, 0.98)","fill_max":2100,"url":"http://192.168.2.89:3000/d/dd044d28-faaa-44ae-9528-0daff03707ca/waschen?orgId=1&from=now-3h&to=now&timezone=browser&refresh=auto&kiosk=true","frame_width":"100%","frame_height":"75%"},"34":{"position":12,"type":"rect","id":34,"rx":10,"height":100,"width":100,"pos_x":840,"pos_y":53,"fill":"rgb(224, 186, 186)","color":"rgb(242, 14, 64)","stroke":3,"shadow":"rgba(0, 0, 0, 0.7)","frame":"_overlay","fill_type":"value","fill_direction":90,"border_type":-1,"border_direction":"cw","border_style":"round","border_reverse":false,"border_start":180,"source":8,"threshold":0,"fill_max":500,"fill_value":"rgba(255, 66, 28, 0.99)","url":"http://192.168.2.89:3000/d/dd044d28-faaa-44ae-9528-0daff03707ca/waschen?orgId=1&from=now-3h&to=now&timezone=browser&refresh=auto&kiosk=true","frame_width":"100%","frame_height":"75%"},"37":{"position":11,"type":"icon","id":"37","icon":"roentgen:washing-machine","width":40,"height":40,"color":"rgb(252, 252, 250)","pos_x":743,"pos_y":55,"shadow":"","source":-1,"threshold":0,"frame":"_overlay","action":"none"},"38":{"position":43,"type":"text","subType":"datasource","id":38,"pos_x":760,"pos_y":103,"color":"none","fill":"rgb(8, 16, 89)","font_family":"Arial, sans-serif","font_size":20,"align":"middle","text":"ID 38","unit":"W","source":4,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":0,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"39":{"position":78,"type":"text","subType":"datasource","id":39,"pos_x":890,"pos_y":103,"color":"none","fill":"rgb(8, 16, 89)","font_family":"Arial, sans-serif","font_size":20,"align":"middle","text":"ID 39","unit":"W","source":8,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":0,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"40":{"position":10,"type":"icon","id":"40","icon":"mdi:tumble-dryer","width":40,"height":40,"color":"rgb(56, 64, 170)","pos_x":873,"pos_y":55,"shadow":"","source":-1,"threshold":0,"frame":"_overlay","action":"none"},"41":{"position":14,"type":"rect","id":41,"rx":10,"height":100,"width":100,"pos_x":970,"pos_y":53,"fill":"rgb(224, 186, 186)","color":"rgb(242, 14, 64)","stroke":3,"shadow":"rgba(0, 0, 0, 0.7)","frame":"_overlay","fill_type":"value","fill_direction":90,"border_type":-1,"border_direction":"cw","border_style":"round","border_reverse":false,"border_start":180,"source":5,"threshold":0,"fill_max":1500,"fill_value":"rgb(255, 66, 28)","url":"http://192.168.2.89:3000/d/adx8hmn/geschirrspler?orgId=1&from=now-6h&to=now&timezone=browser&kiosk=true","frame_width":"100%","frame_height":"75%"},"43":{"position":50,"type":"text","subType":"datasource","id":43,"pos_x":1020,"pos_y":103,"color":"none","fill":"rgb(8, 16, 89)","font_family":"Arial, sans-serif","font_size":20,"align":"middle","text":"ID 43","unit":"W","source":5,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":0,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"45":{"position":9,"type":"icon","id":"45","icon":"material-symbols:dishwasher-gen-outline","width":40,"height":40,"color":"rgb(121, 233, 15)","pos_x":1003,"pos_y":55,"shadow":"","source":-1,"threshold":0,"frame":"_overlay","action":"none"},"46":{"position":58,"type":"text","id":46,"pos_x":295,"pos_y":220,"color":"none","fill":"rgb(0, 0, 0)","font_family":"Arial, sans-serif","font_size":16,"align":"middle","text":"2 Anker Solix 2 Pro\n","shadow":"","frame":"_overlay"},"47":{"position":40,"type":"text","subType":"datasource","id":47,"pos_x":295,"pos_y":257,"color":"none","fill":"rgb(66, 250, 52)","font_family":"Arial, sans-serif","font_size":18,"align":"middle","text":"ID 47","unit":"W","source":13,"source_option":-1,"source_display":"value","shadow":"rgb(0, 0, 0)","threshold":0,"calculate_kw":"auto","counter_animation":false,"convert":false,"decimal_places":0,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"48":{"position":8,"type":"icon","id":"48","icon":"mdi:solar-panel","width":34,"height":34,"color":"rgba(0, 0, 0, 0.7)","pos_x":278,"pos_y":193,"shadow":"","source":-1,"threshold":0,"frame":"_overlay","action":"none"},"49":{"position":21,"type":"rect","id":49,"rx":10,"height":160,"width":160,"pos_x":215,"pos_y":190,"fill":"rgba(255, 182, 36, 0.75)","color":"rgb(255, 255, 46)","stroke":3,"shadow":"rgba(0, 0, 0, 0.7)","frame":"_overlay","fill_type":"value","fill_direction":90,"border_type":-1,"border_direction":"cw","border_style":"round","border_reverse":false,"border_start":null,"source":29,"threshold":0,"fill_value":"rgb(255, 206, 74)","fill_max":1740},"52":{"position":18,"type":"rect","id":52,"rx":10,"height":100,"width":100,"pos_x":1100,"pos_y":53,"fill":"rgb(224, 186, 186)","color":"rgb(242, 14, 64)","stroke":3,"shadow":"rgba(0, 0, 0, 0.7)","frame":"_overlay","fill_type":"value","fill_direction":90,"border_type":-1,"border_direction":"cw","border_style":"round","border_reverse":false,"border_start":180,"source":9,"threshold":0,"fill_value":"rgb(255, 66, 28)","fill_max":160,"url":"http://192.168.2.89:3000/d/adm5dx5/tv-anlage?orgId=1&from=now-6h&to=now&timezone=browser&refresh=1m&kiosk=true","frame_width":"100%","frame_height":"75%"},"53":{"position":38,"type":"text","subType":"datasource","id":53,"pos_x":1150,"pos_y":103,"color":"none","fill":"rgb(8, 16, 89)","font_family":"Arial, sans-serif","font_size":20,"align":"middle","text":"ID 53","unit":"W","source":9,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":true,"convert":false,"decimal_places":1,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"55":{"position":7,"type":"icon","id":"55","icon":"ic:twotone-tv","width":40,"height":40,"color":"rgb(205, 154, 113)","pos_x":1133,"pos_y":55,"shadow":"","source":-1,"threshold":0,"frame":"_overlay","action":"none"},"56":{"position":9,"type":"rect","id":56,"rx":10,"height":100,"width":100,"pos_x":1192,"pos_y":195,"fill":"rgb(224, 186, 186)","color":"rgb(242, 14, 64)","stroke":3,"shadow":"rgba(0, 0, 0, 0.7)","frame":"_overlay","fill_type":"value","fill_direction":90,"border_type":-1,"border_direction":"cw","border_style":"round","border_reverse":false,"border_start":180,"source":6,"threshold":0,"fill_max":10,"fill_value":"rgb(255, 66, 28)"},"57":{"position":38,"type":"text","id":57,"pos_x":1242,"pos_y":263,"color":"none","fill":"rgb(8, 16, 89)","font_family":"Arial, sans-serif","font_size":16,"align":"middle","text":"Gehweg Licht","shadow":"","frame":"_self","url":"","degree":0},"58":{"position":38,"type":"text","subType":"datasource","id":58,"pos_x":1242,"pos_y":246,"color":"none","fill":"rgb(8, 16, 89)","font_family":"Arial, sans-serif","font_size":20,"align":"middle","text":"ID 58","unit":"W","source":6,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":true,"convert":false,"decimal_places":1,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"59":{"position":6,"type":"icon","id":"59","icon":"tabler:bulb","width":40,"height":40,"color":"rgb(255, 249, 61)","pos_x":1224,"pos_y":196,"shadow":"","source":-1,"threshold":0,"frame":"_overlay","action":"none"},"60":{"position":5,"type":"rect","id":60,"rx":10,"height":100,"width":100,"pos_x":711,"pos_y":571,"fill":"rgb(224, 186, 186)","color":"rgb(242, 14, 64)","stroke":3,"shadow":"rgba(0, 0, 0, 0.7)","frame":"_overlay","fill_type":"value","fill_direction":90,"border_type":-1,"border_direction":"cw","border_style":"round","border_reverse":false,"border_start":180,"source":7,"threshold":0,"fill_value":"rgb(255, 66, 28)","fill_max":200},"61":{"position":35,"type":"text","subType":"datasource","id":61,"pos_x":760,"pos_y":620,"color":"none","fill":"rgb(8, 16, 89)","font_family":"Arial, sans-serif","font_size":20,"align":"middle","text":"ID 61","unit":"W","source":7,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":1,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"63":{"position":5,"type":"icon","id":"63","icon":"raphael:pc","width":40,"height":40,"color":"rgb(71, 82, 125)","pos_x":743,"pos_y":573,"shadow":"","source":-1,"threshold":0,"frame":"_overlay","action":"none"},"64":{"position":7,"type":"rect","id":64,"rx":10,"height":100,"width":100,"pos_x":840,"pos_y":572,"fill":"rgb(224, 186, 186)","color":"rgb(242, 14, 64)","stroke":3,"shadow":"rgba(0, 0, 0, 0.7)","frame":"_overlay","fill_type":"value","fill_direction":90,"border_type":-1,"border_direction":"cw","border_style":"round","border_reverse":false,"border_start":180,"source":11,"threshold":1,"frame_width":"100%","frame_height":"75%","fill_value":"rgba(255, 66, 28, 0.97)","fill_max":200,"url":"http://192.168.2.89:3000/d/fb556b7a-e1c2-411d-b7bb-d8cef391fe21/e-bike-ladekurve?orgId=1&from=now-3h&to=now&timezone=browser&refresh=1m&kiosk=true"},"65":{"position":31,"type":"text","subType":"datasource","id":65,"pos_x":890,"pos_y":621,"color":"none","fill":"rgb(8, 16, 89)","font_family":"Arial, sans-serif","font_size":20,"align":"middle","text":"ID 65","unit":"W","source":11,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":true,"convert":false,"decimal_places":1,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"66":{"position":32,"type":"text","id":66,"pos_x":890,"pos_y":623,"color":"none","fill":"rgb(8, 16, 89)","font_family":"Arial, sans-serif","font_size":16,"align":"middle","text":"eBike\n","shadow":"","frame":"_overlay","url":""},"67":{"position":4,"type":"icon","id":"67","icon":"grommet-icons:bike","width":40,"height":40,"color":"rgb(3, 2, 1)","pos_x":873,"pos_y":572,"shadow":"","source":-1,"threshold":0,"frame":"_overlay","action":"none","frame_width":"","frame_height":""},"68":{"position":6,"type":"rect","id":68,"rx":10,"height":100,"width":100,"pos_x":970,"pos_y":572,"fill":"rgb(224, 186, 186)","color":"rgb(242, 14, 64)","stroke":3,"shadow":"rgba(0, 0, 0, 0.7)","frame":"_overlay","fill_type":"value","fill_direction":90,"border_type":-1,"border_direction":"cw","border_style":"round","border_reverse":false,"border_start":180,"source":10,"threshold":0,"fill_value":"rgba(255, 66, 28, 0.97)","fill_max":700,"url":"http://192.168.2.89:3000/d/adshxzf/gartenpumpe?orgId=1&from=now-8h&to=now&timezone=browser&kiosk=true","frame_width":"100%","frame_height":"80%"},"69":{"position":29,"type":"text","subType":"datasource","id":69,"pos_x":1020,"pos_y":620,"color":"none","fill":"rgb(8, 16, 89)","font_family":"Arial, sans-serif","font_size":20,"align":"middle","text":"ID 69","unit":"W","source":10,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":true,"convert":false,"decimal_places":1,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"71":{"position":3,"type":"icon","id":"71","icon":"mdi:water-pump","width":40,"height":40,"color":"rgb(55, 41, 255)","pos_x":1001,"pos_y":572,"shadow":"","source":-1,"threshold":0,"frame":"_overlay","action":"none"},"72":{"position":22,"type":"rect","id":72,"rx":10,"height":100,"width":100,"pos_x":1100,"pos_y":572,"fill":"rgb(224, 186, 186)","color":"rgb(242, 14, 64)","stroke":3,"shadow":"rgba(0, 0, 0, 0.7)","frame":"_overlay","fill_type":-1,"fill_direction":90,"border_type":-1,"border_direction":"cw","border_style":"round","border_reverse":false,"border_start":180,"source":-1,"threshold":0},"73":{"position":27,"type":"text","subType":"datasource","id":73,"pos_x":1150,"pos_y":621,"color":"none","fill":"rgb(8, 16, 89)","font_family":"Arial, sans-serif","font_size":20,"align":"middle","text":"ID 73","unit":"W","source":3,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":true,"convert":false,"decimal_places":1,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"74":{"position":26,"type":"text","id":74,"pos_x":1150,"pos_y":629,"color":"none","fill":"rgb(8, 16, 89)","font_family":"Arial, sans-serif","font_size":16,"align":"middle","text":"Easee\nWalbox","shadow":"","frame":"_self","url":""},"75":{"position":2,"type":"icon","id":"75","icon":"pepicons-print:car","width":40,"height":40,"color":"rgb(173, 37, 10)","pos_x":1129,"pos_y":572,"shadow":"","source":-1,"threshold":0,"frame":"_overlay","action":"none"},"76":{"position":38,"type":"text","subType":"datasource","id":76,"pos_x":295,"pos_y":114,"color":"none","fill":"rgb(8, 7, 4)","font_family":"Arial, sans-serif","font_size":18,"align":"middle","text":"ID 76","unit":"kWh/T","source":47,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":2,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"77":{"position":52,"type":"text","subType":"datasource","id":77,"pos_x":699,"pos_y":378,"color":"none","fill":"rgb(252, 150, 15)","font_family":"Arial, sans-serif","font_size":20,"align":"middle","text":"ID 77","unit":"kWh/T","source":15,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":2,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"79":{"position":20,"type":"rect","id":79,"rx":10,"height":160,"width":160,"pos_x":446,"pos_y":106,"fill":"rgba(255, 182, 36, 0.75)","color":"rgb(255, 255, 46)","stroke":3,"shadow":"rgba(0, 0, 0, 0.7)","frame":"_overlay","fill_type":"value","fill_direction":90,"border_type":-1,"border_direction":"cw","border_style":"round","border_reverse":false,"border_start":270,"source":19,"threshold":0,"fill_value":"rgb(255, 206, 74)","fill_max":1600,"border_max":1600,"border_value":"rgb(69, 221, 13)"},"80":{"position":23,"type":"text","id":80,"pos_x":526,"pos_y":138,"color":"none","fill":"rgb(0, 0, 0)","font_family":"Arial, sans-serif","font_size":16,"align":"middle","text":"Produktion\n\n","shadow":"","frame":"_overlay"},"81":{"position":1,"type":"icon","id":"81","icon":"mdi:solar-panel","width":34,"height":34,"color":"rgba(0, 0, 0, 0.7)","pos_x":509,"pos_y":112,"shadow":"","source":-1,"threshold":0,"frame":"_overlay","action":"none"},"82":{"position":39,"type":"text","subType":"datasource","id":82,"pos_x":526,"pos_y":175,"color":"none","fill":"rgb(66, 250, 52)","font_family":"Arial, sans-serif","font_size":20,"align":"middle","text":"ID 82","unit":"W","source":19,"source_option":-1,"source_display":"value","shadow":"rgb(0, 0, 0)","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":0,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"83":{"position":21,"type":"text","subType":"datasource","id":83,"pos_x":295,"pos_y":298,"color":"none","fill":"rgb(8, 7, 4)","font_family":"Arial, sans-serif","font_size":18,"align":"middle","text":"ID 83","unit":"kWh/T","source":20,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":2,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"84":{"position":54,"type":"text","subType":"datasource","id":84,"pos_x":526,"pos_y":200,"color":"none","fill":"rgb(8, 7, 4)","font_family":"Arial, sans-serif","font_size":20,"align":"middle","text":"ID 84","unit":"kWh/T","source":20,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":2,"action":"none","subtract":[-1],"add":[47],"frame":"_overlay"},"85":{"position":55,"type":"text","subType":"datasource","id":85,"pos_x":526,"pos_y":660,"color":"none","fill":"rgb(0, 181, 221)","font_family":"Arial, sans-serif","font_size":20,"align":"middle","text":"ID 85","unit":"kWh/T","source":18,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":2,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"86":{"position":19,"type":"rect","id":86,"rx":10,"height":240,"width":160,"pos_x":215,"pos_y":479,"fill":"rgba(176, 255, 213, 0.65)","color":"rgb(255, 255, 46)","stroke":3,"shadow":"rgba(0, 0, 0, 0.7)","frame":"_overlay","fill_value":"#268F1E","fill_type":"percent","fill_direction":90,"border_type":-1,"border_direction":"cw","border_style":"square","border_max":100,"border_reverse":false,"border_start":270,"source":24,"threshold":0},"87":{"position":57,"type":"text","subType":"datasource","id":87,"pos_x":250,"pos_y":699,"color":"none","fill":"rgb(8, 4, 7)","font_family":"Arial, sans-serif","font_size":20,"align":"middle","text":"ID 87","unit":"","append":"%","source":24,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":0,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"88":{"position":56,"type":"text","id":88,"pos_x":295,"pos_y":480,"color":"none","fill":"rgb(0, 0, 0)","font_family":"Arial, sans-serif","font_size":16,"align":"middle","text":"6,4 kWh \nLiFePO4-Akku","shadow":"","frame":"_overlay"},"89":{"position":67,"type":"text","subType":"datasource","id":89,"pos_x":352.5,"pos_y":378,"color":"none","fill":"rgb(5, 4, 5)","font_family":"Arial, sans-serif","font_size":20,"align":"middle","text":"ID 89","unit":"W","source":25,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":0,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"90":{"position":59,"type":"text","subType":"datasource","id":90,"pos_x":90,"pos_y":654,"color":"none","fill":"rgb(0, 0, 0)","font_family":"Arial, sans-serif","font_size":16,"align":"middle","text":"ID 90","unit":"h","prepend":"Endladezeit ","source":53,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":1,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"91":{"position":60,"type":"text","id":91,"pos_x":90,"pos_y":677,"color":"none","fill":"rgb(0, 0, 0)","font_family":"Arial, sans-serif","font_size":16,"align":"middle","text":"Ladung 🔋 ","shadow":"","frame":"_overlay"},"92":{"position":61,"type":"text","subType":"datasource","id":92,"pos_x":295,"pos_y":631,"color":"none","fill":"rgb(0, 0, 0)","font_family":"Arial, sans-serif","font_size":16,"align":"middle","text":"ID 92","unit":"Uhr","prepend":"Endzeit ","source":27,"source_option":-1,"source_display":"text","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":0,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"93":{"position":0,"type":"icon","id":"93","icon":"emojione:battery","width":100,"height":100,"color":"rgb(198, 4, 9)","pos_x":40,"pos_y":521,"shadow":"","source":-1,"threshold":0,"frame":"_overlay","action":"none"},"94":{"position":62,"type":"text","subType":"datasource","id":94,"pos_x":236.5,"pos_y":378,"color":"","fill":"rgb(5, 4, 5)","font_family":"Arial, sans-serif","font_size":20,"align":"middle","text":"ID 94","unit":"W","source":28,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":0,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay","degree":0},"95":{"position":63,"type":"text","subType":"datasource","id":95,"pos_x":295,"pos_y":278,"color":"none","fill":"rgb(242, 242, 10)","font_family":"Arial, sans-serif","font_size":18,"align":"middle","text":"ID 95","unit":"W","prepend":"PV ","source":29,"source_option":-1,"source_display":"value","shadow":"rgb(0, 0, 0)","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":0,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"97":{"position":11,"type":"text","subType":"datasource","id":97,"pos_x":526,"pos_y":705,"color":"rgb(252, 13, 45)","fill":"rgb(252, 13, 45)","font_family":"Arial, sans-serif","font_size":20,"align":"middle","text":"ID 97","unit":"kWh/J","source":76,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":0,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"98":{"position":51,"type":"text","subType":"datasource","id":98,"pos_x":526,"pos_y":245,"color":"none","fill":"rgb(8, 7, 4)","font_family":"Arial, sans-serif","font_size":20,"align":"middle","text":"ID 98","unit":"kWh/J","source":31,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":1,"action":"none","subtract":[-1],"add":[],"frame":"_overlay"},"101":{"position":9,"type":"text","subType":"datasource","id":101,"pos_x":699,"pos_y":424,"color":"rgb(252, 13, 45)","fill":"rgb(252, 13, 45)","font_family":"Arial, sans-serif","font_size":20,"align":"middle","text":"ID 101","unit":"kWh/J","source":30,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":0,"action":"none","subtract":[],"add":[31],"frame":"_overlay"},"103":{"position":8,"type":"text","subType":"datasource","id":103,"pos_x":295,"pos_y":336,"color":"none","fill":"rgb(8, 7, 4)","font_family":"Arial, sans-serif","font_size":18,"align":"middle","text":"ID 103","unit":"kWh/J","source":33,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":1,"action":"none","subtract":[-1],"add":["14"],"frame":"_overlay"},"104":{"position":6,"type":"text","subType":"datasource","id":104,"pos_x":325,"pos_y":699,"color":"none","fill":"rgb(8, 4, 7)","font_family":"Arial, sans-serif","font_size":20,"align":"middle","text":"ID 104","unit":"","append":"Wh","source":34,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":0,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"105":{"position":25,"type":"rect","id":105,"rx":10,"height":38,"width":160,"pos_x":446,"pos_y":7,"fill":"rgba(255, 182, 36, 0.75)","color":"rgb(255, 255, 46)","stroke":3,"shadow":"rgba(0, 0, 0, 0.7)","frame":"_overlay","fill_value":"#42FA34","fill_type":"percent","fill_direction":"180","border_type":"-1","border_direction":"cw","border_style":"round","border_reverse":false,"border_start":null,"source":"35","threshold":0},"106":{"position":7,"type":"text","subType":"datasource","id":106,"pos_x":526,"pos_y":27,"color":"none","fill":"rgb(2, 1, 5)","font_family":"Arial, sans-serif","font_size":18,"align":"middle","text":"ID 106","unit":"%","prepend":"Autarkie ","source":"35","source_option":"-1","source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":0,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"107":{"position":26,"type":"rect","id":107,"rx":10,"height":38,"width":160,"pos_x":446,"pos_y":52,"fill":"rgba(255, 182, 36, 0.75)","color":"rgb(255, 255, 46)","stroke":3,"shadow":"rgba(0, 0, 0, 0.7)","frame":"_overlay","fill_value":"#42FA34","fill_type":"percent","fill_direction":"180","border_type":"-1","border_direction":"cw","border_style":"round","border_reverse":false,"border_start":null,"source":"36","threshold":0},"108":{"position":75,"type":"text","subType":"datasource","id":108,"pos_x":526,"pos_y":72,"color":"none","fill":"rgb(2, 1, 5)","font_family":"Arial, sans-serif","font_size":18,"align":"middle","text":"ID 108","unit":"%","prepend":"Eigenv. ","source":"36","source_option":"-1","source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":0,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"109":{"position":43,"type":"text","id":109,"pos_x":889,"pos_y":104,"color":"none","fill":"rgb(8, 16, 89)","font_family":"Arial, sans-serif","font_size":16,"align":"middle","text":"Trockner\n","shadow":"","frame":"_overlay"},"110":{"position":15,"type":"rect","id":110,"rx":10,"height":95,"width":90,"pos_x":123,"pos_y":190,"fill":"rgba(255, 182, 36, 0.75)","color":"rgb(255, 255, 46)","stroke":3,"shadow":"rgba(0, 0, 0, 0.7)","frame":"_overlay","fill_type":"percent","fill_direction":90,"border_type":-1,"border_direction":"cw","border_style":"round","border_reverse":false,"border_start":null,"source":-1,"threshold":0},"113":{"position":74,"id":113,"pos_x":134,"pos_y":205,"source":37,"threshold":0,"frame":"_overlay","url":"","action":"none","shadow":"","calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":0,"type":"text","align":"start","subType":"datasource","text":"Datasource 113","source_option":-1,"source_option_lc":-1,"source_display":"auto","linebreak":0,"subtract":[],"add":[],"unit":"W","source_action":-1,"color":"none","fill":"rgb(242, 242, 10)","font_size":16,"font_family":"\"Arial\", sans-serif","prepend":"M1 "},"114":{"position":70,"id":114,"pos_x":134,"pos_y":228,"source":38,"threshold":0,"frame":"_overlay","url":"","action":"none","shadow":"","calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":0,"type":"text","align":"start","subType":"datasource","text":"Datasource 113","source_option":-1,"source_option_lc":-1,"source_display":"auto","linebreak":0,"subtract":[],"add":[],"unit":"W","source_action":-1,"color":"none","fill":"rgb(242, 242, 10)","font_size":16,"font_family":"\"Arial\", sans-serif","prepend":"M2"},"115":{"position":72,"id":115,"pos_x":134,"pos_y":250,"source":39,"threshold":0,"frame":"_overlay","url":"","action":"none","shadow":"","calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":0,"type":"text","align":"start","subType":"datasource","text":"Datasource 113","source_option":-1,"source_option_lc":-1,"source_display":"auto","linebreak":0,"subtract":[],"add":[],"unit":"W","source_action":-1,"color":"none","fill":"rgb(242, 242, 10)","font_size":16,"font_family":"\"Arial\", sans-serif","prepend":"M3"},"116":{"position":69,"id":116,"pos_x":134,"pos_y":271,"source":40,"threshold":0,"frame":"_overlay","url":"","action":"none","shadow":"","calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":0,"type":"text","align":"start","subType":"datasource","text":"Datasource 113","source_option":-1,"source_option_lc":-1,"source_display":"auto","linebreak":0,"subtract":[],"add":[],"unit":"W","source_action":-1,"color":"none","fill":"rgb(242, 242, 10)","font_size":16,"font_family":"\"Arial\", sans-serif","prepend":"M4"},"117":{"position":23,"type":"rect","id":117,"rx":10,"height":240,"width":160,"pos_x":10,"pos_y":479,"fill":"rgba(176, 255, 213, 0.65)","color":"rgb(255, 255, 46)","stroke":3,"shadow":"rgba(0, 0, 0, 0.7)","frame":"_overlay","fill_value":"#268F1E","fill_type":"percent","fill_direction":90,"border_type":-1,"border_direction":"cw","border_style":"square","border_max":100,"border_reverse":false,"border_start":270,"source":50,"threshold":0},"118":{"position":18,"type":"text","id":118,"pos_x":90,"pos_y":480,"color":"none","fill":"rgb(0, 0, 0)","font_family":"Arial, sans-serif","font_size":16,"align":"middle","text":"2.0 kWh \nLiFePO4-Akku","shadow":"","frame":"_overlay"},"119":{"position":0,"type":"icon","id":119,"icon":"emojione:battery","width":100,"height":100,"color":"rgb(198, 4, 9)","pos_x":245,"pos_y":521,"shadow":"","source":-1,"threshold":0,"frame":"_overlay","action":"none"},"120":{"position":10,"type":"rect","id":120,"rx":10,"height":48,"width":90,"pos_x":123,"pos_y":7,"fill":"rgba(255, 182, 36, 0.75)","color":"rgb(255, 255, 46)","stroke":3,"shadow":"rgba(0, 0, 0, 0.7)","frame":"_overlay","fill_type":"percent","fill_direction":90,"border_type":-1,"border_direction":"cw","border_style":"round","border_reverse":false,"border_start":null,"source":-1,"threshold":0},"123":{"position":68,"id":123,"pos_x":296,"pos_y":74,"source":41,"threshold":0,"frame":"_overlay","url":"","action":"none","shadow":"rgb(0, 0, 0)","calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":0,"type":"text","align":"middle","subType":"datasource","text":"Datasource 123","source_option":-1,"source_option_lc":-1,"source_display":"auto","linebreak":0,"subtract":[],"add":[],"unit":"W","source_action":-1,"color":"","fill":"rgb(66, 250, 52)","font_size":18,"font_family":"\"Arial\", sans-serif"},"124":{"position":1,"id":124,"pos_x":295,"pos_y":152,"source":48,"threshold":0,"frame":"_overlay","url":"","action":"none","shadow":"","calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":1,"type":"text","align":"middle","subType":"datasource","text":"Datasource 124","source_option":-1,"source_option_lc":-1,"source_display":"auto","linebreak":0,"subtract":[],"add":[],"unit":"kWh/J","source_action":-1,"color":"none","fill":"rgb(8, 7, 4)","font_size":18,"font_family":"\"Arial\", sans-serif"},"125":{"position":12,"type":"text","subType":"datasource","id":125,"pos_x":33.5,"pos_y":378,"color":"none","fill":"rgb(5, 4, 5)","font_family":"Arial, sans-serif","font_size":20,"align":"middle","text":"ID 94","unit":"W","source":46,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":0,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"126":{"position":16,"type":"text","subType":"datasource","id":126,"pos_x":148.5,"pos_y":378,"color":"none","fill":"rgb(5, 4, 5)","font_family":"Arial, sans-serif","font_size":20,"align":"middle","text":"ID 89","unit":"W","source":49,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":0,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"127":{"position":17,"type":"text","subType":"datasource","id":127,"pos_x":44,"pos_y":699,"color":"none","fill":"rgb(8, 4, 7)","font_family":"Arial, sans-serif","font_size":20,"align":"middle","text":"ID 87","unit":"","append":"%","source":50,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":0,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"128":{"position":14,"type":"text","id":128,"pos_x":295,"pos_y":677,"color":"none","fill":"rgb(0, 0, 0)","font_family":"Arial, sans-serif","font_size":16,"align":"middle","text":"Ladung 🔋 ","shadow":"","frame":"_overlay"},"129":{"position":4,"type":"text","subType":"datasource","id":129,"pos_x":128,"pos_y":699,"color":"none","fill":"rgb(8, 4, 7)","font_family":"Arial, sans-serif","font_size":20,"align":"middle","text":"ID 104","unit":"","append":"Wh","source":51,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":0,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"130":{"position":13,"type":"text","subType":"datasource","id":130,"pos_x":90,"pos_y":631,"color":"none","fill":"rgb(0, 0, 0)","font_family":"Arial, sans-serif","font_size":16,"align":"middle","text":"ID 92","unit":"Uhr","prepend":"Endzeit ","source":52,"source_option":-1,"source_display":"text","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":0,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"131":{"position":15,"type":"text","subType":"datasource","id":131,"pos_x":295,"pos_y":654,"color":"none","fill":"rgb(0, 0, 0)","font_family":"Arial, sans-serif","font_size":16,"align":"middle","text":"ID 90","unit":"h","prepend":"Endladezeit ","source":26,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":1,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"132":{"position":20,"type":"text","subType":"datasource","id":132,"pos_x":526,"pos_y":222,"color":"none","fill":"rgb(8, 7, 4)","font_family":"Arial, sans-serif","font_size":20,"align":"middle","text":"ID 84","unit":"kWh/M","source":55,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":1,"action":"none","subtract":[-1],"add":[],"frame":"_overlay"},"133":{"position":19,"type":"text","subType":"datasource","id":133,"pos_x":526,"pos_y":682,"color":"none","fill":"rgb(0, 181, 221)","font_family":"Arial, sans-serif","font_size":20,"align":"middle","text":"ID 85","unit":"kWh/M","source":57,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":2,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"134":{"position":24,"type":"text","subType":"datasource","id":134,"pos_x":699,"pos_y":402,"color":"none","fill":"rgb(252, 150, 15)","font_family":"Arial, sans-serif","font_size":20,"align":"middle","text":"ID 77","unit":"kWh/M","source":57,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":2,"action":"none","subtract":[63],"add":[55],"frame":"_overlay"},"135":{"position":25,"type":"text","subType":"datasource","id":135,"pos_x":295,"pos_y":133,"color":"none","fill":"rgb(8, 7, 4)","font_family":"Arial, sans-serif","font_size":18,"align":"middle","text":"ID 76","unit":"kWh/M","source":58,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":1,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"136":{"position":22,"type":"text","subType":"datasource","id":136,"pos_x":295,"pos_y":317,"color":"none","fill":"rgb(8, 7, 4)","font_family":"Arial, sans-serif","font_size":18,"align":"middle","text":"ID 83","unit":"kWh/M","source":59,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":1,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay"},"137":{"position":24,"type":"rect","id":137,"rx":10,"height":38,"width":420,"pos_x":737,"pos_y":1.5,"fill":"rgba(255, 182, 36, 0.75)","color":"rgb(255, 255, 46)","stroke":3,"shadow":"rgba(0, 0, 0, 0.7)","frame":"_overlay","fill_value":"#42FA34","fill_type":"value","fill_direction":180,"border_type":"-1","border_direction":"cw","border_style":"round","border_reverse":false,"border_start":null,"source":60,"threshold":1,"fill_max":2620},"138":{"position":65,"type":"text","subType":"datasource","id":138,"pos_x":890,"pos_y":20,"color":"none","fill":"rgb(2, 1, 5)","font_family":"Arial, sans-serif","font_size":18,"align":"middle","text":"ID 106","unit":"W","prepend":"Gesamt PV Leistung: ","source":60,"source_option":"-1","source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":true,"convert":false,"decimal_places":0,"action":"none","subtract":[-1],"add":[],"frame":"_overlay","append":""},"139":{"position":64,"type":"text","subType":"datasource","id":139,"pos_x":1040,"pos_y":20,"color":"none","fill":"rgb(2, 1, 5)","font_family":"Arial, sans-serif","font_size":18,"align":"start","text":"","unit":"","prepend":"","source":65,"source_option":"-1","source_display":"own_text","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":0,"action":"none","subtract":[-1],"add":[],"frame":"_overlay","append":""},"140":{"position":11,"type":"rect","id":140,"rx":10,"height":60,"width":140,"pos_x":906,"pos_y":234,"fill":"rgba(255, 182, 36, 0.75)","color":"rgb(255, 255, 46)","stroke":3,"shadow":"rgba(0, 0, 0, 0.7)","frame":"_overlay","fill_type":"percent","fill_direction":90,"border_type":-1,"border_direction":"cw","border_style":"round","border_reverse":false,"border_start":null,"source":-1,"threshold":0},"141":{"position":1,"id":141,"pos_x":907,"pos_y":234,"source":-1,"threshold":0,"frame":"_overlay","url":"","action":"none","shadow":"","type":"icon","width":55,"height":55,"icon":"lets-icons:sun-fill","color":"rgb(248, 227, 42)","rotate":"180deg"},"142":{"position":66,"id":142,"pos_x":990,"pos_y":276,"source":61,"threshold":0,"frame":"_overlay","url":"","action":"none","shadow":"","calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":0,"type":"text","align":"middle","subType":"datasource","text":"Datasource 142","source_option":-1,"source_option_lc":-1,"source_display":"auto","linebreak":0,"subtract":[],"add":[],"unit":"°","source_action":-1,"color":"none","fill":"rgb(242, 242, 10)","font_size":18,"font_family":"\"Arial\", sans-serif"},"143":{"position":3,"id":143,"pos_x":1000,"pos_y":251,"source":62,"threshold":0,"frame":"_overlay","url":"","action":"none","shadow":"","calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":0,"type":"text","align":"middle","subType":"datasource","text":"Datasource 142","source_option":-1,"source_option_lc":-1,"source_display":"auto","linebreak":0,"subtract":[],"add":[],"unit":"W/m²","source_action":-1,"color":"none","fill":"rgb(242, 242, 10)","font_size":18,"font_family":"\"Arial\", sans-serif"},"144":{"position":2,"id":144,"pos_x":1144,"pos_y":20,"source":65,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":0,"type":"text","align":"end","subType":"datasource","text":"Datasource 144","source_option":-1,"source_option_lc":-1,"source_display":"auto","linebreak":0,"subtract":[],"add":[],"unit":"W","source_action":-1,"color":"none","fill":"rgb(27, 44, 87)","font_size":18,"font_family":"\"Arial\", sans-serif","prepend":"Max."},"145":{"position":10,"type":"text","subType":"datasource","id":145,"pos_x":484,"pos_y":391,"color":"rgb(0, 0, 0)","fill":"rgb(0, 0, 0)","font_family":"Arial, sans-serif","font_size":20,"align":"middle","text":"ID 98","unit":"kWh/J","source":64,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":"0","action":"none","subtract":[-1],"add":[],"frame":"_overlay","group":null,"degree":270,"prepend":""},"146":{"position":4,"id":146,"pos_x":320,"pos_y":364,"source":-1,"type":"rect","width":65,"height":28,"rx":6,"fill_value":"","fill_type":-1,"fill_direction":90,"fill_max":0,"border_value":"","border_type":-1,"border_direction":"cw","border_style":"round","border_max":0,"border_reverse_value":"","border_reverse":false,"border_start":180,"color":"","fill":"rgb(190, 194, 172)","stroke":1},"147":{"position":0,"id":147,"pos_x":470,"pos_y":335,"source":-1,"type":"rect","width":28,"height":115,"rx":6,"fill_value":"","fill_type":-1,"fill_direction":90,"fill_max":0,"border_value":"","border_type":-1,"border_direction":"cw","border_style":"round","border_max":0,"border_reverse_value":"","border_reverse":false,"border_start":180,"color":"","fill":"rgb(190, 194, 172)","stroke":1,"group":null},"148":{"position":3,"id":148,"pos_x":204,"pos_y":363,"source":-1,"type":"rect","width":65,"height":28,"rx":6,"fill_value":"","fill_type":-1,"fill_direction":90,"fill_max":0,"border_value":"","border_type":-1,"border_direction":"cw","border_style":"round","border_max":0,"border_reverse_value":"","border_reverse":false,"border_start":180,"color":"","fill":"rgb(190, 194, 172)","stroke":1,"group":null},"149":{"position":2,"id":149,"pos_x":116,"pos_y":363,"source":-1,"type":"rect","width":65,"height":28,"rx":6,"fill_value":"","fill_type":-1,"fill_direction":90,"fill_max":0,"border_value":"","border_type":-1,"border_direction":"cw","border_style":"round","border_max":0,"border_reverse_value":"","border_reverse":false,"border_start":180,"color":"","fill":"rgb(190, 194, 172)","stroke":1,"group":null},"150":{"position":1,"id":150,"pos_x":1,"pos_y":363,"source":-1,"type":"rect","width":65,"height":28,"rx":6,"fill_value":"","fill_type":-1,"fill_direction":90,"fill_max":0,"border_value":"","border_type":-1,"border_direction":"cw","border_style":"round","border_max":0,"border_reverse_value":"","border_reverse":false,"border_start":180,"color":"","fill":"rgb(190, 194, 172)","stroke":1,"group":null},"152":{"position":0,"id":152,"pos_x":469,"pos_y":453,"source":-1,"type":"icon","width":30,"height":30,"icon":"mdi:arrow-up-bold","color":"rgb(100, 232, 104)","rotate":"180deg"},"153":{"position":73,"id":153,"pos_x":134,"pos_y":20,"source":42,"threshold":0,"frame":"_overlay","url":"","action":"none","shadow":"","calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":0,"type":"text","align":"start","subType":"datasource","text":"Datasource 113","source_option":-1,"source_option_lc":-1,"source_display":"auto","linebreak":0,"subtract":[],"add":[],"unit":"W","source_action":-1,"color":"none","fill":"rgb(242, 242, 10)","font_size":16,"font_family":"\"Arial\", sans-serif","prepend":"M1 ","group":null},"154":{"position":71,"id":154,"pos_x":134,"pos_y":40.5,"source":43,"threshold":0,"frame":"_overlay","url":"","action":"none","shadow":"","calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":0,"type":"text","align":"start","subType":"datasource","text":"Datasource 113","source_option":-1,"source_option_lc":-1,"source_display":"auto","linebreak":0,"subtract":[],"add":[],"unit":"W","source_action":-1,"color":"none","fill":"rgb(242, 242, 10)","font_size":16,"font_family":"\"Arial\", sans-serif","prepend":"M2","group":null},"155":{"position":28,"id":155,"pos_x":890,"pos_y":139,"source":66,"threshold":0,"frame":"_overlay","url":"","action":"none","shadow":"","calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":"0","type":"text","align":"middle","subType":"datasource","text":"Datasource 124","source_option":-1,"source_option_lc":-1,"source_display":"auto","linebreak":0,"subtract":[],"add":[],"unit":"kWh/J","source_action":-1,"color":"none","fill":"rgb(8, 7, 4)","font_size":18,"font_family":"\"Arial\", sans-serif","group":null},"156":{"position":41,"type":"text","id":156,"pos_x":760,"pos_y":104,"color":"none","fill":"rgb(8, 16, 89)","font_family":"Arial, sans-serif","font_size":16,"align":"middle","text":"Waschm.\n","shadow":"","frame":"_overlay","group":null},"157":{"position":0,"id":157,"pos_x":760,"pos_y":139,"source":67,"threshold":0,"frame":"_overlay","url":"","action":"none","shadow":"","calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":"0","type":"text","align":"middle","subType":"datasource","text":"Datasource 124","source_option":-1,"source_option_lc":-1,"source_display":"auto","linebreak":0,"subtract":[],"add":[],"unit":"kWh/J","source_action":-1,"color":"none","fill":"rgb(8, 7, 4)","font_size":18,"font_family":"\"Arial\", sans-serif","group":null},"158":{"position":0,"id":158,"pos_x":1020,"pos_y":139,"source":68,"threshold":0,"frame":"_overlay","url":"","action":"none","shadow":"","calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":"0","type":"text","align":"middle","subType":"datasource","text":"Datasource 124","source_option":-1,"source_option_lc":-1,"source_display":"auto","linebreak":0,"subtract":[],"add":[],"unit":"kWh/J","source_action":-1,"color":"none","fill":"rgb(8, 7, 4)","font_size":18,"font_family":"\"Arial\", sans-serif","group":null},"159":{"position":43,"type":"text","id":159,"pos_x":1020,"pos_y":104,"color":"none","fill":"rgb(8, 16, 89)","font_family":"Arial, sans-serif","font_size":16,"align":"middle","text":"Geschirrsp.\n","shadow":"","frame":"_overlay","group":null},"160":{"position":43,"type":"text","id":160,"pos_x":1149,"pos_y":104,"color":"none","fill":"rgb(8, 16, 89)","font_family":"Arial, sans-serif","font_size":16,"align":"middle","text":"TV-Anlage\n","shadow":"","frame":"_overlay","group":null},"161":{"position":0,"id":161,"pos_x":1151,"pos_y":139,"source":69,"threshold":0,"frame":"_overlay","url":"","action":"none","shadow":"","calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":"0","type":"text","align":"middle","subType":"datasource","text":"Datasource 124","source_option":-1,"source_option_lc":-1,"source_display":"auto","linebreak":0,"subtract":[],"add":[],"unit":"kWh/J","source_action":-1,"color":"none","fill":"rgb(8, 7, 4)","font_size":18,"font_family":"\"Arial\", sans-serif","group":null},"162":{"position":42,"type":"text","id":162,"pos_x":760,"pos_y":622,"color":"none","fill":"rgb(8, 16, 89)","font_family":"Arial, sans-serif","font_size":16,"align":"middle","text":"Klaus PC\n","shadow":"","frame":"_overlay","group":null},"163":{"position":3,"id":163,"pos_x":890,"pos_y":659,"source":70,"threshold":0,"frame":"_overlay","url":"","action":"none","shadow":"","calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":1,"type":"text","align":"middle","subType":"datasource","text":"Datasource 124","source_option":-1,"source_option_lc":-1,"source_display":"auto","linebreak":0,"subtract":[],"add":[],"unit":"kWh/J","source_action":-1,"color":"none","fill":"rgb(8, 7, 4)","font_size":18,"font_family":"\"Arial\", sans-serif","group":null},"164":{"position":83,"id":164,"pos_x":1242,"pos_y":283,"source":71,"threshold":0,"frame":"_overlay","url":"","action":"none","shadow":"","calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":1,"type":"text","align":"middle","subType":"datasource","text":"Datasource 124","source_option":-1,"source_option_lc":-1,"source_display":"auto","linebreak":0,"subtract":[],"add":[],"unit":"kWh/J","source_action":-1,"color":"none","fill":"rgb(8, 7, 4)","font_size":18,"font_family":"\"Arial\", sans-serif","group":null},"165":{"position":0,"id":165,"pos_x":760,"pos_y":658,"source":72,"threshold":0,"frame":"_overlay","url":"","action":"none","shadow":"","calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":"0","type":"text","align":"middle","subType":"datasource","text":"Datasource 124","source_option":-1,"source_option_lc":-1,"source_display":"auto","linebreak":0,"subtract":[],"add":[],"unit":"kWh/J","source_action":-1,"color":"none","fill":"rgb(8, 7, 4)","font_size":18,"font_family":"\"Arial\", sans-serif","group":null},"166":{"position":32,"type":"text","id":166,"pos_x":1020,"pos_y":623,"color":"none","fill":"rgb(8, 16, 89)","font_family":"Arial, sans-serif","font_size":16,"align":"middle","text":"Regenfass P.\n","shadow":"","frame":"_overlay","url":"","group":null},"167":{"position":2,"id":167,"pos_x":1022,"pos_y":659,"source":77,"threshold":0,"frame":"_overlay","url":"","action":"none","shadow":"","calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":1,"type":"text","align":"middle","subType":"datasource","text":"Datasource 124","source_option":-1,"source_option_lc":-1,"source_display":"auto","linebreak":0,"subtract":[],"add":[],"unit":"kWh/J","source_action":-1,"color":"none","fill":"rgb(8, 7, 4)","font_size":18,"font_family":"\"Arial\", sans-serif","group":null},"168":{"position":8,"type":"rect","id":168,"rx":10,"height":100,"width":100,"pos_x":1192,"pos_y":401,"fill":"rgb(224, 186, 186)","color":"rgb(242, 14, 64)","stroke":3,"shadow":"rgba(0, 0, 0, 0.7)","frame":"_overlay","fill_type":"value","fill_direction":90,"border_type":-1,"border_direction":"cw","border_style":"round","border_reverse":false,"border_start":180,"source":74,"threshold":0,"fill_max":30,"fill_value":"rgb(255, 66, 28)","group":null},"169":{"position":36,"type":"text","subType":"datasource","id":169,"pos_x":1242,"pos_y":452,"color":"none","fill":"rgb(8, 16, 89)","font_family":"Arial, sans-serif","font_size":20,"align":"middle","text":"ID 58","unit":"W","source":74,"source_option":-1,"source_display":"value","shadow":"","threshold":0,"calculate_kw":"none","counter_animation":true,"convert":false,"decimal_places":1,"action":"none","subtract":[-1],"add":[-1],"frame":"_overlay","group":null},"170":{"position":38,"type":"text","id":170,"pos_x":1242,"pos_y":471,"color":"none","fill":"rgb(8, 16, 89)","font_family":"Arial, sans-serif","font_size":16,"align":"middle","text":"Ugreen NAS","shadow":"","frame":"_self","url":"","degree":0,"group":null},"171":{"position":34,"id":171,"pos_x":1244,"pos_y":491,"source":75,"threshold":0,"frame":"_overlay","url":"","action":"none","shadow":"","calculate_kw":"none","counter_animation":false,"convert":false,"decimal_places":1,"type":"text","align":"middle","subType":"datasource","text":"Datasource 124","source_option":-1,"source_option_lc":-1,"source_display":"auto","linebreak":0,"subtract":[],"add":[],"unit":"kWh/J","source_action":-1,"color":"none","fill":"rgb(8, 7, 4)","font_size":18,"font_family":"\"Arial\", sans-serif","group":null},"172":{"position":6,"type":"icon","id":172,"icon":"mdi:nas","width":40,"height":40,"color":"rgb(36, 255, 20)","pos_x":1221,"pos_y":403,"shadow":"","source":-1,"threshold":0,"frame":"_overlay","action":"none","group":null}},"defs":{"path_7_41":{"type":"def","id":"path_7_41","d":"M720 276 V 227.2 A 15 15 0 0 1 735 212.2 H 1005 A 15 15 0 0 0 1020 197.2 V 154","startSlot":"top_right","endSlot":"bottom","line_arc":40},"path_7_34":{"type":"def","id":"path_7_34","d":"M720 276 V 227.2 A 15 15 0 0 1 735 212.2 H 875 A 15 15 0 0 0 890 197.2 V 154","startSlot":"top_right","endSlot":"bottom","line_arc":40},"path_7_33":{"type":"def","id":"path_7_33","d":"M720 276 V 227.2 A 15 15 0 0 1 735 212.2 H 745 A 15 15 0 0 0 760 197.2 V 154","startSlot":"top_right","endSlot":"bottom","line_arc":40},"path_7_52":{"type":"def","id":"path_7_52","d":"M720 276 V 227.2 A 15 15 0 0 1 735 212.2 H 1135 A 15 15 0 0 0 1150 197.2 V 154","startSlot":"top_right","endSlot":"bottom","line_arc":40},"path_7_56":{"type":"def","id":"path_7_56","d":"M781 357 H 1227 A 15 15 0 0 0 1242 342 V 296","startSlot":"right","endSlot":"bottom"},"path_7_60":{"type":"def","id":"path_7_60","d":"M720 438 V 490.8 A 15 15 0 0 0 735 505.8 H 746 A 15 15 0 0 1 761 520.8 V 570","startSlot":"bottom_right","endSlot":"top","line_arc":40},"path_7_64":{"type":"def","id":"path_7_64","d":"M720 438 V 491.2 A 15 15 0 0 0 735 506.2 H 875 A 15 15 0 0 1 890 521.2 V 571","startSlot":"bottom_right","endSlot":"top","line_arc":40},"path_7_68":{"type":"def","id":"path_7_68","d":"M720 438 V 491.2 A 15 15 0 0 0 735 506.2 H 1005 A 15 15 0 0 1 1020 521.2 V 571","startSlot":"bottom_right","endSlot":"top","line_arc":40},"path_7_72":{"type":"def","id":"path_7_72","d":"M720 438 V 491.2 A 15 15 0 0 0 735 506.2 H 1135 A 15 15 0 0 1 1150 521.2 V 571","startSlot":"bottom_right","endSlot":"top","line_arc":40},"path_5_79":{"type":"def","id":"path_5_79","d":"M376 87 H 389.8 A 15 15 0 0 1 404.8 102 V 151 A 15 15 0 0 0 419.8 166 H 445","startSlot":"right","endSlot":"left_top"},"path_49_79":{"type":"def","id":"path_49_79","d":"M376 270 H 389.8 A 15 15 0 0 0 404.8 255 V 221 A 15 15 0 0 1 419.8 206 H 445","startSlot":"right","endSlot":"left_bottom"},"path_79_7":{"type":"def","id":"path_79_7","d":"M607 186 H 665 A 15 15 0 0 1 680 201 V 276","startSlot":"right","endSlot":"top_left","line_arc":20},"path_79_14":{"type":"def","id":"path_79_14","d":"M506 267 V 559","startSlot":"bottom_left","endSlot":"top_left"},"path_14_7":{"type":"def","id":"path_14_7","d":"M546 559 V 521.49 A 15 15 0 0 1 561 506.49 H 665 A 15 15 0 0 0 680 491.49 V 438","startSlot":"top_right","endSlot":"bottom_left","line_arc":31},"path_86_49":{"type":"def","id":"path_86_49","startSlot":"top_right","endSlot":"bottom_right","d":"M315 478 V 351"},"path_49_86":{"type":"def","id":"path_49_86","startSlot":"bottom_left","endSlot":"top_left","d":"M275 351 V 478"},"path_5_117":{"type":"def","id":"path_5_117","startSlot":"left_top","endSlot":"top_left","d":"M214 67 H 85 A 15 15 0 0 0 70 82 V 478"},"path_117_5":{"type":"def","id":"path_117_5","startSlot":"top_right","endSlot":"left_bottom","d":"M110 478 V 122 A 15 15 0 0 1 125 107 H 214"},"path_7_168":{"type":"def","id":"path_7_168","startSlot":"right","endSlot":"top","d":"M781 357 H 1227 A 15 15 0 0 1 1242 372 V 400"}},"lines":{"line_path_7_41":{"type":"line","id":"line_path_7_41","href":"#path_7_41","color":"rgb(0, 0, 0)","shadow":"","position":16},"line_path_7_34":{"type":"line","id":"line_path_7_34","href":"#path_7_34","color":"rgb(0, 0, 0)","shadow":"","position":10},"line_path_7_33":{"type":"line","id":"line_path_7_33","href":"#path_7_33","color":"rgb(0, 0, 0)","shadow":"","position":9},"line_path_7_52":{"type":"line","id":"line_path_7_52","href":"#path_7_52","color":"rgb(0, 0, 0)","shadow":"","position":18},"line_path_7_56":{"type":"line","id":"line_path_7_56","href":"#path_7_56","color":"rgb(0, 0, 0)","shadow":"","position":8},"line_path_7_60":{"type":"line","id":"line_path_7_60","href":"#path_7_60","color":"rgb(0, 0, 0)","shadow":"","position":6},"line_path_7_64":{"type":"line","id":"line_path_7_64","href":"#path_7_64","color":"rgb(0, 0, 0)","shadow":"","position":14},"line_path_7_68":{"type":"line","id":"line_path_7_68","href":"#path_7_68","color":"rgb(0, 0, 0)","shadow":"","position":5},"line_path_7_72":{"type":"line","id":"line_path_7_72","href":"#path_7_72","color":"rgb(0, 0, 0)","shadow":"","position":4},"line_path_5_79":{"type":"line","id":"line_path_5_79","href":"#path_5_79","color":"rgb(0, 0, 0)","shadow":"","position":3},"line_path_49_79":{"type":"line","id":"line_path_49_79","href":"#path_49_79","color":"rgb(0, 0, 0)","shadow":"","position":2},"line_path_79_7":{"type":"line","id":"line_path_79_7","href":"#path_79_7","color":"rgb(0, 0, 0)","shadow":"","position":17},"line_path_79_14":{"type":"line","id":"line_path_79_14","href":"#path_79_14","color":"rgb(0, 0, 0)","shadow":"","position":13},"line_path_14_7":{"type":"line","id":"line_path_14_7","href":"#path_14_7","color":"rgb(0, 0, 0)","shadow":"","position":12},"line_path_86_49":{"type":"line","id":"line_path_86_49","color":"#000000","href":"#path_86_49","position":1},"line_path_49_86":{"type":"line","id":"line_path_49_86","color":"#000000","href":"#path_49_86","position":7},"line_path_5_117":{"type":"line","id":"line_path_5_117","color":"#000000","href":"#path_5_117","position":15},"line_path_117_5":{"type":"line","id":"line_path_117_5","color":"#000000","href":"#path_117_5","position":11},"line_path_7_168":{"type":"line","id":"line_path_7_168","color":"#000000","href":"#path_7_168","position":0}},"animations":{"anim_path_7_41":{"type":"animation","id":"anim_path_7_41","href":"#path_7_41","color":"rgb(255, 109, 36)","source":5,"threshold":0,"animation_properties":"positive","animation_option":false,"dots":0,"duration":2000,"power":2000,"animation_type":"duration"},"anim_path_7_34":{"type":"animation","id":"anim_path_7_34","href":"#path_7_34","color":"rgb(255, 109, 36)","source":8,"threshold":0,"animation_properties":"positive","animation_option":false,"dots":0,"duration":2000,"power":800,"animation_type":"duration"},"anim_path_7_33":{"type":"animation","id":"anim_path_7_33","href":"#path_7_33","color":"rgb(255, 109, 36)","source":4,"threshold":0,"animation_properties":"positive","animation_option":false,"dots":0,"duration":2000,"power":2000,"animation_type":"duration"},"anim_path_7_52":{"type":"animation","id":"anim_path_7_52","href":"#path_7_52","color":"rgb(255, 109, 36)","source":9,"threshold":0,"animation_properties":"positive","animation_option":false,"dots":0,"duration":2000,"power":200,"animation_type":"duration"},"anim_path_7_56":{"type":"animation","id":"anim_path_7_56","href":"#path_7_56","color":"rgb(255, 109, 36)","source":6,"threshold":0,"animation_properties":"positive","animation_option":false,"dots":0,"duration":2000,"power":20,"animation_type":"duration"},"anim_path_7_60":{"type":"animation","id":"anim_path_7_60","href":"#path_7_60","color":"rgb(255, 109, 36)","source":7,"threshold":0,"animation_properties":"positive","animation_option":false,"dots":0,"duration":2000,"power":250,"animation_type":"duration"},"anim_path_7_64":{"type":"animation","id":"anim_path_7_64","href":"#path_7_64","color":"rgb(255, 109, 36)","source":11,"threshold":0,"animation_properties":"positive","animation_option":false,"dots":0,"duration":2000,"power":200,"animation_type":"duration"},"anim_path_7_68":{"type":"animation","id":"anim_path_7_68","href":"#path_7_68","color":"rgb(255, 109, 36)","source":10,"threshold":0,"animation_properties":"positive","animation_option":false,"dots":0,"duration":1000,"power":800,"animation_type":"duration"},"anim_path_7_72":{"type":"animation","id":"anim_path_7_72","href":"#path_7_72","color":"rgb(255, 109, 36)","source":3,"threshold":0,"animation_properties":"positive","animation_option":false,"dots":0,"duration":1000,"power":11000,"animation_type":"duration"},"anim_path_5_79":{"type":"animation","id":"anim_path_5_79","href":"#path_5_79","color":"rgb(136, 255, 77)","source":41,"threshold":0,"animation_properties":"positive","animation_option":false,"dots":0,"duration":1000,"power":800,"animation_type":"duration"},"anim_path_49_79":{"type":"animation","id":"anim_path_49_79","href":"#path_49_79","color":"rgb(136, 255, 77)","source":13,"threshold":0,"animation_properties":"positive","animation_option":false,"dots":0,"duration":1000,"power":800,"animation_type":"duration"},"anim_path_79_7":{"type":"animation","id":"anim_path_79_7","href":"#path_79_7","color":"rgb(136, 255, 77)","source":19,"threshold":0,"animation_properties":"positive","animation_option":false,"dots":0,"duration":1000,"power":1600,"animation_type":"duration"},"anim_path_79_14":{"type":"animation","id":"anim_path_79_14","href":"#path_79_14","color":"rgb(136, 255, 77)","source":2,"threshold":5,"animation_properties":"negative","animation_option":false,"dots":0,"duration":1000,"power":800,"animation_type":"duration"},"anim_path_14_7":{"type":"animation","id":"anim_path_14_7","href":"#path_14_7","color":"rgb(242, 14, 64)","source":2,"threshold":5,"animation_properties":"positive","animation_option":false,"dots":0,"duration":100,"power":10000,"animation_type":"duration"},"anim_path_86_49":{"type":"animation","id":"anim_path_86_49","color":"#ffce4a","href":"#path_86_49","source":25,"animation_properties":"positive","animation_option":false,"threshold":null,"dots":null,"duration":1000,"power":800,"animation_type":"duration","css_general":"","css_active_positive":"","css_inactive_positive":"","css_active_negative":"","css_inactive_negative":""},"anim_path_49_86":{"type":"animation","id":"anim_path_49_86","color":"#ffce4a","href":"#path_49_86","source":28,"animation_properties":"positive","animation_option":false,"threshold":null,"dots":null,"duration":1000,"power":2000,"animation_type":"duration","css_general":"","css_active_positive":"","css_inactive_positive":"","css_active_negative":"","css_inactive_negative":""},"anim_path_5_117":{"type":"animation","id":"anim_path_5_117","color":"#ffce4a","href":"#path_5_117","source":46,"animation_properties":"positive","animation_option":false,"threshold":null,"dots":null,"duration":1000,"power":870,"animation_type":"duration","css_general":"","css_active_positive":"","css_inactive_positive":"","css_active_negative":"","css_inactive_negative":""},"anim_path_117_5":{"type":"animation","id":"anim_path_117_5","color":"#ffce4a","href":"#path_117_5","source":49,"animation_properties":"positive","animation_option":false,"threshold":null,"dots":null,"duration":1000,"power":800,"animation_type":"duration","css_general":"","css_active_positive":"","css_inactive_positive":"","css_active_negative":"","css_inactive_negative":""},"anim_path_7_168":{"type":"animation","id":"anim_path_7_168","color":"rgb(255, 109, 36)","href":"#path_7_168","source":74,"animation_properties":"positive","animation_option":false,"threshold":1.5,"dots":null,"duration":2000,"power":30,"animation_type":"duration","css_general":"","css_active_positive":"","css_inactive_positive":"","css_active_negative":"","css_inactive_negative":""}},"datasources":{"1":{"source":"0_userdata.0.Energie.Aktueller_Verbrauch","alias":"Haus Verbrauch","factor":1},"2":{"source":"shelly.0.SHEM-3#C45BBE604467#1.Total.InstantPower","alias":"Netz Einspeisung","factor":1},"3":{"source":"easee.0.EHVXHEB4.status.energyPerHour","alias":"Easee Walbox","factor":1},"4":{"source":"sonoff.0.Waschmaschine.ENERGY_Power","alias":"Waschmaschine","factor":1},"5":{"source":"sonoff.0.Geschirrspüler.ENERGY_Power","alias":"Geschirrspüler","factor":1},"6":{"source":"fritzdect.0.DECT_116570243349.power","alias":"Gehweg Beleuchtung","factor":1},"7":{"source":"hmip.0.devices.3014F711A00001DBE9914C1F.channels.1.currentPowerConsumption","alias":"Klaus PC","factor":1},"8":{"source":"sonoff.0.Trockner.ENERGY_Power","alias":"Trockner","factor":1},"9":{"source":"fritzdect.0.DECT_087610033555.power","alias":"TV Anlage","factor":1},"10":{"source":"sonoff.0.Zisterne.ENERGY_Power","alias":"Regenfass Pumpe","factor":1},"11":{"source":"sonoff.0.eBike Ladestation.ENERGY_Power","alias":"E-Bike Ladestation","factor":1},"12":{"source":"energiefluss-erweitert.0.calculation.consumption.consumption","alias":"Gesamt Verbrauch","factor":1},"13":{"source":"sonoff.0.Solarbank 2.ENERGY_Power","alias":"Solarbank 2","factor":1},"14":{"source":"growatt.0.340069.devices.DHE3A11050.totalData.eToday","alias":"PV Anlage pro Tag","factor":1},"15":{"source":"0_userdata.0.Energie.Tagesverbrauch","alias":"","factor":1},"18":{"source":"0_userdata.0.Energie.Netz_Verbrauch","alias":"Netzverbrauch","factor":1},"19":{"source":"energiefluss-erweitert.0.calculation.production.production","alias":"Produktion","factor":1},"20":{"source":"sonoff.0.Solarbank 2.ENERGY_Today","alias":"Solarbank 2 pro Tag","factor":1},"24":{"source":"ankersolix2.0.744aeb60-6374-4fd7-bf03-3162f5fbf7fc.solarbank_info.total_battery_power","alias":"Batterie Ladezustand","factor":1},"25":{"source":"ankersolix2.0.744aeb60-6374-4fd7-bf03-3162f5fbf7fc.solarbank_info.battery_discharge_power","alias":"Baterie Entlade Leistung","factor":1},"26":{"source":"0_userdata.0.Meine_Geräte.Anker_Solix.Entladezeit","alias":"Endladezeit","factor":1},"27":{"source":"0_userdata.0.Meine_Geräte.Anker_Solix.Endzeit","alias":"Endzeit","factor":1},"28":{"source":"ankersolix2.0.744aeb60-6374-4fd7-bf03-3162f5fbf7fc.solarbank_info.total_charging_power","alias":"Ladeleistung","factor":1},"29":{"source":"ankersolix2.0.744aeb60-6374-4fd7-bf03-3162f5fbf7fc.solarbank_info.total_photovoltaic_power","alias":"Total Leistung","factor":1},"30":{"source":"sourceanalytix.0.0_userdata__0__Stromverbrauch__Zählerstand_Aktuell.currentYear.consumed.05_currentYear","alias":"Jahresstromverbrauch","factor":1},"31":{"source":"sourceanalytix.0.0_userdata__0__Energie__Produktion_Zähler.currentYear.delivered.05_currentYear","alias":"Gesamt Produktion","factor":1},"33":{"source":"sourceanalytix.0.sonoff__0__Solarbank 2__ENERGY_Total.currentYear.delivered.05_currentYear","alias":"Solarbank 2 Jahres Produktion","factor":1},"34":{"source":"0_userdata.0.Meine_Geräte.Anker_Solix.Akkuenergie","alias":"Akkuenergie","factor":1},"35":{"source":"0_userdata.0.Energie.Autarkiegrad","alias":"Autarkiegrad","factor":1},"36":{"source":"0_userdata.0.Energie.Eigenverbrauchsquote","alias":"Eigenverbrauchsquote","factor":1},"37":{"source":"ankersolix2.0.744aeb60-6374-4fd7-bf03-3162f5fbf7fc.solarbank_info.solar_power_1","alias":"Anker M1","factor":1},"38":{"source":"ankersolix2.0.744aeb60-6374-4fd7-bf03-3162f5fbf7fc.solarbank_info.solar_power_2","alias":"Anker M2","factor":1},"39":{"source":"ankersolix2.0.744aeb60-6374-4fd7-bf03-3162f5fbf7fc.solarbank_info.solar_power_3","alias":"Anker M3","factor":1},"40":{"source":"ankersolix2.0.744aeb60-6374-4fd7-bf03-3162f5fbf7fc.solarbank_info.solar_power_4","alias":"Anker M4","factor":1},"41":{"source":"sonoff.0.Solarbank 1.ENERGY_Power","alias":"Solarbank 1","factor":1},"42":{"source":"0_userdata.0.Solarbank_1.Solarbank_1_PVM1","alias":"Solarbank 1 M1","factor":1},"43":{"source":"0_userdata.0.Solarbank_1.Solarbank_1_PVM2","alias":"Solarbank 1 M2","factor":1},"44":{"source":"0_userdata.0.Solarbank_2.Batterie_Kapazität","alias":"Anker Batterie Kapazität","factor":1},"45":{"source":"0_userdata.0.Solarbank_2.Enladegrenze","alias":"Anker Entladegrenze","factor":1},"46":{"source":"growatt.0.9951486.devices.0PVP30ZR15QT00HQ.historyLast.ppv","alias":"Growatt Total Leistung","factor":1},"47":{"source":"sonoff.0.Solarbank 1.ENERGY_Today","alias":"Solarbank 1 pro Tag","factor":1},"48":{"source":"sourceanalytix.0.sonoff__0__Solarbank 1__ENERGY_Total.currentYear.delivered.05_currentYear","alias":"Solarbank 1 Jahres Produktion","factor":1},"49":{"source":"growatt.0.9951486.devices.0PVP30ZR15QT00HQ.deviceData.pac","alias":"Growatt Batterie Entladeleistung","factor":1},"50":{"source":"growatt.0.9951486.devices.0PVP30ZR15QT00HQ.historyLast.battery1Soc","alias":"Growatt Batterie Ladezustand","factor":1},"51":{"source":"0_userdata.0.Meine_Geräte.Growatt_Noah_2000.Noah_Akkuenergie","alias":"Growatt Noah Akkuenergie","factor":1},"52":{"source":"0_userdata.0.Meine_Geräte.Growatt_Noah_2000.Noah_Endzeit","alias":"Noah Endzeit","factor":1},"53":{"source":"0_userdata.0.Meine_Geräte.Growatt_Noah_2000.Noah_Entladezeit","alias":"Noah Endladezeit","factor":1},"55":{"source":"sourceanalytix.0.0_userdata__0__Energie__Produktion_Zähler.currentYear.delivered.03_currentMonth","alias":"Gesamt Produktion im Monat","factor":1},"56":{"source":"sourceanalytix.0.shelly__0__SHEM-3#C45BBE604467#1__Total__ConsumedPower.currentYear.consumed.03_currentMonth","alias":"Monatsverbrauch","factor":1},"57":{"source":"sourceanalytix.0.0_userdata__0__Stromverbrauch__Zählerstand_Aktuell.currentYear.consumed.03_currentMonth","alias":"Monatsstromverbrauch","factor":1},"58":{"source":"sourceanalytix.0.sonoff__0__Solarbank 1__ENERGY_Total.currentYear.delivered.03_currentMonth","alias":"Solarbank 1 pro Monat","factor":1},"59":{"source":"sourceanalytix.0.sonoff__0__Solarbank 2__ENERGY_Total.currentYear.delivered.03_currentMonth","alias":"Solarbank 2 pro Monat","factor":1},"60":{"source":"0_userdata.0.Energie.Gesamt_PV_Leistung","alias":"Gesamt PV Leistung","factor":1},"61":{"source":"followthesun.0.current.altitude","alias":"Sonnenhöhe","factor":1},"62":{"source":"0_userdata.0.Wetterdaten.Sonnen_Leistung","alias":"Sonnen Leistung","factor":1},"63":{"source":"sourceanalytix.0.0_userdata__0__Stromverbrauch__EVU-Einspeisung.currentYear.consumed.03_currentMonth","alias":"Einspeisung pro Monat","factor":1},"64":{"source":"sourceanalytix.0.0_userdata__0__Stromverbrauch__EVU-Einspeisung.currentYear.consumed.05_currentYear","alias":"Einspeisung pro Jahr","factor":1},"65":{"source":"0_userdata.0.Energie.Gesamt_PV_Leistung_Max","alias":"Gesamt PV Leistung Max","factor":1},"66":{"source":"sourceanalytix.0.sonoff__0__Trockner__ENERGY_Power.currentYear.consumed.05_currentYear","alias":"Trockner pro Jahr","factor":1},"67":{"source":"sourceanalytix.0.sonoff__0__Waschmaschine__ENERGY_Power.currentYear.consumed.05_currentYear","alias":"Waschmaschine pro Jahr","factor":1},"68":{"source":"sourceanalytix.0.sonoff__0__Geschirrspüler__ENERGY_Power.currentYear.consumed.05_currentYear","alias":"Geschirrsp pro Jahr","factor":1},"69":{"source":"sourceanalytix.0.fritzdect__0__DECT_087610033555__power.currentYear.consumed.05_currentYear","alias":"TV Anlage pro Jahr","factor":1},"70":{"source":"sourceanalytix.0.sonoff__0__eBike Ladestation__ENERGY_Power.currentYear.consumed.05_currentYear","alias":"eBike pro Jahr","factor":1},"71":{"source":"sourceanalytix.0.fritzdect__0__DECT_116570243349__power.currentYear.consumed.05_currentYear","alias":"Gehweg Licht pro Jahr","factor":1},"72":{"source":"sourceanalytix.0.hmip__0__devices__3014F711A00001DBE9914C1F__channels__1__currentPowerConsumption.currentYear.consumed.05_currentYear","alias":"Klaus PC pro Jahr","factor":1},"73":{"source":"sourceanalytix.0.sonoff__0__Zisterne__ENERGY_Power.currentYear.consumed.05_currentYear","alias":"Zisterne pro Jahr","factor":1},"74":{"source":"sonoff.0.Steckdose.ENERGY_Power","alias":"Steckdose ENERGY Power","factor":1},"75":{"source":"sonoff.0.Steckdose.ENERGY_Jahr","alias":"Steckdose ENERGY Jahr","factor":1},"76":{"source":"sonoff.0.Stromzähler.DD3_Jahresverbrauch","alias":"Stromzähler DD3 Jahresverbrauch","factor":1},"77":{"source":"sonoff.0.Zisterne.ENERGY_Jahresverbrauch","alias":"Zisterne ENERGY Jahresverbrauch","factor":1}}}
Typ:
string
Zeitstempel:
2 hours ago
Bestätigt:
Bestätigt (true)
Zuletzt geändert:
2 hours ago
Qualität:
0x00 - good
Von:
system.adapter.energiefluss-erweitert.0
Benutzer:
--
