Tester gesucht: Zigbee 3.4.2
-
@Asgothian habe ich jetzt mal gesetzt, dann sind die Kacheln unterschiedlich hoch.
-

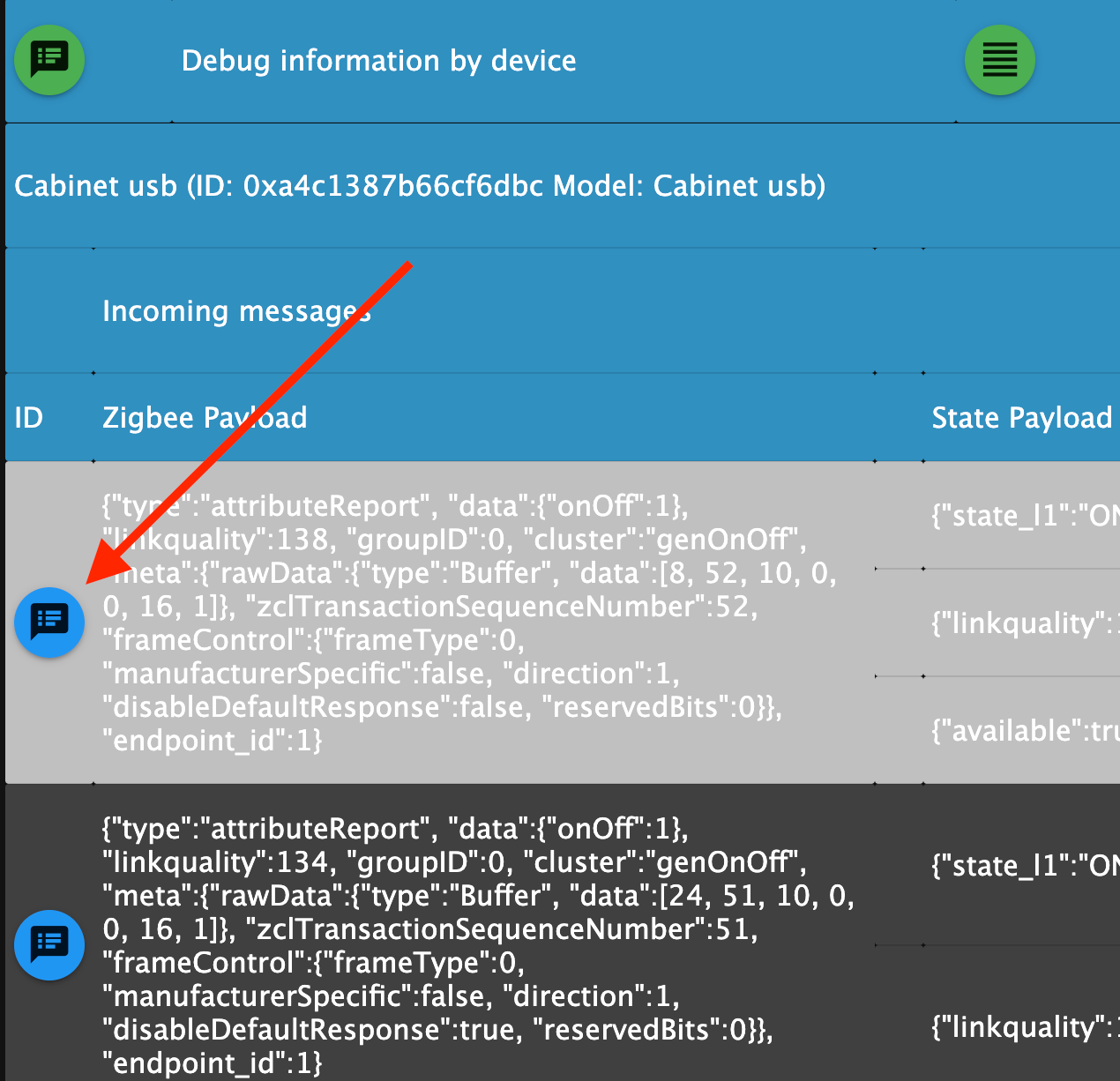

leider nein. Der Text aus dem Debug info ist nie das was ich brauche. Ich brauche immer die Log ausschnitte die kommen wenn man auf diesen button clickt:
@Asgothian ok
I01: Zigbee Event of Type commandTuyaAction from device 0xa4c13881cc14bf1f, incoming event: {"type":"commandTuyaAction","data":{"value":0,"data":{"type":"Buffer","data":[]}},"linkquality":66,"groupID":0,"cluster":"genOnOff","meta":{"rawData":{"type":"Buffer","data":[1,145,253,0]},"zclTransactionSequenceNumber":145,"frameControl":{"frameType":1,"manufacturerSpecific":false,"direction":0,"disableDefaultResponse":false,"reservedBits":0}},"endpoint_id":4} I04: value generated '66' from device a4c13881cc14bf1f for 'Link quality' I02: 1 converter available for '_TZ3000_mh9px7cq' 'a4c13881cc14bf1f' with cluster 'genOnOff' and type 'commandTuyaAction' I02.1a: converter 1 : Cluster genOnOff I02.0b: data: {"value":0,"data":{"type":"Buffer","data":[]}} options: {} meta:{"deviceIEEE":"0xa4c13881cc14bf1f","logger":"StatesController","state":{"state":""}} result:{"action":"4_single"} I02.1c: candidates: [{"action":"4_single"}] => payload {"action":"4_single"} I03: message received '{"action":"4_single"}' from device a4c13881cc14bf1f type '_TZ3000_mh9px7cq' I04-1: value generated '"4_single"' from device a4c13881cc14bf1f for 'Triggered action (e.g. a button click)' I04-2: value 'undefined' from device a4c13881cc14bf1f via getter for '1_single (ID 1_single with property action) ESTATE: unable to enumerate states of a4c13881cc14bf1f for payload {"action":"4_single"}, TypeError (Cannot read properties of undefined (reading 'key')). `` `` I01: Zigbee Event of Type commandTuyaAction from device 0xa4c13881cc14bf1f, incoming event: {"type":"commandTuyaAction","data":{"value":0,"data":{"type":"Buffer","data":[]}},"linkquality":66,"groupID":0,"cluster":"genOnOff","meta":{"rawData":{"type":"Buffer","data":[1,144,253,0]},"zclTransactionSequenceNumber":144,"frameControl":{"frameType":1,"manufacturerSpecific":false,"direction":0,"disableDefaultResponse":false,"reservedBits":0}},"endpoint_id":3} I04: value generated '66' from device a4c13881cc14bf1f for 'Link quality' I02: 1 converter available for '_TZ3000_mh9px7cq' 'a4c13881cc14bf1f' with cluster 'genOnOff' and type 'commandTuyaAction' I02.1a: converter 1 : Cluster genOnOff I02.0b: data: {"value":0,"data":{"type":"Buffer","data":[]}} options: {} meta:{"deviceIEEE":"0xa4c13881cc14bf1f","logger":"StatesController","state":{"state":""}} result:{"action":"3_single"} I02.1c: candidates: [{"action":"3_single"}] => payload {"action":"3_single"} I03: message received '{"action":"3_single"}' from device a4c13881cc14bf1f type '_TZ3000_mh9px7cq' I04-1: value generated '"3_single"' from device a4c13881cc14bf1f for 'Triggered action (e.g. a button click)' I04-2: value 'undefined' from device a4c13881cc14bf1f via getter for '1_single (ID 1_single with property action) ESTATE: unable to enumerate states of a4c13881cc14bf1f for payload {"action":"3_single"}, TypeError (Cannot read properties of undefined (reading 'key')). `` `` I01: Zigbee Event of Type commandTuyaAction from device 0xa4c13881cc14bf1f, incoming event: {"type":"commandTuyaAction","data":{"value":0,"data":{"type":"Buffer","data":[]}},"linkquality":66,"groupID":0,"cluster":"genOnOff","meta":{"rawData":{"type":"Buffer","data":[1,143,253,0]},"zclTransactionSequenceNumber":143,"frameControl":{"frameType":1,"manufacturerSpecific":false,"direction":0,"disableDefaultResponse":false,"reservedBits":0}},"endpoint_id":2} I04: value generated '66' from device a4c13881cc14bf1f for 'Link quality' I02: 1 converter available for '_TZ3000_mh9px7cq' 'a4c13881cc14bf1f' with cluster 'genOnOff' and type 'commandTuyaAction' I02.1a: converter 1 : Cluster genOnOff I02.0b: data: {"value":0,"data":{"type":"Buffer","data":[]}} options: {} meta:{"deviceIEEE":"0xa4c13881cc14bf1f","logger":"StatesController","state":{"state":""}} result:{"action":"2_single"} I02.1c: candidates: [{"action":"2_single"}] => payload {"action":"2_single"} I03: message received '{"action":"2_single"}' from device a4c13881cc14bf1f type '_TZ3000_mh9px7cq' I04-1: value generated '"2_single"' from device a4c13881cc14bf1f for 'Triggered action (e.g. a button click)' I04-2: value 'undefined' from device a4c13881cc14bf1f via getter for '1_single (ID 1_single with property action) ESTATE: unable to enumerate states of a4c13881cc14bf1f for payload {"action":"2_single"}, TypeError (Cannot read properties of undefined (reading 'key')). `` Passt das, oder brauchst du noch mehr?Es gibt nicht Gutes. Außer man tut es. Erich Kästner
-
Die 3.4.4 ist raus:
- umstellung auf ZH10
- ZHC 26.51.xx
- Bugfixes bei Bindings
- Usability für Bindings erhöht
- breitere Scrollbars in Kacheln
Angenommen die Fernbedienung A ist mit dem Gerät B via 'Binding' verbunden. Solange der Adapter die Tastendrücke von A mit bekommt versucht er, 500 ms nach dem Auslösen von A die entsrpechenden Cluster von B auszulesen. Bisher ausschliesslich für:
genOnOff- sprich An/Aus von Lampen, Steckdosen, etc.genLevelCtrl- sprich Helligkeit von LampenlightingColorCtrl- Farbeinstellung von Lampen.
Was in der 3.4.5 noch kommt ist eine vergleichbare Funktion von Gruppen. Warum sollte das für jeden Nutzer von Zigbee interessant sein ?
- Bindings erlauben es, Leuchten und Steckdosen mit einer Fernbedienung zu schalten auch wenn der Adapter nicht läuft.
- Bisher war es dann zumeist so das der Adapter die Statusänderung nicht mit bekommt und deswegen auch nicht anzeigt. Genau das ist jetzt der Fall, wenn auch mit etwas Verzögerung.
- Sobald das auch mit Gruppen sauber arbeitet wird das Zigbee-System nochmal Stabiler für unbedarfte Benutzer - es sollte den WAF deutlich erhöhen.
A.
Nachtrag: Known Bugs: Es scheint noch Anzeigeprobleme bei den Bindings zu geben - bindings auf 2. / 3. Endpunkt eines Gerätes werden nicht sauber angezeigt, sind aber vorhanden.
- breitere Scrollbars in Kacheln
Welche breit hast du gewählt? Sie sind bei mir wieder genauso breit wie vorher. Und sind die Änderungen an deinen Gerät dann angekommen ( ohne webkit )?
-
@Asgothian ok
I01: Zigbee Event of Type commandTuyaAction from device 0xa4c13881cc14bf1f, incoming event: {"type":"commandTuyaAction","data":{"value":0,"data":{"type":"Buffer","data":[]}},"linkquality":66,"groupID":0,"cluster":"genOnOff","meta":{"rawData":{"type":"Buffer","data":[1,145,253,0]},"zclTransactionSequenceNumber":145,"frameControl":{"frameType":1,"manufacturerSpecific":false,"direction":0,"disableDefaultResponse":false,"reservedBits":0}},"endpoint_id":4} I04: value generated '66' from device a4c13881cc14bf1f for 'Link quality' I02: 1 converter available for '_TZ3000_mh9px7cq' 'a4c13881cc14bf1f' with cluster 'genOnOff' and type 'commandTuyaAction' I02.1a: converter 1 : Cluster genOnOff I02.0b: data: {"value":0,"data":{"type":"Buffer","data":[]}} options: {} meta:{"deviceIEEE":"0xa4c13881cc14bf1f","logger":"StatesController","state":{"state":""}} result:{"action":"4_single"} I02.1c: candidates: [{"action":"4_single"}] => payload {"action":"4_single"} I03: message received '{"action":"4_single"}' from device a4c13881cc14bf1f type '_TZ3000_mh9px7cq' I04-1: value generated '"4_single"' from device a4c13881cc14bf1f for 'Triggered action (e.g. a button click)' I04-2: value 'undefined' from device a4c13881cc14bf1f via getter for '1_single (ID 1_single with property action) ESTATE: unable to enumerate states of a4c13881cc14bf1f for payload {"action":"4_single"}, TypeError (Cannot read properties of undefined (reading 'key')). `` `` I01: Zigbee Event of Type commandTuyaAction from device 0xa4c13881cc14bf1f, incoming event: {"type":"commandTuyaAction","data":{"value":0,"data":{"type":"Buffer","data":[]}},"linkquality":66,"groupID":0,"cluster":"genOnOff","meta":{"rawData":{"type":"Buffer","data":[1,144,253,0]},"zclTransactionSequenceNumber":144,"frameControl":{"frameType":1,"manufacturerSpecific":false,"direction":0,"disableDefaultResponse":false,"reservedBits":0}},"endpoint_id":3} I04: value generated '66' from device a4c13881cc14bf1f for 'Link quality' I02: 1 converter available for '_TZ3000_mh9px7cq' 'a4c13881cc14bf1f' with cluster 'genOnOff' and type 'commandTuyaAction' I02.1a: converter 1 : Cluster genOnOff I02.0b: data: {"value":0,"data":{"type":"Buffer","data":[]}} options: {} meta:{"deviceIEEE":"0xa4c13881cc14bf1f","logger":"StatesController","state":{"state":""}} result:{"action":"3_single"} I02.1c: candidates: [{"action":"3_single"}] => payload {"action":"3_single"} I03: message received '{"action":"3_single"}' from device a4c13881cc14bf1f type '_TZ3000_mh9px7cq' I04-1: value generated '"3_single"' from device a4c13881cc14bf1f for 'Triggered action (e.g. a button click)' I04-2: value 'undefined' from device a4c13881cc14bf1f via getter for '1_single (ID 1_single with property action) ESTATE: unable to enumerate states of a4c13881cc14bf1f for payload {"action":"3_single"}, TypeError (Cannot read properties of undefined (reading 'key')). `` `` I01: Zigbee Event of Type commandTuyaAction from device 0xa4c13881cc14bf1f, incoming event: {"type":"commandTuyaAction","data":{"value":0,"data":{"type":"Buffer","data":[]}},"linkquality":66,"groupID":0,"cluster":"genOnOff","meta":{"rawData":{"type":"Buffer","data":[1,143,253,0]},"zclTransactionSequenceNumber":143,"frameControl":{"frameType":1,"manufacturerSpecific":false,"direction":0,"disableDefaultResponse":false,"reservedBits":0}},"endpoint_id":2} I04: value generated '66' from device a4c13881cc14bf1f for 'Link quality' I02: 1 converter available for '_TZ3000_mh9px7cq' 'a4c13881cc14bf1f' with cluster 'genOnOff' and type 'commandTuyaAction' I02.1a: converter 1 : Cluster genOnOff I02.0b: data: {"value":0,"data":{"type":"Buffer","data":[]}} options: {} meta:{"deviceIEEE":"0xa4c13881cc14bf1f","logger":"StatesController","state":{"state":""}} result:{"action":"2_single"} I02.1c: candidates: [{"action":"2_single"}] => payload {"action":"2_single"} I03: message received '{"action":"2_single"}' from device a4c13881cc14bf1f type '_TZ3000_mh9px7cq' I04-1: value generated '"2_single"' from device a4c13881cc14bf1f for 'Triggered action (e.g. a button click)' I04-2: value 'undefined' from device a4c13881cc14bf1f via getter for '1_single (ID 1_single with property action) ESTATE: unable to enumerate states of a4c13881cc14bf1f for payload {"action":"2_single"}, TypeError (Cannot read properties of undefined (reading 'key')). `` Passt das, oder brauchst du noch mehr?@Winni Kannst du mal bitte auf deinem System von Hand patchen:
- in der Datei /opt/iobroker/node_modules/iobroker.zigbee/lib/statescontroller.js
- die Zeile 1260 von
if (publishResult.key)aufif (publishResult?.key)wechseln - den adapter neu starten
A.
ioBroker auf RPi4 - Hardware soweit wie möglich via Zigbee.
"Shit don't work" ist keine Fehlermeldung, sondern ein Fluch. -
@Winni Kannst du mal bitte auf deinem System von Hand patchen:
- in der Datei /opt/iobroker/node_modules/iobroker.zigbee/lib/statescontroller.js
- die Zeile 1260 von
if (publishResult.key)aufif (publishResult?.key)wechseln - den adapter neu starten
A.
@Asgothian Volltreffer funktioniert. Super, vielen Dank. 😀
-
Habs installiert und läuft
-
3.4.5 ist raus. mit bugfix für Winni und breiteren Webkit toolbars.
A.
Läuft ohne Probleme, vielen Dank.
Herzliche Grüße
Fabio
