[dos1973]

@mickym

ich habe soetwas schon in der form für die GEN1 Shellys

[mickym]

@dos1973 Genau dann mach mir für Deine beiden Schalter da gleiche nun für Deinen shelly 2 pm und kopiere hier den Pfad in code tags rein.

also

0_userdata.0.Wohnung.Status.Shellys.node-red.Badezimmer.Lichtschalter

und dann vielleicht noch wie Dein 2. Schalter heißt-

[dos1973]

@mickym
ich habe 2 Schalter angelegt

0_userdata.0.Wohnung.Status.Shellys.node-red.BadLicht_0
0_userdata.0.Wohnung.Status.Shellys.node-red.BadLicht_1

[dos1973]

@mickym sagte in Shellys ("Alt und Plus") über MQTT Adapter:

wenn Du erlaubst dass NodeRed Datenpunkte erstellen darf.

ja, das ist OK für mich :-)
0_userdata.0.TEST

[mickym]

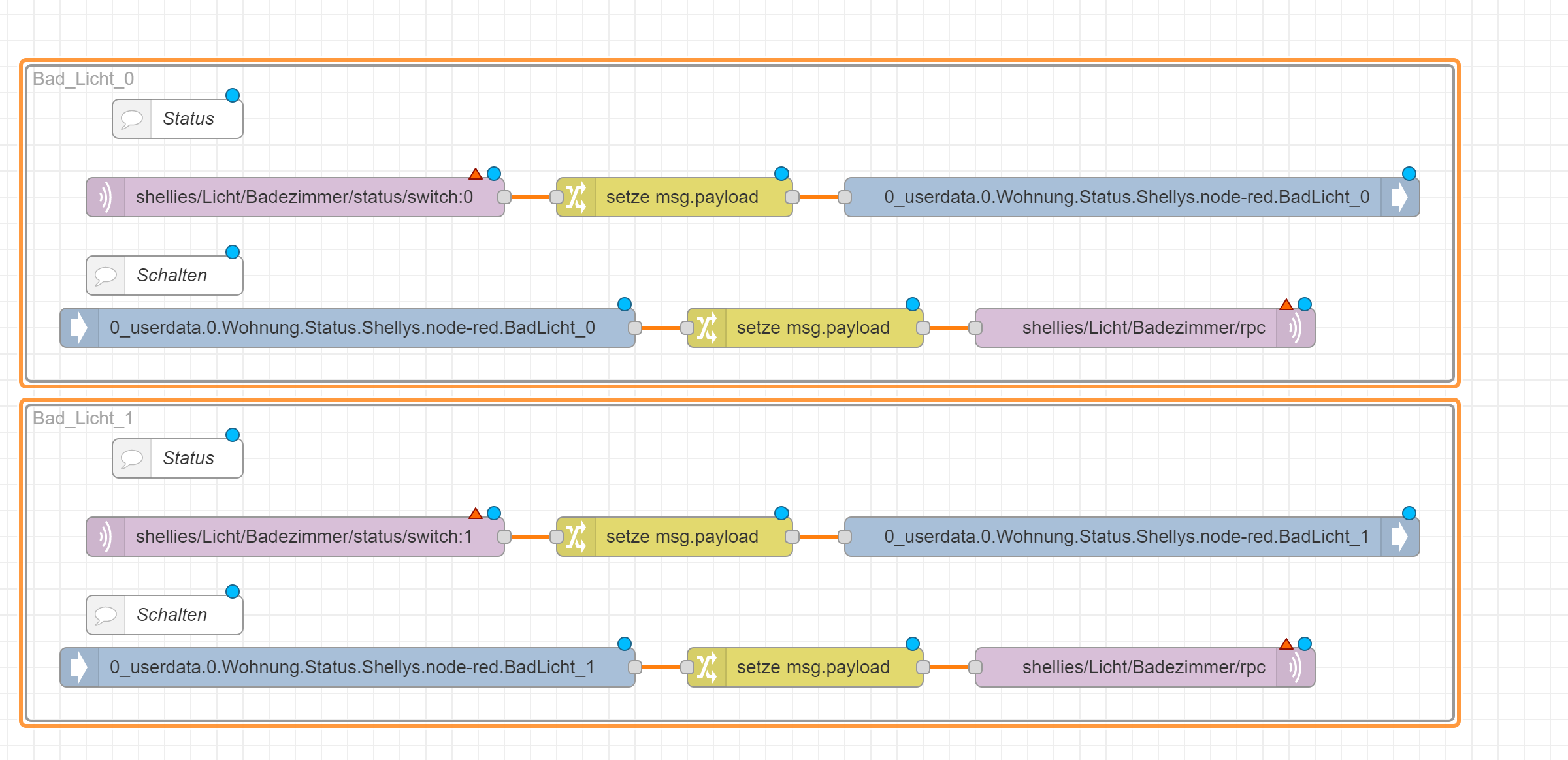

@dos1973 So damit müsste es nun gehen:

Spoiler

[
   {
       "id": "2bf73377995fc91c",
       "type": "group",
       "z": "2e7d4cac81c671e3",
       "name": "Bad_Licht_1",
       "style": {
           "label": true
       },
       "nodes": [
           "9e100ac5f50d3cd6",
           "3b4f85e836524760",
           "d5873b80da9bffe4",
           "63aa968ce646014e",
           "1e20c3b5d8901123",
           "26b503db29b93916",
           "5645ee14ff4f7fec",
           "bf5063cb0fe61730"
       ],
       "x": 34,
       "y": 3219,
       "w": 1092,
       "h": 242
   },
   {
       "id": "9e100ac5f50d3cd6",
       "type": "comment",
       "z": "2e7d4cac81c671e3",
       "g": "2bf73377995fc91c",
       "name": "Schalten",
       "info": "",
       "x": 140,
       "y": 3380,
       "wires": []
   },
   {
       "id": "3b4f85e836524760",
       "type": "comment",
       "z": "2e7d4cac81c671e3",
       "g": "2bf73377995fc91c",
       "name": "Status",
       "info": "",
       "x": 150,
       "y": 3260,
       "wires": []
   },
   {
       "id": "d5873b80da9bffe4",
       "type": "ioBroker out",
       "z": "2e7d4cac81c671e3",
       "g": "2bf73377995fc91c",
       "name": "",
       "topic": "0_userdata.0.Wohnung.Status.Shellys.node-red.BadLicht_1",
       "ack": "true",
       "autoCreate": "true",
       "stateName": "",
       "role": "",
       "payloadType": "boolean",
       "readonly": "false",
       "stateUnit": "",
       "stateMin": "",
       "stateMax": "",
       "x": 880,
       "y": 3320,
       "wires": []
   },
   {
       "id": "63aa968ce646014e",
       "type": "change",
       "z": "2e7d4cac81c671e3",
       "g": "2bf73377995fc91c",
       "name": "",
       "rules": [
           {
               "t": "set",
               "p": "payload",
               "pt": "msg",
               "to": "payload.output",
               "tot": "msg"
           }
       ],
       "action": "",
       "property": "",
       "from": "",
       "to": "",
       "reg": false,
       "x": 530,
       "y": 3320,
       "wires": [
           [
               "d5873b80da9bffe4"
           ]
       ]
   },
   {
       "id": "1e20c3b5d8901123",
       "type": "mqtt in",
       "z": "2e7d4cac81c671e3",
       "g": "2bf73377995fc91c",
       "name": "",
       "topic": "shellies/Licht/Badezimmer/status/switch:1",
       "qos": "2",
       "datatype": "auto-detect",
       "broker": "",
       "nl": false,
       "rap": true,
       "rh": 0,
       "inputs": 0,
       "x": 240,
       "y": 3320,
       "wires": [
           [
               "63aa968ce646014e"
           ]
       ]
   },
   {
       "id": "26b503db29b93916",
       "type": "ioBroker in",
       "z": "2e7d4cac81c671e3",
       "g": "2bf73377995fc91c",
       "name": "",
       "topic": "0_userdata.0.Wohnung.Status.Shellys.node-red.BadLicht_1",
       "payloadType": "value",
       "onlyack": "command",
       "func": "all",
       "gap": "",
       "fireOnStart": "false",
       "outFormat": "MQTT",
       "x": 280,
       "y": 3420,
       "wires": [
           [
               "5645ee14ff4f7fec"
           ]
       ]
   },
   {
       "id": "5645ee14ff4f7fec",
       "type": "change",
       "z": "2e7d4cac81c671e3",
       "g": "2bf73377995fc91c",
       "name": "",
       "rules": [
           {
               "t": "set",
               "p": "payload",
               "pt": "msg",
               "to": "{\t   \"id\":123,\t   \"src\":\"dos1973\",\t   \"method\":\"Switch.Set\",\t   \"params\":{\"id\":1,\"on\":payload}\t}\t",
               "tot": "jsonata"
           }
       ],
       "action": "",
       "property": "",
       "from": "",
       "to": "",
       "reg": false,
       "x": 630,
       "y": 3420,
       "wires": [
           [
               "bf5063cb0fe61730"
           ]
       ]
   },
   {
       "id": "bf5063cb0fe61730",
       "type": "mqtt out",
       "z": "2e7d4cac81c671e3",
       "g": "2bf73377995fc91c",
       "name": "",
       "topic": "shellies/Licht/Badezimmer/rpc",
       "qos": "",
       "retain": "",
       "respTopic": "",
       "contentType": "",
       "userProps": "",
       "correl": "",
       "expiry": "",
       "broker": "",
       "x": 890,
       "y": 3420,
       "wires": []
   },
   {
       "id": "5f971d7afd1d1584",
       "type": "group",
       "z": "2e7d4cac81c671e3",
       "name": "Bad_Licht_0",
       "style": {
           "label": true
       },
       "nodes": [
           "c3d1c63e97c6ae55",
           "3a0b9507df4f29c7",
           "3f795830c443d287",
           "ca6f9a9ebfef76ab",
           "c578998a9c4a925f",
           "0025e02b5f4d42fb",
           "28b02e5b64ac52b3",
           "20bab29527cd1d3e"
       ],
       "x": 34,
       "y": 2959,
       "w": 1092,
       "h": 242
   },
   {
       "id": "c3d1c63e97c6ae55",
       "type": "comment",
       "z": "2e7d4cac81c671e3",
       "g": "5f971d7afd1d1584",
       "name": "Schalten",
       "info": "",
       "x": 140,
       "y": 3120,
       "wires": []
   },
   {
       "id": "3a0b9507df4f29c7",
       "type": "comment",
       "z": "2e7d4cac81c671e3",
       "g": "5f971d7afd1d1584",
       "name": "Status",
       "info": "",
       "x": 150,
       "y": 3000,
       "wires": []
   },
   {
       "id": "3f795830c443d287",
       "type": "ioBroker out",
       "z": "2e7d4cac81c671e3",
       "g": "5f971d7afd1d1584",
       "name": "",
       "topic": "0_userdata.0.Wohnung.Status.Shellys.node-red.BadLicht_0",
       "ack": "true",
       "autoCreate": "true",
       "stateName": "",
       "role": "",
       "payloadType": "boolean",
       "readonly": "false",
       "stateUnit": "",
       "stateMin": "",
       "stateMax": "",
       "x": 880,
       "y": 3060,
       "wires": []
   },
   {
       "id": "ca6f9a9ebfef76ab",
       "type": "change",
       "z": "2e7d4cac81c671e3",
       "g": "5f971d7afd1d1584",
       "name": "",
       "rules": [
           {
               "t": "set",
               "p": "payload",
               "pt": "msg",
               "to": "payload.output",
               "tot": "msg"
           }
       ],
       "action": "",
       "property": "",
       "from": "",
       "to": "",
       "reg": false,
       "x": 530,
       "y": 3060,
       "wires": [
           [
               "3f795830c443d287"
           ]
       ]
   },
   {
       "id": "c578998a9c4a925f",
       "type": "mqtt in",
       "z": "2e7d4cac81c671e3",
       "g": "5f971d7afd1d1584",
       "name": "",
       "topic": "shellies/Licht/Badezimmer/status/switch:0",
       "qos": "2",
       "datatype": "auto-detect",
       "broker": "",
       "nl": false,
       "rap": true,
       "rh": 0,
       "inputs": 0,
       "x": 240,
       "y": 3060,
       "wires": [
           [
               "ca6f9a9ebfef76ab"
           ]
       ]
   },
   {
       "id": "0025e02b5f4d42fb",
       "type": "ioBroker in",
       "z": "2e7d4cac81c671e3",
       "g": "5f971d7afd1d1584",
       "name": "",
       "topic": "0_userdata.0.Wohnung.Status.Shellys.node-red.BadLicht_0",
       "payloadType": "value",
       "onlyack": "command",
       "func": "all",
       "gap": "",
       "fireOnStart": "false",
       "outFormat": "MQTT",
       "x": 280,
       "y": 3160,
       "wires": [
           [
               "28b02e5b64ac52b3"
           ]
       ]
   },
   {
       "id": "28b02e5b64ac52b3",
       "type": "change",
       "z": "2e7d4cac81c671e3",
       "g": "5f971d7afd1d1584",
       "name": "",
       "rules": [
           {
               "t": "set",
               "p": "payload",
               "pt": "msg",
               "to": "{\t   \"id\":123,\t   \"src\":\"dos1973\",\t   \"method\":\"Switch.Set\",\t   \"params\":{\"id\":0,\"on\":payload}\t}\t",
               "tot": "jsonata"
           }
       ],
       "action": "",
       "property": "",
       "from": "",
       "to": "",
       "reg": false,
       "x": 630,
       "y": 3160,
       "wires": [
           [
               "20bab29527cd1d3e"
           ]
       ]
   },
   {
       "id": "20bab29527cd1d3e",
       "type": "mqtt out",
       "z": "2e7d4cac81c671e3",
       "g": "5f971d7afd1d1584",
       "name": "",
       "topic": "shellies/Licht/Badezimmer/rpc",
       "qos": "",
       "retain": "",
       "respTopic": "",
       "contentType": "",
       "userProps": "",
       "correl": "",
       "expiry": "",
       "broker": "",
       "x": 890,
       "y": 3160,
       "wires": []
   }
]

Du musst nur noch deinen mqtt-Broker in die mqtt- Nodes eintragen.

[dos1973]

@mickym
Moment, brauche 5min - bin vor der Tür gerade…

[dos1973]

@mickym
schalten funktioniert,

0_userdata.0.Wohnung.Status.Shellys.node-red.BadLicht_0

aber wenn ich im shelly webinterface schalte dann aktualisiert der wert nicht

[mickym]

@dos1973 sagte in Shellys ("Alt und Plus") über MQTT Adapter:

@mickym
schalten funktioniert,

0_userdata.0.Wohnung.Status.Shellys.node-red.BadLicht_0

aber wenn ich im shelly webinterface schalte dann aktualisiert der wert nicht

dann mach bitte hinter die mqtt.In Node einen debug Node. und schaue ob ich den Pfad im topic richtig eingegeben habe:

shellies/Licht/Badezimmer/status/switch:0

[dos1973]

@dos1973 sagte in Shellys ("Alt und Plus") über MQTT Adapter:

@mickym
schalten funktioniert,

0_userdata.0.Wohnung.Status.Shellys.node-red.BadLicht_0

aber wenn ich im shelly webinterface schalte dann aktualisiert der wert nicht

war mein Fehler ... funktioniert, auch der sync

[mickym]

@dos1973 Na gut . dann ist ja alles gut - und du kannst beruhigt schlafen und musst den armen Shelly nicht verschrotten. Wenn Du Fragen hast gerne. :)

[dos1973]

@mickym
war aber knapp :-)

ich habe noch einen im Rollermode - noch Nerven mit mir

[mickym]

@dos1973 Ja können wir probieren - ich hab die Shellies zwar nicht, aber müssen wir halt probieren. ;) Du musst mir halt alles posten. Screenshots der Datenpunkte und Inhalt der Ausgaben mit debug Nodes.

Erstelle halt wieder einen Datenpunkt unter 0_userdata.0

[dos1973]

@mickym

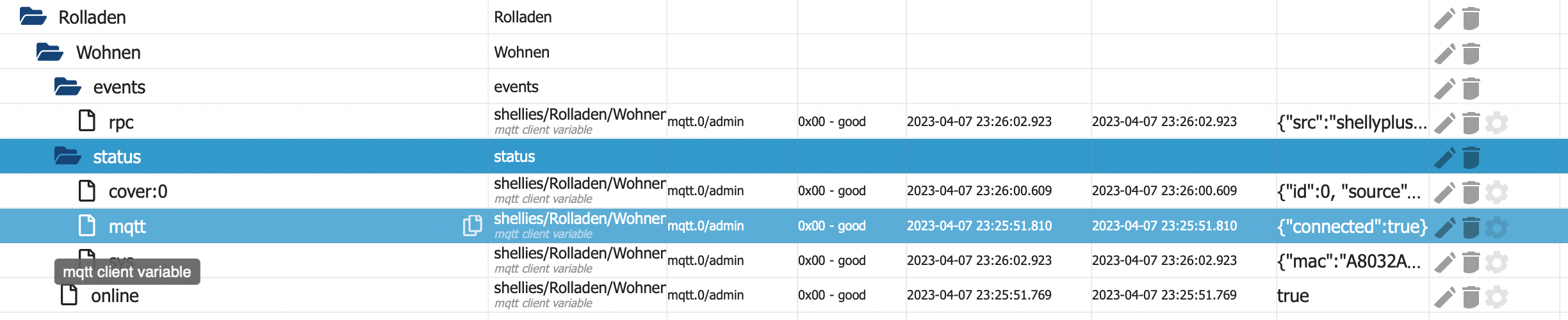

hier mal alle daten:
der rollo bewegt sich mit "state":"opening/closing/stopped

rpc

{"src":"shellyplus2pm-a8032ab70240","dst":"shellies/Rolladen/Wohnen/events","method":"NotifyStatus","params":{"ts":1680902820.02,"cover:0":{"id":0,"aenergy":{"by_minute":[0.000,0.000,0.000],"minute_ts":1680902819,"total":0.000}}}}

cover:0

{"id":0, "source":"WS_in", "state":"stopped","apower":0.0,"voltage":234.2,"current":0.000,"pf":0.00,"aenergy":{"total":0.000,"by_minute":[0.000,0.000,0.000],"minute_ts":1680902819},"temperature":{"tC":57.5, "tF":135.5},"pos_control":false}

öffnen

{"id":0, "source":"WS_in", "state":"opening","move_timeout":60.00, "move_started_at":1680903013.99,"apower":0.0,"voltage":234.0,"current":0.000,"pf":-0.00,"aenergy":{"total":0.000,"by_minute":[0.000,0.000,0.000],"minute_ts":1680903013},"temperature":{"tC":56.0, "tF":132.8},"pos_control":false}

schliessen

{"id":0, "source":"WS_in", "state":"closing","move_timeout":60.00, "move_started_at":1680903053.46,"apower":0.0,"voltage":234.3,"current":0.000,"pf":0.00,"aenergy":{"total":0.000,"by_minute":[0.000,0.000,0.000],"minute_ts":1680903053},"temperature":{"tC":55.7, "tF":132.3},"pos_control":false}

der hängt nur am strom, noch kein Rollo und keine Calibrierung für die Position

[mickym]

@dos1973 na dann machts aber im Moment nicht viel Sinn.

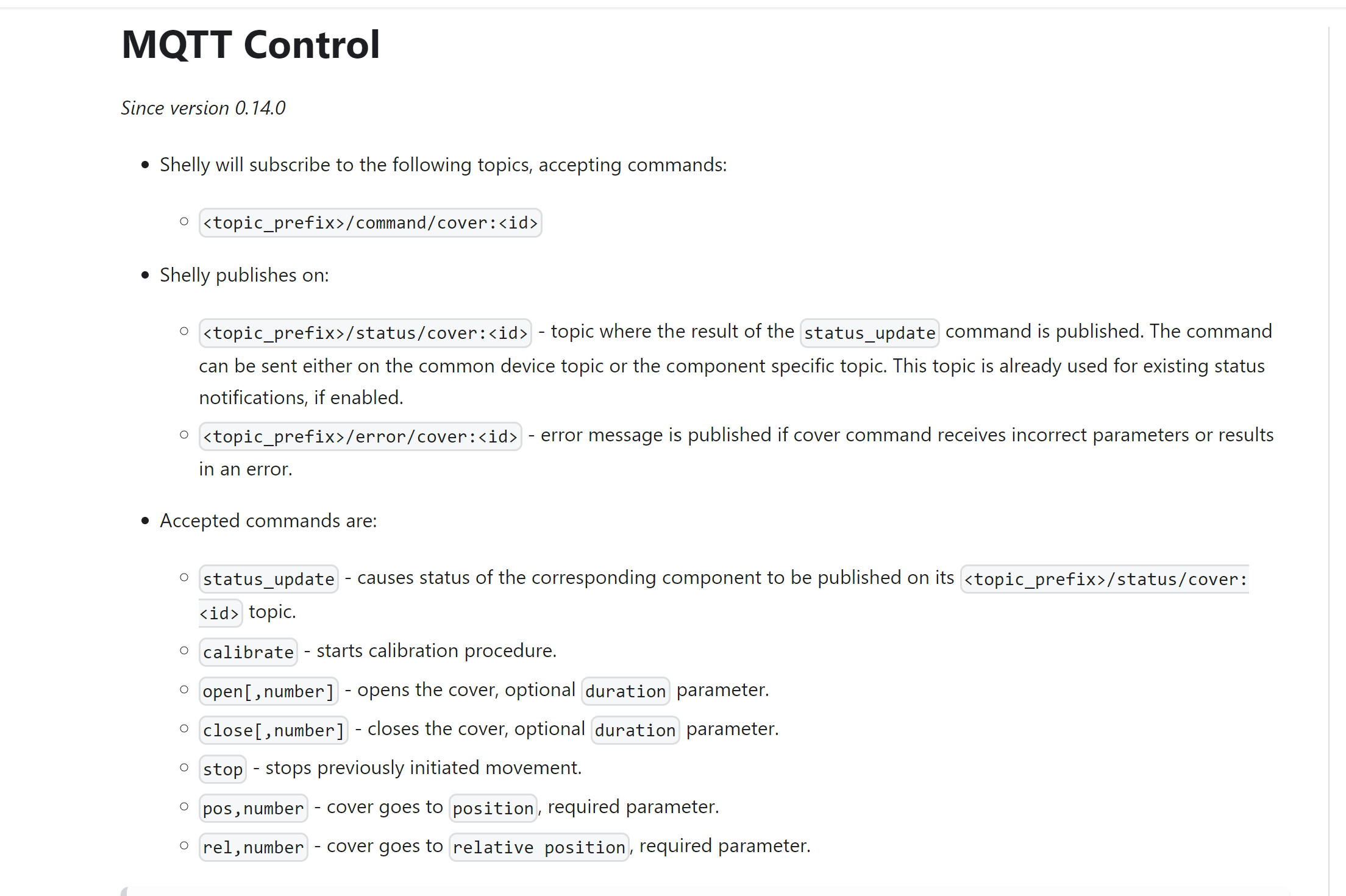

Im Prinzip zum Steuern können wir wieder über den command Ast gehen.

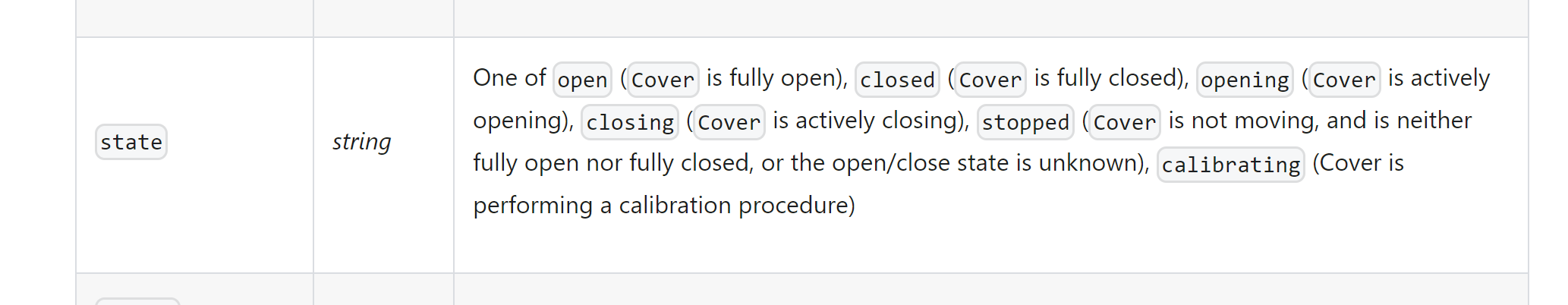

Den Status bekommst du hier:

In dem Fall würde ich Dir 2 Datenpunkte unter 0_userdata.0 empfehlen. Einen für den Status, den Du nicht beschreiben kannst, den Du aber für den Status in der vis auslesen kannst und einen zum Steuern. Wenn Du beides hast, denn nenn mir die Datenpunkte.

[dos1973]

@mickym
beide als String anlegen?

[mickym]

@dos1973 Ja

[dos1973]

@mickym

0_userdata.0.Wohnung.Status.Shellys.node-red.Rolladen.control
0_userdata.0.Wohnung.Status.Shellys.node-red.Rolladen.status

der status ist nicht schreibbar

kann den Rolladen aus kurz anschliessen...

[mickym]

@dos1973 sagte in Shellys ("Alt und Plus") über MQTT Adapter:

                                                                                                                            0_userdata.0.Wohnung.Status.Shellys.node-red.Rolladen.control                                                                                                                                                                            0_userdata.0.Wohnung.Status.Shellys.node-red.Rolladen.status

So dann müsste dieser Flow funktionieren:

Spoiler

[
   {
       "id": "6d49413af6de6a69",
       "type": "group",
       "z": "2e7d4cac81c671e3",
       "style": {
           "stroke": "#999999",
           "stroke-opacity": "1",
           "fill": "none",
           "fill-opacity": "1",
           "label": true,
           "label-position": "nw",
           "color": "#a4a4a4"
       },
       "nodes": [
           "2687ef51e182ae3e",
           "8c2f0aa73a8f9642",
           "4f4d7ebeab8af33c",
           "582dd65ed0823483",
           "c2e2efbc11b4b072",
           "59af2f2b6ec08346",
           "ce2e90a37a7ef5e7"
       ],
       "x": 54,
       "y": 2819,
       "w": 1092,
       "h": 222
   },
   {
       "id": "2687ef51e182ae3e",
       "type": "mqtt in",
       "z": "2e7d4cac81c671e3",
       "g": "6d49413af6de6a69",
       "name": "",
       "topic": "shellies/Rolladen/Wohnen/status/cover:0",
       "qos": "2",
       "datatype": "auto-detect",
       "broker": "",
       "nl": false,
       "rap": true,
       "rh": 0,
       "inputs": 0,
       "x": 240,
       "y": 2900,
       "wires": [
           [
               "8c2f0aa73a8f9642"
           ]
       ]
   },
   {
       "id": "8c2f0aa73a8f9642",
       "type": "change",
       "z": "2e7d4cac81c671e3",
       "g": "6d49413af6de6a69",
       "name": "",
       "rules": [
           {
               "t": "set",
               "p": "payload",
               "pt": "msg",
               "to": "payload.state",
               "tot": "msg"
           }
       ],
       "action": "",
       "property": "",
       "from": "",
       "to": "",
       "reg": false,
       "x": 530,
       "y": 2900,
       "wires": [
           [
               "4f4d7ebeab8af33c"
           ]
       ]
   },
   {
       "id": "4f4d7ebeab8af33c",
       "type": "ioBroker out",
       "z": "2e7d4cac81c671e3",
       "g": "6d49413af6de6a69",
       "name": "",
       "topic": "0_userdata.0.Wohnung.Status.Shellys.node-red.Rolladen.status",
       "ack": "true",
       "autoCreate": "true",
       "stateName": "",
       "role": "",
       "payloadType": "boolean",
       "readonly": "false",
       "stateUnit": "",
       "stateMin": "",
       "stateMax": "",
       "x": 890,
       "y": 2900,
       "wires": []
   },
   {
       "id": "582dd65ed0823483",
       "type": "comment",
       "z": "2e7d4cac81c671e3",
       "g": "6d49413af6de6a69",
       "name": "Status",
       "info": "",
       "x": 130,
       "y": 2860,
       "wires": []
   },
   {
       "id": "c2e2efbc11b4b072",
       "type": "comment",
       "z": "2e7d4cac81c671e3",
       "g": "6d49413af6de6a69",
       "name": "Schalten",
       "info": "",
       "x": 140,
       "y": 2960,
       "wires": []
   },
   {
       "id": "59af2f2b6ec08346",
       "type": "ioBroker in",
       "z": "2e7d4cac81c671e3",
       "g": "6d49413af6de6a69",
       "name": "",
       "topic": "0_userdata.0.Wohnung.Status.Shellys.node-red.Rolladen.control",
       "payloadType": "value",
       "onlyack": "command",
       "func": "all",
       "gap": "",
       "fireOnStart": "false",
       "outFormat": "MQTT",
       "x": 310,
       "y": 3000,
       "wires": [
           [
               "ce2e90a37a7ef5e7"
           ]
       ]
   },
   {
       "id": "ce2e90a37a7ef5e7",
       "type": "mqtt out",
       "z": "2e7d4cac81c671e3",
       "g": "6d49413af6de6a69",
       "name": "",
       "topic": "shellies/Rolladen/Wohnen/command/cover:0",
       "qos": "",
       "retain": "",
       "respTopic": "",
       "contentType": "",
       "userProps": "",
       "correl": "",
       "expiry": "",
       "broker": "",
       "x": 770,
       "y": 3000,
       "wires": []
   }
]

Die Kommandos siehst ja unten im Screenshot.

[dos1973]

@mickym
status stimmt: steht opening /closing/stopped

aber unter control passiert nichts, wenn ich da etwas engebe

[mickym]

@mickym was gibst Du denn ein? ;) :grin: Hast Du auch die mqtt-Out richtig konfiguriert?
