Hilfe bei MQTT mit ESP-01
-
Hi Leute,
ich bräuchte etwas Hilfe mit dem MQTT Adapter.
Ich habe folgendes Projekt für meine Mitsubishi Heavy Duty Klimaanlage realisiert. Vielleicht kann es sogar noch jemand hier auch gebrauchen.
Hier mal der Link zu Github: https://github.com/rjdekker/MHI2MQTT
Leider meldet sich der Programmierer dort nicht mehr. Das Projekt funktioniert auch soweit, zumindest wenn ich nur ein Gerät verbinde.
Kann es sein, dass der MQTT Adapter mit 3 Geräten und 6 Sekunden Update Interval überlastet ist?
Es werden 5 Stati pro Gerät alle 6 Sekunden aktualisiert. Heute nochmal einen Versuch gestartet und alle 3 Innengeräte eingebunden. Hat ca. 1 Stunde funktioniert, es waren alle 3 Geräte mit MQTT Broker verbunden und die Stati wurden aktualisiert. Konnte auch alles steuern. Danach war dann plötzlich kein Gerät mehr mit dem Broker verbunden und der Client verbindet sich auch nicht mehr.
Leider weiß ich nicht warum, kann mir da jemand helfen? Wie könnte ich da den Fehler/das Problem finden? Kann ich in Arduino sowas irgendwie debuggen?

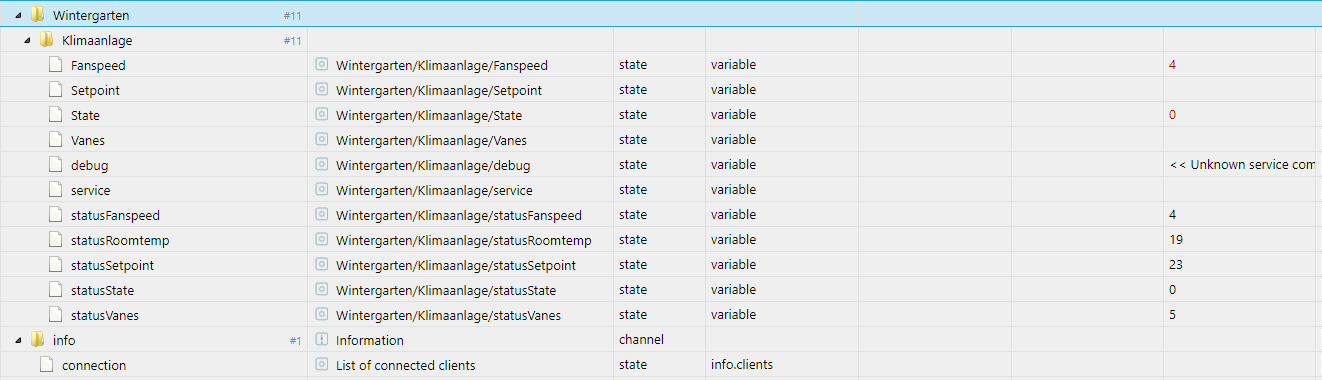

Hier mal noch ein Screenshot der Objekte eines Gerätes:
<<<screenshots gehen/leider/momentan/nicht="">>>
In den MQTT Einstellungen ist soweit alles angehakt, außer "Unterschiedliche Namen für setzen und lesen" (Screenshot kann ich ja leider nicht anhängen)
Hoffe es kann mir jemand hier weiterhelfen.</screenshots>
-
schon mal gerechnet was da für daten kommen ? ….
-
Nein hab ich nicht, aber was bringt mir denn deine Aussage jetzt? Ich weiß trotzdem nicht ob der Adapter das schafft oder nicht.
Bzw. was ist dann die Lösung? Abfrage Zeit von 6 Sekunden erhöhen?
Bin mir gerade nicht mal sicher ob alle Stati in 6 Sekunden aktualisiert werden oder nur die Raum Temperatur.
Gesendet von meinem ONEPLUS A6013 mit Tapatalk
-
Hier mal noch die Screenshots und das Sketch des ESP
Sketch:
`/* ############################################################################################################################################################################################## MHI ESP2MQTT Interface v1.0.0 Arduino-based communication interface for Mitsubishi Heavy Industries (MHI) SRK/SRF series air conditioners. Connects to the MHI CNS connector and synchronizes to its Serial Peripheral Interface (SPI). Updates from the MHI are processed and sent via serial to an ESP8266 running an MQTT client. Updates received via MQTT are sent from the ESP8266 to the Arduino over serial and injected into the SPI data frames to update the MHI. R.J. Dekker, June 2018 ############################################################################################################################################################################################## */ #include <fs.h> #include <esp8266wifi.h> #include <dnsserver.h> #include <esp8266webserver.h> #include <wifiudp.h> #include <arduinoota.h> #include <wifimanager.h> //https://github.com/tzapu/WiFiManager #include <arduinojson.h> //https://github.com/bblanchon/ArduinoJson #include <pubsubclient.h> //https://github.com/knolleary/pubsubclient #include <easytransfer.h> //https://github.com/madsci1016/Arduino-EasyTransfer //Access point that WiFiManager starts for configuration. Name and password should be set below before flashing. This is hardcoded and cannot be changed later. #define configSSID "MHI Wintergarten" //AP name (give every unit a unique name before flashing) #define configPW "password" //Password to connect to the AP //Variables below are initial values that can be changed at any time from the WiFiManager configuration portal and will be stored in flash memory. If there are different values in config.json, they are overwritten. char mqtt_server[16] = "0.0.0.0"; char mqtt_port[9] = "1883"; char mqtt_user[20] = ""; char mqtt_pass[20] = ""; char wifiTimeout[3] = "5"; //Timeout in minutes (max. 99) before WiFi configuration portal is turned off and the ESP tries to connect again to the previously configured AP (if any) char Room[20] = "Roomname"; char Thing[20] = "Aircon"; char Setpoint[60] = "Setpoint"; char statusSetpoint[60] = "statusSetpoint"; char State[60] = "State"; char statusState[60] = "statusState"; char statusRoomtemp[60] = "statusRoomtemp"; char Vanes[60] = "Vanes"; char statusVanes[60] = "statusVanes"; char Fanspeed[60] = "Fanspeed"; char statusFanspeed[60] = "statusFanspeed"; char debug[60] = "debug"; //Send only char service[60] = "service"; //Receive only //Variables below hold the current values of bit fields 4-7 and all adjustable settings to check if anything changed after receiving an update from the MHI/Arduino //Bit field variables are initialized with 255 to force an MQTT update with the most recent MHI settings directly after booting //The minimal set of bit fields needed to communicate power, mode, setpoint, roomtemp, vanes and fans speed is bit fields 4-7 and 10 byte current_Bitfield4 = 255; //Power, mode and vane swing settings int current_Bitfield5 = 255; //Vanes setting 1-4 and fan speed 1-3 (4 is in bit field 10) byte current_Bitfield6 = 255; //Temperature setpoint byte current_Bitfield7 = 255; //Room temperature byte current_Mode = 255; byte current_Vanes = 255; bool current_Swing = false; byte current_Fanspeed = 255; bool current_Fanspeed4 = false; bool debugit = false; //Send some info (eg. MHI SPI bit field updates and errors) to debug topic int connectionFails = 0; //Count number of failed MQTT connection attempts for restart // HEAT COOL AUTO DRY FAN static byte modeValues[5] = { 0b00010001, 0b00001001, 0b00000001, 0b00000101, 0b00001101 }; //Used to extract current mode from bit field 4 WiFiClient espClient; PubSubClient client(espClient); void callback(char* topic, byte* payload, unsigned int length); //Callback function header //Flag for saving data bool shouldSaveConfig = false; //Setup EasyTransfer (by Bill Porter) EasyTransfer ETin, ETout; struct RECEIVE_DATA_STRUCTURE { //Variables received from Arduino byte currentMHI[8]; //Contains bitfields last received from MHI for bitfields 4 - 10 (currentMHI[0]-[6]). currentMHI[7] holds the number of SPI-MHI sync errors. }; struct SEND_DATA_STRUCTURE { //Variable send to Arduino byte mode; //Mode [1]OFF, [2]HEAT, [3]COOL, [4]AUTO, [5]DRY, [6]FAN, [7]ON, [64]RESET byte vanes; //Vanes [1]UP, [2]2, [3]3, [4]DOWN, [5]SWING byte fanspeed; //Fanspeed [1]1, [2]2, [3]3, [4]4 byte setpoint; //Setpoint [18]18 -> [30]30 degrees Celsius } __attribute__((packed)); //Necessary for correct transfer of struct between Arduino and ESP8266 RECEIVE_DATA_STRUCTURE fromArduino; SEND_DATA_STRUCTURE toArduino; //Callback notifying us of the need to save WiFiManager config to FS void saveConfigCallback () { //Serial.println("Should save config"); shouldSaveConfig = true; } template <typename generic=""> void debug2mqtt(Generic text) { if (debugit) { client.publish(debug, text, true); } } void setup() { ETin.begin(details(fromArduino), &Serial); //Start the EasyTransfer library, pass in the data details and the name of the serial port ETout.begin(details(toArduino), &Serial); //Read configuration from FS json //Serial.println("Mounting FS..."); if (SPIFFS.begin()) { //Serial.println("Mounted file system"); if (SPIFFS.exists("/config.json")) { //File exists, reading and loading //Serial.println("Reading config file"); File configFile = SPIFFS.open("/config.json", "r"); if (configFile) { //Serial.println("Opened config file"); size_t size = configFile.size(); //Allocate a buffer to store contents of the file. std::unique_ptr <char[]>buf(new char[size]); configFile.readBytes(buf.get(), size); DynamicJsonBuffer jsonBuffer; JsonObject& json = jsonBuffer.parseObject(buf.get()); //json.printTo(Serial); if (json.success()) { //Serial.println("\nParsed json"); strcpy(mqtt_server, json["mqtt_server"]); strcpy(mqtt_port, json["mqtt_port"]); strcpy(mqtt_user, json["mqtt_user"]); strcpy(mqtt_pass, json["mqtt_pass"]); strcpy(wifiTimeout, json["wifiTimeout"]); strcpy(Room, json["Room"]); strcpy(Thing, json["Thing"]); strcpy(Setpoint, json["Setpoint"]); strcpy(statusSetpoint, json["statusSetpoint"]); strcpy(State, json["State"]); strcpy(statusState, json["statusState"]); strcpy(statusRoomtemp, json["statusRoomtemp"]); strcpy(Vanes, json["Vanes"]); strcpy(statusVanes, json["statusVanes"]); strcpy(Fanspeed, json["Fanspeed"]); strcpy(statusFanspeed, json["statusFanspeed"]); strcpy(debug, json["debug"]); strcpy(service, json["service"]); } else { //Serial.println("Failed to load json config"); } } } } else { //Serial.println("Failed to mount FS"); } //The extra parameters to be configured (can be either global or just in the setup) //After connecting, parameter.getValue() will get you the configured value //id/name placeholder/prompt default length WiFiManagerParameter custom_mqtt_server("server", "MQTT Server", mqtt_server, 16); WiFiManagerParameter custom_mqtt_port("port", "MQTT Port", mqtt_port, 9); WiFiManagerParameter custom_mqtt_user("user", "MQTT Username", mqtt_user, 20); WiFiManagerParameter custom_mqtt_pass("pass", "MQTT Password", mqtt_pass, 20); WiFiManagerParameter custom_wifiTimeout("timeout", "5", wifiTimeout, 3); WiFiManagerParameter custom_topic_Room("Room", "Room name", Room, 20); WiFiManagerParameter custom_topic_Thing("Thing", "Thing name", Thing, 20); WiFiManagerParameter custom_topic_Setpoint("Setpoint", "Setpoint", Setpoint, 40); WiFiManagerParameter custom_topic_statusSetpoint("statusSetpoint", "statusSetpoint", statusSetpoint, 40); WiFiManagerParameter custom_topic_State("State", "State", State, 40); WiFiManagerParameter custom_topic_statusState("statusState", "statusState", statusState, 40); WiFiManagerParameter custom_topic_statusRoomtemp("statusRoomtemp", "statusRoomtemp", statusRoomtemp, 40); WiFiManagerParameter custom_topic_Vanes("Vanes", "Vanes", Vanes, 40); WiFiManagerParameter custom_topic_statusVanes("statusVanes", "statusVanes", statusVanes, 40); WiFiManagerParameter custom_topic_Fanspeed("Fanspeed", "Fanspeed", Fanspeed, 40); WiFiManagerParameter custom_topic_statusFanspeed("statusFanspeed", "statusFanspeed", statusFanspeed, 40); WiFiManagerParameter custom_topic_debug("debug", "debug", debug, 40); WiFiManagerParameter custom_topic_service("service", "service", service, 40); //WiFiManager //Local intialization. Once its business is done, there is no need to keep it around WiFiManager wifiManager; wifiManager.setDebugOutput(false); //Set config save notify callback wifiManager.setSaveConfigCallback(saveConfigCallback); //Optional: Set static ip //wifiManager.setSTAStaticIPConfig(IPAddress(10,0,1,99), IPAddress(10,0,1,1), IPAddress(255,255,255,0)); //Add all parameters here wifiManager.addParameter(&custom_mqtt_server); wifiManager.addParameter(&custom_mqtt_port); wifiManager.addParameter(&custom_mqtt_user); wifiManager.addParameter(&custom_mqtt_pass); wifiManager.addParameter(&custom_wifiTimeout); wifiManager.addParameter(&custom_topic_Room); wifiManager.addParameter(&custom_topic_Thing); wifiManager.addParameter(&custom_topic_Setpoint); wifiManager.addParameter(&custom_topic_statusSetpoint); wifiManager.addParameter(&custom_topic_State); wifiManager.addParameter(&custom_topic_statusState); wifiManager.addParameter(&custom_topic_statusRoomtemp); wifiManager.addParameter(&custom_topic_Vanes); wifiManager.addParameter(&custom_topic_statusVanes); wifiManager.addParameter(&custom_topic_Fanspeed); wifiManager.addParameter(&custom_topic_statusFanspeed); wifiManager.addParameter(&custom_topic_debug); wifiManager.addParameter(&custom_topic_service); //Set minimum quality of signal so it ignores AP's under that quality //Defaults to 8% wifiManager.setMinimumSignalQuality(5); //Sets timeout until configuration portal gets turned off //and retries connecting to the preconfigured AP wifiManager.setConfigPortalTimeout(atoi(wifiTimeout) * 60); //Convert minutes to seconds //Fetches ssid and pass and tries to connect //If it does not connect it starts an access point with the specified name //and goes into a blocking loop awaiting configuration if (!wifiManager.autoConnect(configSSID, configPW)) { //Serial.println("Failed to connect and hit timeout"); delay(3000); //Reset and try again, or maybe put it to deep sleep ESP.reset(); delay(5000); } //If you get here you have connected to the WiFi //Serial.println("Connected...yeey :)"); //Read updated parameters strcpy(mqtt_server, custom_mqtt_server.getValue()); strcpy(mqtt_port, custom_mqtt_port.getValue()); strcpy(mqtt_user, custom_mqtt_user.getValue()); strcpy(mqtt_pass, custom_mqtt_pass.getValue()); strcpy(wifiTimeout, custom_wifiTimeout.getValue()); strcpy(Room, custom_topic_Room.getValue()); strcpy(Thing, custom_topic_Thing.getValue()); //Construct topic names //Topic prefix = "Room/Thing/" char topic_prefix[42] = ""; strncpy(topic_prefix, Room, 20); strcat (topic_prefix, "/"); strncat(topic_prefix, Thing, 20); strcat (topic_prefix, "/"); //Start all topics with topic prefix strcpy(Setpoint, topic_prefix); strcpy(statusSetpoint, topic_prefix); strcpy(State, topic_prefix); strcpy(statusState, topic_prefix); strcpy(statusRoomtemp, topic_prefix); strcpy(Vanes, topic_prefix); strcpy(statusVanes, topic_prefix); strcpy(Fanspeed, topic_prefix); strcpy(statusFanspeed, topic_prefix); strcpy(debug, topic_prefix); strcpy(service, topic_prefix); //Append final topic level size_t maxAppend = 60 - sizeof(topic_prefix); strncat(Setpoint, custom_topic_Setpoint.getValue(), maxAppend); strncat(statusSetpoint, custom_topic_statusSetpoint.getValue(), maxAppend); strncat(State, custom_topic_State.getValue(), maxAppend); strncat(statusState, custom_topic_statusState.getValue(), maxAppend); strncat(statusRoomtemp, custom_topic_statusRoomtemp.getValue(), maxAppend); strncat(Vanes, custom_topic_Vanes.getValue(), maxAppend); strncat(statusVanes, custom_topic_statusVanes.getValue(), maxAppend); strncat(Fanspeed, custom_topic_Fanspeed.getValue(), maxAppend); strncat(statusFanspeed, custom_topic_statusFanspeed.getValue(), maxAppend); strncat(debug, custom_topic_debug.getValue(), maxAppend); strncat(service, custom_topic_service.getValue(), maxAppend); //Debug resulting topics to serial /* Serial.println("Constructed topics:"); Serial.println(Setpoint); Serial.println(statusSetpoint); Serial.println(State); Serial.println(statusState); Serial.println(statusRoomtemp); Serial.println(Vanes); Serial.println(statusVanes); Serial.println(Fanspeed); Serial.println(statusFanspeed); Serial.println(debug); Serial.println(service); */ //Save the custom parameters to FS if (shouldSaveConfig) { //Serial.println("Saving config..."); DynamicJsonBuffer jsonBuffer; JsonObject& json = jsonBuffer.createObject(); json["mqtt_server"] = mqtt_server; json["mqtt_port"] = mqtt_port; json["mqtt_user"] = mqtt_user; json["mqtt_pass"] = mqtt_pass; json["wifiTimeout"] = wifiTimeout; json["Room"] = Room; json["Thing"] = Thing; json["Setpoint"] = custom_topic_Setpoint.getValue(); json["statusSetpoint"] = custom_topic_statusSetpoint.getValue(); json["State"] = custom_topic_State.getValue(); json["statusState"] = custom_topic_statusState.getValue(); json["statusRoomtemp"] = custom_topic_statusRoomtemp.getValue(); json["Vanes"] = custom_topic_Vanes.getValue(); json["statusVanes"] = custom_topic_statusVanes.getValue(); json["Fanspeed"] = custom_topic_Fanspeed.getValue(); json["statusFanspeed"] = custom_topic_statusFanspeed.getValue(); json["debug"] = custom_topic_debug.getValue(); json["service"] = custom_topic_service.getValue(); File configFile = SPIFFS.open("/config.json", "w"); /* if (!configFile) { Serial.println("Failed to open config file for writing"); } */ //json.printTo(Serial); json.printTo(configFile); configFile.close(); } //Serial.println(); //Serial.print("Local IP adres: "); //Serial.println(WiFi.localIP()); //Connect to MQTT broker and set callback client.setServer(mqtt_server, atoi(mqtt_port)); client.setCallback(callback); //Configure Arduino OTA updater ArduinoOTA.setHostname(configSSID); //Set OTA hostname and password (same as local access point for WiFiManager) ArduinoOTA.setPassword((const char *)configPW); //ArduinoOTA.setPort(8266); //Port defaults to 8266 ArduinoOTA.onError([](ota_error_t error) //Send OTA error messages to MQTT debug topic { if (error == OTA_AUTH_ERROR) client.publish(debug, " <ota>ERROR -> Auth failed", true); else if (error == OTA_BEGIN_ERROR) client.publish(debug, " <ota>ERROR -> Begin failed", true); else if (error == OTA_CONNECT_ERROR) client.publish(debug, " <ota>ERROR -> Connect failed", true); else if (error == OTA_RECEIVE_ERROR) client.publish(debug, " <ota>ERROR -> Receive failed", true); else if (error == OTA_END_ERROR) client.publish(debug, " <ota>ERROR -> End failed", true); }); ArduinoOTA.begin(); } void connect() { // Loop until we're (re)connected while (!client.connected()) { //Serial.print("Attempting MQTT connection..."); //MQTT connection: Attempt to connect to MQTT broker 3 times: SUCCESS -> continue | FAILED restart ESP //On restart it will first try to connect to the previously set AP. If that fails the config portal will be started. //If the config portal is not used within wifiTimeout (set in portal), the ESP will retry connecting to the previously set AP again. if (client.connect(configSSID, mqtt_user, mqtt_pass)) { //Serial.println("connected!"); //Subscribe to topics that control the MHI state client.subscribe(Setpoint, 1); client.subscribe(State, 1); client.subscribe(Vanes, 1); client.subscribe(Fanspeed, 1); client.subscribe(service, 1); char msg[62] = "MHI2MQTT connected to MQTT broker at "; strncat(msg, mqtt_server, 15); strcat(msg, ":"); strncat(msg, mqtt_port, 8); client.publish(debug, msg , true); //Publish message to debug topic to test/notify MQTT connection connectionFails = 0; Serial.begin(500000); while(Serial.available()) Serial.read(); //Empty serial read buffer. Arduino keeps sending updates over serial during wifi configuration and connecting MQTT broker. } else { /* Serial.print("failed, rc = "); Serial.println(client.state()); Serial.print("Failed connection attempts: "); Serial.println(connectionFails); */ if (++connectionFails == 3) { //Serial.println("MQTT broker connection timeout...restarting!"); delay(1000); ESP.restart(); delay(5000); break; } //Serial.println("Try again in 5 seconds..."); delay(5000); } } } void callback(char* topic, byte* payload, unsigned int length) { //Serial.print("Message arrived on topic ["); //Serial.print(topic); //Serial.print("]: "); char buffer[length + 1]; for (int i = 0; i < length; i++) //Copy payload to buffer string { buffer[i] = (char)payload[i]; //Serial.print((char)payload[i]); } buffer[length] = '\0'; //Terminate string //Serial.println(); //SERVICE COMMANDS if (strcmp(topic, service) == 0) { if (strcmp(buffer, "reboot") == 0) { toArduino.mode = 64; //Send code to restart Arduino toArduino.vanes = 0; toArduino.fanspeed = 0; toArduino.setpoint = 0; ETout.sendData(); client.publish(debug, " << Rebooting... >>", true); delay(2000); ESP.restart(); //Now restart ESP delay(5000); return; } if (strcmp(buffer, "reinit") == 0) //Start WiFiManager after erasing previously stored settings { client.publish(debug, " << Reinitializing...(erase flash, reboot and start WiFiManager) >>", true); delay(500); SPIFFS.format(); //Erase flash delay(1000); WiFi.disconnect(); //Start WiFiManager for reconfiguration delay(1000); ESP.restart(); delay(5000); return; } if (strcmp(buffer, "wifimanager") == 0) //Start WiFiManager with previously stored settings { client.publish(debug, " << Starting WiFiManager... >>", true); delay(500); WiFi.disconnect(); delay(1000); ESP.restart(); delay(5000); return; } if (strcmp(buffer, "debugon") == 0) //Send some info on debug topic, see debug2mqtt() in the code { client.publish(debug, " << Debug ON >>", true); debugit = true; return; } if (strcmp(buffer, "debugoff") == 0) { client.publish(debug, " << Debug OFF >>", true); debugit = false; return; } if (strcmp(buffer, "help") == 0) { client.publish(debug, " <reboot>-> restart Arduino & ESP8266 | <reinit> -> erase flash and start WiFiManager", true); client.publish(debug, " <wifimanager>-> Start WiFiManager | <debugon> <debugoff>-> Show some info on debug topic", true); return; } client.publish(debug, " << Unknown service command >>", true); return; } int value = atoi(buffer); //Convert payload to integer variable //POWER & MODE: payload = 0 [OFF], 1 [HEAT], 2 [COOL], 3 [AUTO], 4 [DRY], 5 [FAN], 6 [ON] if (strcmp(topic, State) == 0) { if (value >= 0 && value < 7) { toArduino.mode = value + 1; ETout.sendData(); //Send updated settings to Arduino using EasyTransfer //Serial.print("Mode change: "); //Serial.println(toArduino.mode); toArduino.mode = 0; debug2mqtt(" <esp>Updated power/mode settings send to Arduino/MHI."); } else { debug2mqtt(" << Error >> Value on MODE topic out of range [0-6]"); } return; } //VANES: payload = 1 [1-UP], 2 [2], 3 [3], 4 [4-DOWN], 5 [SWING] if (strcmp(topic, Vanes) == 0) { if (value > 0 && value < 6) { toArduino.vanes = value; ETout.sendData(); //Send updated settings to Arduino using EasyTransfer //Serial.print("Vanes change: "); //Serial.println(toArduino.vanes); toArduino.vanes = 0; debug2mqtt(" <esp>Updated vanes settings send to Arduino/MHI."); } else { debug2mqtt(" << Error >> Value on VANES topic out of range [1-5]"); } return; } //FAN SPEED: payload = 1 [1-LOW], 2 [2], 3 [3], 4 [4-HIGH] if (strcmp(topic, Fanspeed) == 0) { if (value > 0 && value < 5) { toArduino.fanspeed = value; ETout.sendData(); //Send updated settings to Arduino using EasyTransfer //Serial.print("Fan speed change: "); //Serial.println(toArduino.fanspeed); toArduino.fanspeed = 0; debug2mqtt(" <esp>Updated fan speed settings send to Arduino/MHI."); } else { debug2mqtt(" << Error >> Value on FAN SPEED topic out of range [1-4]"); } return; } //TEMPERATURE SETPOINT: payload = temperature in degrees Celsius if (strcmp(topic, Setpoint) == 0) { if (value > 17 && value < 31) { toArduino.setpoint = value; //Bitfield containing target temperature ETout.sendData(); //Send updated settings to Arduino using EasyTransfer //Serial.print("Setpoint change: "); //Serial.println(toArduino.setpoint); toArduino.setpoint = 0; debug2mqtt(" <esp>Updated setpoint settings send to Arduino/MHI."); } else { debug2mqtt(" << Error >> Value on SETPOINT topic out of range [18-30]"); } return; } } void loop() { ArduinoOTA.handle(); //Handle Arduino OTA updates if (!client.connected()) //Check MQTT connection { connect(); //Connect first time. Reconnect when connection lost. } client.loop(); if (ETin.receiveData()) //Check for new data on serial (EasyTransfer). Returns false or true. { delay(1); //Make sure receive is complete. I've had occasional problems and this appears to solve them. if (debugit) //If debug = on -> send part of SPI byte frame to MQTT debug topic { char buffer[54] = " <mhi>Updated bit field 4-10: "; int loc = 31; for (int i = 0; i < 7; i++) { snprintf(buffer + loc, 53 - loc , "%02X ", fromArduino.currentMHI[i]); loc += 3; } client.publish(debug, buffer, true); //Send latest MHI bit field update to MQTT broker snprintf(buffer, 53, " <mhi>%d SPI resync/checksum errors", fromArduino.currentMHI[7]); client.publish(debug, buffer, true); //Send cumulative number of checksum errors on Arduino-SPI-MHI connection to MQTT } //Process MHI bit field 4-10 updates and only publish changes to corresponding MQTT statuses char msg[5] = ""; //Buffer string holding payload to publish byte buf = 0; //####### Bit field 4 >>> POWER, MODE & VANES (swing only) ####### if (fromArduino.currentMHI[0] != current_Bitfield4) //Any change compared to previous bit field 4? { debug2mqtt(" <mhi>Bit field 4 changed"); current_Bitfield4 = fromArduino.currentMHI[0]; //Store new current bit field 4 //POWER and/or MODE changed if ((current_Bitfield4 & 0b00011101) != current_Mode) //Extract mode bits (3-5) en power bit (1) { current_Mode = current_Bitfield4 & 0b00011101; //Get POWER and MODE states if (bitRead(current_Mode, 0) == 0) //Power is OFF { buf = 0; } else { for (int i = 0; i < 5; i++) //Power is ON -> get MODE { if (current_Mode == modeValues[i]) { buf = i + 1; break; } } } snprintf(msg, 2, "%1d", buf); client.publish(statusState, msg, true); //Send update to MQTT broker debug2mqtt(" <mhi>Mode/Power changed"); /* Serial.println("State (Mode/Power) changed"); Serial.print("MQTT publish ["); Serial.print(statusState); Serial.print("]: "); Serial.println(msg); */ } //VANES changed to swing if (bitRead(current_Bitfield4, 6)) //Check if new vanes setting is swing { if (!current_Swing) //Check if changed compared to previous setting { current_Swing = true; client.publish(statusVanes, "5", true); //Send update to MQTT broker debug2mqtt(" <mhi>Vanes changed"); /* Serial.println("Vanes changed"); Serial.print("MQTT publish ["); Serial.print(statusVanes); Serial.print("]: "); Serial.println("5"); */ } } else if (current_Swing) //SWING changed from ON to OFF { current_Bitfield5 = -1; //Force update of VANES below (bit field 5) by setting out-of-range values current_Vanes = 255; current_Swing = false; } } //####### Bit field 10 >>> FAN SPEED (setting 4 only) ####### if (bitRead(fromArduino.currentMHI[6], 6)) //Check if new speed setting is 4 { if (!current_Fanspeed4) //Check if changed compared to current setting { debug2mqtt(" <mhi>Bit field 10 changed"); current_Fanspeed4 = true; client.publish(statusFanspeed, "4", true); //Send update to MQTT broker debug2mqtt(" <mhi>Fan speed changed"); /* Serial.println("Fanspeed changed"); Serial.print("MQTT publish ["); Serial.print(statusFanspeed); Serial.print("]: "); Serial.println(msg); */ } } else if (current_Fanspeed4) //FAN SPEED changed from 4 to 1-3 { current_Bitfield5 = -1; //Force update of FANSPEED below (bit field 5) by setting out-of-range values current_Fanspeed = 255; current_Fanspeed4 = false; } //####### Bit field 5 >>> VANES (position 1-4) & FAN SPEED (setting 1-3) ####### if ((int)fromArduino.currentMHI[1] != current_Bitfield5) //Any change compared to previous bit field 5? Force update of VANES if SWING was just switched off. Same for FAN SPEED 4. { debug2mqtt(" <mhi>Bit field 5 changed"); current_Bitfield5 = (int)fromArduino.currentMHI[1]; //New current bit field 5 //VANES changed if ((current_Bitfield5 & 0b00110000) != current_Vanes && !current_Swing) //Extract vanes bits (5-6) { current_Vanes = current_Bitfield5 & 0b00110000; //Get VANES position buf = (current_Vanes >> 4) + 1; //Convert to vanes position [1-4] snprintf(msg, 2, "%1d", buf); client.publish(statusVanes, msg, true); //Send update to MQTT broker debug2mqtt(" <mhi>Vanes changed"); /* Serial.println("Vanes changed"); Serial.print("MQTT publish ["); Serial.print(statusVanes); Serial.print("]: "); Serial.println(msg); */ } //FAN SPEED (setting 1-3) changed if ((current_Bitfield5 & 0b00000111) != current_Fanspeed && !current_Fanspeed4) //Extract fan speed bits (1-3) { current_Fanspeed = current_Bitfield5 & 0b00000111; //Get FAN SPEED buf = current_Fanspeed + 1; //Convert to fan speed (1-3) snprintf(msg, 2, "%1d", buf); client.publish(statusFanspeed, msg, true); //Send update to MQTT broker debug2mqtt(" <mhi>Fan speed changed"); /* Serial.println("Fanspeed changed"); Serial.print("MQTT publish ["); Serial.print(statusFanspeed); Serial.print("]: "); Serial.println(msg); */ } } //####### Bit field 6 >>> TEMPERATURE SETPOINT ####### if (fromArduino.currentMHI[2] != current_Bitfield6) { debug2mqtt(" <mhi>Bit field 6 changed"); current_Bitfield6 = fromArduino.currentMHI[2]; //Store new setpoint byte value for reference in next SPI frame update //Extract new temperature setpoint (bitfield 6) buf = current_Bitfield6; buf = bitClear(buf, 7) >> 1; //Clear bit 8 and shift right 1 bit (= divide by 2) -> buf = temperature in degr. Celsius snprintf(msg, 3, "%2d", buf); client.publish(statusSetpoint, msg, true); //Send update to MQTT broker debug2mqtt(" <mhi>Setpoint changed"); /* Serial.println("Setpoint changed"); Serial.print("MQTT publish ["); Serial.print(statusSetpoint); Serial.print("]: "); Serial.println(msg); */ } //####### Bit field 7 >>> ROOM TEMPERATURE ####### if (fromArduino.currentMHI[3] != current_Bitfield7) { debug2mqtt(" <mhi>Bit field 7 changed"); current_Bitfield7 = fromArduino.currentMHI[3]; //Store new setpoint byte value for reference in next SPI frame update //Calculate current room temperature in degrees Celsius from bitfield 7 using: // (BF7 - 61) / 4 (note: Calibration of temperature needs to be checked further) int temp = (int)current_Bitfield7 - 61; int dec = (temp % 4) * 25; //Decimal value (can be xx.00; xx.25; xx.50; xx.75) temp /= 4; //Truncated temperature (rounded down) snprintf(msg, 6, "%d.%02d", temp, dec); //Construct temperature payload string client.publish(statusRoomtemp, msg, true); //Send update to MQTT broker debug2mqtt(" <mhi>Room temperature changed"); /* Serial.println("Roomtemp changed"); Serial.print("MQTT publish ["); Serial.print(statusRoomtemp); Serial.print("]: "); Serial.println(msg); */ } } }</mhi></mhi></mhi></mhi></mhi></mhi></mhi></mhi></mhi></mhi></mhi></mhi></mhi></mhi></esp></esp></esp></esp></debugoff></debugon></wifimanager></reinit></reboot></ota></ota></ota></ota></ota></char[]></typename></easytransfer.h></pubsubclient.h></arduinojson.h></wifimanager.h></arduinoota.h></wifiudp.h></esp8266webserver.h></dnsserver.h></esp8266wifi.h></fs.h>` Ist es normal, dass im Adapter so viele Ereignisse ankommen, auch wenn kein Client verbunden ist?  [/i][/i][/i][/i][/i] -
es bringt das nachdenken über die daten menge… drei temperaturen alle 6 sekunden ( was auch xx ist ) ok ... aber 3 x das gesamte paket in der zeit wäre zu viel ( für mich ) und da wäre dann auch die frage nach dem DC ...
ps.: prg "lese" ich später..
-
Ja das verstehe ich schon. Leider kenne ich mich zu wenig mit der Arduino Programmierung aus.
Wäre gut super wenn du es dir mal anschauen könntest. Ich hab nur im ioBroker gesehen, dass die Raumtemperatur sich alle 6 Sekunden aktualisiert. Ich verstehe eben momentan nicht, warum es ne Stunde läuft und dann war es dass.
Eigentlich sollten auch die ESP's sich wieder mit dem Broker verbinden, was sie auch nicht mehr machen. Im Netzwerk seh ich sie aber noch und es wird auch kein eigener Hotspot von den ESP's eröffnet.
Laut Beschreibung des Entwicklers, sollte sich ein Hotspot eröffnen wenn kein Zugang zum WLAN vorliegt, das funktioniert auch wenn ich den ESP in meinem AP blocke. Und eigentlich sollte sich der ESP mit dem Broker wieder verbinden, wenn im WLAN eingeloggt und die MQTT Verbindung abgebrochen ist, macht er aber nicht.
Edit: hier mal noch das zweite Sketch für den Mini pro
/* ############################################################################################################################################################################################## MHI SPI2ESP Interface v1.0.0 Arduino-based communication interface for Mitsubishi Heavy Industries (MHI) SRK/SRF series air conditioners. Connects to the MHI CNS connector and synchronizes to its Serial Peripheral Interface (SPI). Updates from the MHI are sent via serial to an ESP8266 running an MQTT client. Updates received on the ESP8266 via MQTT are sent to the Arduino over serial and injected into the SPI data frames to update the MHI. R.J. Dekker, June 2018 ############################################################################################################################################################################################## */ //#include <avr wdt.h=""> //Watchdog for software reset: not working due to bootloader bug, but does not seem necessary anyway #include <easytransfer.h> //EasyTransfer v2.1 - Bill Porter: https://github.com/madsci1016/Arduino-EasyTransfer volatile byte state = 0; //'State machine' in loop(): [State=0] Priority is given to SPI interrupt to collect a full 20-byte SPI data frame. No other processing is allowed to keep in sync. [State=1] Pulse clock, set new/updated frames etc.. [State=2] Check for data received from ESP via serial volatile char bitfield = 0; //Bitfield position counter for sending (tx_SPIframe[]) and recceiving (rx_SPIframe[]) byte variantnumber = 0; //Frame variation that is currently being sent (0, 1 or 2 in frameVariant[]) byte framenumber = 1; //Counter for how many times a frame variation has been sent (max. = 48) bool updateESP = true; //Flag to ensure that an update is send to ESP only once every (repeatFrame x 2 x 3) SPI frames (~6 secs) bool checksumError = false; //Flag for checksum error in frame 2 or 47\. If two errors occur at both these positions in a single 48-frame cycle -> SPI sync lost -> resync SPI byte newMode = 0; //Temporary storage of settings received from ESP byte newVanes = 0; byte newFanspeed = 0; byte newSetpoint = 0; const byte rx_frameSignature[3] = { 0x6C, 0x80, 0x04 }; //SPI frame start signature: first 3 bytes in a full SPI data frame. Used to sync to MHI SPI data in SPI_sync() routine. Might be different on other unit types! //SPI frame that is currently being sent during the SPI interrupt routine. Contains base values that will be updated after the first 48-frame cycle with values received from MHI. // Bitfield: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 volatile byte tx_SPIframe[20] = { 0xA9, 0x00, 0x07, 0x4C, 0x00, 0x2A, 0xFF, 0x00, 0x00, 0x40, 0x00, 0x00, 0x80, 0xFF, 0xFF, 0xFF, 0x0F, 0x04, 0x05, 0xF5 }; volatile byte rx_SPIframe[20]; //Array to collect a single frame of SPI data received from the MHI unit byte rx_bitfield4_10[7]; //Array containing bitfields 4-10 from rx_SPIframe, which holds current MHI mode, vanes, fans speed, ambient temperature and setpoint //Alternating bitfield 10-18 variations, each successively send for 48 frames. Bit 3 in bitfield 18 functions as a clock and is 1 for 24 frames and 0 for the subsequent 24 frames. I have never seen bit fields 11-12 changing, so don't know what they are for. // Bitfield: 10 11 12 13 14 15 16 17 18 const byte frameVariant[3][9] { { 0x40, 0x00, 0x00, 0x80, 0xFF, 0xFF, 0xFF, 0x0F, 0x04 }, //variant number 0 { 0x80, 0x00, 0x00, 0x32, 0xD6, 0x01, 0x00, 0x0F, 0x04 }, //variant number 1 { 0x80, 0x00, 0x00, 0xF1, 0xF7, 0xFF, 0xFF, 0x0F, 0x04 } //variant number 2 }; //MODE bitmasks Bitfield #4 const byte modeMask[8][2] { // CLEAR | SET { 0b00100010, 0b00000000 }, //0 = Unchanged (only clear 'write' bits) { 0b00100011, 0b00000010 }, //1 = OFF { 0b00111111, 0b00110011 }, //2 = HEAT { 0b00111111, 0b00101011 }, //3 = COOL { 0b00111111, 0b00100011 }, //4 = AUTO { 0b00111111, 0b00100111 }, //5 = DRY { 0b00111111, 0b00101111 }, //6 = FAN { 0b00100011, 0b00000011 } //7 = ON (using last mode) }; //VANES bitmasks Bitfield #4 Bitfield #5 const byte vanesMask[6][4] { // CLEAR | SET CLEAR | SET { 0b10000000, 0b00000000, 0b10000000, 0b00000000 }, //0 = Unchanged (only clear 'write' bits) { 0b11000000, 0b10000000, 0b10110000, 0b10000000 }, //1 = 1 (up) { 0b11000000, 0b10000000, 0b10110000, 0b10010000 }, //2 = 2 { 0b11000000, 0b10000000, 0b10110000, 0b10100000 }, //3 = 3 { 0b11000000, 0b10000000, 0b10110000, 0b10110000 }, //4 = 4 (down) { 0b11000000, 0b11000000, 0b10000000, 0b00000000 } //5 = swing }; //FANSPEED bitmasks Bitfield #5 Bitfield #10 const byte fanspeedMask[5][4] { // CLEAR | SET CLEAR | SET { 0b00001000, 0b00000000, 0b11011000, 0b00000000 }, //0 = Unchanged (only clear 'write' bits) { 0b00001111, 0b00001000, 0b11011000, 0b00000000 }, //1 = Speed 1 { 0b00001111, 0b00001001, 0b11011000, 0b00000000 }, //2 = Speed 2 { 0b00001111, 0b00001010, 0b11011000, 0b00000000 }, //3 = Speed 3 { 0b00001111, 0b00001010, 0b11011000, 0b00010001 } //4 = Speed 4 }; //Setup EasyTransfer EasyTransfer ETin, ETout; struct RECEIVE_DATA_STRUCTURE { //Variables received from ESP byte mode; //Mode [1]OFF, [2]HEAT, [3]COOL, [4]AUTO, [5]DRY, [6]FAN, [7]ON, [64]RESET byte vanes; //Vanes [1]UP, [2]2, [3]3, [4]DOWN, [5]SWING byte fanspeed; //Fanspeed [1]1, [2]2, [3]3, [4]4 byte setpoint; //Setpoint [18]18 -> [30]30 degrees Celsius } __attribute__((packed)); struct SEND_DATA_STRUCTURE { //Variable send to ESP byte currentMHI[8]; //Contains bitfields last received from MHI for bitfields 4-10 (holding current settings for mode, vanes, fanspeed, setpoint and ambient temperature) and a SPI sync error count }; RECEIVE_DATA_STRUCTURE fromESP; SEND_DATA_STRUCTURE toESP; //ROUTINES, SETUP and MAIN LOOP void setup (void) { delay(7000); //Delay to allow ESP8266 to boot Serial.begin (500000); while(Serial.available()) Serial.read(); //Empty serial read buffer from possible junk send by ESP during boot //wdt_enable(WDTO_8S); //Start Watchdog Timer (WDT) to detect hang ups ETin.begin(details(fromESP), &Serial); //Start the EasyTransfer library, pass in the data details and the name of the serial port ETout.begin(details(toESP), &Serial); pinMode(SCK, INPUT); pinMode(MISO, OUTPUT); SPCR = (0< <spie)|(0<<spe)|(1<<dord)|(0<<mstr)|(1<<cpol)|(1<<cpha); 1/18/19/20/configurate/spi/slave:/no/interrupts/(yet)/|/disable/hardware/lsb/first/slave/mode/sck/high/when/idle/data/valid/on/falling/edge/toesp.currentmhi[7]="0;" reset/checksum/resync/errors/spi_sync();/sync/to/master/(mosi)/wdt_reset();/watchdog/timer/}/end/of/setup/inline/bool/verify_checksum/(void)/routine/verify/a/received/frame./don't/care/pass/the/array/function,/because/it's/same/that/needs/be/checked/every/time./{/uint16_t/sum="0;" for/(int/bf="0;" </18;/bf++)/calculate/byte/frame/(sum/bytes/18)/+="rx_SPIframe[bf];" return/(rx_spiframe[18]="=" highbyte(sum)/&&/rx_spiframe[19]="=" lowbyte(sum));/msb/and/compare/with/20\./returns/true/if/is/correct./void/update_checksum/update/(byte/19)/20)./updated/by/summing/bitfield/-/tx_spiframe[18]="highByte(sum);" write/tx_spiframe[19]="lowByte(sum);" softwarereset(void)/(uint8_t/prescaler)/not/working/as/aspected/(bootloader/bug?)./revert/more/primitive/method./asm/volatile/("/jmp/0");/wdt_enable(prescaler);/start/provided/prescaler/while(1)/{}/spi_sync/spcr/&="~(1<<SPIE);" turn/off/during/syncing/memcpy(&tx_spiframe[9],/&framevariant[0][0],/9);/copy/(part/of)/next/current/sending/upcoming/clock/cycle/update_checksum();/recalculate/tx_spiframe/int/resyncattempts="0;" count/number/attempts./resyncing/doesn't/work="">restart system resync: //Finds the start of the first complete frame by looking for a signature. //When the first SPI transfer is started, the data sometimes starts in the middle of a frame //or out of sync with the SPI clock. This routine scans for the first 3 bytes as given //in rx_frameSignature[]. It then reads and discards the next 17 bytes before handing further //SPI data exchange to the interrupt routine ISR(SPI_STC_vect). //Serial.print("Syncing SPI to master..."); int hits = 0; //Number of times consecutive signature bytes have been encountered int cycle = 0; //Stores number of bytes checked for signature. If too high -> SPI out of sync? byte r; //Used to store read byte SPCR &= ~(1< <spe); 15/turn/off/spi/hardware/delay(15);/for/resyncs:/if/sync/is/lost/because/data/exhange/shifted/out/of/phase/a/few/bits,/then/waiting/msecs/should/end/up/somewhere/between/two/frames/-="">resync SPCR |= (1< <spe); turn/spi/hardware/back/on,/hopefully/in/sync/while(1)/{/if/(cycle++="">25) //If scan takes >25 SPI bytes -> SPI CLK out-of-sync -> reset SPI and try again { if (resyncAttempts > 2) //Too many resync attempts -> restart system { resyncAttempts = 0; //Serial.println("Too many SPI sync errors!"); //Serial.println("Restarting system..."); delay(500); softwareReset(); //softwareReset(WDTO_60MS); //Restart using Watchdog Timer delay(5000); } //Serial.println("SPI sync error!"); //Serial.println("Restarting SPI hardware..."); cycle = 0; //Signature took too long -> SPI bytes bit-shifted? -> 1st try = restart SPI ++resyncAttempts; //Track number of resync attempts goto resync; //Restart signature scan. Not very elegant, but it works. } hits = 0; do //Scan for 3-byte signature { SPDR = 0; //Send back zero for each read byte while(!(SPSR & (1< <spif))) 3/{};/wait/for/new/byte/in/spi/data/register/r="SPDR;" read/from/}/while/(r="=" rx_framesignature[hits++]/&/hits/</3);/if/(hits="=" 3)/break;/a/row/-="">signature found! } for (int t = 0; t < 17; t++) //Discard the next 17 bytes after signature to skip to the start byte of the next frame { SPDR = 0; while(!(SPSR & (1< <spif))) {};/r="SPDR;" }/reset/counters/and/state/for/resyncs/variantnumber="0;" framenumber="1;" bitfield="0;" checksumerror="false;" spdr="tx_SPIframe[0];" prepare/spi/data/register/(spdr)/to/send/1st/byte/of/frame/on/interrupt/serial.println("synced!");/spcr/|="(1<<SPIE);" turn/interrupts/end/routine/spi_sync/isr/(spi_stc_vect)/{/routine:/this/is/triggered/when/a/read/write/has/just/occurred./the/that/needs/be/sent/should/already/in/called./therefore/done/before/ends./rx_spiframe[bitfield]="SPDR;" new/from/(mosi)./previously/written/simultaneously/(miso)./if/(bitfield="=" 19)/completely/sent,/switch/next/(processing/frames,/sending/reveiving/esp)/else/increase/position/counter/setup/spi_stc_vect/void/loop/(void)/wdt_reset();/watchdog/timer./readingframe/takes/too/long/-="">SPI signal lost -> restart system and resync switch (state) { case 0: //<<<state 0="">>> Do nothing (wait until a complete SPI frame has been send/received) break; case 1: //<<<state 1="">>> Complete frame send/received -> decide what to do based on current frame number (out of 48) switch (framenumber) { case 2: // Verify checksum on SPI frame that was just received and send to ESP8266 if correct if (verify_checksum()) //Verify checksum { if (variantnumber == 1 || updateESP) //Send updated MHI settings to ESP9288 in the 10th SPI frame repeat of frame 2 out of 3 (every ~6 seconds) or immediately after a new setting was sent to the MHI { memcpy(&toESP.currentMHI, &rx_SPIframe[3], 7); //Copy bitfields 4-10 from the most recent MHI SPI frame to new array for sending to ESP ETout.sendData(); //Send to ESP using EasyTransfer. updateESP = false; //Uncheck flag to send update only once } checksumError = false; } else { if (checksumError) //If true then the previous checksum at frame 47 was also wrong -> SPI sync lost? -> resync { toESP.currentMHI[7]++; //Count resyncs triggered by consecutive checksum errors and send to ESP for debugging updateESP = true; SPI_sync(); return; } checksumError = true; updateESP = true; } state = 0; break; //Start from beginning of loop() and wait for next complete SPI frame case 24: // Current frame variation has been sent 24 times -> clear clock bit in bit field 18 for the next 24 frames bitClear(tx_SPIframe[17], 2); //Clear clock bit 3 in bitfield 18-> update checksum and resend for 24 cycles update_checksum(); //Recalculate checksum of tx_SPIframe state = 0; break; //Start from beginning of loop() and wait for next complete SPI frame case 47: // Collect the most recent bit fields 4-10 for constructing an updated tx_SPIframe after the upcoming frame (48) if (verify_checksum()) //Verify checksum { memcpy(&rx_bitfield4_10, &rx_SPIframe[3], 7); //Get bitfields 4-10 from the last MHI SPI frame to use for the upcoming tx_SPIframe update checksumError = false; } else { if (checksumError) //If true then the previous checksum at frame 2 was also wrong -> SPI sync lost? -> resync { toESP.currentMHI[7]++; //Count resyncs triggered by consecutive checksum errors and send to ESP for debugging updateESP = true; SPI_sync(); return; } checksumError = true; } state = 0; break; case 48: // Current frame variation has been send 48 times -> construct next frame variant using most recent bit fields 4-10 collected in frame 47 framenumber = 0; //Reset repeat frame counter if (++variantnumber > 2) variantnumber = 0; //Increase frame counter -> test if all 3 frames sent -> restart with frame 1 memcpy(&tx_SPIframe[9], &frameVariant[variantnumber][0], 9); //Copy (part of) the next frame to the current frame for sending on the upcoming bitfield 18 clock cycle //******************* CONSTRUCTION OF UPDATED BIT FIELDS ******************* //Set 'state change' bits and 'write' bits if MQTT update received from ESP //otherwise only clear 'write' bits using masks from the xxxMask[0][] arrays //Bitfields 4, 5, 6, 10 are based on the last received MHI values (frame 47) tx_SPIframe[3] = rx_bitfield4_10[0] & ~modeMask[newMode][0]; //Clear mode bits (bitfield 4) tx_SPIframe[3] |= modeMask[newMode][1]; //Set mode bits tx_SPIframe[3] &= ~vanesMask[newVanes][0]; //Clear vanes bits (bitfield 4) tx_SPIframe[3] |= vanesMask[newVanes][1]; //Set vanes bits tx_SPIframe[4] = rx_bitfield4_10[1] & ~vanesMask[newVanes][2]; //Clear vanes bits (bitfield 5) tx_SPIframe[4] |= vanesMask[newVanes][3]; //Set vanes bits tx_SPIframe[4] &= ~fanspeedMask[newFanspeed][0]; //Clear fanspeed bits (bitfield 5) tx_SPIframe[4] |= fanspeedMask[newFanspeed][1]; //Set fanspeed bits bitWrite(rx_bitfield4_10[6], 0, bitRead(rx_bitfield4_10[6], 6)); //Copy bit 7 from rx_SPIframe[9] to bit 1 as the status bits for fan speed 4 appear to be swapped (!?) between MISO and MOSI tx_SPIframe[9] &= ~0b00111111; //Clear bits 1-6 and keep variant bits 7-8 tx_SPIframe[9] |= (rx_bitfield4_10[6] & ~fanspeedMask[newFanspeed][2]); tx_SPIframe[9] |= fanspeedMask[newFanspeed][3]; //Set fanspeed bits //Construct setpoint bitfield (#6) from last MHI value or MQTT update if (newSetpoint == 0) { tx_SPIframe[5] = rx_bitfield4_10[2] & ~0b10000000; //Copy last received MHI setpoint and clear the write bit } else { tx_SPIframe[5] = (newSetpoint << 1) | 0b10000000; //MQTT updated setpoint in degrees Celsius -> shift 1 bit left and set write bit (#8) } update_checksum(); //Recalculate checksum of tx_SPIframe //Reset all state changes newMode = 0; newVanes = 0; newFanspeed = 0; newSetpoint = 0; state = 0; break; //Start from beginning of loop() and wait for next complete SPI frame. default: state = 2; //Use time (~30 ms) until next frame for receiving commands from ESP } framenumber++; //Increase repeat counter to keep track of the number of times the current frame has been sent case 2: //<<<state 2="">>> Check once if data received from ESP via serial (EasyTransfer) if (ETin.receiveData()) { delay(1); //Delay to allow fromESP.xxx to be updated if (fromESP.mode == 64) softwareReset(); //softwareReset(WDTO_60MS); //Requested reset by ESP8266 via MQTT service topic (bitfield = 32 received) //Store new commands received from ESP in newXXX, but only if not equal to zero //to prevent cancellation of previous commands that have not been send yet newMode = (fromESP.mode > 0) ? fromESP.mode : newMode; newVanes = (fromESP.vanes > 0) ? fromESP.vanes : newVanes; newFanspeed = (fromESP.fanspeed > 0) ? fromESP.fanspeed : newFanspeed; newSetpoint = (fromESP.setpoint > 0) ? fromESP.setpoint : newSetpoint; updateESP = true; //Flag for MHI status feedback: get an MHI update after frame number 2 and send it to the ESP for updating status of the MQTT topics } state = 0; //Check for serial data once between every SPI frame (approx. every 40 ms). If this is done continuously in the loop and/or after the calculations done on frames 2, 24, 47, 48, then SPI sync can be lost. break; } //End switch..case } //End of loop</state></state></state></spif)))></spif)))></spe);></spe);></spie)|(0<<spe)|(1<<dord)|(0<<mstr)|(1<<cpol)|(1<<cpha);></easytransfer.h></avr> -
Ähm, könnte die Maske vllt schon mein Problem sein? Befeuert der Broker dann die Clients mit allem was er kennt?
Habe jetzt mal die Maske auf mqtt.0.* geändert, heute Mittag dann ein neuer Versuch
-
so, wie ich es auf die schnelle sehe wird alles "bei änderung" gesendet …. und dann ist es schon etwas heftig ( aus meiner sicht )
ggf mal einen slave - iobroker nur mit mqtt für die klimageräte aufsetzten und testen ...
-
Genau, das hab ich mir auch gerade gedacht. Das erklärt auch die hunderte von logeinträge von mqtt, wenn er auf debug steht
Gesendet von meinem ONEPLUS A6013 mit Tapatalk
-
ggf mal einen slave - iobroker nur mit mqtt für die klimageräte aufsetzten und testen … `
Ich probiere später mal mit der Maske, da ich sonst eh momentan nichts am MQTT Adapter dran hab.Ja ok, könnte ich auch noch ausprobieren, einfach mal nen Raspi oder ne VM auf dem NUC als Slave
-
Habe gerade nochmal von vorne angefangen.
So wie es aussieht hat er irgendwann den MQTT Adapter abgeschossen und dann verbinden sich die Clients nicht mehr, warum sie sich nicht mehr verbinden weiß ich leider nicht.
hier ein Teil des Logs bis zum Abschuss:
2019-02-08 17:37:46.815 - [34mdebug[39m: mqtt.0 onStateChange mqtt.0.Kinderzimmer.Klimaanlage.debug: {"val":"MHI2MQTT connected to MQTT broker at 192.168.66.68:1883","ack":true,"ts":1549643866804,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549643866804} 2019-02-08 17:37:46.822 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 293 2019-02-08 17:37:46.823 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 292 2019-02-08 17:37:46.823 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 291 2019-02-08 17:37:46.823 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 290 2019-02-08 17:37:46.824 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 289 2019-02-08 17:37:46.824 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 288 2019-02-08 17:37:46.824 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 295 2019-02-08 17:37:46.824 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 294 2019-02-08 17:37:46.827 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 293 2019-02-08 17:37:46.827 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 292 2019-02-08 17:37:46.827 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 295 2019-02-08 17:37:46.827 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 294 2019-02-08 17:37:46.828 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 293 2019-02-08 17:37:46.828 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 292 2019-02-08 17:37:46.831 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 291 2019-02-08 17:37:46.832 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 290 2019-02-08 17:37:46.832 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 289 2019-02-08 17:37:46.832 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 288 2019-02-08 17:37:46.832 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 295 2019-02-08 17:37:46.832 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 294 2019-02-08 17:37:46.840 - [34mdebug[39m: mqtt.0 stateChange mqtt.0.Kinderzimmer.Klimaanlage.statusRoomtemp: {"val":21.75,"ack":true,"ts":1549643866816,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549643866816} 2019-02-08 17:37:46.841 - [34mdebug[39m: mqtt.0 onStateChange mqtt.0.Kinderzimmer.Klimaanlage.statusRoomtemp: {"val":21.75,"ack":true,"ts":1549643866816,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549643866816} 2019-02-08 17:37:46.848 - [34mdebug[39m: mqtt.0 stateChange mqtt.0.Kinderzimmer.Klimaanlage.debug: {"val":" << Unknown service command >>","ack":true,"ts":1549643866818,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549643866818} 2019-02-08 17:37:46.850 - [34mdebug[39m: mqtt.0 onStateChange mqtt.0.Kinderzimmer.Klimaanlage.debug: {"val":" << Unknown service command >>","ack":true,"ts":1549643866818,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549643866818} 2019-02-08 17:37:46.850 - [34mdebug[39m: mqtt.0 stateChange mqtt.0.Kinderzimmer.Klimaanlage.debug: {"val":" << Unknown service command >>","ack":true,"ts":1549643866818,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549643866818} 2019-02-08 17:37:46.850 - [34mdebug[39m: mqtt.0 stateChange mqtt.0.Kinderzimmer.Klimaanlage.debug: {"val":" << Unknown service command >>","ack":true,"ts":1549643866820,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549643866818} 2019-02-08 17:37:46.850 - [34mdebug[39m: mqtt.0 stateChange mqtt.0.Kinderzimmer.Klimaanlage.debug: {"val":" << Unknown service command >>","ack":true,"ts":1549643866820,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549643866818} 2019-02-08 17:37:46.850 - [34mdebug[39m: mqtt.0 stateChange mqtt.0.Kinderzimmer.Klimaanlage.debug: {"val":" << Unknown service command >>","ack":true,"ts":1549643866820,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549643866818} 2019-02-08 17:37:46.857 - [34mdebug[39m: mqtt.0 stateChange mqtt.0.Kinderzimmer.Klimaanlage.debug: {"val":" << Unknown service command >>","ack":true,"ts":1549643866848,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549643866818} 2019-02-08 17:37:46.875 - [34mdebug[39m: mqtt.0 stateChange mqtt.0.Kinderzimmer.Klimaanlage.debug: {"val":" << Unknown service command >>","ack":true,"ts":1549643866852,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549643866818} 2019-02-08 17:37:46.875 - [34mdebug[39m: mqtt.0 onStateChange mqtt.0.Kinderzimmer.Klimaanlage.debug: {"val":" << Unknown service command >>","ack":true,"ts":1549643866852,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549643866818} 2019-02-08 17:37:46.875 - [34mdebug[39m: mqtt.0 stateChange mqtt.0.Kinderzimmer.Klimaanlage.debug: {"val":" << Unknown service command >>","ack":true,"ts":1549643866853,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549643866818} 2019-02-08 17:37:46.881 - [34mdebug[39m: mqtt.0 Create object for topic: Kinderzimmer/Kli@$@#@"@[ID: mqtt.0.Kinderzimmer.Kli@$@#@"@] 2019-02-08 17:37:46.881 - [33mwarn[39m: mqtt.0 Used invalid characters: mqtt.0.Kinderzimmer.Kli@$@#@"@ changed to mqtt.0.Kinderzimmer.Kli@$@#@_@ 2019-02-08 17:37:46.895 - [33mwarn[39m: mqtt.0 Used invalid characters: mqtt.0.Kinderzimmer.Kli@$@#@"@ changed to mqtt.0.Kinderzimmer.Kli@$@#@_@ 2019-02-08 17:37:46.900 - [34mdebug[39m: mqtt.0 stateChange mqtt.0.Kinderzimmer.Kli@$@#@_@: {"val":"\u0001!@\u0002\u0001 @\u0002\u0001'@\u0002\u0001&1>\u0000\u001eKinderzimmer","ack":true,"ts":1549643866897,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549643866897} 2019-02-08 17:37:46.900 - [34mdebug[39m: mqtt.0 onStateChange mqtt.0.Kinderzimmer.Kli@$@#@_@: {"val":"\u0001!@\u0002\u0001 @\u0002\u0001'@\u0002\u0001&1>\u0000\u001eKinderzimmer","ack":true,"ts":1549643866897,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549643866897} 2019-02-08 17:37:46.908 - [34mdebug[39m: mqtt.0 Client [MHI Schlafzimmer] Resend message topic: Schlafzimmer/Klimaanlage/service, payload: null 2019-02-08 17:37:46.919 - [34mdebug[39m: mqtt.0 Client [MHI Schlafzimmer] Resend message topic: Schlafzimmer/Klimaanlage/Fanspeed, payload: null 2019-02-08 17:37:46.929 - [34mdebug[39m: mqtt.0 Client [MHI Schlafzimmer] Resend message topic: Schlafzimmer/Klimaanlage/Vanes, payload: null 2019-02-08 17:37:46.940 - [34mdebug[39m: mqtt.0 Client [MHI Schlafzimmer] Resend message topic: Schlafzimmer/Klimaanlage/State, payload: null 2019-02-08 17:37:46.951 - [34mdebug[39m: mqtt.0 Client [MHI Schlafzimmer] Resend message topic: Schlafzimmer/Klimaanlage/service, payload: null 2019-02-08 17:37:48.520 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 26989 2019-02-08 17:37:48.523 - [31merror[39m: mqtt.0 uncaught exception: Cannot read property 'topic' of undefined 2019-02-08 17:37:48.524 - [31merror[39m: mqtt.0 TypeError: Cannot read property 'topic' of undefined at receivedTopic (/opt/iobroker/node_modules/iobroker.mqtt/lib/server.js:406:32) at Connection.client.on.packet (/opt/iobroker/node_modules/iobroker.mqtt/lib/server.js:820:21) at emitOne (events.js:116:13) at Connection.emit (events.js:211:7) at Connection.emitPacket (/opt/iobroker/node_modules/iobroker.mqtt/node_modules/mqtt-connection/connection.js:10:8) at emitOne (events.js:116:13) at Connection.emit (events.js:211:7) at addChunk (/opt/iobroker/node_modules/iobroker.mqtt/node_modules/readable-stream/lib/_stream_readable.js:291:12) at readableAddChunk (/opt/iobroker/node_modules/iobroker.mqtt/node_modules/readable-stream/lib/_stream_readable.js:278:11) at Connection.Readable.push (/opt/iobroker/node_modules/iobroker.mqtt/node_modules/readable-stream/lib/_stream_readable.js:245:10) 2019-02-08 17:37:48.524 - [34mdebug[39m: mqtt.0 Old client MHI Kinderzimmer with secret 1549643217875_4556 sends subscribe. Ignore! Actual secret is 1549643836068_3879 2019-02-08 17:37:49.026 - [32minfo[39m: mqtt.0 terminating 2019-02-08 17:37:49.046 - [31merror[39m: Caught by controller[0]: TypeError: Cannot read property 'topic' of undefined 2019-02-08 17:37:49.047 - [31merror[39m: Caught by controller[0]: at receivedTopic (/opt/iobroker/node_modules/iobroker.mqtt/lib/server.js:406:32) 2019-02-08 17:37:49.047 - [31merror[39m: Caught by controller[0]: at Connection.client.on.packet (/opt/iobroker/node_modules/iobroker.mqtt/lib/server.js:820:21) 2019-02-08 17:37:49.047 - [31merror[39m: Caught by controller[0]: at emitOne (events.js:116:13) 2019-02-08 17:37:49.047 - [31merror[39m: Caught by controller[0]: at Connection.emit (events.js:211:7) 2019-02-08 17:37:49.047 - [31merror[39m: Caught by controller[0]: at Connection.emitPacket (/opt/iobroker/node_modules/iobroker.mqtt/node_modules/mqtt-connection/connection.js:10:8) 2019-02-08 17:37:49.047 - [31merror[39m: Caught by controller[0]: at emitOne (events.js:116:13) 2019-02-08 17:37:49.047 - [31merror[39m: Caught by controller[0]: at Connection.emit (events.js:211:7) 2019-02-08 17:37:49.047 - [31merror[39m: Caught by controller[0]: at addChunk (/opt/iobroker/node_modules/iobroker.mqtt/node_modules/readable-stream/lib/_stream_readable.js:291:12) 2019-02-08 17:37:49.047 - [31merror[39m: Caught by controller[0]: at readableAddChunk (/opt/iobroker/node_modules/iobroker.mqtt/node_modules/readable-stream/lib/_stream_readable.js:278:11) 2019-02-08 17:37:49.047 - [31merror[39m: Caught by controller[0]: at Connection.Readable.push (/opt/iobroker/node_modules/iobroker.mqtt/node_modules/readable-stream/lib/_stream_readable.js:245:10) 2019-02-08 17:37:49.047 - [31merror[39m: host.debian instance system.adapter.mqtt.0 terminated with code 0 (OK) 2019-02-08 17:37:49.047 - [32minfo[39m: host.debian Restart adapter system.adapter.mqtt.0 because enabledJetzt sieht es so aus:
mqtt.0 2019-02-08 19:44:58.723 debug onStateChange mqtt.0.Wintergarten.Klimaanlage.statusRoomtemp: {"val":20.25,"ack":true,"ts":1549651498720,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549651498720} mqtt.0 2019-02-08 19:44:58.722 debug stateChange mqtt.0.Wintergarten.Klimaanlage.statusRoomtemp: {"val":20.25,"ack":true,"ts":1549651498720,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549651498720} mqtt.0 2019-02-08 19:44:57.012 debug Client [MHI Kinderzimmer] pingreq mqtt.0 2019-02-08 19:44:53.069 debug onStateChange mqtt.0.Wintergarten.Klimaanlage.statusRoomtemp: {"val":19.75,"ack":true,"ts":1549651493066,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549651493066} mqtt.0 2019-02-08 19:44:53.069 debug stateChange mqtt.0.Wintergarten.Klimaanlage.statusRoomtemp: {"val":19.75,"ack":true,"ts":1549651493066,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549651493066} mqtt.0 2019-02-08 19:44:52.738 debug onStateChange mqtt.0.Kinderzimmer.Klimaanlage.statusRoomtemp: {"val":22.5,"ack":true,"ts":1549651492736,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549651492736} mqtt.0 2019-02-08 19:44:52.738 debug stateChange mqtt.0.Kinderzimmer.Klimaanlage.statusRoomtemp: {"val":22.5,"ack":true,"ts":1549651492736,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549651492736} mqtt.0 2019-02-08 19:44:47.935 debug Client [MHI Wintergarten] pingreq mqtt.0 2019-02-08 19:44:47.411 debug onStateChange mqtt.0.Wintergarten.Klimaanlage.statusRoomtemp: {"val":20,"ack":true,"ts":1549651487408,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549651487408} mqtt.0 2019-02-08 19:44:47.411 debug stateChange mqtt.0.Wintergarten.Klimaanlage.statusRoomtemp: {"val":20,"ack":true,"ts":1549651487408,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549651487408} mqtt.0 2019-02-08 19:44:47.012 debug onStateChange mqtt.0.Kinderzimmer.Klimaanlage.statusRoomtemp: {"val":22.75,"ack":true,"ts":1549651487009,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549651487009} mqtt.0 2019-02-08 19:44:47.012 debug stateChange mqtt.0.Kinderzimmer.Klimaanlage.statusRoomtemp: {"val":22.75,"ack":true,"ts":1549651487009,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549651487009} mqtt.0 2019-02-08 19:44:41.851 debug Client [MHI Kinderzimmer] pingreqSoweit so gut, mal abwarten wie lange es so läuft.
Du kannst mir nicht zufällig erklären, warum die Clients nach dem disconnect sich nicht mehr verbinden? Das sollten sie laut Anleitung eigentlich tun. Mit dem WLAN AP sind sie immer noch verbunden.
Werde morgen das Schlafzimmer auch nochmal einbinden. Mal schauen wie lange Wintergarten und Kinderzimmer verbunden bleiben….
-
Leider gleiches Spiel, nach ca. 2 Stunden, MQTT Adapter abgeschossen.
Hier mal das Log dazu. Seltsam, dass der ESP vom Wintergarten wohl einwandfrei funktioniert.
`2019-02-08 21:59:47.203 - [34mdebug[39m: mqtt.0 Old client MHI Kinderzimmer with secret 1549658282049_8121 sends pingreq. Ignore! Actual secret is 1549659558610_1868 2019-02-08 21:59:47.203 - [34mdebug[39m: mqtt.0 Old client MHI Kinderzimmer with secret 1549658282049_8121 sends publish. Ignore! Actual secret is 1549659558610_1868 2019-02-08 21:59:47.203 - [34mdebug[39m: mqtt.0 Old client MHI Kinderzimmer with secret 1549658282049_8121 sends publish. Ignore! Actual secret is 1549659558610_1868 2019-02-08 21:59:47.203 - [34mdebug[39m: mqtt.0 Old client MHI Kinderzimmer with secret 1549658282049_8121 sends puback. Ignore! Actual secret is 1549659558610_1868 2019-02-08 21:59:47.203 - [34mdebug[39m: mqtt.0 Old client MHI Kinderzimmer with secret 1549658282049_8121 sends puback. Ignore! Actual secret is 1549659558610_1868 2019-02-08 21:59:47.203 - [34mdebug[39m: mqtt.0 Old client MHI Kinderzimmer with secret 1549658282049_8121 sends puback. Ignore! Actual secret is 1549659558610_1868 2019-02-08 21:59:47.203 - [34mdebug[39m: mqtt.0 Old client MHI Kinderzimmer with secret 1549658282049_8121 sends puback. Ignore! Actual secret is 1549659558610_1868 2019-02-08 21:59:47.203 - [34mdebug[39m: mqtt.0 Old client MHI Kinderzimmer with secret 1549658282049_8121 sends puback. Ignore! Actual secret is 1549659558610_1868 2019-02-08 21:59:47.203 - [34mdebug[39m: mqtt.0 Old client MHI Kinderzimmer with secret 1549658282049_8121 sends puback. Ignore! Actual secret is 1549659558610_1868 2019-02-08 21:59:47.203 - [34mdebug[39m: mqtt.0 Old client MHI Kinderzimmer with secret 1549658282049_8121 sends puback. Ignore! Actual secret is 1549659558610_1868 2019-02-08 21:59:47.203 - [34mdebug[39m: mqtt.0 Old client MHI Kinderzimmer with secret 1549658282049_8121 sends puback. Ignore! Actual secret is 1549659558610_1868 2019-02-08 21:59:47.204 - [34mdebug[39m: mqtt.0 Old client MHI Kinderzimmer with secret 1549658282049_8121 sends puback. Ignore! Actual secret is 1549659558610_1868 2019-02-08 21:59:47.204 - [34mdebug[39m: mqtt.0 Old client MHI Kinderzimmer with secret 1549658282049_8121 sends puback. Ignore! Actual secret is 1549659558610_1868 2019-02-08 21:59:47.204 - [34mdebug[39m: mqtt.0 Old client MHI Kinderzimmer with secret 1549658282049_8121 sends puback. Ignore! Actual secret is 1549659558610_1868 2019-02-08 21:59:47.204 - [34mdebug[39m: mqtt.0 Old client MHI Kinderzimmer with secret 1549658282049_8121 sends publish. Ignore! Actual secret is 1549659558610_1868 2019-02-08 21:59:47.204 - [34mdebug[39m: mqtt.0 Old client MHI Kinderzimmer with secret 1549658282049_8121 sends publish. Ignore! Actual secret is 1549659558610_1868 2019-02-08 21:59:47.635 - [34mdebug[39m: mqtt.0 stateChange mqtt.0.Wintergarten.Klimaanlage.statusRoomtemp: {"val":19.5,"ack":true,"ts":1549659587633,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549659587633} 2019-02-08 21:59:47.635 - [34mdebug[39m: mqtt.0 onStateChange mqtt.0.Wintergarten.Klimaanlage.statusRoomtemp: {"val":19.5,"ack":true,"ts":1549659587633,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549659587633} 2019-02-08 21:59:47.647 - [34mdebug[39m: mqtt.0 Client [MHI Wintergarten] pingreq 2019-02-08 21:59:48.012 - [34mdebug[39m: mqtt.0 Client [MHI Kinderzimmer] Resend message topic: Kinderzimmer/Klimaanlage/State, payload: null 2019-02-08 21:59:48.023 - [34mdebug[39m: mqtt.0 Client [MHI Kinderzimmer] Resend message topic: Kinderzimmer/Klimaanlage/Setpoint, payload: null 2019-02-08 21:59:49.276 - [32minfo[39m: mqtt.0 Client [MHI Kinderzimmer] subscribes on "mqtt.0.Kinderzimmer.Klimaanlage.State" 2019-02-08 21:59:49.276 - [32minfo[39m: mqtt.0 Client [MHI Kinderzimmer] publishOnSubscribe 2019-02-08 21:59:49.276 - [32minfo[39m: mqtt.0 Client [MHI Kinderzimmer] subscribes on "mqtt.0.Kinderzimmer.Klimaanlage.Vanes" 2019-02-08 21:59:49.276 - [32minfo[39m: mqtt.0 Client [MHI Kinderzimmer] publishOnSubscribe 2019-02-08 21:59:49.277 - [32minfo[39m: mqtt.0 Client [MHI Kinderzimmer] subscribes on "mqtt.0.Kinderzimmer.Klimaanlage.Fanspeed" 2019-02-08 21:59:49.277 - [32minfo[39m: mqtt.0 Client [MHI Kinderzimmer] publishOnSubscribe 2019-02-08 21:59:49.277 - [32minfo[39m: mqtt.0 Client [MHI Kinderzimmer] subscribes on "mqtt.0.Kinderzimmer.Klimaanlage.service" 2019-02-08 21:59:49.277 - [32minfo[39m: mqtt.0 Client [MHI Kinderzimmer] publishOnSubscribe 2019-02-08 21:59:49.280 - [34mdebug[39m: mqtt.0 stateChange mqtt.0.Kinderzimmer.Klimaanlage.debug: {"val":"MHI2MQTT connected to MQTT broker at 192.168.66.68:1883","ack":true,"ts":1549659589278,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549659552355} 2019-02-08 21:59:49.282 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 93 2019-02-08 21:59:49.282 - [34mdebug[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for MHI Kinderzimmer message ID: 88 2019-02-08 21:59:49.282 - [34mdebug[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for MHI Kinderzimmer message ID: 89 2019-02-08 21:59:49.282 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 90 2019-02-08 21:59:49.282 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 91 2019-02-08 21:59:49.283 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 92 2019-02-08 21:59:49.283 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 93 2019-02-08 21:59:49.284 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 93 2019-02-08 21:59:49.284 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 92 2019-02-08 21:59:49.284 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 91 2019-02-08 21:59:49.284 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 90 2019-02-08 21:59:49.284 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 89 2019-02-08 21:59:49.284 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 88 2019-02-08 21:59:49.284 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 93 2019-02-08 21:59:49.285 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 92 2019-02-08 21:59:49.285 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 91 2019-02-08 21:59:49.285 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 90 2019-02-08 21:59:49.285 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 89 2019-02-08 21:59:49.285 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 88 2019-02-08 21:59:49.286 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 93 2019-02-08 21:59:49.287 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 92 2019-02-08 21:59:49.287 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 91 2019-02-08 21:59:49.287 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 90 2019-02-08 21:59:49.287 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 93 2019-02-08 21:59:49.287 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 92 2019-02-08 21:59:49.287 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 91 2019-02-08 21:59:49.287 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 90 2019-02-08 21:59:49.287 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 89 2019-02-08 21:59:49.288 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 88 2019-02-08 21:59:49.288 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 93 2019-02-08 21:59:49.294 - [34mdebug[39m: mqtt.0 stateChange mqtt.0.Kinderzimmer.Klimaanlage.debug: {"val":" << Unknown service command >>","ack":true,"ts":1549659589291,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549659589291} 2019-02-08 21:59:49.294 - [34mdebug[39m: mqtt.0 onStateChange mqtt.0.Kinderzimmer.Klimaanlage.debug: {"val":" << Unknown service command >>","ack":true,"ts":1549659589291,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549659589291} 2019-02-08 21:59:49.306 - [34mdebug[39m: mqtt.0 stateChange mqtt.0.Kinderzimmer.Klimaanlage.statusRoomtemp: {"val":22.25,"ack":true,"ts":1549659589292,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549659589292} 2019-02-08 21:59:49.306 - [34mdebug[39m: mqtt.0 onStateChange mqtt.0.Kinderzimmer.Klimaanlage.statusRoomtemp: {"val":22.25,"ack":true,"ts":1549659589292,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549659589292} 2019-02-08 21:59:49.306 - [34mdebug[39m: mqtt.0 stateChange mqtt.0.Kinderzimmer.Klimaanlage.debug: {"val":" << Unknown service command >>","ack":true,"ts":1549659589293,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549659589291} 2019-02-08 21:59:49.306 - [34mdebug[39m: mqtt.0 onStateChange mqtt.0.Kinderzimmer.Klimaanlage.debug: {"val":" << Unknown service command >>","ack":true,"ts":1549659589293,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549659589291} 2019-02-08 21:59:49.306 - [34mdebug[39m: mqtt.0 stateChange mqtt.0.Kinderzimmer.Klimaanlage.debug: {"val":" << Unknown service command >>","ack":true,"ts":1549659589293,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549659589291} 2019-02-08 21:59:49.306 - [34mdebug[39m: mqtt.0 stateChange mqtt.0.Kinderzimmer.Klimaanlage.debug: {"val":" << Unknown service command >>","ack":true,"ts":1549659589293,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549659589291} 2019-02-08 21:59:49.306 - [34mdebug[39m: mqtt.0 stateChange mqtt.0.Kinderzimmer.Klimaanlage.debug: {"val":" << Unknown service command >>","ack":true,"ts":1549659589294,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549659589291} 2019-02-08 21:59:49.329 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 92 2019-02-08 21:59:49.329 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 91 2019-02-08 21:59:49.331 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 90 2019-02-08 21:59:49.331 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 89 2019-02-08 21:59:49.331 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 88 2019-02-08 21:59:49.331 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 93 2019-02-08 21:59:49.331 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 92 2019-02-08 21:59:49.331 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 91 2019-02-08 21:59:49.331 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 90 2019-02-08 21:59:49.331 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 89 2019-02-08 21:59:49.331 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 88 2019-02-08 21:59:49.331 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 93 2019-02-08 21:59:49.332 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 92 2019-02-08 21:59:49.332 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 91 2019-02-08 21:59:49.332 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 90 2019-02-08 21:59:49.332 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 89 2019-02-08 21:59:49.332 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 88 2019-02-08 21:59:49.332 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received puback for unknown message ID: 93 2019-02-08 21:59:49.333 - [33mwarn[39m: mqtt.0 Client [MHI Kinderzimmer] Received pubcomp for unknown message ID: 28527 2019-02-08 21:59:49.336 - [31merror[39m: mqtt.0 uncaught exception: Cannot read property 'topic' of undefined 2019-02-08 21:59:49.336 - [31merror[39m: mqtt.0 TypeError: Cannot read property 'topic' of undefined at receivedTopic (/opt/iobroker/node_modules/iobroker.mqtt/lib/server.js:406:32) at Connection.client.on.packet (/opt/iobroker/node_modules/iobroker.mqtt/lib/server.js:820:21) at emitOne (events.js:116:13) at Connection.emit (events.js:211:7) at Connection.emitPacket (/opt/iobroker/node_modules/iobroker.mqtt/node_modules/mqtt-connection/connection.js:10:8) at emitOne (events.js:116:13) at Connection.emit (events.js:211:7) at addChunk (/opt/iobroker/node_modules/iobroker.mqtt/node_modules/readable-stream/lib/_stream_readable.js:291:12) at readableAddChunk (/opt/iobroker/node_modules/iobroker.mqtt/node_modules/readable-stream/lib/_stream_readable.js:278:11) at Connection.Readable.push (/opt/iobroker/node_modules/iobroker.mqtt/node_modules/readable-stream/lib/_stream_readable.js:245:10) 2019-02-08 21:59:49.338 - [34mdebug[39m: mqtt.0 stateChange mqtt.0.Kinderzimmer.Klimaanlage.debug: {"val":" << Unknown service command >>","ack":true,"ts":1549659589329,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549659589291} 2019-02-08 21:59:49.339 - [34mdebug[39m: mqtt.0 onStateChange mqtt.0.Kinderzimmer.Klimaanlage.debug: {"val":" << Unknown service command >>","ack":true,"ts":1549659589329,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549659589291} 2019-02-08 21:59:49.344 - [34mdebug[39m: mqtt.0 stateChange mqtt.0.Kinderzimmer.Klimaanlage.statusRoomtemp: {"val":22.5,"ack":true,"ts":1549659589340,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549659589340} 2019-02-08 21:59:49.344 - [34mdebug[39m: mqtt.0 onStateChange mqtt.0.Kinderzimmer.Klimaanlage.statusRoomtemp: {"val":22.5,"ack":true,"ts":1549659589340,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549659589340} 2019-02-08 21:59:49.354 - [34mdebug[39m: mqtt.0 Create object for topic: Kinderzimmer/Klimaanlage/d1.[/code]` So sah es aus, bevor er mit dem payload null (was auch immer das heißt angefangen hat. `~~[code]~~2019-02-08 19:48:03.022 - [34mdebug[39m: mqtt.0 Client [MHI Wintergarten] pingreq 2019-02-08 19:48:05.484 - [34mdebug[39m: mqtt.0 stateChange mqtt.0.Wintergarten.Klimaanlage.statusRoomtemp: {"val":20.5,"ack":true,"ts":1549651685483,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549651685483} 2019-02-08 19:48:05.484 - [34mdebug[39m: mqtt.0 onStateChange mqtt.0.Wintergarten.Klimaanlage.statusRoomtemp: {"val":20.5,"ack":true,"ts":1549651685483,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549651685483} 2019-02-08 19:48:11.150 - [34mdebug[39m: mqtt.0 stateChange mqtt.0.Wintergarten.Klimaanlage.statusRoomtemp: {"val":20.25,"ack":true,"ts":1549651691148,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549651691148} 2019-02-08 19:48:11.150 - [34mdebug[39m: mqtt.0 onStateChange mqtt.0.Wintergarten.Klimaanlage.statusRoomtemp: {"val":20.25,"ack":true,"ts":1549651691148,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549651691148} 2019-02-08 19:48:12.376 - [34mdebug[39m: mqtt.0 Client [MHI Kinderzimmer] pingreq 2019-02-08 19:48:18.027 - [34mdebug[39m: mqtt.0 Client [MHI Wintergarten] pingreq 2019-02-08 19:48:22.468 - [34mdebug[39m: mqtt.0 stateChange mqtt.0.Wintergarten.Klimaanlage.statusRoomtemp: {"val":20,"ack":true,"ts":1549651702467,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549651702467} 2019-02-08 19:48:22.468 - [34mdebug[39m: mqtt.0 onStateChange mqtt.0.Wintergarten.Klimaanlage.statusRoomtemp: {"val":20,"ack":true,"ts":1549651702467,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549651702467} 2019-02-08 19:48:25.019 - [34mdebug[39m: mqtt.0 stateChange mqtt.0.Kinderzimmer.Klimaanlage.statusRoomtemp: {"val":22.75,"ack":true,"ts":1549651705018,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549651705018} 2019-02-08 19:48:25.019 - [34mdebug[39m: mqtt.0 onStateChange mqtt.0.Kinderzimmer.Klimaanlage.statusRoomtemp: {"val":22.75,"ack":true,"ts":1549651705018,"q":0,"from":"system.adapter.mqtt.0","user":"system.user.admin","lc":1549651705018} 2019-02-08 19:48:27.413 - [34mdebug[39m: mqtt.0 Client [MHI Kinderzimmer] pingreq[/code]` Jemand ne Idee wie ich hier weiter komme? -
Hast du die Nummer stabil zum Laufen gebracht? Also ich bekomme es nicht hin, habe ständig Geistereinträge im iobroker usw.
-
@gutgut30 meinst du jetzt allgemein mit MQTT oder das Klimaanlagen Projekt?
Ich nutze mittlerweile diese Version für die Klimaanlage: https://github.com/absalom-muc/MHI-AC-Ctrl
Da läuft alles einwandfrei. -
@coyote Okay, wird auch mein nächster Step sein. Klingt auf jeden Fall stabiler
-
@gutgut30 genau, läuft bei mir jetzt so weit Anfang des Jahres und hatte bisher keinerlei Abbrüche oder Geisterdatenpunkte.
Aber ich muss dann auch erst Mal den Sommer abwarten, wenn die Geräte richtig in Betrieb sind. -
@coyote Hallo, ich steuere mit ioBroker meine Homematic IP Geräte und Google minis. Nun würde ich gerne auch meine MHI, die ich über ein Wi-Fi-Modul von AirConWithMe.com / IntesisHome.com eingebunden habe, steuern können. Anscheinend geht das nur mit MQTT. Damit habe ich aber überhaupt keine Erfahrung. Könntest du mir sagen, wie du dein Klimaanlagen Projekt umgesetzt hast? Wie bekomme ich die MHI mit MQTT verbunden?
-
@ThatsIT ich habe ja das Projekt aus dem obigen GitHub Link umgesetzt. Da wird die MQTT Verbindung über das arduino Programm hergestellt. Wie das mit deinen WiFi Modul funktioniert, weiß ich leider nicht.
