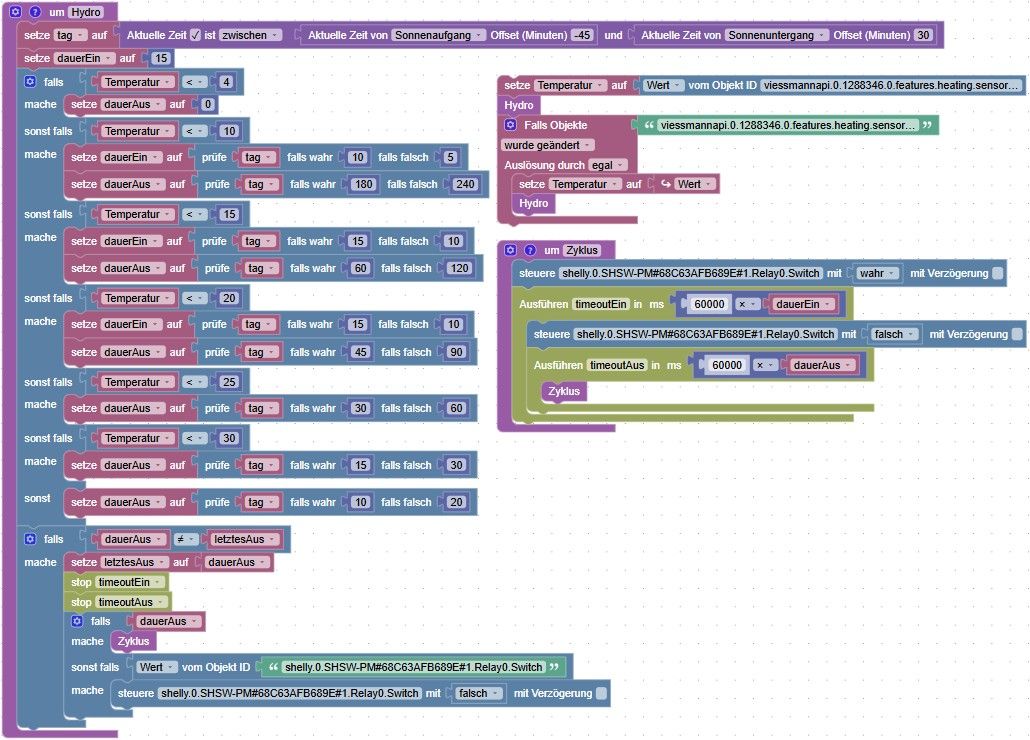

Hallo, ich habe vor einigen Jahren ein Blockly-Skript für ein hydroponisches Pflanzturmsystem erstellt. Jetzt möchte ich es ein wenig ändern. Leider habe ich schon lange nicht mehr programmiert und hoffe das ich hier Hilfe finde.In dem Skript unten möchte ich jetzt folgende Idee (siehe im Bild) mit einbauen. Leider habe ich nicht mehr wie unten ein Intervall sondern sehr viele verschiedene. Vielleicht kann mir jemand helfen dies umzusetzen.
Anbei das getestet Skript:
<xml xmlns="https://developers.google.com/blockly/xml"> <variables> <variable id="LgToY:B4v/zg;;%aSFu~">Temperatur</variable> <variable type="interval" id="IntervallStartTags">IntervallStartTags</variable> <variable type="interval" id="IntervallStartNachts">IntervallStartNachts</variable> <variable type="interval" id="IntervallTags">IntervallTags</variable> <variable type="interval" id="IntervallNachts">IntervallNachts</variable> </variables> <block type="controls_if" id="%KZF[`]9cJxwt@ORleap" x="-637" y="-2537"> <mutation else="1"></mutation> <value name="IF0"> <block type="time_compare_ex" id="QD(M!fBZldK-;?/QRC71"> <mutation xmlns="http://www.w3.org/1999/xhtml" end_time="true" actual_time="true"></mutation> <field name="USE_ACTUAL_TIME">TRUE</field> <field name="OPTION">between</field> <value name="START_TIME"> <shadow type="text" id=":Xbq.e{2{1MG(=+8hb_i"> <field name="TEXT">12:00</field> </shadow> <block type="time_astro" id="|Rac!(L^(YJ9alM5%(Tn"> <field name="TYPE">sunrise</field> <field name="OFFSET">-45</field> </block> </value> <value name="END_TIME"> <shadow type="text" id="|E2[TI$@M{YLyESx2y.8"> <field name="TEXT">18:00</field> </shadow> <block type="time_astro" id="8FuX+?!o`J?Wf+}(rKH]"> <field name="TYPE">sunset</field> <field name="OFFSET">30</field> </block> </value> </block> </value> <statement name="DO0"> <block type="procedures_callnoreturn" id="CN|{L-+]e-+:tgxP:pJU"> <mutation name="HydroTags"></mutation> <next> <block type="timeouts_setinterval" id="SXQ@@s)bYwBC(m.[Xj~^"> <field name="NAME">IntervallStartTags</field> <field name="INTERVAL">17</field> <field name="UNIT">min</field> <statement name="STATEMENT"> <block type="procedures_callnoreturn" id="l7]d4LBzgLi3)2V~eP$!"> <mutation name="HydroTags"></mutation> </block> </statement> </block> </next> </block> </statement> <statement name="ELSE"> <block type="procedures_callnoreturn" id="nXYm.(F*X{wb7~.jJmSl"> <mutation name="HydroNachts"></mutation> <next> <block type="timeouts_setinterval" id="$yJ[XNk,FEe)=x=Em5u!"> <field name="NAME">IntervallStartNachts</field> <field name="INTERVAL">17</field> <field name="UNIT">min</field> <statement name="STATEMENT"> <block type="procedures_callnoreturn" id="eG|t`%anNU;B{v.v~[%W"> <mutation name="HydroNachts"></mutation> </block> </statement> </block> </next> </block> </statement> <next> <block type="astro" id="fI-{!(%*~NWBz3w)o0BP"> <field name="TYPE">sunrise</field> <field name="OFFSET">-45</field> <statement name="STATEMENT"> <block type="timeouts_clearinterval" id="k@K611J++h)o=.dd$d`T"> <field name="NAME">IntervallStartTags</field> <next> <block type="timeouts_clearinterval" id="$aIqSOTj37P~Y+Gjzsd9"> <field name="NAME">IntervallStartNachts</field> <next> <block type="timeouts_clearinterval" id="_=3eqQ`V~6Je]Qq44E^H"> <field name="NAME">IntervallNachts</field> <next> <block type="procedures_callnoreturn" id="=Hqiikl^$`-(n*@;w({C"> <mutation name="HydroTags"></mutation> <next> <block type="timeouts_setinterval" id="g-_E#{{![9VrRgh.7t5h"> <field name="NAME">IntervallTags</field> <field name="INTERVAL">17</field> <field name="UNIT">min</field> <statement name="STATEMENT"> <block type="procedures_callnoreturn" id="E(cypugg7tfpGghbx]bj"> <mutation name="HydroTags"></mutation> </block> </statement> </block> </next> </block> </next> </block> </next> </block> </next> </block> </statement> <next> <block type="astro" id=":X:LJx5m!G^Vp+or*NOH"> <field name="TYPE">sunset</field> <field name="OFFSET">30</field> <statement name="STATEMENT"> <block type="timeouts_clearinterval" id="p?QQ9F#jc8UtSl4@85EA"> <field name="NAME">IntervallStartTags</field> <next> <block type="timeouts_clearinterval" id="wyw0]d-by,4j`X(`Onv4"> <field name="NAME">IntervallStartNachts</field> <next> <block type="timeouts_clearinterval" id="%nW#p__2|=M*~T0kg!BD"> <field name="NAME">IntervallTags</field> <next> <block type="procedures_callnoreturn" id="F,et4Itsc!N@TOR1}4MD"> <mutation name="HydroNachts"></mutation> <next> <block type="timeouts_setinterval" id="mQ)exeL%}ed6c:Lg0HwK"> <field name="NAME">IntervallNachts</field> <field name="INTERVAL">17</field> <field name="UNIT">min</field> <statement name="STATEMENT"> <block type="procedures_callnoreturn" id="%{#-#(W3_|WB^}5(5PNW"> <mutation name="HydroNachts"></mutation> </block> </statement> </block> </next> </block> </next> </block> </next> </block> </next> </block> </statement> </block> </next> </block> </next> </block> <block type="procedures_defnoreturn" id="7@#4HLw=a]WS~8uPWVkN" x="-630" y="-1831"> <field name="NAME">HydroTags</field> <comment pinned="false" h="80" w="160">Beschreibe diese Funktion …</comment> <statement name="STACK"> <block type="variables_set" id="ya%Yj~h)Rt``//?7Mtaa"> <field name="VAR" id="LgToY:B4v/zg;;%aSFu~">Temperatur</field> <value name="VALUE"> <block type="get_value" id="WL_A~(9!P4.0:2}2y}Ki"> <field name="ATTR">val</field> <field name="OID">viessmannapi.0.1288346.0.features.heating.sensors.temperature.outside.properties.value.value</field> </block> </value> <next> <block type="controls_if" id="S}m9azM?mbltS.z)[8td"> <mutation elseif="5"></mutation> <value name="IF0"> <block type="logic_between" id="IkC|BZ(u/6ag9{UYw)uM"> <field name="MIN_OPERATOR">LE</field> <field name="MAX_OPERATOR">LE</field> <value name="MIN"> <block type="math_number" id="yVCP^$-tK9VTf`cQA0~?"> <field name="NUM">17</field> </block> </value> <value name="VALUE"> <shadow type="math_number" id="{_1m)%!+-%_2[w=J-{mB"> <field name="NUM">42</field> </shadow> <block type="variables_get" id="TsQm3EOoAvNZzT$jDdzE"> <field name="VAR" id="LgToY:B4v/zg;;%aSFu~">Temperatur</field> </block> </value> <value name="MAX"> <block type="math_number" id="2h~E?pYV`JfO@=%/pT7K"> <field name="NUM">23</field> </block> </value> </block> </value> <statement name="DO0"> <block type="control" id="{AhO?JLY9qnk%[4y,I}/"> <mutation xmlns="http://www.w3.org/1999/xhtml" delay_input="false"></mutation> <field name="OID">shelly.0.SHSW-PM#68C63AFB689E#1.Relay0.Switch</field> <field name="WITH_DELAY">FALSE</field> <value name="VALUE"> <block type="logic_boolean" id="U.~HWcjX6{hqzzMg18du"> <field name="BOOL">TRUE</field> </block> </value> <next> <block type="telegram" id="]APq0SGG;Lh:6Z5u$^J]"> <field name="INSTANCE"></field> <field name="LOG"></field> <field name="SILENT">FALSE</field> <field name="PARSEMODE">default</field> <field name="ESCAPING">FALSE</field> <field name="DISABLE_WEB_PAGE_PREVIEW">FALSE</field> <value name="MESSAGE"> <shadow type="text" id="IWn$5XQNJ2t8F%^TECLe"> <field name="TEXT">Hydro Tags bei 17-23 °C für 6 min an</field> </shadow> </value> <value name="USERNAME"> <block type="text" id="c$B4*`HH#,1+8;JmTiw/"> <field name="TEXT">Ronny</field> </block> </value> <next> <block type="timeouts_wait" id="Ow#,Di5m^3+SaoAUCI+M"> <field name="DELAY">1</field> <field name="UNIT">min</field> <next> <block type="controls_if" id="dN!)j|]/Qj@J[TO9-E8n"> <value name="IF0"> <block type="logic_compare" id="jmNRSyF||fp{Jlih,X=U"> <field name="OP">LT</field> <value name="A"> <block type="get_value" id="QcG.!Kxr/Mutqi[hWx1$"> <field name="ATTR">val</field> <field name="OID">shelly.0.SHSW-PM#68C63AFB689E#1.Relay0.Power</field> </block> </value> <value name="B"> <block type="math_number" id="/jY}]roEBoQ9esPGC[0q"> <field name="NUM">10</field> </block> </value> </block> </value> <statement name="DO0"> <block type="telegram" id="7nIv/5f[)q{{w%4q}svt"> <field name="INSTANCE"></field> <field name="LOG"></field> <field name="SILENT">FALSE</field> <field name="PARSEMODE">default</field> <field name="ESCAPING">FALSE</field> <field name="DISABLE_WEB_PAGE_PREVIEW">FALSE</field> <value name="MESSAGE"> <shadow type="text" id="WfW)OADe:o3(h@]r7d~W"> <field name="TEXT">Hydro Warnung, Warnung, Pumpenproblem!</field> </shadow> </value> <value name="USERNAME"> <block type="text" id="L}rSJxg(}1@jn]0^F%PE"> <field name="TEXT">Ronny</field> </block> </value> </block> </statement> <next> <block type="timeouts_wait" id="P-~Lwe]Vu*u=8j;1(/d{"> <field name="DELAY">5</field> <field name="UNIT">min</field> <next> <block type="control" id="t@yQ#X2vw0){B3MH~pQ6"> <mutation xmlns="http://www.w3.org/1999/xhtml" delay_input="false"></mutation> <field name="OID">shelly.0.SHSW-PM#68C63AFB689E#1.Relay0.Switch</field> <field name="WITH_DELAY">FALSE</field> <value name="VALUE"> <block type="logic_boolean" id="UXng|_ugsx8^D).s8}C~"> <field name="BOOL">FALSE</field> </block> </value> <next> <block type="telegram" id="i$a_0-T.s,/M1NGVZKQr"> <field name="INSTANCE"></field> <field name="LOG"></field> <field name="SILENT">FALSE</field> <field name="PARSEMODE">default</field> <field name="ESCAPING">FALSE</field> <field name="DISABLE_WEB_PAGE_PREVIEW">FALSE</field> <value name="MESSAGE"> <shadow type="text" id="e=*+AQ6]]mlfyB-#gY~~"> <field name="TEXT">Hydro Tags bei 17-23 °C aus</field> </shadow> </value> <value name="USERNAME"> <block type="text" id="%@0y)v.0,)?Fx^VwZnf?"> <field name="TEXT">Ronny</field> </block> </value> </block> </next> </block> </next> </block> </next> </block> </next> </block> </next> </block> </next> </block> </statement> <value name="IF1"> <block type="logic_between" id="K8;;tv?Bv#ST(pOR3Ifn"> <field name="MIN_OPERATOR">LE</field> <field name="MAX_OPERATOR">LT</field> <value name="MIN"> <block type="math_number" id="Nm@kjV]vw{qVmq_gr5C,"> <field name="NUM">10</field> </block> </value> <value name="VALUE"> <shadow type="math_number" id="{_1m)%!+-%_2[w=J-{mB"> <field name="NUM">42</field> </shadow> <block type="variables_get" id="mTT_mjUSmOoq]Ht,solN"> <field name="VAR" id="LgToY:B4v/zg;;%aSFu~">Temperatur</field> </block> </value> <value name="MAX"> <block type="math_number" id="SJ?$L+e(@;B(CvE3.a_;"> <field name="NUM">17</field> </block> </value> </block> </value> <statement name="DO1"> <block type="control" id="tQ=ai?5Zr|rD(0)JQc5N"> <mutation xmlns="http://www.w3.org/1999/xhtml" delay_input="false"></mutation> <field name="OID">shelly.0.SHSW-PM#68C63AFB689E#1.Relay0.Switch</field> <field name="WITH_DELAY">FALSE</field> <value name="VALUE"> <block type="logic_boolean" id="0{*hyi}c9fC;{=Jo[f/@"> <field name="BOOL">TRUE</field> </block> </value> <next> <block type="telegram" id="$,3]*4,hzMduh7CHCQOn"> <field name="INSTANCE"></field> <field name="LOG"></field> <field name="SILENT">FALSE</field> <field name="PARSEMODE">default</field> <field name="ESCAPING">FALSE</field> <field name="DISABLE_WEB_PAGE_PREVIEW">FALSE</field> <value name="MESSAGE"> <shadow type="text" id="sT;ytqRGQ?kYkFZg;m1Y"> <field name="TEXT">Hydro Tags bei 10-17 °C für 4 min an</field> </shadow> </value> <value name="USERNAME"> <block type="text" id="mgf3~#n,~iu`VAcx=Z/u"> <field name="TEXT">Ronny</field> </block> </value> <next> <block type="timeouts_wait" id="#7g?qYzV|~.vmMb|_t/V"> <field name="DELAY">1</field> <field name="UNIT">min</field> <next> <block type="controls_if" id="p|l?KOgu4#^$E;V4yT(y"> <value name="IF0"> <block type="logic_compare" id="bX1A3X%p=(-*lGZ?3veL"> <field name="OP">LT</field> <value name="A"> <block type="get_value" id="U%tT$$4$O7/_Wsl]ZWPA"> <field name="ATTR">val</field> <field name="OID">shelly.0.SHSW-PM#68C63AFB689E#1.Relay0.Power</field> </block> </value> <value name="B"> <block type="math_number" id="!c?R[8/Ub96:oEXS^Kg-"> <field name="NUM">10</field> </block> </value> </block> </value> <statement name="DO0"> <block type="telegram" id="jq:Ob/ePlf7lpDlTR]-8"> <field name="INSTANCE"></field> <field name="LOG"></field> <field name="SILENT">FALSE</field> <field name="PARSEMODE">default</field> <field name="ESCAPING">FALSE</field> <field name="DISABLE_WEB_PAGE_PREVIEW">FALSE</field> <value name="MESSAGE"> <shadow type="text" id="KDggTjmb/;D*V#E;kb6."> <field name="TEXT">Hydro Warnung, Warnung, Pumpenproblem!</field> </shadow> </value> <value name="USERNAME"> <block type="text" id="EU]}l5-@hj{g5KLcnZV$"> <field name="TEXT">Ronny</field> </block> </value> </block> </statement> <next> <block type="timeouts_wait" id="SRRum)w:7G%oz|E?Iv}M"> <field name="DELAY">3</field> <field name="UNIT">min</field> <next> <block type="control" id="+L[uonoUcyw8UgW@r-^y"> <mutation xmlns="http://www.w3.org/1999/xhtml" delay_input="false"></mutation> <field name="OID">shelly.0.SHSW-PM#68C63AFB689E#1.Relay0.Switch</field> <field name="WITH_DELAY">FALSE</field> <value name="VALUE"> <block type="logic_boolean" id="6+5`*?hS-g.]7r~:-_@="> <field name="BOOL">FALSE</field> </block> </value> <next> <block type="telegram" id="#e|XZ_*/??Vr)J[Bw3D#"> <field name="INSTANCE"></field> <field name="LOG"></field> <field name="SILENT">FALSE</field> <field name="PARSEMODE">default</field> <field name="ESCAPING">FALSE</field> <field name="DISABLE_WEB_PAGE_PREVIEW">FALSE</field> <value name="MESSAGE"> <shadow type="text" id="!qi.eZ[A0v3h}Qns[RQ9"> <field name="TEXT">Hydro Tags bei 10-17 °C aus</field> </shadow> </value> <value name="USERNAME"> <block type="text" id=";dKp:{JqtsRf^p05Z~.+"> <field name="TEXT">Ronny</field> </block> </value> </block> </next> </block> </next> </block> </next> </block> </next> </block> </next> </block> </next> </block> </statement> <value name="IF2"> <block type="logic_between" id="9PveMvT1C`$E$(.a_Q(k"> <field name="MIN_OPERATOR">LE</field> <field name="MAX_OPERATOR">LT</field> <value name="MIN"> <block type="math_number" id="6Za9Kr#z)m`+}$1x:[e["> <field name="NUM">4</field> </block> </value> <value name="VALUE"> <shadow type="math_number" id="{_1m)%!+-%_2[w=J-{mB"> <field name="NUM">42</field> </shadow> <block type="variables_get" id="$OQ2u84|pg3^-TxJeqrW"> <field name="VAR" id="LgToY:B4v/zg;;%aSFu~">Temperatur</field> </block> </value> <value name="MAX"> <block type="math_number" id=";=s-aP%.WQtD9wMf|UDI"> <field name="NUM">10</field> </block> </value> </block> </value> <statement name="DO2"> <block type="control" id="m[bG|SFmKC}R9H%Acn#W"> <mutation xmlns="http://www.w3.org/1999/xhtml" delay_input="false"></mutation> <field name="OID">shelly.0.SHSW-PM#68C63AFB689E#1.Relay0.Switch</field> <field name="WITH_DELAY">FALSE</field> <value name="VALUE"> <block type="logic_boolean" id="5,(r^q{Rte]25`nJr`)a"> <field name="BOOL">TRUE</field> </block> </value> <next> <block type="telegram" id="KGeTip1aOAapR;h!pyo8"> <field name="INSTANCE"></field> <field name="LOG"></field> <field name="SILENT">FALSE</field> <field name="PARSEMODE">default</field> <field name="ESCAPING">FALSE</field> <field name="DISABLE_WEB_PAGE_PREVIEW">FALSE</field> <value name="MESSAGE"> <shadow type="text" id=".QeC{7MRKj%d+i0xuOGe"> <field name="TEXT">Hydro Tags bei 4-10°C für 3 min an</field> </shadow> </value> <value name="USERNAME"> <block type="text" id="%f*5t12-D5$e,VRYa;3E"> <field name="TEXT">Ronny</field> </block> </value> <next> <block type="timeouts_wait" id="?3ERBAFK#+29z4Y{Gix4"> <field name="DELAY">1</field> <field name="UNIT">min</field> <next> <block type="controls_if" id="FtAg~;.If5non^R0`z@Y"> <value name="IF0"> <block type="logic_compare" id="K#qE?=O,+/qM%R)@QslK"> <field name="OP">LT</field> <value name="A"> <block type="get_value" id="k*z4qUt)m]pV1o,.xPm2"> <field name="ATTR">val</field> <field name="OID">shelly.0.SHSW-PM#68C63AFB689E#1.Relay0.Power</field> </block> </value> <value name="B"> <block type="math_number" id="kK(,%z1k,B$|`u9gp[(."> <field name="NUM">10</field> </block> </value> </block> </value> <statement name="DO0"> <block type="telegram" id="m~q;*`U{`N[!rF.z(GPz"> <field name="INSTANCE"></field> <field name="LOG"></field> <field name="SILENT">FALSE</field> <field name="PARSEMODE">default</field> <field name="ESCAPING">FALSE</field> <field name="DISABLE_WEB_PAGE_PREVIEW">FALSE</field> <value name="MESSAGE"> <shadow type="text" id="+=?APql:XT89+RN1MtP2"> <field name="TEXT">Hydro Warnung, Warnung, Pumpenproblem!</field> </shadow> </value> <value name="USERNAME"> <block type="text" id="1UCJc?h}!(Tj;#y)E52a"> <field name="TEXT">Ronny</field> </block> </value> </block> </statement> <next> <block type="timeouts_wait" id="O=9*$7;o|3[op0Hj4d]Z"> <field name="DELAY">2</field> <field name="UNIT">min</field> <next> <block type="control" id="AzNw6yu0Sj%WQOl?C,3N"> <mutation xmlns="http://www.w3.org/1999/xhtml" delay_input="false"></mutation> <field name="OID">shelly.0.SHSW-PM#68C63AFB689E#1.Relay0.Switch</field> <field name="WITH_DELAY">FALSE</field> <value name="VALUE"> <block type="logic_boolean" id="6z_]*;%y8#p#8o{mI9A*"> <field name="BOOL">FALSE</field> </block> </value> <next> <block type="telegram" id="#g3-!pO9{[o[wxgzo{V4"> <field name="INSTANCE"></field> <field name="LOG"></field> <field name="SILENT">FALSE</field> <field name="PARSEMODE">default</field> <field name="ESCAPING">FALSE</field> <field name="DISABLE_WEB_PAGE_PREVIEW">FALSE</field> <value name="MESSAGE"> <shadow type="text" id="U[vL`YfuSg:`uCi{TYOK"> <field name="TEXT">Hydro Tags bei 4-10 °C aus</field> </shadow> </value> <value name="USERNAME"> <block type="text" id="U5-s^ipha6jyrS(PN@J3"> <field name="TEXT">Ronny</field> </block> </value> </block> </next> </block> </next> </block> </next> </block> </next> </block> </next> </block> </next> </block> </statement> <value name="IF3"> <block type="logic_between" id="jwb5Fw94HYy=s2KA~CLf"> <field name="MIN_OPERATOR">LT</field> <field name="MAX_OPERATOR">LE</field> <value name="MIN"> <block type="math_number" id="R4veUMX1KoCiHB9}$;Or"> <field name="NUM">23</field> </block> </value> <value name="VALUE"> <shadow type="math_number" id="{_1m)%!+-%_2[w=J-{mB"> <field name="NUM">42</field> </shadow> <block type="variables_get" id="iP+/GGl4TiDcMB#LPR:Z"> <field name="VAR" id="LgToY:B4v/zg;;%aSFu~">Temperatur</field> </block> </value> <value name="MAX"> <block type="math_number" id="OvR!uTPO8{ayBH@Z{Dym"> <field name="NUM">30</field> </block> </value> </block> </value> <statement name="DO3"> <block type="control" id="^{PQYM+Q%(ZP}PA:c?W/"> <mutation xmlns="http://www.w3.org/1999/xhtml" delay_input="false"></mutation> <field name="OID">shelly.0.SHSW-PM#68C63AFB689E#1.Relay0.Switch</field> <field name="WITH_DELAY">FALSE</field> <value name="VALUE"> <block type="logic_boolean" id="3o/a@zzNyZKBqoAFnt=9"> <field name="BOOL">TRUE</field> </block> </value> <next> <block type="telegram" id="s7pwZfo/YBcwG[^Jlv75"> <field name="INSTANCE"></field> <field name="LOG"></field> <field name="SILENT">FALSE</field> <field name="PARSEMODE">default</field> <field name="ESCAPING">FALSE</field> <field name="DISABLE_WEB_PAGE_PREVIEW">FALSE</field> <value name="MESSAGE"> <shadow type="text" id=".1!*S$]LAH_7$/ugcNP%"> <field name="TEXT">Hydro Tags bei 24-30°C für 8 min an</field> </shadow> </value> <value name="USERNAME"> <block type="text" id="GDAa86CM1W,DMJEtMZ7L"> <field name="TEXT">Ronny</field> </block> </value> <next> <block type="timeouts_wait" id="~7k0Bxm{~CQas(2!h$NI"> <field name="DELAY">1</field> <field name="UNIT">min</field> <next> <block type="controls_if" id="db+63[rfYiT7Q$4xJw?q"> <value name="IF0"> <block type="logic_compare" id="*~U[,ECx,_lyhX-s16Y7"> <field name="OP">LT</field> <value name="A"> <block type="get_value" id=".zr(jeGvi!9zip?i$^YB"> <field name="ATTR">val</field> <field name="OID">shelly.0.SHSW-PM#68C63AFB689E#1.Relay0.Power</field> </block> </value> <value name="B"> <block type="math_number" id="O_Zm:{$d2${=^AeeHL[Y"> <field name="NUM">10</field> </block> </value> </block> </value> <statement name="DO0"> <block type="telegram" id="`ec~k!4}SxDu^e,0Pv2C"> <field name="INSTANCE"></field> <field name="LOG"></field> <field name="SILENT">FALSE</field> <field name="PARSEMODE">default</field> <field name="ESCAPING">FALSE</field> <field name="DISABLE_WEB_PAGE_PREVIEW">FALSE</field> <value name="MESSAGE"> <shadow type="text" id="PZAlOeKqOQ(gt8pv|np9"> <field name="TEXT">Hydro Warnung, Warnung, Pumpenproblem!</field> </shadow> </value> <value name="USERNAME"> <block type="text" id="lN=;Wji}|@R26pEZ!i;Z"> <field name="TEXT">Ronny</field> </block> </value> </block> </statement> <next> <block type="timeouts_wait" id="m%e(-OQ37APoscgFv8-="> <field name="DELAY">7</field> <field name="UNIT">min</field> <next> <block type="control" id="#1]7E?w`WA4PljQim(U^"> <mutation xmlns="http://www.w3.org/1999/xhtml" delay_input="false"></mutation> <field name="OID">shelly.0.SHSW-PM#68C63AFB689E#1.Relay0.Switch</field> <field name="WITH_DELAY">FALSE</field> <value name="VALUE"> <block type="logic_boolean" id="-rY9ggfBifwGDI96qngZ"> <field name="BOOL">FALSE</field> </block> </value> <next> <block type="telegram" id="=VOq!|Hn,.0+A{8.fb/j"> <field name="INSTANCE"></field> <field name="LOG"></field> <field name="SILENT">FALSE</field> <field name="PARSEMODE">default</field> <field name="ESCAPING">FALSE</field> <field name="DISABLE_WEB_PAGE_PREVIEW">FALSE</field> <value name="MESSAGE"> <shadow type="text" id="M^[Za1kj|l)Y)OA.TCB?"> <field name="TEXT">Hydro Tags bei 24-30 °C aus</field> </shadow> </value> <value name="USERNAME"> <block type="text" id="{G=bBkXcyuO4y3?SLh~q"> <field name="TEXT">Ronny</field> </block> </value> </block> </next> </block> </next> </block> </next> </block> </next> </block> </next> </block> </next> </block> </statement> <value name="IF4"> <block type="logic_compare" id="]M#+]UhC8qS3gYMf;)Z/"> <field name="OP">GT</field> <value name="A"> <block type="variables_get" id=")y(Tmj?-OhbeS7=$57h]"> <field name="VAR" id="LgToY:B4v/zg;;%aSFu~">Temperatur</field> </block> </value> <value name="B"> <block type="math_number" id="}^#BD/=@-}n)M9jcqTSW"> <field name="NUM">30</field> </block> </value> </block> </value> <statement name="DO4"> <block type="control" id="jQwzlK@x3#R$q^vHcJ0c"> <mutation xmlns="http://www.w3.org/1999/xhtml" delay_input="false"></mutation> <field name="OID">shelly.0.SHSW-PM#68C63AFB689E#1.Relay0.Switch</field> <field name="WITH_DELAY">FALSE</field> <value name="VALUE"> <block type="logic_boolean" id="ht%~L^^G/l6F1y25$ZkM"> <field name="BOOL">TRUE</field> </block> </value> <next> <block type="telegram" id="L@NA;Uf$dV{3JLp5I.c~"> <field name="INSTANCE"></field> <field name="LOG"></field> <field name="SILENT">FALSE</field> <field name="PARSEMODE">default</field> <field name="ESCAPING">FALSE</field> <field name="DISABLE_WEB_PAGE_PREVIEW">FALSE</field> <value name="MESSAGE"> <shadow type="text" id="@%$e_N3n`90+t#g;_n5c"> <field name="TEXT">Hydro Tags bei über 30°C für 11 min an</field> </shadow> </value> <value name="USERNAME"> <block type="text" id="g`hJr0dUiniq9*/X2HY^"> <field name="TEXT">Ronny</field> </block> </value> <next> <block type="timeouts_wait" id="uBw,V^zox}{5L7$`wj#N"> <field name="DELAY">1</field> <field name="UNIT">min</field> <next> <block type="controls_if" id="!VNccc5u{|az[88P.Uuz"> <value name="IF0"> <block type="logic_compare" id="BWqa*N=k`/}(AdF1^0S1"> <field name="OP">LT</field> <value name="A"> <block type="get_value" id="8ET*v$-ylVHvs,hw^$GJ"> <field name="ATTR">val</field> <field name="OID">shelly.0.SHSW-PM#68C63AFB689E#1.Relay0.Power</field> </block> </value> <value name="B"> <block type="math_number" id="BOX.~P$ebcxPr`R{/~(F"> <field name="NUM">10</field> </block> </value> </block> </value> <statement name="DO0"> <block type="telegram" id="}Zm#n2$oiq-+?XXyj:-i"> <field name="INSTANCE"></field> <field name="LOG"></field> <field name="SILENT">FALSE</field> <field name="PARSEMODE">default</field> <field name="ESCAPING">FALSE</field> <field name="DISABLE_WEB_PAGE_PREVIEW">FALSE</field> <value name="MESSAGE"> <shadow type="text" id="!=jV%@)*JClfQH++X3El"> <field name="TEXT">Hydro Warnung, Warnung, Pumpenproblem!</field> </shadow> </value> <value name="USERNAME"> <block type="text" id="drX,_RsuvBVHjX^BN6P5"> <field name="TEXT">Ronny</field> </block> </value> </block> </statement> <next> <block type="timeouts_wait" id=")NnY*}U:=D[zjvnC~iYo"> <field name="DELAY">10</field> <field name="UNIT">min</field> <next> <block type="control" id="H**W2O3+kTjlpWhCnU%V"> <mutation xmlns="http://www.w3.org/1999/xhtml" delay_input="false"></mutation> <field name="OID">shelly.0.SHSW-PM#68C63AFB689E#1.Relay0.Switch</field> <field name="WITH_DELAY">FALSE</field> <value name="VALUE"> <block type="logic_boolean" id="9_/:?{+J%9J92r..}xdQ"> <field name="BOOL">FALSE</field> </block> </value> <next> <block type="telegram" id="/H2t[6kUYBkM8(_[*ag?"> <field name="INSTANCE"></field> <field name="LOG"></field> <field name="SILENT">FALSE</field> <field name="PARSEMODE">default</field> <field name="ESCAPING">FALSE</field> <field name="DISABLE_WEB_PAGE_PREVIEW">FALSE</field> <value name="MESSAGE"> <shadow type="text" id="MThYOhS02%Q(9ZNSEs,;"> <field name="TEXT">Hydro Tags über 30 °C aus</field> </shadow> </value> <value name="USERNAME"> <block type="text" id="]fy7@H*aT@xi*7MDZ-7q"> <field name="TEXT">Ronny</field> </block> </value> </block> </next> </block> </next> </block> </next> </block> </next> </block> </next> </block> </next> </block> </statement> <value name="IF5"> <block type="logic_compare" id="Tz#mIkG%(fel~!u8*4Wj"> <field name="OP">LT</field> <value name="A"> <block type="variables_get" id=")O8vPXxUC*eyz:;Jt}T@"> <field name="VAR" id="LgToY:B4v/zg;;%aSFu~">Temperatur</field> </block> </value> <value name="B"> <block type="math_number" id="AuG^D5s34sj}n~X4,UR("> <field name="NUM">4</field> </block> </value> </block> </value> <statement name="DO5"> <block type="control" id="`8}W){Qtv/h1D15iDa6."> <mutation xmlns="http://www.w3.org/1999/xhtml" delay_input="false"></mutation> <field name="OID">shelly.0.SHSW-PM#68C63AFB689E#1.Relay0.Switch</field> <field name="WITH_DELAY">FALSE</field> <value name="VALUE"> <block type="logic_boolean" id="n4jom-UW{ntp0}rOotLl"> <field name="BOOL">FALSE</field> </block> </value> <next> <block type="telegram" id="-~`060O2;i[Gl6/A^zZ;"> <field name="INSTANCE"></field> <field name="LOG"></field> <field name="SILENT">FALSE</field> <field name="PARSEMODE">default</field> <field name="ESCAPING">FALSE</field> <field name="DISABLE_WEB_PAGE_PREVIEW">FALSE</field> <value name="MESSAGE"> <shadow type="text" id=".ZIo^IjjaZ}!DP%x1Ikc"> <field name="TEXT">Hydro bei kleiner 4°C aus!!!!</field> </shadow> </value> <value name="USERNAME"> <block type="text" id="U9eN1]T5l^lDre:}R1l6"> <field name="TEXT">Ronny</field> </block> </value> </block> </next> </block> </statement> </block> </next> </block> </statement> </block> <block type="procedures_defnoreturn" id="(hX,ov%-2*v8nhKuv8mB" x="63" y="-1837"> <field name="NAME">HydroNachts</field> <comment pinned="false" h="80" w="160">Beschreibe diese Funktion …</comment> <statement name="STACK"> <block type="variables_set" id="D8:Yx#eRN,fSO0_5HfOH"> <field name="VAR" id="LgToY:B4v/zg;;%aSFu~">Temperatur</field> <value name="VALUE"> <block type="get_value" id="[#b[xZ^$vyM2C:ByAF$q"> <field name="ATTR">val</field> <field name="OID">viessmannapi.0.1288346.0.features.heating.sensors.temperature.outside.properties.value.value</field> </block> </value> <next> <block type="controls_if" id="tBs}4!QJL)QaM=jE*k^o"> <mutation elseif="5"></mutation> <value name="IF0"> <block type="logic_between" id="l?MsdWx51P7WdTFP@EjD"> <field name="MIN_OPERATOR">LE</field> <field name="MAX_OPERATOR">LE</field> <value name="MIN"> <block type="math_number" id="rN-eT0@@,hqU4^?IJu/,"> <field name="NUM">17</field> </block> </value> <value name="VALUE"> <shadow type="math_number" id="{_1m)%!+-%_2[w=J-{mB"> <field name="NUM">42</field> </shadow> <block type="variables_get" id="he{0m5861v{fAB2,Je$G"> <field name="VAR" id="LgToY:B4v/zg;;%aSFu~">Temperatur</field> </block> </value> <value name="MAX"> <block type="math_number" id="E1ip*E9O@jdShm@^QI_X"> <field name="NUM">23</field> </block> </value> </block> </value> <statement name="DO0"> <block type="control" id="a-_y3#*m}AL4)Z{CS)-K"> <mutation xmlns="http://www.w3.org/1999/xhtml" delay_input="false"></mutation> <field name="OID">shelly.0.SHSW-PM#68C63AFB689E#1.Relay0.Switch</field> <field name="WITH_DELAY">FALSE</field> <value name="VALUE"> <block type="logic_boolean" id="AWEeOl_[E1fO(^-We(lA"> <field name="BOOL">TRUE</field> </block> </value> <next> <block type="telegram" id="%DIWtzdThWX/kQiY*Tne"> <field name="INSTANCE"></field> <field name="LOG"></field> <field name="SILENT">FALSE</field> <field name="PARSEMODE">default</field> <field name="ESCAPING">FALSE</field> <field name="DISABLE_WEB_PAGE_PREVIEW">FALSE</field> <value name="MESSAGE"> <shadow type="text" id="^@#CE]BYBV;r{lH3@]b,"> <field name="TEXT">Hydro Nachts bei 17-23 °C für 6 min an</field> </shadow> </value> <value name="USERNAME"> <block type="text" id="yfd8QoJN6,?c]9cv:q*l"> <field name="TEXT">Ronny</field> </block> </value> <next> <block type="timeouts_wait" id="0D^eQQ?x#F4r/F5X:][B"> <field name="DELAY">1</field> <field name="UNIT">min</field> <next> <block type="controls_if" id="|Dynt43)I?soK40;L`wr"> <value name="IF0"> <block type="logic_compare" id="(yYYKBQ}.HiYn4|-@6C!"> <field name="OP">LT</field> <value name="A"> <block type="get_value" id="+hi7?VXwkThMqi70fpjo"> <field name="ATTR">val</field> <field name="OID">shelly.0.SHSW-PM#68C63AFB689E#1.Relay0.Power</field> </block> </value> <value name="B"> <block type="math_number" id="hlc9?:BD!mj~M|`].@QO"> <field name="NUM">10</field> </block> </value> </block> </value> <statement name="DO0"> <block type="telegram" id="RJz2g`Y0^De1JCS%em*~"> <field name="INSTANCE"></field> <field name="LOG"></field> <field name="SILENT">FALSE</field> <field name="PARSEMODE">default</field> <field name="ESCAPING">FALSE</field> <field name="DISABLE_WEB_PAGE_PREVIEW">FALSE</field> <value name="MESSAGE"> <shadow type="text" id="z_c,/W:oEPd=puWG)B,I"> <field name="TEXT">Hydro Warnung, Warnung, Pumpenproblem!</field> </shadow> </value> <value name="USERNAME"> <block type="text" id="YkSk^85{)516We=37/qA"> <field name="TEXT">Ronny</field> </block> </value> </block> </statement> <next> <block type="timeouts_wait" id="`z?-YH(F)1}h-J#?SGyx"> <field name="DELAY">5</field> <field name="UNIT">min</field> <next> <block type="control" id="^EE1.i;l+roD:3x$F7`J"> <mutation xmlns="http://www.w3.org/1999/xhtml" delay_input="false"></mutation> <field name="OID">shelly.0.SHSW-PM#68C63AFB689E#1.Relay0.Switch</field> <field name="WITH_DELAY">FALSE</field> <value name="VALUE"> <block type="logic_boolean" id="D`.`V8JfLx_bIo.b`X}k"> <field name="BOOL">FALSE</field> </block> </value> <next> <block type="telegram" id="9A*H=Eh^W;mE[e:Ydo!,"> <field name="INSTANCE"></field> <field name="LOG"></field> <field name="SILENT">FALSE</field> <field name="PARSEMODE">default</field> <field name="ESCAPING">FALSE</field> <field name="DISABLE_WEB_PAGE_PREVIEW">FALSE</field> <value name="MESSAGE"> <shadow type="text" id="Z`3@NICoUwrZ=ivi,Z.B"> <field name="TEXT">Hydro Nachts bei 17-23 °C aus</field> </shadow> </value> <value name="USERNAME"> <block type="text" id="wdjjPq^r?OF,$ge(vBsq"> <field name="TEXT">Ronny</field> </block> </value> </block> </next> </block> </next> </block> </next> </block> </next> </block> </next> </block> </next> </block> </statement> <value name="IF1"> <block type="logic_between" id="zwZcq7L9tw@H(Q[|Skgm"> <field name="MIN_OPERATOR">LE</field> <field name="MAX_OPERATOR">LT</field> <value name="MIN"> <block type="math_number" id="w@4/([7D}MtstmPc{8^,"> <field name="NUM">10</field> </block> </value> <value name="VALUE"> <shadow type="math_number" id="{_1m)%!+-%_2[w=J-{mB"> <field name="NUM">42</field> </shadow> <block type="variables_get" id="Q-yPI@vgSmyVKiClLRgf"> <field name="VAR" id="LgToY:B4v/zg;;%aSFu~">Temperatur</field> </block> </value> <value name="MAX"> <block type="math_number" id="ABnDt2YiIo1HY{!!%DAO"> <field name="NUM">17</field> </block> </value> </block> </value> <statement name="DO1"> <block type="control" id="|hNi!sMK$]1w[~5e]!hW"> <mutation xmlns="http://www.w3.org/1999/xhtml" delay_input="false"></mutation> <field name="OID">shelly.0.SHSW-PM#68C63AFB689E#1.Relay0.Switch</field> <field name="WITH_DELAY">FALSE</field> <value name="VALUE"> <block type="logic_boolean" id=":X}Ea0{Py7L2xV)OzIEy"> <field name="BOOL">TRUE</field> </block> </value> <next> <block type="telegram" id="~3cBYI8fA}kAE3s!LzG%"> <field name="INSTANCE"></field> <field name="LOG"></field> <field name="SILENT">FALSE</field> <field name="PARSEMODE">default</field> <field name="ESCAPING">FALSE</field> <field name="DISABLE_WEB_PAGE_PREVIEW">FALSE</field> <value name="MESSAGE"> <shadow type="text" id="2Np/,9+H#GP$E;Dcv-VM"> <field name="TEXT">Hydro Nachts bei 10-17 °C für 4 min an</field> </shadow> </value> <value name="USERNAME"> <block type="text" id="__kDr%{1L|b3%sUsgEdR"> <field name="TEXT">Ronny</field> </block> </value> <next> <block type="timeouts_wait" id="7JR(DG(to[Ie]P`KG^M1"> <field name="DELAY">1</field> <field name="UNIT">min</field> <next> <block type="controls_if" id="vP2uLUI3-IxFTGO7ehg8"> <value name="IF0"> <block type="logic_compare" id="ei|JT5jf3umybr;`^nm@"> <field name="OP">LT</field> <value name="A"> <block type="get_value" id="8E$ixrPN]E{7Ku?T$b0,"> <field name="ATTR">val</field> <field name="OID">shelly.0.SHSW-PM#68C63AFB689E#1.Relay0.Power</field> </block> </value> <value name="B"> <block type="math_number" id="{Vwu6!2Ddg+wr+JNiWo?"> <field name="NUM">10</field> </block> </value> </block> </value> <statement name="DO0"> <block type="telegram" id="q4^AbTvb^Ma;T^JMKSW7"> <field name="INSTANCE"></field> <field name="LOG"></field> <field name="SILENT">FALSE</field> <field name="PARSEMODE">default</field> <field name="ESCAPING">FALSE</field> <field name="DISABLE_WEB_PAGE_PREVIEW">FALSE</field> <value name="MESSAGE"> <shadow type="text" id="0B7[c%-gP]Fuesm;Q;`s"> <field name="TEXT">Hydro Warnung, Warnung, Pumpenproblem!</field> </shadow> </value> <value name="USERNAME"> <block type="text" id="B7o%qngc5NNv1}={JakE"> <field name="TEXT">Ronny</field> </block> </value> </block> </statement> <next> <block type="timeouts_wait" id="*b9lR;`lTj?zio6*ax[i"> <field name="DELAY">3</field> <field name="UNIT">min</field> <next> <block type="control" id="h{Bhe3ly/)A.u#MIzL$X"> <mutation xmlns="http://www.w3.org/1999/xhtml" delay_input="false"></mutation> <field name="OID">shelly.0.SHSW-PM#68C63AFB689E#1.Relay0.Switch</field> <field name="WITH_DELAY">FALSE</field> <value name="VALUE"> <block type="logic_boolean" id="u]3[}pci~^8Z/0(I2xau"> <field name="BOOL">FALSE</field> </block> </value> <next> <block type="telegram" id="}DlOSLZb)c[?6q=Yp#co"> <field name="INSTANCE"></field> <field name="LOG"></field> <field name="SILENT">FALSE</field> <field name="PARSEMODE">default</field> <field name="ESCAPING">FALSE</field> <field name="DISABLE_WEB_PAGE_PREVIEW">FALSE</field> <value name="MESSAGE"> <shadow type="text" id="j+2*X^9i2a#/Dnel%-?$"> <field name="TEXT">Hydro Nachts bei 10-17 °C aus</field> </shadow> </value> <value name="USERNAME"> <block type="text" id="eR9FWvrcLSfg;_~R7_:p"> <field name="TEXT">Ronny</field> </block> </value> </block> </next> </block> </next> </block> </next> </block> </next> </block> </next> </block> </next> </block> </statement> <value name="IF2"> <block type="logic_between" id="}}WJIBa|]5Jm9_^[/wz+"> <field name="MIN_OPERATOR">LE</field> <field name="MAX_OPERATOR">LT</field> <value name="MIN"> <block type="math_number" id="gJehg{.;6p`ke*SF!exx"> <field name="NUM">4</field> </block> </value> <value name="VALUE"> <shadow type="math_number" id="{_1m)%!+-%_2[w=J-{mB"> <field name="NUM">42</field> </shadow> <block type="variables_get" id="QE@NkA^_B)ZT=vx}I2@+"> <field name="VAR" id="LgToY:B4v/zg;;%aSFu~">Temperatur</field> </block> </value> <value name="MAX"> <block type="math_number" id=":CDVK|U%QXSE$UNf~zh0"> <field name="NUM">10</field> </block> </value> </block> </value> <statement name="DO2"> <block type="control" id="irH4ojDEWl/-fk~j}5cd"> <mutation xmlns="http://www.w3.org/1999/xhtml" delay_input="false"></mutation> <field name="OID">shelly.0.SHSW-PM#68C63AFB689E#1.Relay0.Switch</field> <field name="WITH_DELAY">FALSE</field> <value name="VALUE"> <block type="logic_boolean" id="t.Ko1E=jj?RB/`@Wrd6)"> <field name="BOOL">TRUE</field> </block> </value> <next> <block type="telegram" id="I`b~VT)zVdc7LZwF6muV"> <field name="INSTANCE"></field> <field name="LOG"></field> <field name="SILENT">FALSE</field> <field name="PARSEMODE">default</field> <field name="ESCAPING">FALSE</field> <field name="DISABLE_WEB_PAGE_PREVIEW">FALSE</field> <value name="MESSAGE"> <shadow type="text" id=":U?6qM2hwwG(_I:!~Nyu"> <field name="TEXT">Hydro Nachts bei 4-10°C für 3 min an</field> </shadow> </value> <value name="USERNAME"> <block type="text" id="v@jm#D)Da~!6z+T5,Q-Y"> <field name="TEXT">Ronny</field> </block> </value> <next> <block type="timeouts_wait" id="d?p6eYsnP,0]F~ddR2[s"> <field name="DELAY">1</field> <field name="UNIT">min</field> <next> <block type="controls_if" id="5.-dWIaz(vE1H.k69UDE"> <value name="IF0"> <block type="logic_compare" id="Zl72KL):6#OQ;BNpd#6O"> <field name="OP">LT</field> <value name="A"> <block type="get_value" id="WZ^PC+tw#WsSCiwBUX1v"> <field name="ATTR">val</field> <field name="OID">shelly.0.SHSW-PM#68C63AFB689E#1.Relay0.Power</field> </block> </value> <value name="B"> <block type="math_number" id="xG7Q]0=;uM^I?%PV5h`V"> <field name="NUM">10</field> </block> </value> </block> </value> <statement name="DO0"> <block type="telegram" id="I?SLPzFv;un=|.t)LeHc"> <field name="INSTANCE"></field> <field name="LOG"></field> <field name="SILENT">FALSE</field> <field name="PARSEMODE">default</field> <field name="ESCAPING">FALSE</field> <field name="DISABLE_WEB_PAGE_PREVIEW">FALSE</field> <value name="MESSAGE"> <shadow type="text" id="9G!H/g6a%Q,`X87`JSCq"> <field name="TEXT">Hydro Warnung, Warnung, Pumpenproblem!</field> </shadow> </value> <value name="USERNAME"> <block type="text" id="0Q##lhQWF1yh+2}zW=r#"> <field name="TEXT">Ronny</field> </block> </value> </block> </statement> <next> <block type="timeouts_wait" id="hE1oeUE^{2]5%MJ$1e`}"> <field name="DELAY">2</field> <field name="UNIT">min</field> <next> <block type="control" id="wHf;Q:#c{rBsU~44:^-C"> <mutation xmlns="http://www.w3.org/1999/xhtml" delay_input="false"></mutation> <field name="OID">shelly.0.SHSW-PM#68C63AFB689E#1.Relay0.Switch</field> <field name="WITH_DELAY">FALSE</field> <value name="VALUE"> <block type="logic_boolean" id="h(F0.q?COmH_.6J^Y+*T"> <field name="BOOL">FALSE</field> </block> </value> <next> <block type="telegram" id="9=v*]6EY4[`q=uw;5%sw"> <field name="INSTANCE"></field> <field name="LOG"></field> <field name="SILENT">FALSE</field> <field name="PARSEMODE">default</field> <field name="ESCAPING">FALSE</field> <field name="DISABLE_WEB_PAGE_PREVIEW">FALSE</field> <value name="MESSAGE"> <shadow type="text" id="/I2u/dSt9C*X5a7fks9a"> <field name="TEXT">Hydro Nachts bei 4-10 °C aus</field> </shadow> </value> <value name="USERNAME"> <block type="text" id="XaPn7_khAV2#PhY`N@nD"> <field name="TEXT">Ronny</field> </block> </value> </block> </next> </block> </next> </block> </next> </block> </next> </block> </next> </block> </next> </block> </statement> <value name="IF3"> <block type="logic_between" id="LB|V$J}@D48j=cZ;oNE_"> <field name="MIN_OPERATOR">LT</field> <field name="MAX_OPERATOR">LE</field> <value name="MIN"> <block type="math_number" id=",Pi9r5;zvKZ~UfEW4?z:"> <field name="NUM">23</field> </block> </value> <value name="VALUE"> <shadow type="math_number" id="{_1m)%!+-%_2[w=J-{mB"> <field name="NUM">42</field> </shadow> <block type="variables_get" id="t7BLUVj6+KKaWk)u,kyc"> <field name="VAR" id="LgToY:B4v/zg;;%aSFu~">Temperatur</field> </block> </value> <value name="MAX"> <block type="math_number" id="a@[$]}Q{B1Sw3fGp?H|9"> <field name="NUM">30</field> </block> </value> </block> </value> <statement name="DO3"> <block type="control" id="z3TlSV3H[C+Bo`*$g!OY"> <mutation xmlns="http://www.w3.org/1999/xhtml" delay_input="false"></mutation> <field name="OID">shelly.0.SHSW-PM#68C63AFB689E#1.Relay0.Switch</field> <field name="WITH_DELAY">FALSE</field> <value name="VALUE"> <block type="logic_boolean" id="C$,P:FmS*-7Kv4^2f31*"> <field name="BOOL">TRUE</field> </block> </value> <next> <block type="telegram" id="!U7#rz@6qNcEf.SzJW9o"> <field name="INSTANCE"></field> <field name="LOG"></field> <field name="SILENT">FALSE</field> <field name="PARSEMODE">default</field> <field name="ESCAPING">FALSE</field> <field name="DISABLE_WEB_PAGE_PREVIEW">FALSE</field> <value name="MESSAGE"> <shadow type="text" id="]3/fSJ2:iV?IOJy(oIdH"> <field name="TEXT">Hydro Nachts bei 24-30°C für 8 min an</field> </shadow> </value> <value name="USERNAME"> <block type="text" id="cvp10Am=7I!UAa(|djjC"> <field name="TEXT">Ronny</field> </block> </value> <next> <block type="timeouts_wait" id="z)N24hhzcHE(o)tYCJ5c"> <field name="DELAY">1</field> <field name="UNIT">min</field> <next> <block type="controls_if" id="ko`ZWNQLGPd!eSJEo~~v"> <value name="IF0"> <block type="logic_compare" id="4ua*8*gw/ok%bE)OqAU)"> <field name="OP">LT</field> <value name="A"> <block type="get_value" id="|2HGo3jmD4rnp/K%z9Y*"> <field name="ATTR">val</field> <field name="OID">shelly.0.SHSW-PM#68C63AFB689E#1.Relay0.Power</field> </block> </value> <value name="B"> <block type="math_number" id="E:kR=U#mmiu.x`n`tGDn"> <field name="NUM">10</field> </block> </value> </block> </value> <statement name="DO0"> <block type="telegram" id="Rm1[P%~g;@^/po`9TRAc"> <field name="INSTANCE"></field> <field name="LOG"></field> <field name="SILENT">FALSE</field> <field name="PARSEMODE">default</field> <field name="ESCAPING">FALSE</field> <field name="DISABLE_WEB_PAGE_PREVIEW">FALSE</field> <value name="MESSAGE"> <shadow type="text" id="Kr_J/2[}X!0!sD%QGzK/"> <field name="TEXT">Hydro Warnung, Warnung, Pumpenproblem!</field> </shadow> </value> <value name="USERNAME"> <block type="text" id=":NBKGSI*^_Pej:]t=C0E"> <field name="TEXT">Ronny</field> </block> </value> </block> </statement> <next> <block type="timeouts_wait" id="p00aCZPsBL9iQE}UgEss"> <field name="DELAY">7</field> <field name="UNIT">min</field> <next> <block type="control" id="S/c}[)XrRw/oR7E,Vh-b"> <mutation xmlns="http://www.w3.org/1999/xhtml" delay_input="false"></mutation> <field name="OID">shelly.0.SHSW-PM#68C63AFB689E#1.Relay0.Switch</field> <field name="WITH_DELAY">FALSE</field> <value name="VALUE"> <block type="logic_boolean" id="ql%xz$iE=zEwO~foau!v"> <field name="BOOL">FALSE</field> </block> </value> <next> <block type="telegram" id="UtH^FZ/*WWLd+WL^x:)S"> <field name="INSTANCE"></field> <field name="LOG"></field> <field name="SILENT">FALSE</field> <field name="PARSEMODE">default</field> <field name="ESCAPING">FALSE</field> <field name="DISABLE_WEB_PAGE_PREVIEW">FALSE</field> <value name="MESSAGE"> <shadow type="text" id="M^eF9Xu$sU{k_6RE3@+P"> <field name="TEXT">Hydro Nachts bei 24-30 °C aus</field> </shadow> </value> <value name="USERNAME"> <block type="text" id="ji-;A]!of{fe*!=KSFFg"> <field name="TEXT">Ronny</field> </block> </value> </block> </next> </block> </next> </block> </next> </block> </next> </block> </next> </block> </next> </block> </statement> <value name="IF4"> <block type="logic_compare" id="B`]3BIbUxzNC{Jj4euXY"> <field name="OP">GT</field> <value name="A"> <block type="variables_get" id="+vUNWFI%i?#s_|Esq109"> <field name="VAR" id="LgToY:B4v/zg;;%aSFu~">Temperatur</field> </block> </value> <value name="B"> <block type="math_number" id="r|G@RS}{#rXqt$.%$vN}"> <field name="NUM">30</field> </block> </value> </block> </value> <statement name="DO4"> <block type="control" id="D_;7j#d=h/KP%woZ!xd`"> <mutation xmlns="http://www.w3.org/1999/xhtml" delay_input="false"></mutation> <field name="OID">shelly.0.SHSW-PM#68C63AFB689E#1.Relay0.Switch</field> <field name="WITH_DELAY">FALSE</field> <value name="VALUE"> <block type="logic_boolean" id="cCi#v5MaRq?14E,~[~ZZ"> <field name="BOOL">TRUE</field> </block> </value> <next> <block type="telegram" id="J5BSQ8ZFe$`=q.Xm[jQ;"> <field name="INSTANCE"></field> <field name="LOG"></field> <field name="SILENT">FALSE</field> <field name="PARSEMODE">default</field> <field name="ESCAPING">FALSE</field> <field name="DISABLE_WEB_PAGE_PREVIEW">FALSE</field> <value name="MESSAGE"> <shadow type="text" id="Wu/`BXJa;dQdsr]9QrPe"> <field name="TEXT">Hydro Nachts bei über 30°C für 11 min an</field> </shadow> </value> <value name="USERNAME"> <block type="text" id="N#X[Wg=CG})_tlC+;;fA"> <field name="TEXT">Ronny</field> </block> </value> <next> <block type="timeouts_wait" id="`oy]t},e$[E8qaF})m[,"> <field name="DELAY">1</field> <field name="UNIT">min</field> <next> <block type="controls_if" id="LJ:tZ1`yrWtf/a!W3(Ww"> <value name="IF0"> <block type="logic_compare" id="DAYFa@9vRRd64uI2O9`K"> <field name="OP">LT</field> <value name="A"> <block type="get_value" id="FqS6.J(enGQd={5zk4=k"> <field name="ATTR">val</field> <field name="OID">shelly.0.SHSW-PM#68C63AFB689E#1.Relay0.Power</field> </block> </value> <value name="B"> <block type="math_number" id="$~]RTA0%Al|Ly+j{b)YO"> <field name="NUM">10</field> </block> </value> </block> </value> <statement name="DO0"> <block type="telegram" id="a+ggjcD=E_^E9;eQ|X}0"> <field name="INSTANCE"></field> <field name="LOG"></field> <field name="SILENT">FALSE</field> <field name="PARSEMODE">default</field> <field name="ESCAPING">FALSE</field> <field name="DISABLE_WEB_PAGE_PREVIEW">FALSE</field> <value name="MESSAGE"> <shadow type="text" id="/zK_Hy0=ib)Ym47Phy@N"> <field name="TEXT">Hydro Warnung, Warnung, Pumpenproblem!</field> </shadow> </value> <value name="USERNAME"> <block type="text" id="UE;,B}d-g;~EJ/Dka]??"> <field name="TEXT">Ronny</field> </block> </value> </block> </statement> <next> <block type="timeouts_wait" id="?GA7O%5#.!{${bkX.Xr;"> <field name="DELAY">10</field> <field name="UNIT">min</field> <next> <block type="control" id="~zl2zFe=f`i(=??z%}os"> <mutation xmlns="http://www.w3.org/1999/xhtml" delay_input="false"></mutation> <field name="OID">shelly.0.SHSW-PM#68C63AFB689E#1.Relay0.Switch</field> <field name="WITH_DELAY">FALSE</field> <value name="VALUE"> <block type="logic_boolean" id="@95D46@uFu+YB}Wm1iEZ"> <field name="BOOL">FALSE</field> </block> </value> <next> <block type="telegram" id="b3n7Qw7AS)a-Z{Q)$Y#D"> <field name="INSTANCE"></field> <field name="LOG"></field> <field name="SILENT">FALSE</field> <field name="PARSEMODE">default</field> <field name="ESCAPING">FALSE</field> <field name="DISABLE_WEB_PAGE_PREVIEW">FALSE</field> <value name="MESSAGE"> <shadow type="text" id="YFogOC}8fqzK0r.kFb!S"> <field name="TEXT">Hydro Nachts über 30 °C aus</field> </shadow> </value> <value name="USERNAME"> <block type="text" id="[R|l=L4rO^{L@*?c1iU]"> <field name="TEXT">Ronny</field> </block> </value> </block> </next> </block> </next> </block> </next> </block> </next> </block> </next> </block> </next> </block> </statement> <value name="IF5"> <block type="logic_compare" id="Bym4KFlz]kwBaSc;$1zT"> <field name="OP">LT</field> <value name="A"> <block type="variables_get" id="Iab@%9%a=|pnb(drB{nO"> <field name="VAR" id="LgToY:B4v/zg;;%aSFu~">Temperatur</field> </block> </value> <value name="B"> <block type="math_number" id="]0wK2:nPGh;+Uf}jyoM{"> <field name="NUM">4</field> </block> </value> </block> </value> <statement name="DO5"> <block type="control" id="5wrm+sbD-yrHplZ=B:f2"> <mutation xmlns="http://www.w3.org/1999/xhtml" delay_input="false"></mutation> <field name="OID">shelly.0.SHSW-PM#68C63AFB689E#1.Relay0.Switch</field> <field name="WITH_DELAY">FALSE</field> <value name="VALUE"> <block type="logic_boolean" id="5wE]}OMS{k7/I$h{lY)}"> <field name="BOOL">FALSE</field> </block> </value> <next> <block type="telegram" id="euH49[]e?1%):,QbR5.X"> <field name="INSTANCE"></field> <field name="LOG"></field> <field name="SILENT">FALSE</field> <field name="PARSEMODE">default</field> <field name="ESCAPING">FALSE</field> <field name="DISABLE_WEB_PAGE_PREVIEW">FALSE</field> <value name="MESSAGE"> <shadow type="text" id="sqcpnZ70Gi{+Bc-*b4j7"> <field name="TEXT">Hydro bei kleiner 4°C aus!!!!</field> </shadow> </value> <value name="USERNAME"> <block type="text" id="(O0H`[IE[],}J;KNJa1a"> <field name="TEXT">Ronny</field> </block> </value> </block> </next> </block> </statement> </block> </next> </block> </statement> </block> </xml>
