"id": "6e802f1553b18149",
"type": "subflow",
"name": "JSON or Obj to IOBroker",
"info": "# Creates an IOBroker tree\n\nThis node creates an IOBroker tree out of an Java-Object or JSON String.\n\nThe object tree will be created under 0_userdata.0\nIn addition to the JSON-String or Java Object as `msg.payload` it is necessary to specify a `msg.top` properity in addition to the msg-Object.\n\nThe object tree will be created under 0_userdata.0\n\nExisting `msg.topic` entries will be deleted.\nAn iobroker-out node has to be appended to this subflow node. It is not part of the subflow itself. No topic should be specified in the iobroker out node.\n\nIs `msg.top` property isn't defined, the `top` property of the subflow-node is used. \n\nIn the properties of the subflow node a new property `keepTopic` has been added. Default is _false_ to keep the current behaviour. If set to _true_ then the originial topic will be placed between the `top` property of the subflow node and the property of the analyzed JSON object.\n\n**Attention:**\nIf msg.top and top is empty, all msg.topics (msg.topic) will be directly prefixed with 0_userdata.0. . \n\n**Update 13.09.2022:**\nSpaces in topics of objects are no longer replaced with underscores in objects. No differences between all data types.\n\n# Erstellt einen Objektbaum im ioBroker\n\nDiese Node erstellt einen Objektbaum im ioBroker aus einem JAVA Objekt bzw. einem JSON String. \n\nDer Baum wird in jedem Fall unter 0_userdata.0 erstellt und zwar unter dem Topic der in` msg.top` mitgegeben wurde. In der `msg.payload` befindet sich dann der JSON String oder das entsprechende Objekt.\n\nExistierende `msg.topic `Einträge werden gelöscht.\nEin entsprechende iobroker-out Node muss an den Flow angehängt werden. Sie ist nicht Bestandteil des Subflows. In dieser iobroker-out Node darf kein Topic angegeben werden. \n\nFalls msg.top nicht definiert wurde, wird der `top`-Wert der Subflow-Node verwendet.\n\nIn den Eigenschaften der Subflow-Node wurde ein neuer Parameter `keepTopic` hinzugefügt. Standardwert ist _false_, um das bisherige Verhalten beizubehalten. Setzt man die Eigenschaft auf _true_, dann wird das originale Topic zwischen der `top` Eigenschaft der Subflow-Node und Eigenschaft des analysierten JSON Objektes eingefügt.\n\n**Achtung:**\nWenn top und msg.top leer ist, werden alle msg.topics (msg.topic) direkt unter dem Präfix 0_userdata.0., angelegt bzw. ausgegeben. \n\n**Update 13.09.2022:**\nLeerzeichen werden in Topics von Objekten nicht mehr durch Unterstriche ersetzt. Es gibt keine Unterschiede mehr zwischen den Datentypen.",
"category": "",
"in": [
{
"x": 60,
"y": 160,
"wires": [
{
"id": "554b8c663bcb46c2"
}
]
}
],
"out": [
{
"x": 2620,
"y": 280,
"wires": [
{
"id": "0962842ebd23e0d7",
"port": 0
}
]
}
],
"env": [
{
"name": "top",
"type": "str",
"value": "objRoot"
},
{
"name": "keepTopic",
"type": "bool",
"value": "false"
}
],
"meta": {},
"color": "#E2D96E",
"icon": "node-red/batch.svg"
},
{
"id": "3e11e8338f694832",
"type": "split",
"z": "6e802f1553b18149",
"name": "split object",
"splt": "\\n",
"spltType": "str",
"arraySplt": 1,
"arraySpltType": "len",
"stream": false,
"addname": "key",
"x": 1370,
"y": 160,
"wires": [
[
"0562a4249c8b856b"
]
]
},
{
"id": "0562a4249c8b856b",
"type": "change",
"z": "6e802f1553b18149",
"name": "add key to topic",
"rules": [
{
"t": "set",
"p": "stateName",
"pt": "msg",
"to": "key",
"tot": "msg"
},
{
"t": "set",
"p": "topic",
"pt": "msg",
"to": "topic & '.' & key",
"tot": "jsonata"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 1560,
"y": 160,
"wires": [
[
"ddc90985bef0fafa"
]
]
},
{
"id": "ddc90985bef0fafa",
"type": "switch",
"z": "6e802f1553b18149",
"name": "is type?",
"property": "payload",
"propertyType": "msg",
"rules": [
{
"t": "istype",
"v": "array",
"vt": "array"
},
{
"t": "istype",
"v": "object",
"vt": "object"
},
{
"t": "else"
}
],
"checkall": "true",
"repair": false,
"outputs": 3,
"x": 1740,
"y": 160,
"wires": [
[
"bfce19b206660fbe"
],
[
"3e11e8338f694832"
],
[
"1a8c03d866b85b12"
]
]
},
{
"id": "bfce19b206660fbe",
"type": "split",
"z": "6e802f1553b18149",
"name": "split array",
"splt": "\\n",
"spltType": "str",
"arraySplt": 1,
"arraySpltType": "len",
"stream": false,
"addname": "",
"x": 780,
"y": 280,
"wires": [
[
"e89927810c6d75ec"
]
]
},
{
"id": "e89927810c6d75ec",
"type": "change",
"z": "6e802f1553b18149",
"name": "add index to topic",
"rules": [
{
"t": "set",
"p": "topic",
"pt": "msg",
"to": "topic & '.' & parts.index",
"tot": "jsonata"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 970,
"y": 280,
"wires": [
[
"a4d1a5d04564dc77"
]
]
},
{
"id": "f5d52c6a57d08904",
"type": "change",
"z": "6e802f1553b18149",
"name": "finalize msg.topic",
"rules": [
{
"t": "set",
"p": "top",
"pt": "msg",
"to": "'0_userdata.0.' & top",
"tot": "jsonata"
},
{
"t": "set",
"p": "topic",
"pt": "msg",
"to": "top & '.' & topic",
"tot": "jsonata"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 2170,
"y": 240,
"wires": [
[
"0962842ebd23e0d7"
]
]
},
{
"id": "1a8c03d866b85b12",
"type": "switch",
"z": "6e802f1553b18149",
"name": "is msg.top != null",
"property": "top",
"propertyType": "msg",
"rules": [
{
"t": "nnull"
},
{
"t": "null"
}
],
"checkall": "true",
"repair": false,
"outputs": 2,
"x": 1950,
"y": 280,
"wires": [
[
"f5d52c6a57d08904"
],
[
"74c895ce724750de"
]
]
},
{
"id": "e023fe88445ce43e",
"type": "change",
"z": "6e802f1553b18149",
"name": "",
"rules": [
{
"t": "delete",
"p": "topic",
"pt": "msg"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 350,
"y": 200,
"wires": [
[
"3649300b4c233b10"
]
]
},
{
"id": "3649300b4c233b10",
"type": "switch",
"z": "6e802f1553b18149",
"name": "is type?",
"property": "payload",
"propertyType": "msg",
"rules": [
{
"t": "istype",
"v": "json",
"vt": "json"
},
{
"t": "istype",
"v": "array",
"vt": "array"
},
{
"t": "istype",
"v": "object",
"vt": "object"
},
{
"t": "else"
}
],
"checkall": "true",
"repair": false,
"outputs": 4,
"x": 600,
"y": 160,
"wires": [
[
"fc7913a8524badb7"
],
[
"bfce19b206660fbe"
],
[
"3e11e8338f694832"
],
[
"9ac3cc3681e8b6c6"
]
]
},
{
"id": "1b8480cd2df7ba3f",
"type": "comment",
"z": "6e802f1553b18149",
"name": "Array",
"info": "",
"x": 600,
"y": 280,
"wires": []
},
{
"id": "b3541807672be040",
"type": "comment",
"z": "6e802f1553b18149",
"name": "object",
"info": "",
"x": 1340,
"y": 100,
"wires": []
},
{
"id": "a4d1a5d04564dc77",
"type": "switch",
"z": "6e802f1553b18149",
"name": "is type?",
"property": "payload",
"propertyType": "msg",
"rules": [
{
"t": "istype",
"v": "object",
"vt": "object"
},
{
"t": "istype",
"v": "array",
"vt": "array"
},
{
"t": "else"
}
],
"checkall": "true",
"repair": false,
"outputs": 3,
"x": 1160,
"y": 280,
"wires": [
[
"3e11e8338f694832"
],
[
"bfce19b206660fbe"
],
[
"a096a93bb82b7a93"
]
]
},
{
"id": "74c895ce724750de",
"type": "change",
"z": "6e802f1553b18149",
"name": "finalize msg.topic",
"rules": [
{
"t": "set",
"p": "top",
"pt": "msg",
"to": "top",
"tot": "env"
},
{
"t": "set",
"p": "top",
"pt": "msg",
"to": "'0_userdata.0.' & top",
"tot": "jsonata"
},
{
"t": "set",
"p": "topic",
"pt": "msg",
"to": "top & '.' & topic",
"tot": "jsonata"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 2170,
"y": 320,
"wires": [
[
"0962842ebd23e0d7"
]
]
},
{
"id": "554b8c663bcb46c2",
"type": "switch",
"z": "6e802f1553b18149",
"name": "",
"property": "keepTopic",
"propertyType": "env",
"rules": [
{
"t": "true"
},
{
"t": "false"
}
],
"checkall": "true",
"repair": false,
"outputs": 2,
"x": 170,
"y": 160,
"wires": [
[
"e30ba9f0483285e4"
],
[
"e023fe88445ce43e"
]
]
},
{
"id": "e30ba9f0483285e4",
"type": "change",
"z": "6e802f1553b18149",
"name": "",
"rules": [
{
"t": "change",
"p": "topic",
"pt": "msg",
"from": "/",
"fromt": "str",
"to": ".",
"tot": "str"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 350,
"y": 120,
"wires": [
[
"3649300b4c233b10"
]
]
},
{
"id": "0962842ebd23e0d7",
"type": "change",
"z": "6e802f1553b18149",
"name": "translate invalid chars in topic",
"rules": [
{
"t": "change",
"p": "topic",
"pt": "msg",
"from": "..",
"fromt": "str",
"to": ".",
"tot": "str"
},
{
"t": "change",
"p": "topic",
"pt": "msg",
"from": "€",
"fromt": "str",
"to": "EUR",
"tot": "str"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 2430,
"y": 280,
"wires": [
[]
]
},
{
"id": "9ac3cc3681e8b6c6",
"type": "change",
"z": "6e802f1553b18149",
"name": "set topic, if empty",
"rules": [
{
"t": "set",
"p": "topic",
"pt": "msg",
"to": "topic ? topic : $type(payload)\t",
"tot": "jsonata"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 950,
"y": 200,
"wires": [
[
"a096a93bb82b7a93"
]
]
},
{
"id": "fc7913a8524badb7",
"type": "json",
"z": "6e802f1553b18149",
"name": "",
"property": "payload",
"action": "obj",
"pretty": false,
"x": 750,
"y": 100,
"wires": [
[
"d9e7bdd4c48a8aa1"
]
]
},
{
"id": "d9e7bdd4c48a8aa1",
"type": "switch",
"z": "6e802f1553b18149",
"name": "is type?",
"property": "payload",
"propertyType": "msg",
"rules": [
{
"t": "istype",
"v": "array",
"vt": "array"
},
{
"t": "istype",
"v": "object",
"vt": "object"
},
{
"t": "else"
}
],
"checkall": "true",
"repair": false,
"outputs": 3,
"x": 900,
"y": 100,
"wires": [
[
"1520be42bcc2145e"
],
[
"1520be42bcc2145e"
],
[
"9ac3cc3681e8b6c6"
]
]
},
{
"id": "a096a93bb82b7a93",
"type": "junction",
"z": "6e802f1553b18149",
"x": 1380,
"y": 280,
"wires": [
[
"1a8c03d866b85b12"
]
]
},
{
"id": "1520be42bcc2145e",
"type": "junction",
"z": "6e802f1553b18149",
"x": 480,
"y": 20,
"wires": [
[
"3649300b4c233b10"
]
]
},
{
"id": "9582121ff81174a6",
"type": "tab",

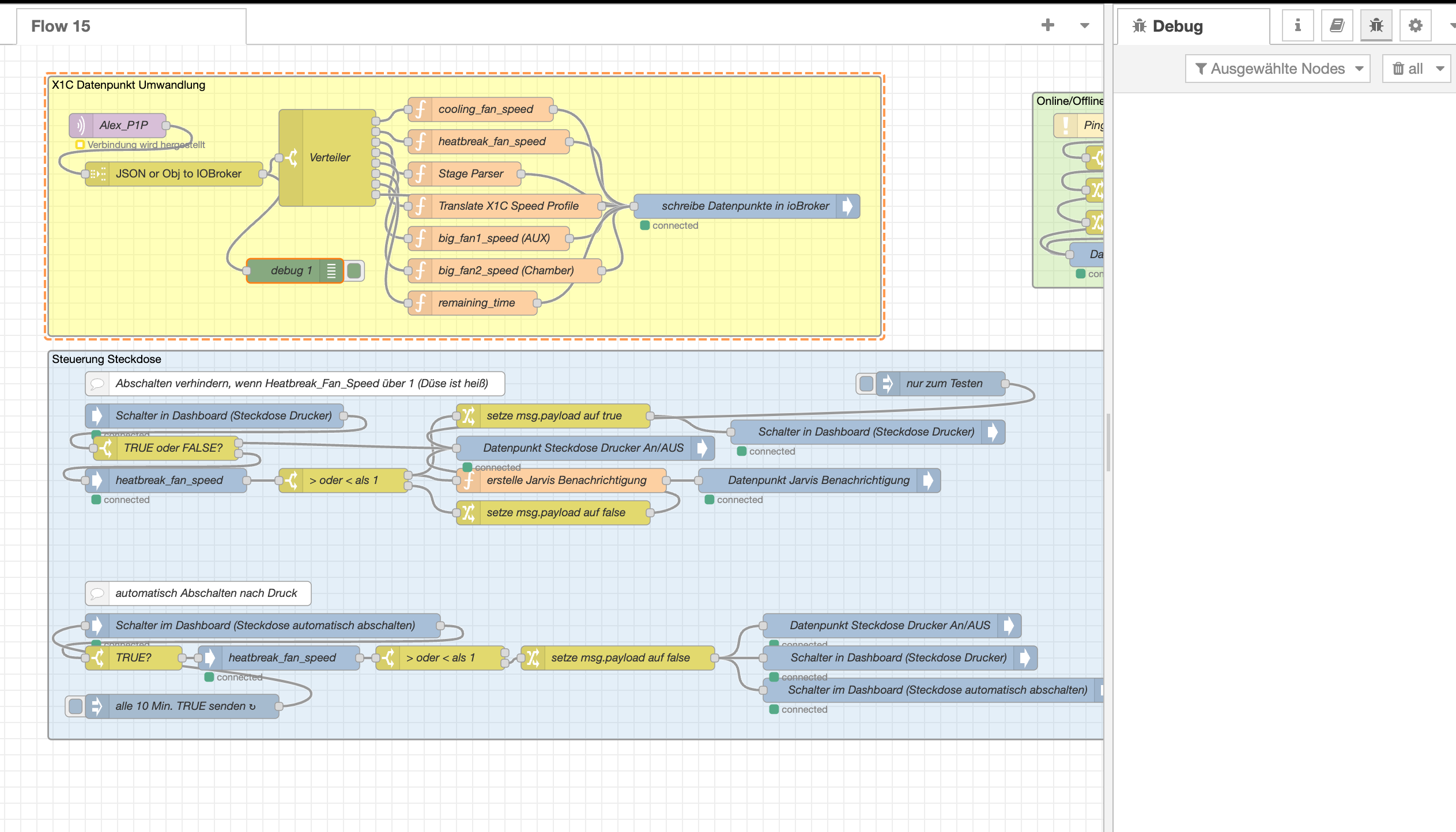

"label": "Flow 15",
"disabled": false,
"info": "",
"env": []
},
{
"id": "c3f9f96853c3f09c",
"type": "group",
"z": "9582121ff81174a6",
"name": "Steuerung Steckdose",
"style": {
"label": true,
"fill": "#7fb7df",
"fill-opacity": "0.22",
"color": "#000000"
},
"nodes": [
"cd5f62e24a3e846f",
"964df5b70be104e6",
"ebace1619b2a4e15",
"3143caf661f13237",
"aeb883c176549af3",
"f683e53accbca89f",
"cff0b21c459cab43",
"64fa2ca669c5a78d",
"72cb87b2b06c4f05",
"4ce8104a4e434a82",
"e0079711246b60b0",
"1d943caf9a8bc0f6",
"ff01d8a59e17dc93",
"c8abbf4d53a09ffe",
"c5c06330d2e576f6",
"f97a028e21d51bfb",
"cac765606601d65c",
"ae46dbed7e5925ae",
"445ce2a0ad0a534a",
"79d8f512af50dd04",
"0c5048b46f072d52",
"5c0e9eddf913e64d"
],
"x": 74,
"y": 379,
"w": 1352,
"h": 482
},
{
"id": "4380d7035264bead",
"type": "group",
"z": "9582121ff81174a6",
"name": "Online/Offline Anzeige",
"style": {
"label": true,
"color": "#000000",
"fill": "#addb7b",
"fill-opacity": "0.38"
},
"nodes": [
"d2a5ed4e2b8c8674",
"b5c862f5d50c56cb",
"2e71b198fe06ccdb",
"144c29803a38e2a4",
"3a131237a7bdec9d"
],
"x": 1074,
"y": 79,
"w": 412,
"h": 242
},
{
"id": "19ede36faf38f69b",
"type": "group",
"z": "9582121ff81174a6",
"name": "X1C Datenpunkt Umwandlung",
"style": {
"fill": "#ffff00",
"label": true,
"fill-opacity": "0.36",
"color": "#000000"
},
"nodes": [
"e2852c3101736fc9",
"477ecaa1b9913815",
"9fadcc36a22ec38b",
"44d9370861f0a79a",
"33a162f31f850a9e",
"f6c8fbdf638c04e8",
"ce27f3362985a4d3",
"89074ea56277b288",
"01c35b9bb3921713",
"3eb26b7322587c6b",
"21081e6a23dc83a1"
],
"x": 14,
"y": 39,
"w": 1032,
"h": 322
},
{
"id": "e2852c3101736fc9",
"type": "subflow:6e802f1553b18149",
"z": "9582121ff81174a6",
"g": "19ede36faf38f69b",
"name": "",
"env": [
{
"name": "top",
"value": "X1C",
"type": "str"
}
],
"x": 170,
"y": 160,
"wires": [
[
"ce27f3362985a4d3"
]
]
},
{
"id": "477ecaa1b9913815",
"type": "mqtt in",
"z": "9582121ff81174a6",
"g": "19ede36faf38f69b",
"name": "Bambu X1C Bambu_X1C",
"topic": "device/DieSeriennummerDeinesDruckers/report",
"qos": "2",
"datatype": "auto-detect",
"broker": "84f61d394ba2ab34",
"nl": false,
"rap": true,
"rh": 0,
"inputs": 0,
"x": 150,
"y": 100,
"wires": [
[
"e2852c3101736fc9"
]
]
},
{
"id": "9fadcc36a22ec38b",
"type": "ioBroker out",
"z": "9582121ff81174a6",
"g": "19ede36faf38f69b",
"name": "schreibe Datenpunkte in ioBroker",
"topic": "",
"ack": "true",
"autoCreate": "true",
"stateName": "",
"role": "",
"payloadType": "",
"readonly": "",
"stateUnit": "",
"stateMin": "",
"stateMax": "",
"x": 880,
"y": 200,
"wires": []
},
{
"id": "44d9370861f0a79a",
"type": "function",
"z": "9582121ff81174a6",
"g": "19ede36faf38f69b",
"name": "heatbreak_fan_speed",
"func": "var percentages = {\n \"0\": 0,\n \"1\": 10,\n \"2\": 20,\n \"4\": 30,\n \"5\": 40,\n \"7\": 50,\n \"9\": 60,\n \"10\": 70,\n \"12\": 80,\n \"13\": 90,\n \"15\": 100\n}\n\n msg.payload = percentages[msg.payload]\n\n return [msg];\n\n\n\n\n//msg.payload.print.big_fan1_speed_pct = percentages[msg.payload.print.big_fan1_speed]\n//msg.payload.print.big_fan2_speed_pct = percentages[msg.payload.print.big_fan2_speed]\n//msg.payload.print.heatbreak_fan_speed_pct = percentages[msg.payload.print.heatbreak_fan_speed]\n//msg.payload.print.cooling_fan_speed_pct = percentages[msg.payload.print.cooling_fan_speed]\n\n// Overwrite\n//msg.payload.print.big_fan1_speed = percentages[msg.payload.print.big_fan1_speed]\n//msg.payload.print.big_fan2_speed = percentages[msg.payload.print.big_fan2_speed]\n//msg.payload.print.heatbreak_fan_speed = percentages[msg.payload.print.heatbreak_fan_speed]\n//msg.payload.print.cooling_fan_speed = percentages[msg.payload.print.cooling_fan_speed]\n\n\n//node.send(msg)",
"outputs": 1,
"noerr": 0,
"initialize": "",
"finalize": "",
"libs": [],
"x": 560,
"y": 120,
"wires": [
[
"9fadcc36a22ec38b"
]
]
},
{
"id": "33a162f31f850a9e",
"type": "function",
"z": "9582121ff81174a6",
"g": "19ede36faf38f69b",
"name": "Stage Parser",
"func": "\nfunction parseAction(actionId) {\n if(actionId === undefined) {\n return \"\";\n }\n switch (actionId) {\n case -2:\n return \"Offline\";\n case -1:\n return \"Idle\";\n case 0:\n return \"Printing\"; // idle or printing\n case 1:\n return \"Auto bed leveling\";\n case 2:\n return \"Heatbed preheating\";\n case 3:\n return \"Sweeping XY mech mode\";\n case 4:\n return \"Changing filament\";\n case 5:\n return \"M400 pause\";\n case 6:\n return \"Paused due to filament runout\";\n case 7:\n return \"Heating hotend\";\n case 8:\n return \"Calibrating extrusion\";\n case 9:\n return \"Scanning bed surface\";\n case 10:\n return \"Inspecting first layer\";\n case 11:\n return \"Identifying build plate type\";\n case 12:\n return \"Calibrating Micro Lidar\";\n case 13:\n return \"Homing toolhead\";\n case 14:\n return \"Cleaning nozzle tip\";\n case 15:\n return \"Checking extruder temperature\";\n case 16:\n return \"Printing was paused by the user\";\n case 17:\n return \"Pause of front cover falling\";\n case 18:\n return \"Calibrating the micro lidar\";\n case 19:\n return \"Calibrating extrusion flow\";\n case 20:\n return \"Paused due to nozzle temperature malfunction\";\n case 21:\n return \"Paused due to heat bed temperature malfunction\";\n default:\n return actionId.toString()\n }\n}\n\n\n\n \nvar current_action = parseAction(msg.payload);\n\n\n\n msg.payload = current_action;\n\n\n\n return [msg];\n",
"outputs": 1,
"noerr": 0,
"initialize": "",
"finalize": "",
"libs": [],
"x": 530,
"y": 160,
"wires": [
[
"9fadcc36a22ec38b"
]
]
},
{
"id": "f6c8fbdf638c04e8",
"type": "function",
"z": "9582121ff81174a6",
"g": "19ede36faf38f69b",
"name": "Translate X1C Speed Profile",
"func": "function parseAction(SpeedProfile) {\n if (SpeedProfile === undefined) {\n return \"\";\n }\n switch (SpeedProfile) {\n case 1:\n return \"Silent\";\n \n case 2:\n return \"Standard\";\n \n case 3:\n return \"Sport\";\n \n case 4:\n return \"Ludicrous\";\n \n default:\n return \"Undefined\";\n \n\n \n }\n\n}\n\n\n\n var SpeedProfile = parseAction(msg.payload);\n msg.payload = SpeedProfile;\n\n\n return [msg];\n\n\n",
"outputs": 1,
"noerr": 0,
"initialize": "",
"finalize": "",
"libs": [],
"x": 580,
"y": 200,
"wires": [
[
"9fadcc36a22ec38b"
]
]
},
{
"id": "ce27f3362985a4d3",
"type": "switch",
"z": "9582121ff81174a6",
"g": "19ede36faf38f69b",
"name": "Verteiler",
"property": "topic",
"propertyType": "msg",
"rules": [
{
"t": "eq",
"v": "0_userdata.0.X1C.print.cooling_fan_speed",
"vt": "str"
},
{
"t": "eq",
"v": "0_userdata.0.X1C.print.heatbreak_fan_speed",
"vt": "str"
},
{
"t": "eq",
"v": "0_userdata.0.X1C.print.stg_cur",
"vt": "str"
},
{
"t": "eq",
"v": "0_userdata.0.X1C.print.spd_lvl",
"vt": "str"
},
{
"t": "eq",
"v": "0_userdata.0.X1C.print.big_fan1_speed",
"vt": "str"
},
{
"t": "eq",
"v": "0_userdata.0.X1C.print.big_fan2_speed",
"vt": "str"
},
{
"t": "eq",
"v": "0_userdata.0.X1C.print.mc_remaining_time",
"vt": "str"
},
{
"t": "else"
}
],
"checkall": "true",
"repair": false,
"outputs": 8,
"x": 360,
"y": 140,
"wires": [
[
"89074ea56277b288"
],
[
"44d9370861f0a79a"
],
[
"33a162f31f850a9e"
],
[
"f6c8fbdf638c04e8"
],
[
"3eb26b7322587c6b"
],
[
"01c35b9bb3921713"
],
[
"21081e6a23dc83a1"
],
[
"9fadcc36a22ec38b"
]
],
"outputLabels": [
"Cooling Fan Speed",
"Heatbreak Fan Speed",
"Stage Parser",
"Speed Profile",
"AUX Fan Speed",
"Chamber Fan Speed",
"remaining_time",
""
]
},
{
"id": "89074ea56277b288",
"type": "function",
"z": "9582121ff81174a6",
"g": "19ede36faf38f69b",
"name": "cooling_fan_speed",
"func": "var percentages = {\n \"0\": 0,\n \"1\": 10,\n \"2\": 20,\n \"4\": 30,\n \"5\": 40,\n \"7\": 50,\n \"9\": 60,\n \"10\": 70,\n \"12\": 80,\n \"13\": 90,\n \"15\": 100\n}\n\n msg.payload = percentages[msg.payload]\n\n return [msg];\n\n\n\n\n//msg.payload.print.big_fan1_speed_pct = percentages[msg.payload.print.big_fan1_speed]\n//msg.payload.print.big_fan2_speed_pct = percentages[msg.payload.print.big_fan2_speed]\n//msg.payload.print.heatbreak_fan_speed_pct = percentages[msg.payload.print.heatbreak_fan_speed]\n//msg.payload.print.cooling_fan_speed_pct = percentages[msg.payload.print.cooling_fan_speed]\n\n// Overwrite\n//msg.payload.print.big_fan1_speed = percentages[msg.payload.print.big_fan1_speed]\n//msg.payload.print.big_fan2_speed = percentages[msg.payload.print.big_fan2_speed]\n//msg.payload.print.heatbreak_fan_speed = percentages[msg.payload.print.heatbreak_fan_speed]\n//msg.payload.print.cooling_fan_speed = percentages[msg.payload.print.cooling_fan_speed]\n\n\n//node.send(msg)",
"outputs": 1,
"noerr": 0,
"initialize": "",
"finalize": "",
"libs": [],
"x": 550,
"y": 80,
"wires": [
[
"9fadcc36a22ec38b"
]
]
},
{
"id": "01c35b9bb3921713",
"type": "function",
"z": "9582121ff81174a6",
"g": "19ede36faf38f69b",
"name": "big_fan2_speed (Chamber)",
"func": "var percentages = {\n \"0\": 0,\n \"1\": 10,\n \"2\": 20,\n \"4\": 30,\n \"5\": 40,\n \"7\": 50,\n \"9\": 60,\n \"10\": 70,\n \"12\": 80,\n \"13\": 90,\n \"15\": 100\n}\n\n msg.payload = percentages[msg.payload]\n\n return [msg];\n\n\n\n\n//msg.payload.print.big_fan1_speed_pct = percentages[msg.payload.print.big_fan1_speed]\n//msg.payload.print.big_fan2_speed_pct = percentages[msg.payload.print.big_fan2_speed]\n//msg.payload.print.heatbreak_fan_speed_pct = percentages[msg.payload.print.heatbreak_fan_speed]\n//msg.payload.print.cooling_fan_speed_pct = percentages[msg.payload.print.cooling_fan_speed]\n\n// Overwrite\n//msg.payload.print.big_fan1_speed = percentages[msg.payload.print.big_fan1_speed]\n//msg.payload.print.big_fan2_speed = percentages[msg.payload.print.big_fan2_speed]\n//msg.payload.print.heatbreak_fan_speed = percentages[msg.payload.print.heatbreak_fan_speed]\n//msg.payload.print.cooling_fan_speed = percentages[msg.payload.print.cooling_fan_speed]\n\n\n//node.send(msg)",
"outputs": 1,
"noerr": 0,
"initialize": "",
"finalize": "",
"libs": [],
"x": 580,
"y": 280,
"wires": [
[
"9fadcc36a22ec38b"
]
]
},
{
"id": "3eb26b7322587c6b",
"type": "function",
"z": "9582121ff81174a6",
"g": "19ede36faf38f69b",
"name": "big_fan1_speed (AUX)",
"func": "var percentages = {\n \"0\": 0,\n \"1\": 10,\n \"2\": 20,\n \"4\": 30,\n \"5\": 40,\n \"7\": 50,\n \"9\": 60,\n \"10\": 70,\n \"12\": 80,\n \"13\": 90,\n \"15\": 100\n}\n\n msg.payload = percentages[msg.payload]\n\n return [msg];\n\n\n\n\n//msg.payload.print.big_fan1_speed_pct = percentages[msg.payload.print.big_fan1_speed]\n//msg.payload.print.big_fan2_speed_pct = percentages[msg.payload.print.big_fan2_speed]\n//msg.payload.print.heatbreak_fan_speed_pct = percentages[msg.payload.print.heatbreak_fan_speed]\n//msg.payload.print.cooling_fan_speed_pct = percentages[msg.payload.print.cooling_fan_speed]\n\n// Overwrite\n//msg.payload.print.big_fan1_speed = percentages[msg.payload.print.big_fan1_speed]\n//msg.payload.print.big_fan2_speed = percentages[msg.payload.print.big_fan2_speed]\n//msg.payload.print.heatbreak_fan_speed = percentages[msg.payload.print.heatbreak_fan_speed]\n//msg.payload.print.cooling_fan_speed = percentages[msg.payload.print.cooling_fan_speed]\n\n\n//node.send(msg)",
"outputs": 1,
"noerr": 0,
"initialize": "",
"finalize": "",
"libs": [],
"x": 560,
"y": 240,
"wires": [
[
"9fadcc36a22ec38b"
]
]
},
{
"id": "21081e6a23dc83a1",
"type": "function",
"z": "9582121ff81174a6",
"g": "19ede36faf38f69b",
"name": "remaining_time",
"func": "//var timeleft = 3727; //1h:2m:7s\n//Umrechnung in Stunden, Minuten, Sekunden\n\nvar hour = Math.floor((msg.payload % 3600) / 60);\nvar minute = Math.floor(msg.payload % 60);\n\n//Den String von Stunden, Minuten und Sekunden auf 2 Stellen ändern\nif (hour < 10) {\nhour = \"0\" + hour;\n}\n\nif (minute < 10) {\nminute = \"0\" + minute;\n}\n\n\nmsg.payload = hour + \":\" + minute;\n\n\n\n\nreturn msg;\n\n",
"outputs": 1,
"noerr": 0,
"initialize": "",
"finalize": "",
"libs": [],
"x": 540,
"y": 320,
"wires": [
[
"9fadcc36a22ec38b"
]
]
},
{
"id": "cd5f62e24a3e846f",
"type": "function",
"z": "9582121ff81174a6",
"g": "c3f9f96853c3f09c",
"name": "erstelle Jarvis Benachrichtigung",
"func": "var jarvisNotify = {};\n//Beispiele\njarvisNotify.title = \"Abschalten nicht möglich\";\njarvisNotify.caption = \"\"; // wird unter dem Titel angezeigt\njarvisNotify.message = '<b>Ich drucke gerade, die Steckdose abzuschalten wäre eine blöde Idee!</b>';\n// Alternative Möglichkeiten\n//jarvisNotify.message= '<img src=\"http://192.168.178.89/download/Weltkarte.jpg\" height=\"auto\" width=\"100%\"></img>'; //Klappt, wird komplett angezeigt\n//jarvisNotify.message= '<iFrame src=\"http://192.168.178.89/download/Weltkarte.jpg\" height=\"auto\" width=\"100%\"></iFrame>'; //Klappt nicht, nur Teil wird angezeigt\n//jarvisNotify.message= getState('0_userdata.0.jarvis.pollenflug.Html').val;\n//jarvisNotify.message= getState('0_userdata.0.Html.HTML').val;\n//jarvisNotify.state = \"unread\"; //Damit bleibt die Benachrichtigung auch nach POPUP ungelesen und wird oben angezeigt mit der Zahl\njarvisNotify.criticality = \"error\"; // error,warning,info,success\njarvisNotify.display = \"popup\"; //drawer,snackbar,popup, none für focusTab\njarvisNotify.timeout = 10000; //10000ms -> 10 Sekunden\n//jarvisNotify.timeout = 15000; //5000ms -> 5 Sekunden\n//jarvisNotify.spinner= false; // drehender dreiViertel Kreis\njarvisNotify.progress = true;\njarvisNotify.position = \"top-left\";\njarvisNotify.icon = \"ic:outline-error\"; //mdi Iconify battery-alert-variant-outline\njarvisNotify.iconColor = \"white\";\njarvisNotify.color = \"red\";\njarvisNotify.textColor = \"white\";\nmsg.payload = JSON.stringify(jarvisNotify);\nreturn msg;",
"outputs": 1,
"noerr": 0,
"initialize": "",
"finalize": "",
"libs": [],
"x": 710,
"y": 540,
"wires": [
[
"964df5b70be104e6"
]
]
},
{
"id": "964df5b70be104e6",
"type": "ioBroker out",
"z": "9582121ff81174a6",
"g": "c3f9f96853c3f09c",
"name": "Datenpunkt Jarvis Benachrichtigung",
"topic": "jarvis.0.addNotification",
"ack": "false",
"autoCreate": "false",
"stateName": "",
"role": "",
"payloadType": "",
"readonly": "",
"stateUnit": "",
"stateMin": "",
"stateMax": "",
"x": 1030,
"y": 540,
"wires": []
},
{
"id": "ebace1619b2a4e15",
"type": "switch",
"z": "9582121ff81174a6",
"g": "c3f9f96853c3f09c",
"name": "> oder < als 1",
"property": "payload",
"propertyType": "msg",
"rules": [
{
"t": "gt",
"v": "1",
"vt": "str"
},
{
"t": "lt",
"v": "1",
"vt": "str"
}
],
"checkall": "true",
"repair": false,
"outputs": 2,
"x": 440,
"y": 540,
"wires": [
[
"cd5f62e24a3e846f",
"72cb87b2b06c4f05"
],
[
"aeb883c176549af3"
]
],
"outputLabels": [
"Druck aktiv",
"Druck nicht aktiv"
]
},
{
"id": "3143caf661f13237",
"type": "ioBroker get",
"z": "9582121ff81174a6",
"g": "c3f9f96853c3f09c",
"name": "heatbreak_fan_speed",
"topic": "0_userdata.0.X1C.print.heatbreak_fan_speed",
"attrname": "payload",
"payloadType": "value",
"errOnInvalidState": "nothing",
"x": 220,
"y": 540,
"wires": [
[
"ebace1619b2a4e15"
]
]
},
{
"id": "aeb883c176549af3",
"type": "change",
"z": "9582121ff81174a6",
"g": "c3f9f96853c3f09c",
"name": "setze msg.payload auf false",
"rules": [
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "false",
"tot": "bool"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 700,
"y": 580,
"wires": [
[
"4ce8104a4e434a82"
]
]
},
{
"id": "f683e53accbca89f",
"type": "ioBroker in",
"z": "9582121ff81174a6",
"g": "c3f9f96853c3f09c",
"name": "Schalter in Dashboard (Steckdose Drucker)",
"topic": "0_userdata.0.X1C.Steckdose-Steuerung",
"payloadType": "value",
"onlyack": "",
"func": "all",
"gap": "",
"fireOnStart": "false",
"outFormat": "MQTT",
"x": 280,
"y": 460,
"wires": [
[
"cff0b21c459cab43"
]
]
},
{
"id": "cff0b21c459cab43",
"type": "switch",
"z": "9582121ff81174a6",
"g": "c3f9f96853c3f09c",
"name": "TRUE oder FALSE?",
"property": "payload",
"propertyType": "msg",
"rules": [
{
"t": "true"
},
{
"t": "false"
}
],
"checkall": "true",
"repair": false,
"outputs": 2,
"x": 220,
"y": 500,
"wires": [
[
"4ce8104a4e434a82"
],
[
"3143caf661f13237"
]
]
},
{
"id": "64fa2ca669c5a78d",
"type": "ioBroker out",
"z": "9582121ff81174a6",
"g": "c3f9f96853c3f09c",
"name": "Schalter in Dashboard (Steckdose Drucker)",
"topic": "0_userdata.0.X1C.Steckdose-Steuerung",
"ack": "false",
"autoCreate": "true",
"stateName": "",
"role": "",
"payloadType": "boolean",
"readonly": "false",
"stateUnit": "",
"stateMin": "",
"stateMax": "",
"x": 1090,
"y": 480,
"wires": []
},
{
"id": "72cb87b2b06c4f05",
"type": "change",
"z": "9582121ff81174a6",
"g": "c3f9f96853c3f09c",
"name": "setze msg.payload auf true",
"rules": [
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "true",
"tot": "bool"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 700,
"y": 460,
"wires": [
[
"64fa2ca669c5a78d"
]
]
},
{
"id": "b5c862f5d50c56cb",
"type": "switch",
"z": "9582121ff81174a6",
"g": "4380d7035264bead",
"name": "FALSE oder nicht?",
"property": "payload",
"propertyType": "msg",
"rules": [
{
"t": "false"
},
{
"t": "else"
}
],
"checkall": "true",
"repair": false,
"outputs": 2,
"x": 1230,
"y": 160,
"wires": [
[
"144c29803a38e2a4"
],
[
"2e71b198fe06ccdb"
]
]
},
{
"id": "2e71b198fe06ccdb",
"type": "change",
"z": "9582121ff81174a6",
"g": "4380d7035264bead",
"name": "setze msg.payload auf online",
"rules": [
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "online",
"tot": "str"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 1260,
"y": 240,
"wires": [
[
"3a131237a7bdec9d"
]
]
},
{
"id": "144c29803a38e2a4",
"type": "change",
"z": "9582121ff81174a6",
"g": "4380d7035264bead",
"name": "setze msg.payload auf offline",
"rules": [
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "offline",
"tot": "str"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 1260,
"y": 200,
"wires": [
[
"3a131237a7bdec9d"
]
]
},
{
"id": "4ce8104a4e434a82",
"type": "ioBroker out",
"z": "9582121ff81174a6",
"g": "c3f9f96853c3f09c",
"name": "Datenpunkt Steckdose Drucker An/AUS",
"topic": "alias.0.Buero.3D-Drucker.SET",
"ack": "false",
"autoCreate": "false",
"stateName": "",
"role": "",
"payloadType": "",
"readonly": "",
"stateUnit": "",
"stateMin": "",
"stateMax": "",
"x": 740,
"y": 500,
"wires": []
},
{
"id": "3a131237a7bdec9d",
"type": "ioBroker out",
"z": "9582121ff81174a6",
"g": "4380d7035264bead",
"name": "Datenpunkt Verbindungsstatus des Druckers",
"topic": "0_userdata.0.X1C.Verbindungsstatus",
"ack": "false",
"autoCreate": "true",
"stateName": "",
"role": "",
"payloadType": "string",
"readonly": "false",
"stateUnit": "",
"stateMin": "",
"stateMax": "",
"x": 1290,
"y": 280,
"wires": []
},
{
"id": "e0079711246b60b0",
"type": "comment",
"z": "9582121ff81174a6",
"g": "c3f9f96853c3f09c",
"name": "Abschalten verhindern, wenn Heatbreak_Fan_Speed über 1 (Düse ist heiß)",
"info": "",
"x": 380,
"y": 420,
"wires": []
},
{
"id": "1d943caf9a8bc0f6",
"type": "ioBroker get",
"z": "9582121ff81174a6",
"g": "c3f9f96853c3f09c",
"name": "Schalter im Dashboard (Steckdose automatisch abschalten)",
"topic": "0_userdata.0.X1C.automatisch_abschalten",
"attrname": "payload",
"payloadType": "value",
"errOnInvalidState": "nothing",
"x": 340,
"y": 720,
"wires": [
[
"c8abbf4d53a09ffe"
]
]
},
{
"id": "ff01d8a59e17dc93",
"type": "inject",
"z": "9582121ff81174a6",
"g": "c3f9f96853c3f09c",
"name": "alle 10 Min. TRUE senden",
"props": [
{
"p": "payload"
}
],
"repeat": "600",
"crontab": "",
"once": false,
"onceDelay": 0.1,
"topic": "",
"payload": "true",
"payloadType": "bool",
"x": 240,
"y": 820,
"wires": [
[
"1d943caf9a8bc0f6"
]
]
},
{
"id": "c8abbf4d53a09ffe",
"type": "switch",
"z": "9582121ff81174a6",
"g": "c3f9f96853c3f09c",
"name": "TRUE?",
"property": "payload",
"propertyType": "msg",
"rules": [
{
"t": "true"
}
],
"checkall": "true",
"repair": false,
"outputs": 1,
"x": 180,
"y": 760,
"wires": [
[
"c5c06330d2e576f6"
]
]
},
{
"id": "f97a028e21d51bfb",
"type": "switch",
"z": "9582121ff81174a6",
"g": "c3f9f96853c3f09c",
"name": "> oder < als 1",
"property": "payload",
"propertyType": "msg",
"rules": [
{
"t": "gt",
"v": "1",
"vt": "str"
},
{
"t": "lt",
"v": "1",
"vt": "str"
}
],
"checkall": "true",
"repair": false,
"outputs": 2,
"x": 560,
"y": 760,
"wires": [
[],
[
"cac765606601d65c"
]
],
"outputLabels": [
"Druck aktiv",
"Druck nicht aktiv"
]
},
{
"id": "c5c06330d2e576f6",
"type": "ioBroker get",
"z": "9582121ff81174a6",
"g": "c3f9f96853c3f09c",
"name": "heatbreak_fan_speed",
"topic": "0_userdata.0.X1C.print.heatbreak_fan_speed",
"attrname": "payload",
"payloadType": "value",
"errOnInvalidState": "nothing",
"x": 360,
"y": 760,
"wires": [
[
"f97a028e21d51bfb"
]
]
},
{
"id": "cac765606601d65c",
"type": "change",
"z": "9582121ff81174a6",
"g": "c3f9f96853c3f09c",
"name": "setze msg.payload auf false",
"rules": [
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "false",
"tot": "bool"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 780,
"y": 760,
"wires": [
[
"ae46dbed7e5925ae",
"445ce2a0ad0a534a",
"0c5048b46f072d52"
]
]
},
{
"id": "ae46dbed7e5925ae",
"type": "ioBroker out",
"z": "9582121ff81174a6",
"g": "c3f9f96853c3f09c",
"name": "Datenpunkt Steckdose Drucker An/AUS",
"topic": "alias.0.Buero.3D-Drucker.SET",
"ack": "false",
"autoCreate": "false",
"stateName": "",
"role": "",
"payloadType": "",
"readonly": "",
"stateUnit": "",
"stateMin": "",
"stateMax": "",
"x": 1120,
"y": 720,
"wires": []
},
{
"id": "445ce2a0ad0a534a",
"type": "ioBroker out",
"z": "9582121ff81174a6",
"g": "c3f9f96853c3f09c",
"name": "Schalter im Dashboard (Steckdose automatisch abschalten)",
"topic": "0_userdata.0.X1C.automatisch_abschalten",
"ack": "false",
"autoCreate": "true",
"stateName": "",
"role": "",
"payloadType": "boolean",
"readonly": "false",
"stateUnit": "",
"stateMin": "",
"stateMax": "",
"x": 1180,
"y": 800,
"wires": []
},
{
"id": "79d8f512af50dd04",
"type": "comment",
"z": "9582121ff81174a6",
"g": "c3f9f96853c3f09c",
"name": "automatisch Abschalten nach Druck",
"info": "",
"x": 260,
"y": 680,
"wires": []
},
{
"id": "0c5048b46f072d52",
"type": "ioBroker out",
"z": "9582121ff81174a6",
"g": "c3f9f96853c3f09c",
"name": "Schalter in Dashboard (Steckdose Drucker)",
"topic": "0_userdata.0.X1C.Steckdose-Steuerung",
"ack": "false",
"autoCreate": "true",
"stateName": "",
"role": "",
"payloadType": "boolean",
"readonly": "false",
"stateUnit": "",
"stateMin": "",
"stateMax": "",
"x": 1130,
"y": 760,
"wires": []
},
{
"id": "5c0e9eddf913e64d",
"type": "inject",
"z": "9582121ff81174a6",
"g": "c3f9f96853c3f09c",
"name": "nur zum Testen",
"props": [
{
"p": "payload"
}
],
"repeat": "",
"crontab": "",
"once": false,
"onceDelay": 0.1,
"topic": "",
"payload": "true",
"payloadType": "bool",
"x": 1180,
"y": 420,
"wires": [
[
"4ce8104a4e434a82"
]
]
},
{
"id": "d2a5ed4e2b8c8674",
"type": "ping",
"z": "9582121ff81174a6",
"g": "4380d7035264bead",
"protocol": "IPv4",
"mode": "timed",
"name": "Ping IP des Druckers",
"host": "192.168.0.111",
"timer": "60",
"inputs": 0,
"x": 1200,
"y": 120,
"wires": [
[
"b5c862f5d50c56cb"
]
]
},
{
"id": "84f61d394ba2ab34",
"type": "mqtt-broker",
"name": "Bambu X1C MQTT Bambu_X1C",
"broker": "IP_Deines_Druckers",
"port": "8883",
"tls": "",
"clientid": "",
"autoConnect": true,
"usetls": true,
"protocolVersion": "4",
"keepalive": "60",
"cleansession": true,
"birthTopic": "",
"birthQos": "0",
"birthPayload": "",
"birthMsg": {},
"closeTopic": "",
"closeQos": "0",
"closePayload": "",
"closeMsg": {},
"willTopic": "",
"willQos": "0",
"willPayload": "",
"willMsg": {},
"userProps": "",
"sessionExpiry": ""
}
]
oder meinst du ich kann auch deine Datei nutzen?
das werde ich mir heute Abend mal in Ruhe ansehen. Und wenn es gewisse Sachen gibt die der p1p nicht hat machte es erstmal nix wenn ich es nach der Anleitung mache?
(sollte nicht nebeneinander sein)
.
