@aphofis ich habe Dir eine pm geschick.

Abgesehen davon eine Variable / Objekt minutenweise hoch / runterzählen und diese in der VIS anzeigen.

[Aphofis]

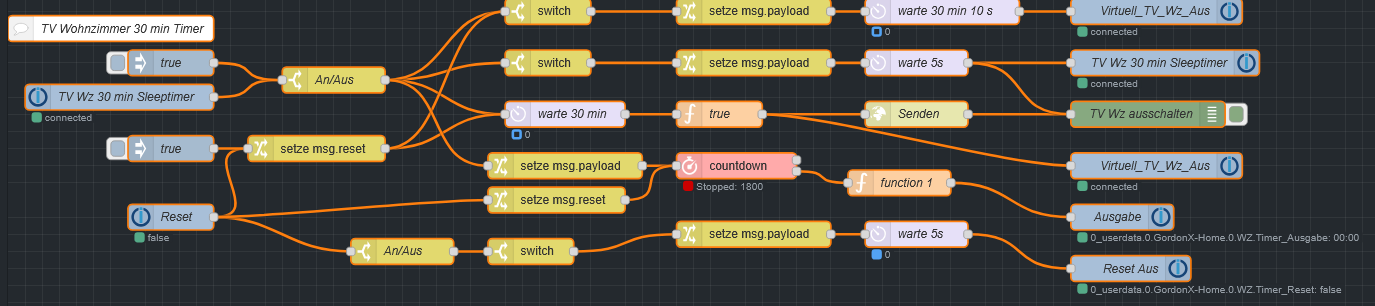

Habe es jetzt so gelöst oder hätte noch jemand einen Verbesserungsvorschlag !?

Spoiler

[
    {
        "id": "657a29111f4d98bb",
        "type": "ioBroker in",
        "z": "7f2248c482cba092",
        "name": "TV Wz 30 min Sleeptimer",
        "attrname": "payload",
        "topic": "0_userdata.0.GordonX-Home.Multimedia.TV_Wz_Sleeptimer_30",
        "payloadType": "value",
        "onlyack": "",
        "func": "all",
        "gap": "",
        "fireOnStart": "false",
        "outFormat": "MQTT",
        "x": 130,
        "y": 860,
        "wires": [
            [
                "06386eab5a4382e4"
            ]
        ]
    },
    {
        "id": "03fee2c5f9bfe48b",
        "type": "function",
        "z": "7f2248c482cba092",
        "name": "true",
        "func": "true\nreturn msg;",
        "outputs": 1,
        "timeout": 0,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 830,
        "y": 880,
        "wires": [
            [
                "05fb599aecc3770e",
                "43759989fe68a887"
            ]
        ]
    },
    {
        "id": "06386eab5a4382e4",
        "type": "switch",
        "z": "7f2248c482cba092",
        "name": "An/Aus",
        "property": "payload",
        "propertyType": "msg",
        "rules": [
            {
                "t": "true"
            }
        ],
        "checkall": "true",
        "repair": false,
        "outputs": 1,
        "x": 380,
        "y": 840,
        "wires": [
            [
                "1e93157e2d2a0758",
                "56e6feee6d29c77c",
                "9d1e652bd4c77b96",
                "9b3f654670c88cca"
            ]
        ]
    },
    {
        "id": "8ed4e0297169a431",
        "type": "inject",
        "z": "7f2248c482cba092",
        "name": "true",
        "props": [
            {
                "p": "payload"
            },
            {
                "p": "topic",
                "vt": "str"
            }
        ],
        "repeat": "",
        "crontab": "",
        "once": false,
        "onceDelay": 0.1,
        "topic": "",
        "payload": "true",
        "payloadType": "bool",
        "x": 190,
        "y": 820,
        "wires": [
            [
                "06386eab5a4382e4"
            ]
        ]
    },
    {
        "id": "03c77af9499ca2ce",
        "type": "ioBroker out",
        "z": "7f2248c482cba092",
        "name": "TV Wz 30 min Sleeptimer",
        "topic": "0_userdata.0.GordonX-Home.Multimedia.TV_Wz_Sleeptimer_30",
        "ack": "false",
        "autoCreate": "false",
        "stateName": "",
        "role": "",
        "payloadType": "",
        "readonly": "",
        "stateUnit": "",
        "stateMin": "",
        "stateMax": "",
        "x": 1350,
        "y": 820,
        "wires": []
    },
    {
        "id": "05fb599aecc3770e",
        "type": "http request",
        "z": "7f2248c482cba092",
        "name": "Senden",
        "method": "GET",
        "ret": "txt",
        "paytoqs": "ignore",
        "url": "https:Link2",
        "tls": "",
        "persist": false,
        "proxy": "",
        "insecureHTTPParser": false,
        "authType": "",
        "senderr": false,
        "headers": [],
        "x": 1060,
        "y": 880,
        "wires": [
            [
                "83e9acb29426f8de"
            ]
        ]
    },
    {
        "id": "83e9acb29426f8de",
        "type": "debug",
        "z": "7f2248c482cba092",
        "name": "TV Wz ausschalten",
        "active": true,
        "tosidebar": true,
        "console": false,
        "tostatus": false,
        "complete": "payload",
        "targetType": "msg",
        "statusVal": "",
        "statusType": "auto",
        "x": 1330,
        "y": 880,
        "wires": []
    },
    {
        "id": "1e93157e2d2a0758",
        "type": "switch",
        "z": "7f2248c482cba092",
        "name": "",
        "property": "payload",
        "propertyType": "msg",
        "rules": [
            {
                "t": "true"
            }
        ],
        "checkall": "true",
        "repair": false,
        "outputs": 1,
        "x": 630,
        "y": 820,
        "wires": [
            [
                "6840d3e2b21ccd24"
            ]
        ]
    },
    {
        "id": "6840d3e2b21ccd24",
        "type": "change",
        "z": "7f2248c482cba092",
        "name": "",
        "rules": [
            {
                "t": "set",
                "p": "payload",
                "pt": "msg",
                "to": "false",
                "tot": "bool"
            }
        ],
        "action": "",
        "property": "",
        "from": "",
        "to": "",
        "reg": false,
        "x": 870,
        "y": 820,
        "wires": [
            [
                "5d265fd7108ea938"
            ]
        ]
    },
    {
        "id": "5d265fd7108ea938",
        "type": "delay",
        "z": "7f2248c482cba092",
        "name": "warte 5s",
        "pauseType": "delay",
        "timeout": "5",
        "timeoutUnits": "seconds",
        "rate": "1",
        "nbRateUnits": "1",
        "rateUnits": "second",
        "randomFirst": "1",
        "randomLast": "5",
        "randomUnits": "seconds",
        "drop": false,
        "allowrate": false,
        "outputs": 1,
        "x": 1060,
        "y": 820,
        "wires": [
            [
                "03c77af9499ca2ce",
                "83e9acb29426f8de"
            ]
        ]
    },
    {
        "id": "56e6feee6d29c77c",
        "type": "delay",
        "z": "7f2248c482cba092",
        "name": "warte 30 min",
        "pauseType": "delay",
        "timeout": "30",
        "timeoutUnits": "minutes",
        "rate": "1",
        "nbRateUnits": "1",
        "rateUnits": "second",
        "randomFirst": "1",
        "randomLast": "5",
        "randomUnits": "seconds",
        "drop": false,
        "allowrate": false,
        "outputs": 1,
        "x": 650,
        "y": 880,
        "wires": [
            [
                "03fee2c5f9bfe48b"
            ]
        ]
    },
    {
        "id": "9d1e652bd4c77b96",
        "type": "switch",
        "z": "7f2248c482cba092",
        "name": "",
        "property": "payload",
        "propertyType": "msg",
        "rules": [
            {
                "t": "true"
            }
        ],
        "checkall": "true",
        "repair": false,
        "outputs": 1,
        "x": 630,
        "y": 760,
        "wires": [
            [
                "635563c582edcdbc"
            ]
        ]
    },
    {
        "id": "635563c582edcdbc",
        "type": "change",
        "z": "7f2248c482cba092",
        "name": "",
        "rules": [
            {
                "t": "set",
                "p": "payload",
                "pt": "msg",
                "to": "false",
                "tot": "bool"
            }
        ],
        "action": "",
        "property": "",
        "from": "",
        "to": "",
        "reg": false,
        "x": 870,
        "y": 760,
        "wires": [
            [
                "d0a5a68eda125fd2"
            ]
        ]
    },
    {
        "id": "d0a5a68eda125fd2",
        "type": "delay",
        "z": "7f2248c482cba092",
        "name": "warte 30 min 10 s",
        "pauseType": "delay",
        "timeout": "1810",
        "timeoutUnits": "seconds",
        "rate": "1",
        "nbRateUnits": "1",
        "rateUnits": "second",
        "randomFirst": "1",
        "randomLast": "5",
        "randomUnits": "seconds",
        "drop": false,
        "allowrate": false,
        "outputs": 1,
        "x": 1090,
        "y": 760,
        "wires": [
            [
                "49c6a4df3fac9059"
            ]
        ]
    },
    {
        "id": "49c6a4df3fac9059",
        "type": "ioBroker out",
        "z": "7f2248c482cba092",
        "name": "Virtuell_TV_Wz_Aus",
        "topic": "0_userdata.0.GordonX-Home.Multimedia.TV_Wz_ausschalten",
        "ack": "false",
        "autoCreate": "false",
        "stateName": "",
        "role": "",
        "payloadType": "",
        "readonly": "",
        "stateUnit": "",
        "stateMin": "",
        "stateMax": "",
        "x": 1340,
        "y": 760,
        "wires": []
    },
    {
        "id": "43759989fe68a887",
        "type": "ioBroker out",
        "z": "7f2248c482cba092",
        "name": "Virtuell_TV_Wz_Aus",
        "topic": "0_userdata.0.GordonX-Home.Multimedia.TV_Wz_ausschalten",
        "ack": "false",
        "autoCreate": "false",
        "stateName": "",
        "role": "",
        "payloadType": "",
        "readonly": "",
        "stateUnit": "",
        "stateMin": "",
        "stateMax": "",
        "x": 1340,
        "y": 940,
        "wires": []
    },
    {
        "id": "88288b8c30685061",
        "type": "comment",
        "z": "7f2248c482cba092",
        "name": "TV Wohnzimmer 30 min Timer",
        "info": "",
        "x": 120,
        "y": 780,
        "wires": []
    },
    {
        "id": "bdf3a79d13fd8e7b",
        "type": "change",
        "z": "7f2248c482cba092",
        "name": "",
        "rules": [
            {
                "t": "set",
                "p": "reset",
                "pt": "msg",
                "to": "",
                "tot": "str"
            }
        ],
        "action": "",
        "property": "",
        "from": "",
        "to": "",
        "reg": false,
        "x": 360,
        "y": 920,
        "wires": [
            [
                "56e6feee6d29c77c",
                "9d1e652bd4c77b96"
            ]
        ]
    },
    {
        "id": "9abccbe0a93ba394",
        "type": "ioBroker in",
        "z": "7f2248c482cba092",
        "name": "Reset",
        "attrname": "payload",
        "topic": "0_userdata.0.GordonX-Home.0.WZ.Timer_Reset",
        "payloadType": "value",
        "onlyack": "",
        "func": "all",
        "gap": "",
        "fireOnStart": "false",
        "outFormat": "MQTT",
        "x": 190,
        "y": 1000,
        "wires": [
            [
                "bdf3a79d13fd8e7b",
                "f4b725794c882bed",
                "5933cd868695c0b5"
            ]
        ]
    },
    {
        "id": "26680d42f339fe80",
        "type": "inject",
        "z": "7f2248c482cba092",
        "name": "true",
        "props": [
            {
                "p": "payload"
            },
            {
                "p": "topic",
                "vt": "str"
            }
        ],
        "repeat": "",
        "crontab": "",
        "once": false,
        "onceDelay": 0.1,
        "topic": "",
        "payload": "true",
        "payloadType": "bool",
        "x": 190,
        "y": 920,
        "wires": [
            [
                "bdf3a79d13fd8e7b"
            ]
        ]
    },
    {
        "id": "13913b3131360f17",
        "type": "ioBroker out",
        "z": "7f2248c482cba092",
        "name": "Reset Aus",
        "topic": "0_userdata.0.GordonX-Home.0.WZ.Timer_Reset",
        "ack": "false",
        "autoCreate": "false",
        "stateName": "",
        "role": "",
        "payloadType": "",
        "readonly": "",
        "stateUnit": "",
        "stateMin": "",
        "stateMax": "",
        "x": 1310,
        "y": 1060,
        "wires": []
    },
    {
        "id": "adb3302cf05ac0ec",
        "type": "switch",
        "z": "7f2248c482cba092",
        "name": "",
        "property": "payload",
        "propertyType": "msg",
        "rules": [
            {
                "t": "true"
            }
        ],
        "checkall": "true",
        "repair": false,
        "outputs": 1,
        "x": 610,
        "y": 1040,
        "wires": [
            [
                "2523e189e1c847a9"
            ]
        ]
    },
    {
        "id": "2523e189e1c847a9",
        "type": "change",
        "z": "7f2248c482cba092",
        "name": "",
        "rules": [
            {
                "t": "set",
                "p": "payload",
                "pt": "msg",
                "to": "false",
                "tot": "bool"
            }
        ],
        "action": "",
        "property": "",
        "from": "",
        "to": "",
        "reg": false,
        "x": 870,
        "y": 1020,
        "wires": [
            [
                "26309dc0fc830204"
            ]
        ]
    },
    {
        "id": "f4b725794c882bed",
        "type": "switch",
        "z": "7f2248c482cba092",
        "name": "An/Aus",
        "property": "payload",
        "propertyType": "msg",
        "rules": [
            {
                "t": "true"
            }
        ],
        "checkall": "true",
        "repair": false,
        "outputs": 1,
        "x": 460,
        "y": 1040,
        "wires": [
            [
                "adb3302cf05ac0ec"
            ]
        ]
    },
    {
        "id": "26309dc0fc830204",
        "type": "delay",
        "z": "7f2248c482cba092",
        "name": "warte 5s",
        "pauseType": "delay",
        "timeout": "5",
        "timeoutUnits": "seconds",
        "rate": "1",
        "nbRateUnits": "1",
        "rateUnits": "second",
        "randomFirst": "1",
        "randomLast": "5",
        "randomUnits": "seconds",
        "drop": false,
        "allowrate": false,
        "outputs": 1,
        "x": 1060,
        "y": 1020,
        "wires": [
            [
                "13913b3131360f17"
            ]
        ]
    },
    {
        "id": "a945f31a080aae2f",
        "type": "countdown",
        "z": "7f2248c482cba092",
        "name": "",
        "topic": "Countdown",
        "payloadTimerStart": "true",
        "payloadTimerStartType": "bool",
        "payloadTimerStop": "false",
        "payloadTimerStopType": "bool",
        "timer": "1800",
        "resetWhileRunning": false,
        "outputOnReset": true,
        "setTimeToNewWhileRunning": true,
        "startCountdownOnControlMessage": false,
        "x": 850,
        "y": 940,
        "wires": [
            [],
            [
                "67f1c6fa28ea2c99"
            ]
        ]
    },
    {
        "id": "9b3f654670c88cca",
        "type": "change",
        "z": "7f2248c482cba092",
        "name": "",
        "rules": [
            {
                "t": "set",
                "p": "payload",
                "pt": "msg",
                "to": "true",
                "tot": "bool"
            }
        ],
        "action": "",
        "property": "",
        "from": "",
        "to": "",
        "reg": false,
        "x": 650,
        "y": 940,
        "wires": [
            [
                "a945f31a080aae2f"
            ]
        ]
    },
    {
        "id": "67f1c6fa28ea2c99",
        "type": "function",
        "z": "7f2248c482cba092",
        "name": "function 1",
        "func": "var seconds = msg.payload; // Annahme: Der Wert in Sekunden wird als msg.payload übergeben\nvar minutes = Math.floor(seconds / 60); // Umrechnung in Minuten\nvar remainingSeconds = seconds % 60; // Restliche Sekunden\n\n// Formatierung für die Anzeige (optional)\nvar formattedMinutes = String(minutes).padStart(2, '0'); // Mindestens 2 Ziffern, mit 0 füllen\nvar formattedSeconds = String(remainingSeconds).padStart(2, '0'); // Mindestens 2 Ziffern, mit 0 füllen\n\nvar output = formattedMinutes + \":\" + formattedSeconds; // Formatierte Ausgabe\n\nmsg.payload = output; // Den formatierte Wert zurückgeben\n\nreturn msg;",
        "outputs": 1,
        "timeout": 0,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 1040,
        "y": 960,
        "wires": [
            [
                "1fd3331b69be7a4d"
            ]
        ]
    },
    {
        "id": "1fd3331b69be7a4d",
        "type": "ioBroker out",
        "z": "7f2248c482cba092",
        "name": "Ausgabe",
        "topic": "0_userdata.0.GordonX-Home.0.WZ.Timer_Ausgabe",
        "ack": "true",
        "autoCreate": "false",
        "stateName": "",
        "role": "",
        "payloadType": "",
        "readonly": "",
        "stateUnit": "",
        "stateMin": "",
        "stateMax": "",
        "x": 1300,
        "y": 1000,
        "wires": []
    },
    {
        "id": "5933cd868695c0b5",
        "type": "change",
        "z": "7f2248c482cba092",
        "name": "",
        "rules": [
            {
                "t": "set",
                "p": "reset",
                "pt": "msg",
                "to": "false",
                "tot": "bool"
            }
        ],
        "action": "",
        "property": "",
        "from": "",
        "to": "",
        "reg": false,
        "x": 640,
        "y": 980,
        "wires": [
            [
                "a945f31a080aae2f"
            ]
        ]
    }
]

Der Datenpunkt Timer Reset schaltet den Virtuellen Button nach 5 Sek. aus und resettet den internen Countdown.

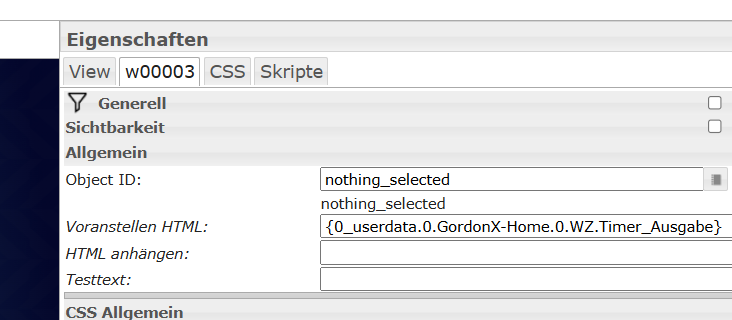

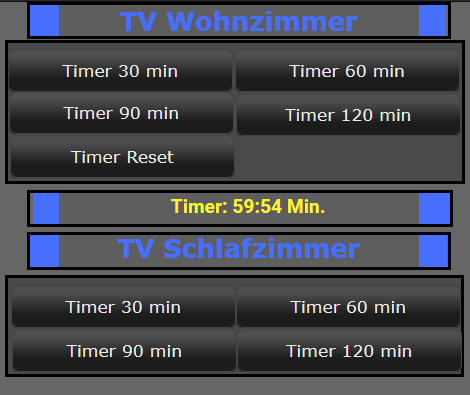

Die sekunden Countdown Ausgabe wird umgerechnet in Min und wird als String
in VIS ausgegeben.
Timer Reset startet dann den virtuellen datenpunkt Timer reset.

[peterfido]

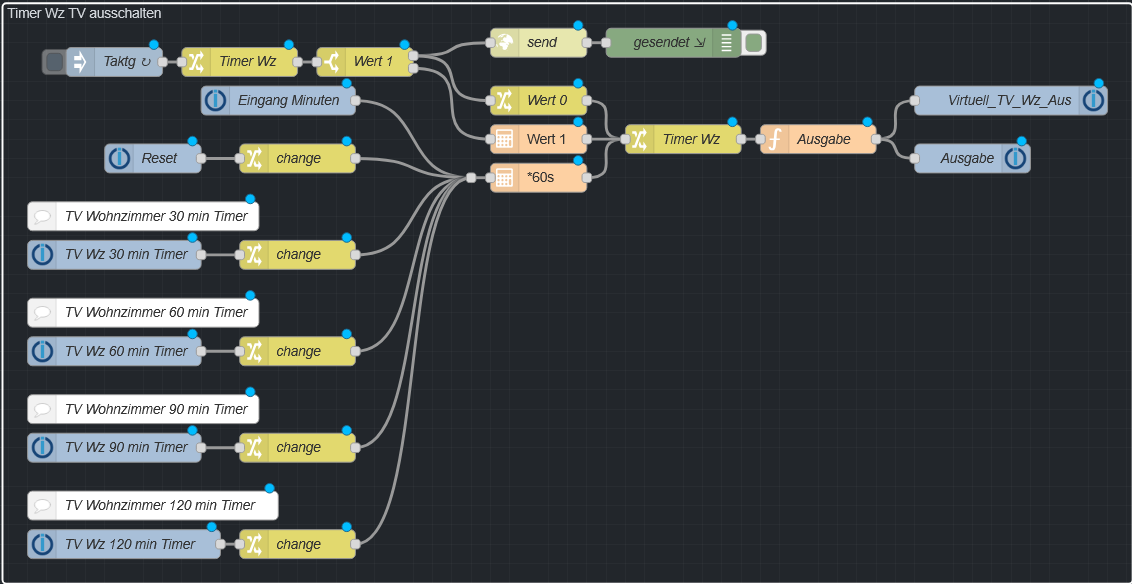

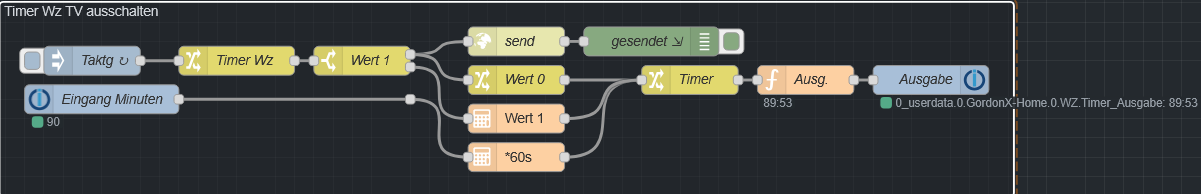

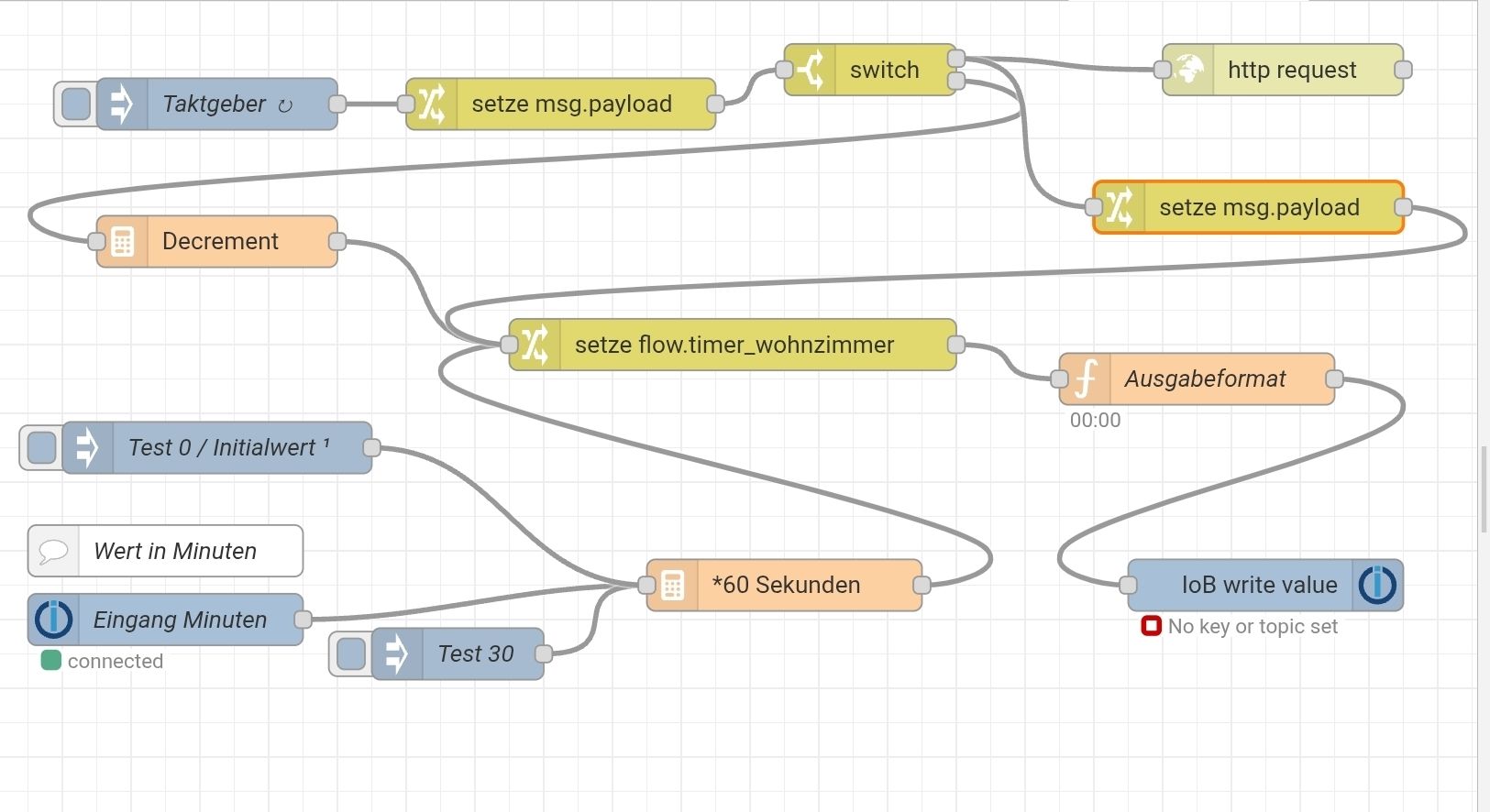

@aphofis Ich würde da ein Flow nehmen. Zum Start kommt ein Datenpunkt, welcher die Ablaufzeit in Minuten bekommt. Ist da eine 0 drin, stoppt der Timer.

[peterfido]

@aphofis Hier mal ein Beispiel für einen flexiblen Flow.

Spoiler

[
    {
        "id": "68fc964921cafbe6",
        "type": "tab",
        "label": "Flow 6",
        "disabled": false,
        "info": "",
        "env": []
    },
    {
        "id": "3893b9803cdb7c52",
        "type": "ioBroker in",
        "z": "68fc964921cafbe6",
        "name": "Eingang Minuten",
        "attrname": "payload",
        "topic": "*",
        "payloadType": "value",
        "onlyack": "",
        "func": "all",
        "gap": "",
        "fireOnStart": "false",
        "outFormat": "MQTT",
        "x": 100,
        "y": 360,
        "wires": [
            [
                "a5b3d39f70b9f4d0"
            ]
        ]
    },
    {
        "id": "45cdee4802ed1315",
        "type": "change",
        "z": "68fc964921cafbe6",
        "name": "",
        "rules": [
            {
                "t": "set",
                "p": "timer_wohnzimmer",
                "pt": "flow",
                "to": "payload",
                "tot": "msg"
            }
        ],
        "action": "",
        "property": "",
        "from": "",
        "to": "",
        "reg": false,
        "x": 430,
        "y": 200,
        "wires": [
            [
                "2a20e97f0835d02e"
            ]
        ]
    },
    {
        "id": "6f9ab607fd7abc21",
        "type": "inject",
        "z": "68fc964921cafbe6",
        "name": "Taktgeber",
        "props": [
            {
                "p": "payload"
            },
            {
                "p": "topic",
                "vt": "str"
            }
        ],
        "repeat": "1",
        "crontab": "",
        "once": true,
        "onceDelay": 0.1,
        "topic": "",
        "payload": "true",
        "payloadType": "bool",
        "x": 130,
        "y": 60,
        "wires": [
            [
                "c88552a77c3ff298"
            ]
        ]
    },
    {
        "id": "a5b3d39f70b9f4d0",
        "type": "calculator",
        "z": "68fc964921cafbe6",
        "name": "*60 Sekunden",
        "inputMsgField": "payload",
        "outputMsgField": "payload",
        "operation": "mult",
        "constant": "60",
        "round": true,
        "truncate": false,
        "decimals": 0,
        "decimals2": 0,
        "x": 460,
        "y": 340,
        "wires": [
            [
                "45cdee4802ed1315"
            ]
        ]
    },
    {
        "id": "999b5d7bd1728020",
        "type": "calculator",
        "z": "68fc964921cafbe6",
        "name": "",
        "inputMsgField": "payload",
        "outputMsgField": "payload",
        "operation": "dec",
        "constant": "1",
        "round": false,
        "truncate": false,
        "decimals": 0,
        "decimals2": 0,
        "x": 130,
        "y": 140,
        "wires": [
            [
                "45cdee4802ed1315"
            ]
        ]
    },
    {
        "id": "c88552a77c3ff298",
        "type": "change",
        "z": "68fc964921cafbe6",
        "name": "",
        "rules": [
            {
                "t": "set",
                "p": "payload",
                "pt": "msg",
                "to": "timer_wohnzimmer",
                "tot": "flow"
            }
        ],
        "action": "",
        "property": "",
        "from": "",
        "to": "",
        "reg": false,
        "x": 330,
        "y": 60,
        "wires": [
            [
                "4a325eb6226a8069"
            ]
        ]
    },
    {
        "id": "4a325eb6226a8069",
        "type": "switch",
        "z": "68fc964921cafbe6",
        "name": "",
        "property": "payload",
        "propertyType": "msg",
        "rules": [
            {
                "t": "eq",
                "v": "1",
                "vt": "num"
            },
            {
                "t": "gt",
                "v": "1",
                "vt": "num"
            }
        ],
        "checkall": "true",
        "repair": false,
        "outputs": 2,
        "x": 510,
        "y": 40,
        "wires": [
            [
                "6bb2381ccca40809",
                "da869348ba12e852"
            ],
            [
                "999b5d7bd1728020"
            ]
        ]
    },
    {
        "id": "6bb2381ccca40809",
        "type": "http request",
        "z": "68fc964921cafbe6",
        "name": "",
        "method": "GET",
        "ret": "txt",
        "paytoqs": false,
        "url": "",
        "persist": false,
        "insecureHTTPParser": false,
        "authType": "",
        "senderr": false,
        "headers": [],
        "x": 750,
        "y": 40,
        "wires": [
            []
        ]
    },
    {
        "id": "cfb47519c26e5ac3",
        "type": "ioBroker out",
        "z": "68fc964921cafbe6",
        "name": "",
        "topic": "",
        "ack": "false",
        "autoCreate": "false",
        "stateName": "",
        "role": "",
        "payloadType": "",
        "readonly": "",
        "stateUnit": "",
        "stateMin": "",
        "stateMax": "",
        "x": 740,
        "y": 340,
        "wires": []
    },
    {
        "id": "2a20e97f0835d02e",
        "type": "function",
        "z": "68fc964921cafbe6",
        "name": "Ausgabeformat",
        "func": "var min = (Math.floor(msg.payload / 60)).toString();\nvar sek = (msg.payload % 60).toString();\n\nif(min.length == 1){min = \"0\"+min}\nif(sek.length == 1){sek = \"0\"+sek}\n\n\n\nmsg.payload=min+\":\"+sek;\n\nnode.status({text:msg.payload});\nreturn msg;",
        "outputs": 1,
        "timeout": 0,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 700,
        "y": 220,
        "wires": [
            [
                "cfb47519c26e5ac3"
            ]
        ]
    },
    {
        "id": "292cbc13d0f5deeb",
        "type": "inject",
        "z": "68fc964921cafbe6",
        "name": "Test 30",
        "props": [
            {
                "p": "payload"
            },
            {
                "p": "topic",
                "vt": "str"
            }
        ],
        "repeat": "",
        "crontab": "",
        "once": false,
        "onceDelay": 0.1,
        "topic": "",
        "payload": "30",
        "payloadType": "num",
        "x": 270,
        "y": 380,
        "wires": [
            [
                "a5b3d39f70b9f4d0"
            ]
        ]
    },
    {
        "id": "b232e14924174fe5",
        "type": "inject",
        "z": "68fc964921cafbe6",
        "name": "Test 0 / Initialwert",
        "props": [
            {
                "p": "payload"
            },
            {
                "p": "topic",
                "vt": "str"
            }
        ],
        "repeat": "",
        "crontab": "",
        "once": true,
        "onceDelay": 0.1,
        "topic": "",
        "payload": "0",
        "payloadType": "num",
        "x": 130,
        "y": 260,
        "wires": [
            [
                "a5b3d39f70b9f4d0"
            ]
        ]
    },
    {
        "id": "61e1b8494ba82566",
        "type": "comment",
        "z": "68fc964921cafbe6",
        "name": "Wert in Minuten",
        "info": "0 setzt den Timer zurück",
        "x": 100,
        "y": 320,
        "wires": []
    },
    {
        "id": "da869348ba12e852",
        "type": "change",
        "z": "68fc964921cafbe6",
        "name": "",
        "rules": [
            {
                "t": "set",
                "p": "payload",
                "pt": "msg",
                "to": "0",
                "tot": "num"
            }
        ],
        "action": "",
        "property": "",
        "from": "",
        "to": "",
        "reg": false,
        "x": 730,
        "y": 120,
        "wires": [
            [
                "45cdee4802ed1315"
            ]
        ]
    }
]

[Aphofis]

@peterfido
Also meinst du so !?

Spoiler

[
    {
        "id": "5d1010f91cf75832",
        "type": "group",
        "z": "7f2248c482cba092",
        "name": "Timer Wz TV ausschalten",
        "style": {
            "stroke": "#ffffff",
            "label": true
        },
        "nodes": [
            "05ebbd98f6e1d1a3",
            "0330ae5d7a4eb707",
            "01257e2007c762e5",
            "a24f824494da53d1",
            "d9bc1b5d1b2d6372",
            "56f073a673c958bf",
            "748676985059dae1",
            "718ac44a387c623d",
            "14b10251a9333f2e",
            "df9fef6fc476720d",
            "1572fed996796671",
            "1d3a226ebbcaa2cd",
            "d81bc19b4e5fd298",
            "e2763057da3bfa97",
            "1275ca33361eb1a3",
            "f8cbd1bc693d92a2",
            "8fb3c7d2e1e4b9f4",
            "2cd9d4f6e5a541ae",
            "57030e98382d17df",
            "0d973aaf1f267bb4",
            "b6c376da9095e5f6",
            "44f87371df1da811",
            "3dc1e7a8b6a548bb",
            "def271f53ed16274",
            "101371b61e64a31f",
            "2659eb1c1d0f3b8c",
            "c1c1ab4e9d849b60",
            "3ee328a0e5c921e5"
        ],
        "x": 14,
        "y": 779,
        "w": 1172,
        "h": 602
    },
    {
        "id": "05ebbd98f6e1d1a3",
        "type": "inject",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "Taktg",
        "props": [
            {
                "p": "payload"
            },
            {
                "p": "topic",
                "vt": "str"
            }
        ],
        "repeat": "1",
        "crontab": "",
        "once": true,
        "onceDelay": 0.1,
        "topic": "",
        "payload": "true",
        "payloadType": "bool",
        "x": 130,
        "y": 840,
        "wires": [
            [
                "a24f824494da53d1"
            ]
        ]
    },
    {
        "id": "0330ae5d7a4eb707",
        "type": "ioBroker in",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "Eingang Minuten",
        "attrname": "payload",
        "topic": "*",
        "payloadType": "value",
        "onlyack": "",
        "func": "all",
        "gap": "",
        "fireOnStart": "false",
        "outFormat": "MQTT",
        "x": 300,
        "y": 880,
        "wires": [
            [
                "3ee328a0e5c921e5"
            ]
        ]
    },
    {
        "id": "01257e2007c762e5",
        "type": "change",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "Timer Wz",
        "rules": [
            {
                "t": "set",
                "p": "timer_wohnzimmer",
                "pt": "flow",
                "to": "payload",
                "tot": "msg"
            }
        ],
        "action": "",
        "property": "",
        "from": "",
        "to": "",
        "reg": false,
        "x": 720,
        "y": 920,
        "wires": [
            [
                "748676985059dae1"
            ]
        ]
    },
    {
        "id": "a24f824494da53d1",
        "type": "change",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "Timer Wz",
        "rules": [
            {
                "t": "set",
                "p": "payload",
                "pt": "msg",
                "to": "timer_wohnzimmer",
                "tot": "flow"
            }
        ],
        "action": "",
        "property": "",
        "from": "",
        "to": "",
        "reg": false,
        "x": 260,
        "y": 840,
        "wires": [
            [
                "d9bc1b5d1b2d6372"
            ]
        ]
    },
    {
        "id": "d9bc1b5d1b2d6372",
        "type": "switch",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "Wert 1",
        "property": "payload",
        "propertyType": "msg",
        "rules": [
            {
                "t": "eq",
                "v": "1",
                "vt": "num"
            },
            {
                "t": "gt",
                "v": "1",
                "vt": "num"
            }
        ],
        "checkall": "true",
        "repair": false,
        "outputs": 2,
        "x": 390,
        "y": 840,
        "wires": [
            [
                "56f073a673c958bf",
                "718ac44a387c623d"
            ],
            [
                "df9fef6fc476720d"
            ]
        ]
    },
    {
        "id": "56f073a673c958bf",
        "type": "http request",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "send",
        "method": "GET",
        "ret": "txt",
        "paytoqs": "ignore",
        "url": "http://link_zur_aktivität_TV_Wz_ausschalten",
        "tls": "",
        "persist": false,
        "proxy": "",
        "insecureHTTPParser": false,
        "authType": "",
        "senderr": false,
        "headers": [],
        "x": 570,
        "y": 820,
        "wires": [
            [
                "57030e98382d17df"
            ]
        ]
    },
    {
        "id": "748676985059dae1",
        "type": "function",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "Ausgabe",
        "func": "var min = (Math.floor(msg.payload / 60)).toString();\nvar sek = (msg.payload % 60).toString();\n\nif(min.length == 1){min = \"0\"+min}\nif(sek.length == 1){sek = \"0\"+sek}\n\n\n\nmsg.payload=min+\":\"+sek;\n\nnode.status({text:msg.payload});\nreturn msg;",
        "outputs": 1,
        "timeout": 0,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 860,
        "y": 920,
        "wires": [
            [
                "e2763057da3bfa97",
                "8fb3c7d2e1e4b9f4"
            ]
        ]
    },
    {
        "id": "718ac44a387c623d",
        "type": "change",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "Wert 0",
        "rules": [
            {
                "t": "set",
                "p": "payload",
                "pt": "msg",
                "to": "0",
                "tot": "num"
            }
        ],
        "action": "",
        "property": "",
        "from": "",
        "to": "",
        "reg": false,
        "x": 570,
        "y": 880,
        "wires": [
            [
                "01257e2007c762e5"
            ]
        ]
    },
    {
        "id": "14b10251a9333f2e",
        "type": "calculator",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "*60s",
        "inputMsgField": "payload",
        "outputMsgField": "payload",
        "operation": "mult",
        "constant": "60",
        "round": true,
        "truncate": false,
        "decimals": 0,
        "decimals2": 0,
        "x": 570,
        "y": 960,
        "wires": [
            [
                "01257e2007c762e5"
            ]
        ]
    },
    {
        "id": "df9fef6fc476720d",
        "type": "calculator",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "Wert 1",
        "inputMsgField": "payload",
        "outputMsgField": "payload",
        "operation": "dec",
        "constant": "1",
        "round": false,
        "truncate": false,
        "decimals": 0,
        "decimals2": 0,
        "x": 570,
        "y": 920,
        "wires": [
            [
                "01257e2007c762e5"
            ]
        ]
    },
    {
        "id": "1572fed996796671",
        "type": "comment",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "TV Wohnzimmer 30 min Timer",
        "info": "",
        "x": 160,
        "y": 1000,
        "wires": []
    },
    {
        "id": "1d3a226ebbcaa2cd",
        "type": "comment",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "TV Wohnzimmer 60 min Timer",
        "info": "",
        "x": 160,
        "y": 1100,
        "wires": []
    },
    {
        "id": "d81bc19b4e5fd298",
        "type": "ioBroker in",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "TV Wz 30 min Timer",
        "attrname": "payload",
        "topic": "0_userdata.0.GordonX-Home.Multimedia.TV_Wz_Sleeptimer_30",
        "payloadType": "value",
        "onlyack": "",
        "func": "all",
        "gap": "",
        "fireOnStart": "false",
        "outFormat": "MQTT",
        "x": 130,
        "y": 1040,
        "wires": [
            [
                "f8cbd1bc693d92a2"
            ]
        ]
    },
    {
        "id": "e2763057da3bfa97",
        "type": "ioBroker out",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "Virtuell_TV_Wz_Aus",
        "topic": "0_userdata.0.GordonX-Home.Multimedia.TV_Wz_ausschalten",
        "ack": "false",
        "autoCreate": "false",
        "stateName": "",
        "role": "",
        "payloadType": "",
        "readonly": "",
        "stateUnit": "",
        "stateMin": "",
        "stateMax": "",
        "x": 1060,
        "y": 880,
        "wires": []
    },
    {
        "id": "1275ca33361eb1a3",
        "type": "ioBroker in",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "Reset",
        "attrname": "payload",
        "topic": "0_userdata.0.GordonX-Home.0.WZ.Timer_Reset",
        "payloadType": "value",
        "onlyack": "",
        "func": "all",
        "gap": "",
        "fireOnStart": "false",
        "outFormat": "MQTT",
        "x": 170,
        "y": 940,
        "wires": [
            [
                "2cd9d4f6e5a541ae"
            ]
        ]
    },
    {
        "id": "f8cbd1bc693d92a2",
        "type": "change",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "change",
        "rules": [
            {
                "t": "change",
                "p": "payload",
                "pt": "msg",
                "from": "true",
                "fromt": "bool",
                "to": "30",
                "tot": "str"
            }
        ],
        "action": "",
        "property": "",
        "from": "",
        "to": "",
        "reg": false,
        "x": 320,
        "y": 1040,
        "wires": [
            [
                "3ee328a0e5c921e5"
            ]
        ]
    },
    {
        "id": "8fb3c7d2e1e4b9f4",
        "type": "ioBroker out",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "Ausgabe",
        "topic": "0_userdata.0.GordonX-Home.0.WZ.Timer_Ausgabe",
        "ack": "true",
        "autoCreate": "false",
        "stateName": "",
        "role": "",
        "payloadType": "",
        "readonly": "",
        "stateUnit": "",
        "stateMin": "",
        "stateMax": "",
        "x": 1020,
        "y": 940,
        "wires": []
    },
    {
        "id": "2cd9d4f6e5a541ae",
        "type": "change",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "change",
        "rules": [
            {
                "t": "change",
                "p": "payload",
                "pt": "msg",
                "from": "true",
                "fromt": "bool",
                "to": "0",
                "tot": "str"
            }
        ],
        "action": "",
        "property": "",
        "from": "",
        "to": "",
        "reg": false,
        "x": 320,
        "y": 940,
        "wires": [
            [
                "3ee328a0e5c921e5"
            ]
        ]
    },
    {
        "id": "57030e98382d17df",
        "type": "debug",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "gesendet",
        "active": true,
        "tosidebar": true,
        "console": true,
        "tostatus": false,
        "complete": "payload",
        "targetType": "msg",
        "statusVal": "",
        "statusType": "auto",
        "x": 710,
        "y": 820,
        "wires": []
    },
    {
        "id": "0d973aaf1f267bb4",
        "type": "ioBroker in",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "TV Wz 60 min Timer",
        "attrname": "payload",
        "topic": "0_userdata.0.GordonX-Home.Multimedia.TV_Wz_Sleeptimer_60",
        "payloadType": "value",
        "onlyack": "",
        "func": "all",
        "gap": "",
        "fireOnStart": "false",
        "outFormat": "MQTT",
        "x": 130,
        "y": 1140,
        "wires": [
            [
                "b6c376da9095e5f6"
            ]
        ]
    },
    {
        "id": "b6c376da9095e5f6",
        "type": "change",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "change",
        "rules": [
            {
                "t": "change",
                "p": "payload",
                "pt": "msg",
                "from": "true",
                "fromt": "bool",
                "to": "60",
                "tot": "str"
            }
        ],
        "action": "",
        "property": "",
        "from": "",
        "to": "",
        "reg": false,
        "x": 320,
        "y": 1140,
        "wires": [
            [
                "3ee328a0e5c921e5"
            ]
        ]
    },
    {
        "id": "44f87371df1da811",
        "type": "ioBroker in",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "TV Wz 90 min Timer",
        "attrname": "payload",
        "topic": "0_userdata.0.GordonX-Home.Multimedia.TV_Wz_Sleeptimer_90",
        "payloadType": "value",
        "onlyack": "",
        "func": "all",
        "gap": "",
        "fireOnStart": "false",
        "outFormat": "MQTT",
        "x": 130,
        "y": 1240,
        "wires": [
            [
                "3dc1e7a8b6a548bb"
            ]
        ]
    },
    {
        "id": "3dc1e7a8b6a548bb",
        "type": "change",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "change",
        "rules": [
            {
                "t": "change",
                "p": "payload",
                "pt": "msg",
                "from": "true",
                "fromt": "bool",
                "to": "90",
                "tot": "str"
            }
        ],
        "action": "",
        "property": "",
        "from": "",
        "to": "",
        "reg": false,
        "x": 320,
        "y": 1240,
        "wires": [
            [
                "3ee328a0e5c921e5"
            ]
        ]
    },
    {
        "id": "def271f53ed16274",
        "type": "comment",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "TV Wohnzimmer 90 min Timer",
        "info": "",
        "x": 160,
        "y": 1200,
        "wires": []
    },
    {
        "id": "101371b61e64a31f",
        "type": "comment",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "TV Wohnzimmer 120 min Timer",
        "info": "",
        "x": 170,
        "y": 1300,
        "wires": []
    },
    {
        "id": "2659eb1c1d0f3b8c",
        "type": "ioBroker in",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "TV Wz 120 min Timer",
        "attrname": "payload",
        "topic": "0_userdata.0.GordonX-Home.Multimedia.TV_Wz_Sleeptimer_120",
        "payloadType": "value",
        "onlyack": "",
        "func": "all",
        "gap": "",
        "fireOnStart": "false",
        "outFormat": "MQTT",
        "x": 140,
        "y": 1340,
        "wires": [
            [
                "c1c1ab4e9d849b60"
            ]
        ]
    },
    {
        "id": "c1c1ab4e9d849b60",
        "type": "change",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "change",
        "rules": [
            {
                "t": "change",
                "p": "payload",
                "pt": "msg",
                "from": "true",
                "fromt": "bool",
                "to": "120",
                "tot": "str"
            }
        ],
        "action": "",
        "property": "",
        "from": "",
        "to": "",
        "reg": false,
        "x": 320,
        "y": 1340,
        "wires": [
            [
                "3ee328a0e5c921e5"
            ]
        ]
    },
    {
        "id": "3ee328a0e5c921e5",
        "type": "junction",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "x": 500,
        "y": 960,
        "wires": [
            [
                "14b10251a9333f2e"
            ]
        ]
    }
]

So ist es definitiv geiler gelöst.
Vielen Dank

Hab das ganze mal mit einer Minute gestartet und es funktioniert bombastisch!
Ich denke das jetzt die Zahlen ab 1 Min rot blinken würde den Rahmen sprengen
Ist dann aber auch eine VIS Geschichte.
So ist die Steuerung aber definitiv viel schlanker und funktioniert auch viel viel besser.

Ich denke du meinst wohl eher so!!!

Spoiler

[
    {
        "id": "0330ae5d7a4eb707",
        "type": "ioBroker in",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "Eingang Minuten",
        "attrname": "payload",
        "topic": "0_userdata.0.GordonX-Home.Multimedia.Wz_Timer_Min",
        "payloadType": "value",
        "onlyack": "",
        "func": "all",
        "gap": "",
        "fireOnStart": "false",
        "outFormat": "MQTT",
        "x": 120,
        "y": 860,
        "wires": [
            [
                "99678183a4818434"
            ]
        ]
    },
    {
        "id": "01257e2007c762e5",
        "type": "change",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "Timer",
        "rules": [
            {
                "t": "set",
                "p": "timer_wohnzimmer",
                "pt": "flow",
                "to": "payload",
                "tot": "msg"
            }
        ],
        "action": "",
        "property": "",
        "from": "",
        "to": "",
        "reg": false,
        "x": 730,
        "y": 840,
        "wires": [
            [
                "748676985059dae1"
            ]
        ]
    },
    {
        "id": "05ebbd98f6e1d1a3",
        "type": "inject",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "Taktg",
        "props": [
            {
                "p": "payload"
            },
            {
                "p": "topic",
                "vt": "str"
            }
        ],
        "repeat": "1",
        "crontab": "",
        "once": true,
        "onceDelay": 0.1,
        "topic": "",
        "payload": "true",
        "payloadType": "bool",
        "x": 110,
        "y": 820,
        "wires": [
            [
                "a24f824494da53d1"
            ]
        ]
    },
    {
        "id": "a24f824494da53d1",
        "type": "change",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "Timer Wz",
        "rules": [
            {
                "t": "set",
                "p": "payload",
                "pt": "msg",
                "to": "timer_wohnzimmer",
                "tot": "flow"
            }
        ],
        "action": "",
        "property": "",
        "from": "",
        "to": "",
        "reg": false,
        "x": 260,
        "y": 820,
        "wires": [
            [
                "d9bc1b5d1b2d6372"
            ]
        ]
    },
    {
        "id": "d9bc1b5d1b2d6372",
        "type": "switch",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "Wert 1",
        "property": "payload",
        "propertyType": "msg",
        "rules": [
            {
                "t": "eq",
                "v": "1",
                "vt": "num"
            },
            {
                "t": "gt",
                "v": "1",
                "vt": "num"
            }
        ],
        "checkall": "true",
        "repair": false,
        "outputs": 2,
        "x": 390,
        "y": 820,
        "wires": [
            [
                "56f073a673c958bf",
                "718ac44a387c623d"
            ],
            [
                "df9fef6fc476720d"
            ]
        ]
    },
    {
        "id": "56f073a673c958bf",
        "type": "http request",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "send",
        "method": "GET",
        "ret": "txt",
        "paytoqs": "ignore",
        "url": "https://link_zur_TV_aktivität=0",
        "tls": "",
        "persist": false,
        "proxy": "",
        "insecureHTTPParser": false,
        "authType": "",
        "senderr": false,
        "headers": [],
        "x": 550,
        "y": 800,
        "wires": [
            [
                "57030e98382d17df"
            ]
        ]
    },
    {
        "id": "748676985059dae1",
        "type": "function",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "Ausg.",
        "func": "var min = (Math.floor(msg.payload / 60)).toString();\nvar sek = (msg.payload % 60).toString();\n\nif(min.length == 1){min = \"0\"+min}\nif(sek.length == 1){sek = \"0\"+sek}\n\n\n\nmsg.payload=min+\":\"+sek;\n\nnode.status({text:msg.payload});\nreturn msg;",
        "outputs": 1,
        "timeout": 0,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 850,
        "y": 840,
        "wires": [
            [
                "8fb3c7d2e1e4b9f4"
            ]
        ]
    },
    {
        "id": "718ac44a387c623d",
        "type": "change",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "Wert 0",
        "rules": [
            {
                "t": "set",
                "p": "payload",
                "pt": "msg",
                "to": "0",
                "tot": "num"
            }
        ],
        "action": "",
        "property": "",
        "from": "",
        "to": "",
        "reg": false,
        "x": 550,
        "y": 840,
        "wires": [
            [
                "01257e2007c762e5"
            ]
        ]
    },
    {
        "id": "14b10251a9333f2e",
        "type": "calculator",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "*60s",
        "inputMsgField": "payload",
        "outputMsgField": "payload",
        "operation": "mult",
        "constant": "60",
        "round": true,
        "truncate": false,
        "decimals": 0,
        "decimals2": 0,
        "x": 550,
        "y": 920,
        "wires": [
            [
                "01257e2007c762e5"
            ]
        ]
    },
    {
        "id": "df9fef6fc476720d",
        "type": "calculator",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "Wert 1",
        "inputMsgField": "payload",
        "outputMsgField": "payload",
        "operation": "dec",
        "constant": "1",
        "round": false,
        "truncate": false,
        "decimals": 0,
        "decimals2": 0,
        "x": 550,
        "y": 880,
        "wires": [
            [
                "01257e2007c762e5"
            ]
        ]
    },
    {
        "id": "8fb3c7d2e1e4b9f4",
        "type": "ioBroker out",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "Ausgabe",
        "topic": "0_userdata.0.GordonX-Home.0.WZ.Timer_Ausgabe",
        "ack": "true",
        "autoCreate": "false",
        "stateName": "",
        "role": "",
        "payloadType": "",
        "readonly": "",
        "stateUnit": "",
        "stateMin": "",
        "stateMax": "",
        "x": 980,
        "y": 840,
        "wires": []
    },
    {
        "id": "57030e98382d17df",
        "type": "debug",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "name": "gesendet",
        "active": true,
        "tosidebar": true,
        "console": true,
        "tostatus": false,
        "complete": "payload",
        "targetType": "msg",
        "statusVal": "",
        "statusType": "auto",
        "x": 690,
        "y": 800,
        "wires": []
    },
    {
        "id": "99678183a4818434",
        "type": "junction",
        "z": "7f2248c482cba092",
        "g": "5d1010f91cf75832",
        "x": 440,
        "y": 860,
        "wires": [
            [
                "14b10251a9333f2e"
            ]
        ]
    }
]

Mit den VIS Buttons werden dann die Werte in den Datenpunkt Eingang Minuten geschrieben mit
30,60,90,120 & 0 das ziemlich sehr viel einfacher!

[peterfido]

@aphofis Wenn Du Bindings nimmst, kannst Du die Farbe dynamisch ändern. Blinken wurde in den letzten Jahren abgeschafft.

Der Code für die Ausgabe - Function:

Spoiler

var min = Math.floor(msg.payload / 60);
var sek = msg.payload % 60;
var smin = min.toString();
var ssek = sek.toString();

if(smin.length == 1){smin = "0"+smin}
if(ssek.length == 1){ssek = "0"+ssek}

if (min == 0 && sek > 1) {
    msg.payload = '<font color="red">' + smin + ':' + ssek + '</font>';
}else{
    msg.payload = '<font color="green">' + smin + ':' + ssek + '</font>';

}

node.status({text:msg.payload});
return msg;

Das Binding in VIS geschieht über Voranstellen HTML:

[peterfido]

@aphofis Blinken geht doch. Halt über Umwege. Man könnte z.B die Schriftfarbe abwechselnd auf Hintergrundfarbe ändern, oder die Sichtbarkeit nutzen.

Spoiler

var min = Math.floor(msg.payload / 60);
var sek = msg.payload % 60;
var smin = min.toString();
var ssek = sek.toString();
//const Hintergrundfarbe="#000000"; //RGB
const Hintergrundfarbe="yellow";    //Farbe

if(smin.length == 1){smin = "0"+smin}
if(ssek.length == 1){ssek = "0"+ssek}

if (min == 0 && sek > 1) {
    if(sek %2 == 0){
        msg.payload = '<font color="red">' + smin + ':' + ssek + '</font>';
    }else{
        msg.payload = '<font color="' + Hintergrundfarbe + '">' + smin + ':' + ssek + '</font>';
    }

}else{
    msg.payload = '<font color="green">' + smin + ':' + ssek + '</font>';

}

node.status({text:msg.payload});
return msg;

[Aphofis]

@peterfido
Klingt toll, aber wo kommt denn da der Datenpunkt mit rein !?

{0_userdata.0.GordonX-Home.0.WZ.Timer_Ausgabe}

ist mir noch nicht ganz schlüßig und html ist zu lange her da bin ich raus

[peterfido]

@aphofis Genau so, wie ich es im Screenshot gezeigt habe. Object ID bleibt leer und wird statt dessen unter Voranstellen HTML in geschweiften Klammern eingetragen.

Für weitere Infos einfach nach VIS und BINDING googlen. Hier ein Thema in diesem Forum.

[Aphofis]

@peterfido
Danke für die Infos am Rande!
