[mosmutzel]

Hi,
nach langem rumprobieren habe ich es endlich hinbekommen.

Was wollteich erreichen:
Die Werte des Smartmeters in iobroker zu haben da der Wechselrichter irgendwann abschaltet wenn kein Sonnenlicht vorhanden und somit keine Daten vom Smartmeter aufgezeichnet werden.

Lösungsansatz:
Iobroker (Modbus Instanz 1) ruft via Waveshare RS485 to ethernet interface die Daten vom Smartmeter SDM630 ab. (Habe ich zum laufen bekommen)

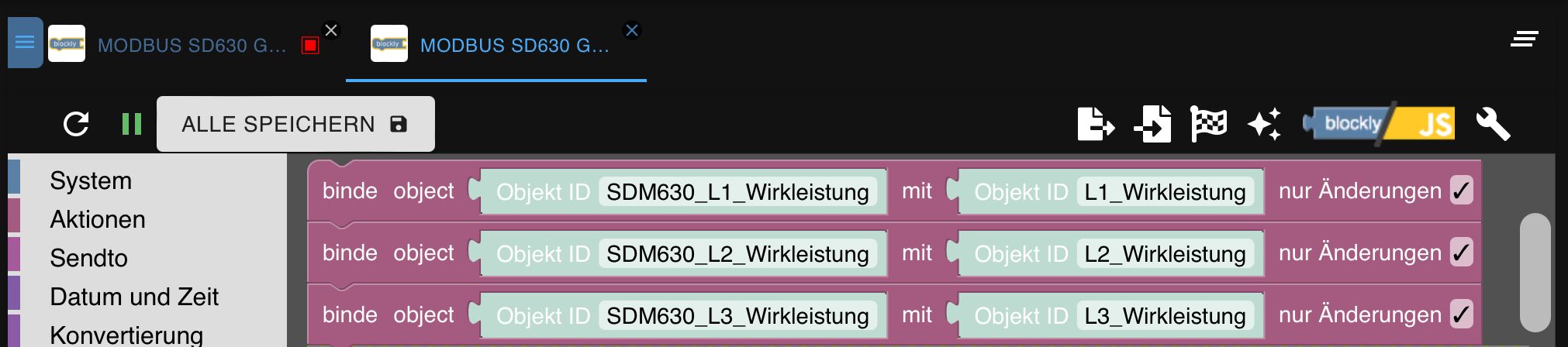

iObroker Reicht die empfangenen Werte der Modbus 1 Instanz an die Modbus 2 Instatz weiter.

Der Growatt Inverter ruft die daten per zweitem Waveshare Interface aus der iobroker modbus 2 Instanz ab.

Über folgende Beiträge habe ich die notwendigen Infos sammeln können.
https://forum.iobroker.net/topic/56427/stromzähler-sdm630-growatt-wr-modbus-rs485-tcp

https://forum.iobroker.net/topic/20014/growatt-wechselrichter-über-modbus-auslesen-gelöst

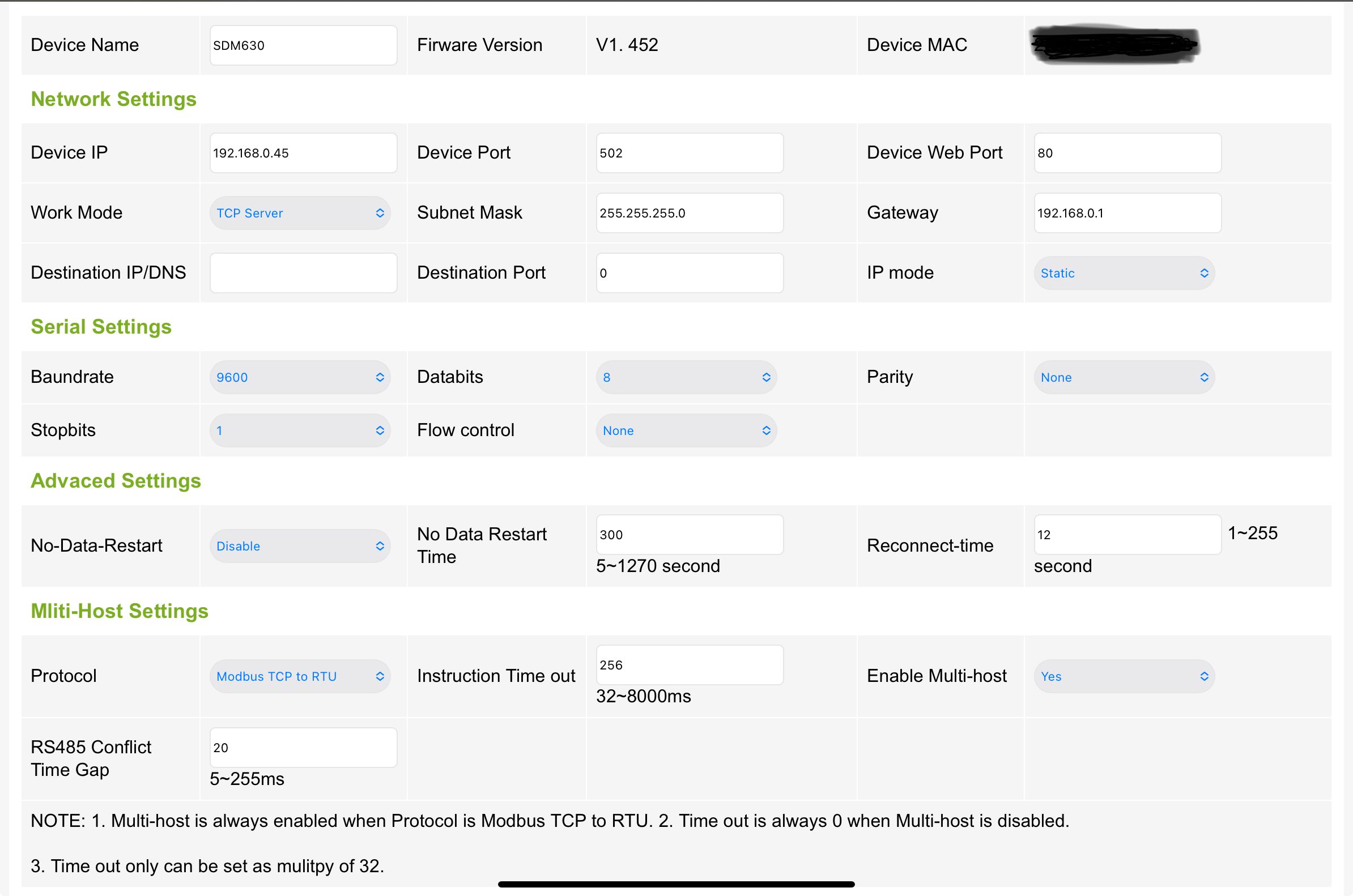

Erstes Waveshare Interface verbunden mit dem Smartmeter SDM630

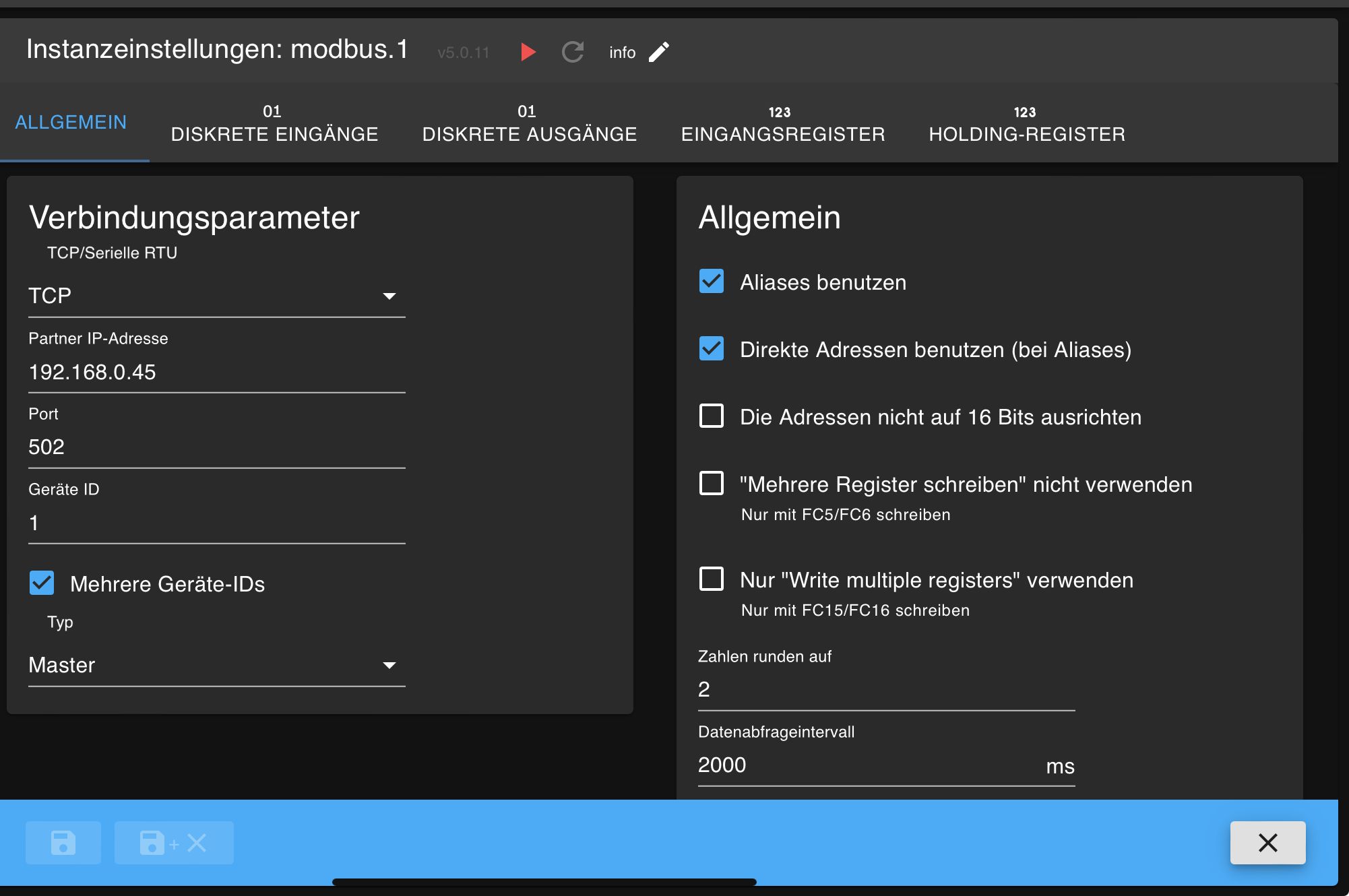

Settings Modbus 1

Eingangsregister

_address	deviceId	name	description	unit	type	len	factor	offset	formula	role	room	cw	isScale
30001	2	SDM630_L1-N_Spannung	SDM630_L1-N_Spannung	V	floatbe	2	1	0		level	enum.rooms.HWR
30003	2	SDM630_L2-N_Spannung	SDM630_L2-N_Spannung	V	floatbe	2	1	0		level	enum.rooms.HWR
30005	2	SDM630_L3-N_Spannung	SDM630_L3-N_Spannung	V	floatbe	2	1	0		level	enum.rooms.HWR
30007	2	SDM630_L1_Strom	SDM630_L1_Strom	A	floatbe	2	1	0		level	enum.rooms.HWR
30009	2	SDM630_L2_Strom	SDM630_L2_Strom	A	floatbe	2	1	0		level	enum.rooms.HWR
30011	2	SDM630_L3_Strom	SDM630_L3_Strom	A	floatbe	2	1	0		level	enum.rooms.HWR
30013	2	SDM630_L1_Wirkleistung	SDM630_L1_Wirkleistung	W	floatbe	2	1	0		level	enum.rooms.HWR
30015	2	SDM630_L2_Wirkleistung	SDM630_L2_Wirkleistung	W	floatbe	2	1	0		level	enum.rooms.HWR
30017	2	SDM630_L3_Wirkleistung	SDM630_L3_Wirkleistung	W	floatbe	2	1	0		level	enum.rooms.HWR
30019	2	SDM630_L1_Scheinleistung	SDM630_L1_Scheinleistung	VA	floatbe	2	1	0		level	enum.rooms.HWR
30021	2	SDM630_L2_Scheinleistung	SDM630_L2_Scheinleistung	VA	floatbe	2	1	0		level	enum.rooms.HWR
30023	2	SDM630_L3_Scheinleistung	SDM630_L3_Scheinleistung	VA	floatbe	2	1	0		level	enum.rooms.HWR
30025	2	SDM630_L1_Blindleistung	SDM630_L1_Blindleistung	var	floatbe	2	1	0		level	enum.rooms.HWR
30027	2	SDM630_L2_Blindleistung	SDM630_L2_Blindleistung	var	floatbe	2	1	0		level	enum.rooms.HWR
30029	2	SDM630_L3_Blindleistung	SDM630_L3_Blindleistung	var	floatbe	2	1	0		level	enum.rooms.HWR
30031	2	SDM630_L1_Power_Factor	SDM630_L1_Power_Factor		floatbe	2	1	0		level	enum.rooms.HWR
30033	2	SDM630_L2_Power_Factor	SDM630_L2_Power_Factor		floatbe	2	1	0		level	enum.rooms.HWR
30035	2	SDM630_L3_Power_Factor	SDM630_L3_Power_Factor		floatbe	2	1	0		level	enum.rooms.HWR
30037	2	SDM630_L1_Phase_angle	SDM630_L1_Phase_angle	Grad	floatbe	2	1	0		level	enum.rooms.HWR
30039	2	SDM630_L2_Phase_angle	SDM630_L2_Phase_angle	Grad	floatbe	2	1	0		level	enum.rooms.HWR
30041	2	SDM630_L3_Phase_angle	SDM630_L3_Phase_angle	Grad	floatbe	2	1	0		level	enum.rooms.HWR
30043	2	SDM630_L-N_Volt	SDM630_L-N_Volt	V	floatbe	2	1	0		level	enum.rooms.HWR
30047	2	SDM630_Average_line_current	SDM630_Average_line_current	A	floatbe	2	1	0		level	enum.rooms.HWR
30049	2	SDM630_Summe_Ströme	SDM630_Summe_Ströme	A	floatbe	2	1	0		level	enum.rooms.HWR
30053	2	SDM630_Gesamt_Leistung	SDM630_Gesamt_Leistung	W	floatbe	2	1	0		level	enum.rooms.HWR
30057	2	SDM630_Total_System_Scheinleistung	SDM630_Total_System_Scheinleistung	VA	floatbe	2	1	0		level	enum.rooms.HWR
30061	2	SDM630_Total_System_Blindleistung	SDM630_Total_System_Blindleistung	var	floatbe	2	1	0		level	enum.rooms.HWR
30063	2	SDM630_Total_System_Power_factor	SDM630_Total_System_Power_factor		floatbe	2	1	0		level	enum.rooms.HWR
30067	2	SDM630_Total_System_Phase_angle	SDM630_Total_System_Phase_angle	Grad	floatbe	2	1	0		level	enum.rooms.HWR
30071	2	SDM630_Frequency_of_supply_voltages	SDM630_Frequency_of_supply_voltages	Hr	floatbe	2	1	0		level	enum.rooms.HWR
30073	2	SDM630_Total_Import_kWh	SDM630_Total_Import_kWh	kWh	floatbe	2	1	0		level	enum.rooms.HWR
30075	2	SDM630_Total_Export_kWh	SDM630_Total_Export_kWh	kWh	floatbe	2	1	0		level	enum.rooms.HWR
30077	2	SDM630_Total_Import_kVArh	SDM630_Total_Import_kVArh	kVArh	floatbe	2	1	0		level	enum.rooms.HWR
30079	2	SDM630_Total_Export_kVArh	SDM630_Total_Export_kVArh	kVArh	floatbe	2	1	0		level	enum.rooms.HWR
30081	2	SDM630_Total_VAh	SDM630_Total_VAh	kVAh	floatbe	2	1	0		level	enum.rooms.HWR
30083	2	SDM630_Ah	SDM630_Ah	Ah	floatbe	2	1	0		level	enum.rooms.HWR
30085	2	SDM630_Gesamt_Leistung_demand	SDM630_Gesamt_Leistung_demand	W	floatbe	2	1	0		level	enum.rooms.HWR
30087	2	SDM630_Maximum_total_system_power_demand	SDM630_Maximum_total_system_power_demand	VA	floatbe	2	1	0		level	enum.rooms.HWR
30101	2	SDM630_Total_system_VA_demand	SDM630_Total_system_VA_demand	VA	floatbe	2	1	0		level	enum.rooms.HWR
30103	2	SDM630_Maximum_total_system_VA_demand	SDM630_Maximum_total_system_VA_demand	VA	floatbe	2	1	0		level	enum.rooms.HWR
30105	2	SDM630_Neutral_current_demand	SDM630_Neutral_current_demand	A	floatbe	2	1	0		level	enum.rooms.HWR
30107	2	SDM630_Maximum_neutral_current_demand	SDM630_Maximum_neutral_current_demand	A	floatbe	2	1	0		level	enum.rooms.HWR
30201	2	SDM630_L1_to_L2_volts	SDM630_L1_to_L2_volts	V	floatbe	2	1	0		level	enum.rooms.HWR
30203	2	SDM630_L2_to_L3_volts	SDM630_L2_to_L3_volts	V	floatbe	2	1	0		level	enum.rooms.HWR
30205	2	SDM630_L3_to_L1_volts	SDM630_L3_to_L1_volts	V	floatbe	2	1	0		level	enum.rooms.HWR
30207	2	SDM630_Average_line_to_line_volts	SDM630_Average_line_to_line_volts	V	floatbe	2	1	0		level	enum.rooms.HWR
30225	2	SDM630_Neutral_current	SDM630_Neutral_current	A	floatbe	2	1	0		level	enum.rooms.HWR
30235	2	SDM630_L1-N_volts_THD	SDM630_L1-N_volts_THD	%	floatbe	2	1	0		level	enum.rooms.HWR
30237	2	SDM630_L2-N_volts_THD	SDM630_L2-N_volts_THD	%	floatbe	2	1	0		level	enum.rooms.HWR
30239	2	SDM630_L3-N_volts_THD	SDM630_L3-N_volts_THD	%	floatbe	2	1	0		level	enum.rooms.HWR
30241	2	SDM630_L1_Current_THD	SDM630_L1_Current_THD	%	floatbe	2	1	0		level	enum.rooms.HWR
30243	2	SDM630_L2_Current_THD	SDM630_L2_Current_THD	%	floatbe	2	1	0		level	enum.rooms.HWR
30245	2	SDM630_L3_Current_THD	SDM630_L3_Current_THD	%	floatbe	2	1	0		level	enum.rooms.HWR
30249	2	SDM630_Average_line_to_neutral_volts_THD	SDM630_Average_line_to_neutral_volts_THD	%	floatbe	2	1	0		level	enum.rooms.HWR
30251	2	SDM630_Average_line_current_THD	SDM630_Average_line_current_THD	%	floatbe	2	1	0		level	enum.rooms.HWR
30259	2	SDM630_L1_current_demand	SDM630_L1_current_demand	A	floatbe	2	1	0		level	enum.rooms.HWR
30261	2	SDM630_L2_current_demand	SDM630_L2_current_demand	A	floatbe	2	1	0		level	enum.rooms.HWR
30263	2	SDM630_L3_current_demand	SDM630_L3_current_demand	A	floatbe	2	1	0		level	enum.rooms.HWR
30265	2	SDM630_Maximum_L1_current_demand	SDM630_Maximum_L1_current_demand	A	floatbe	2	1	0		level	enum.rooms.HWR
30267	2	SDM630_Maximum_L2_current_demand	SDM630_Maximum_L2_current_demand	A	floatbe	2	1	0		level	enum.rooms.HWR
30269	2	SDM630_Maximum_L3_current_demand	SDM630_Maximum_L3_current_demand	A	floatbe	2	1	0		level	enum.rooms.HWR
30335	2	SDM630_L1-L2_volts_THD	SDM630_L1-L2_volts_THD	%	floatbe	2	1	0		level	enum.rooms.HWR
30337	2	SDM630_L2-L3_volts_THD	SDM630_L2-L3_volts_THD	%	floatbe	2	1	0		level	enum.rooms.HWR
30339	2	SDM630_L3-L1_volts_THD	SDM630_L3-L1_volts_THD	%	floatbe	2	1	0		level	enum.rooms.HWR
30341	2	SDM630_Average_line_to_line_volts_THD	SDM630_Average_line_to_line_volts_THD	%	floatbe	2	1	0		level	enum.rooms.HWR
30343	2	SDM630_Total_kwh	SDM630_Total_kwh	kWh	floatbe	2	1	0		level	enum.rooms.HWR
30345	2	SDM630_Total_kvarh	SDM630_Total_kvarh	kvarh	floatbe	2	1	0		level	enum.rooms.HWR
30347	2	SDM630_L1_Import_kwh	SDM630_L1_Import_kwh	kWh	floatbe	2	1	0		level	enum.rooms.HWR
30349	2	SDM630_L2_Import_kwh	SDM630_L2_Import_kwh	kWh	floatbe	2	1	0		level	enum.rooms.HWR
30351	2	SDM630_L3_Import_kwh	SDM630_L3_Import_kwh	kWh	floatbe	2	1	0		level	enum.rooms.HWR
30353	2	SDM630_L1_Export_kwh	SDM630_L1_Export_kwh	kWh	floatbe	2	1	0		level	enum.rooms.HWR
30355	2	SDM630_L2_Export_kwh 	SDM630_L2_Export_kwh 	kWh	floatbe	2	1	0		level	enum.rooms.HWR
30357	2	SDM630_L3_Export_kwh	SDM630_L3_Export_kwh	kWh	floatbe	2	1	0		level	enum.rooms.HWR
30359	2	SDM630_L1_Total_kwh	SDM630_L1_Total_kwh	kWh	floatbe	2	1	0		level	enum.rooms.HWR
30361	2	SDM630_L2_Total_kwh	SDM630_L2_Total_kwh	kWh	floatbe	2	1	0		level	enum.rooms.HWR
30363	2	SDM630_L3_Total_kwh	SDM630_L3_Total_kwh	kWh	floatbe	2	1	0		level	enum.rooms.HWR
30365	2	SDM630_L1_import_kvarh	SDM630_L1_import_kvarh	kvarh	floatbe	2	1	0		level	enum.rooms.HWR
30367	2	SDM630_L2_import_kvarh	SDM630_L2_import_kvarh	kvarh	floatbe	2	1	0		level	enum.rooms.HWR
30369	2	SDM630_L3_import_kvarh	SDM630_L3_import_kvarh	kvarh	floatbe	2	1	0		level	enum.rooms.HWR
30371	2	SDM630_L1_export_kvarh	SDM630_L1_export_kvarh	kvarh	floatbe	2	1	0		level	enum.rooms.HWR
30373	2	SDM630_L2_export_kvarh	SDM630_L2_export_kvarh	kvarh	floatbe	2	1	0		level	enum.rooms.HWR
30375	2	SDM630_L3_export_kvarh	SDM630_L3_export_kvarh	kvarh	floatbe	2	1	0		level	enum.rooms.HWR
30377	2	SDM630_L1_total_kvarh	SDM630_L1_total_kvarh	kvarh	floatbe	2	1	0		level	enum.rooms.HWR
30379	2	SDM630_L2_total_kvarh	SDM630_L2_total_kvarh	kvarh	floatbe	2	1	0		level	enum.rooms.HWR
30381	2	SDM630_L3_total_kvarh	SDM630_L3_total_kvarh	kvarh	floatbe	2	1	0		level	enum.rooms.HWR

Holding Register

_address	deviceId	name	description	unit	type	len	factor	offset	formula	role	room	poll	wp	cw	isScale
40003	2	Demand_Period			floatbe	2	1	0		value		true
40011	2	System_Type			floatbe	2	1	0		value		true
40013	2	Pulse1_Width			floatbe	2	1	0		value		true
40015	2	Password_Lock			floatbe	2	1	0		value		true
40019	2	Network_Parity_Stop			floatbe	2	1	0		value		true
40021	2	Network_Node			floatbe	2	1	0		value		true
40023	2	Pulse1_Divisor1			floatbe	2	1	0		value		true
40025	2	Password			floatbe	2	1	0		value		true
40029	2	Network_Baud_Rate			floatbe	2	1	0		value		true
40087	2	Pulse1_Energy_Type			floatbe	2	1	0		value		true

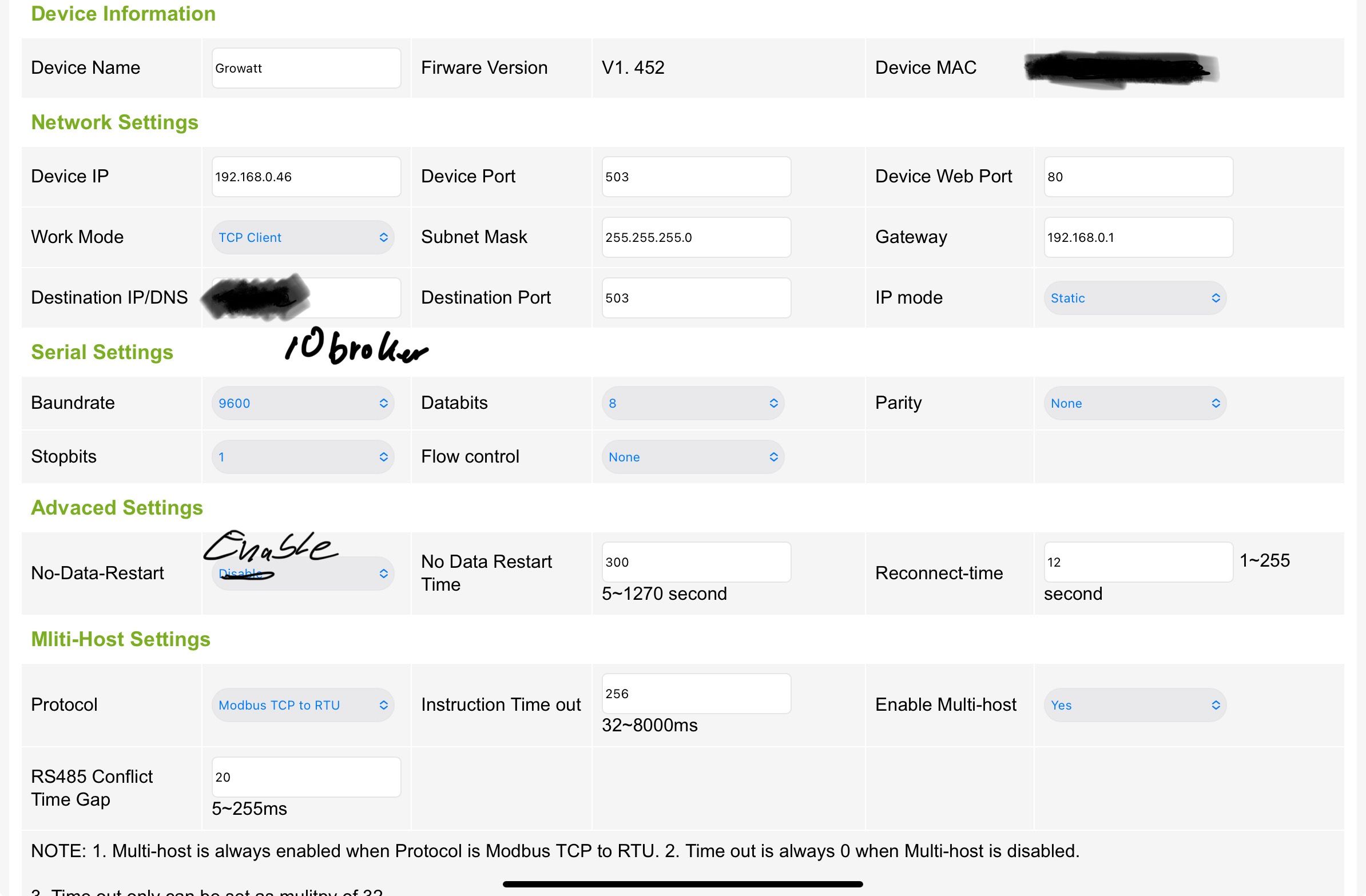

Zweites Waveshare Interface mit dem Growatt MIC Inverter verbunden

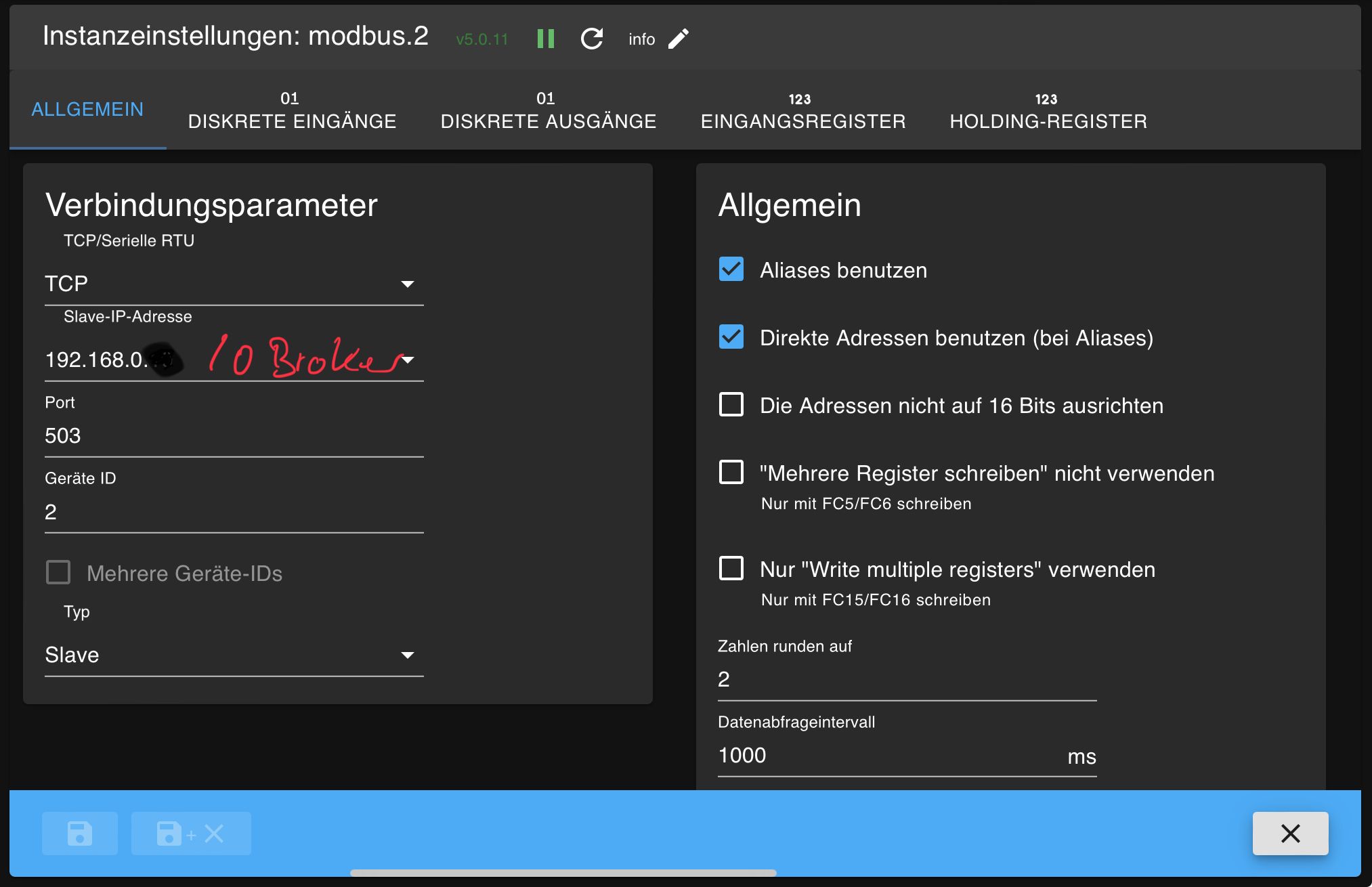

Settings Modbus 2

Eingangsregister

_address	name	description	unit	type	len	factor	offset	formula	role	room	cw	isScale
30001	Growatt_L1-N_Spannung	L1-N_Spannung	V	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30003	Growatt_L2-N_Spannung	L2-N_Spannung	V	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30005	Growatt_L3-N_Spannung	L3-N_Spannung	V	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30007	Growatt_L1_Strom	L1_Strom	A	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30009	Growatt_L2_Strom	L2_Strom	A	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30011	Growatt_L3_Strom	L3_Strom	A	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30013	Growatt_L1_Wirkleistung	L1_Wirkleistung	W	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30015	Growatt_L2_Wirkleistung	L2_Wirkleistung	W	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30017	Growatt_L3_Wirkleistung	L3_Wirkleistung	W	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30019	Growatt_L1_Scheinleistung	L1_Scheinleistung	VA	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30021	Growatt_L2_Scheinleistung	L2_Scheinleistung	VA	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30023	Growatt_L3_Scheinleistung	L3_Scheinleistung	VA	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30025	Growatt_L1_Blindleistung	L1_Blindleistung	var	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30027	Growatt_L2_Blindleistung	L2_Blindleistung	var	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30029	Growatt_L3_Blindleistung	L3_Blindleistung	var	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30031	Growatt_L1_Power_Factor	L1_Power_Factor		floatbe	2	1	0		level	enum.rooms.HWR	false	false
30033	Growatt_L2_Power_Factor	L2_Power_Factor		floatbe	2	1	0		level	enum.rooms.HWR	false	false
30035	Growatt_L3_Power_Factor	L3_Power_Factor		floatbe	2	1	0		level	enum.rooms.HWR	false	false
30037	Growatt_L1_Phase_angle	L1_Phase_angle	Grad	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30039	Growatt_L2_Phase_angle	L2_Phase_angle	Grad	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30041	Growatt_L3_Phase_angle	L3_Phase_angle	Grad	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30043	Growatt_L-N_Volt	L-N_Volt	V	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30047	Growatt_Average_line_current	Average_line_current	A	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30049	Growatt_Summe_Ströme	Summe_Ströme	A	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30053	Growatt_Gesamt_Leistung	Gesamt_Leistung	W	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30057	Growatt_Total_System_Scheinleistung	Total_System_Scheinleistung	VA	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30061	Growatt_Total_System_Blindleistung	Total_System_Blindleistung	var	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30063	Growatt_Total_System_Power_factor	Total_System_Power_factor		floatbe	2	1	0		level	enum.rooms.HWR	false	false
30067	Growatt_Total_System_Phase_angle.	Total_System_Phase_angle.	Grad	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30071	Growatt_Frequency_of_supply_voltages	Frequency_of_supply_voltages	Hr	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30073	Growatt_Total_Import_kWh	Total_Import_kWh	kWh	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30075	Growatt_Total_Export_kWh	Total_Export_kWh	kWh	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30077	Growatt_Total_Import_kVArh	Total_Import_kVArh	kVArh	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30079	Growatt_Total_Export_kVArh	Total_Export_kVArh	kVArh	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30081	Growatt_Total_VAh	Total_VAh	kVAh	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30083	Growatt_Ah	Ah	Ah	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30085	Growatt_Gesamt_Leistung_demand	Gesamt_Leistung_demand	W	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30087	Growatt_Maximum_total_system_power_demand	Maximum_total_system_power_demand	VA	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30101	Growatt_Total_system_VA_demand	Total_system_VA_demand	VA	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30103	Growatt_Maximum_total_system_VA_demand	Maximum_total_system_VA_demand	VA	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30105	Growatt_Neutral_current_demand	Neutral_current_demand	A	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30107	Growatt_Maximum_neutral_current_demand	Maximum_neutral_current_demand	A	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30201	Growatt_L1_to_L2_volts	L1_to_L2_volts	V	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30203	Growatt_L2_to_L3_volts	L2_to_L3_volts	V	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30205	Growatt_L3_to_L1_volts	L3_to_L1_volts	V	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30207	Growatt_Average_line_to_line_volts	Average_line_to_line_volts	V	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30225	Growatt_Neutral_current	Neutral_current	A	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30235	Growatt_L1-N_volts_THD	L1-N_volts_THD	%	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30237	Growatt_L2-N_volts_THD	L2-N_volts_THD	%	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30239	Growatt_L3-N_volts_THD	L3-N_volts_THD	%	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30241	Growatt_L1_Current_THD	L1_Current_THD	%	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30243	Growatt_L2_Current_THD	L2_Current_THD	%	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30245	Growatt_L3_Current_THD	L3_Current_THD	%	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30249	Growatt_Average_line_to_neutral_volts_THD	Average_line_to_neutral_volts_THD	%	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30251	Growatt_Average_line_current_THD	Average_line_current_THD	%	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30259	Growatt_L1_current_demand	L1_current_demand	A	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30261	Growatt_L2_current_demand	L2_current_demand	A	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30263	Growatt_L3_current_demand	L3_current_demand	A	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30265	Growatt_Maximum_L1_current_demand	Maximum_L1_current_demand	A	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30267	Growatt_Maximum_L2_current_demand	Maximum_L2_current_demand	A	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30269	Growatt_Maximum_L3_current_demand	Maximum_L3_current_demand	A	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30335	Growatt_L1-L2_volts_THD	L1-L2_volts_THD	%	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30337	Growatt_L2-L3_volts_THD	L2-L3_volts_THD	%	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30339	Growatt_L3-L1_volts_THD	L3-L1_volts_THD	%	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30341	Growatt_Average_line_to_line_volts_THD	Average_line_to_line_volts_THD	%	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30343	Growatt_Total_kwh	Total_kwh	kWh	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30345	Growatt_Total_kvarh	Total_kvarh	kvarh	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30347	Growatt_L1_Import_kwh	L1_Import_kwh	kWh	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30349	Growatt_L2_Import_kwh	L2_Import_kwh	kWh	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30351	Growatt_L3_Import_kwh	L3_Import_kwh	kWh	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30353	Growatt_L1_Export_kwh	L1_Export_kwh	kWh	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30355	Growatt_L2_Export_kwh 	L2_Export_kwh 	kWh	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30357	Growatt_L3_Export_kwh	L3_Export_kwh	kWh	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30359	Growatt_L1_Total_kwh	L1_Total_kwh	kWh	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30361	Growatt_L2_Total_kwh	L2_Total_kwh	kWh	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30363	Growatt_L3_Total_kwh	L3_Total_kwh	kWh	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30365	Growatt_L1_import_kvarh	L1_import_kvarh	kvarh	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30367	Growatt_L2_import_kvarh	L2_import_kvarh	kvarh	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30369	Growatt_L3_import_kvarh	L3_import_kvarh	kvarh	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30371	Growatt_L1_export_kvarh	L1_export_kvarh	kvarh	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30373	Growatt_L2_export_kvarh	L2_export_kvarh	kvarh	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30375	Growatt_L3_export_kvarh	L3_export_kvarh	kvarh	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30377	Growatt_L1_total_kvarh	L1_total_kvarh	kvarh	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30379	Growatt_L2_total_kvarh	L2_total_kvarh	kvarh	floatbe	2	1	0		level	enum.rooms.HWR	false	false
30381	Growatt_L3_total_kvarh	L3_total_kvarh	kvarh	floatbe	2	1	0		level	enum.rooms.HWR	false	false

Per Blockly werden die Daten von der Modbus 1 Instanz zur Modbus 2 übertragen. Hier ein Beispiel
