Garagentor Anzeige mit Shelly1 Addon in Jarvis

boskap

Hallo

ich würde gerne meine beiden Garagentore in jarvis visualisieren und schalten.
schalten über den Shelly 1 ist kein problem.
dieser löst für 2 sekunden aus und schaltet das relais wieder ab.

doch wie schaffe ich das aufgrund des add on switch das icon sich von geschlossen auf geöffnet stellt

danke

MCU

@boskap Gibt es in einem DP vom Shelly den Zustand geöffnet / geschlossen? Zeig mal bitte die DPs vom Shelly.

boskap

@mcu
ja gibt es
in den fall den ext1 kontakt des addon, darauf hängt ein Magnetkontakt der die Stellung des Garagentors anzeigt

in dem fall zeigt es auch unter dem schalter geschlossen oder offen an
aber ich würde gerne das icon am anfang ändern

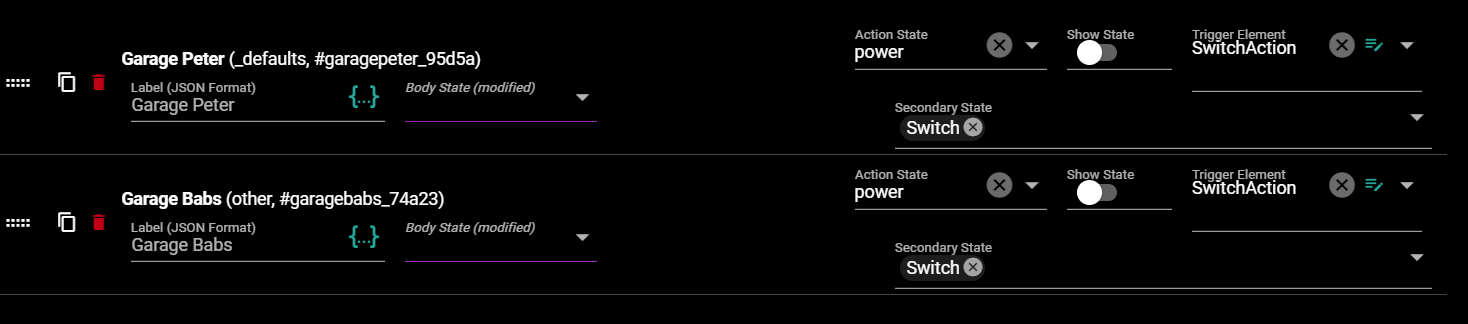

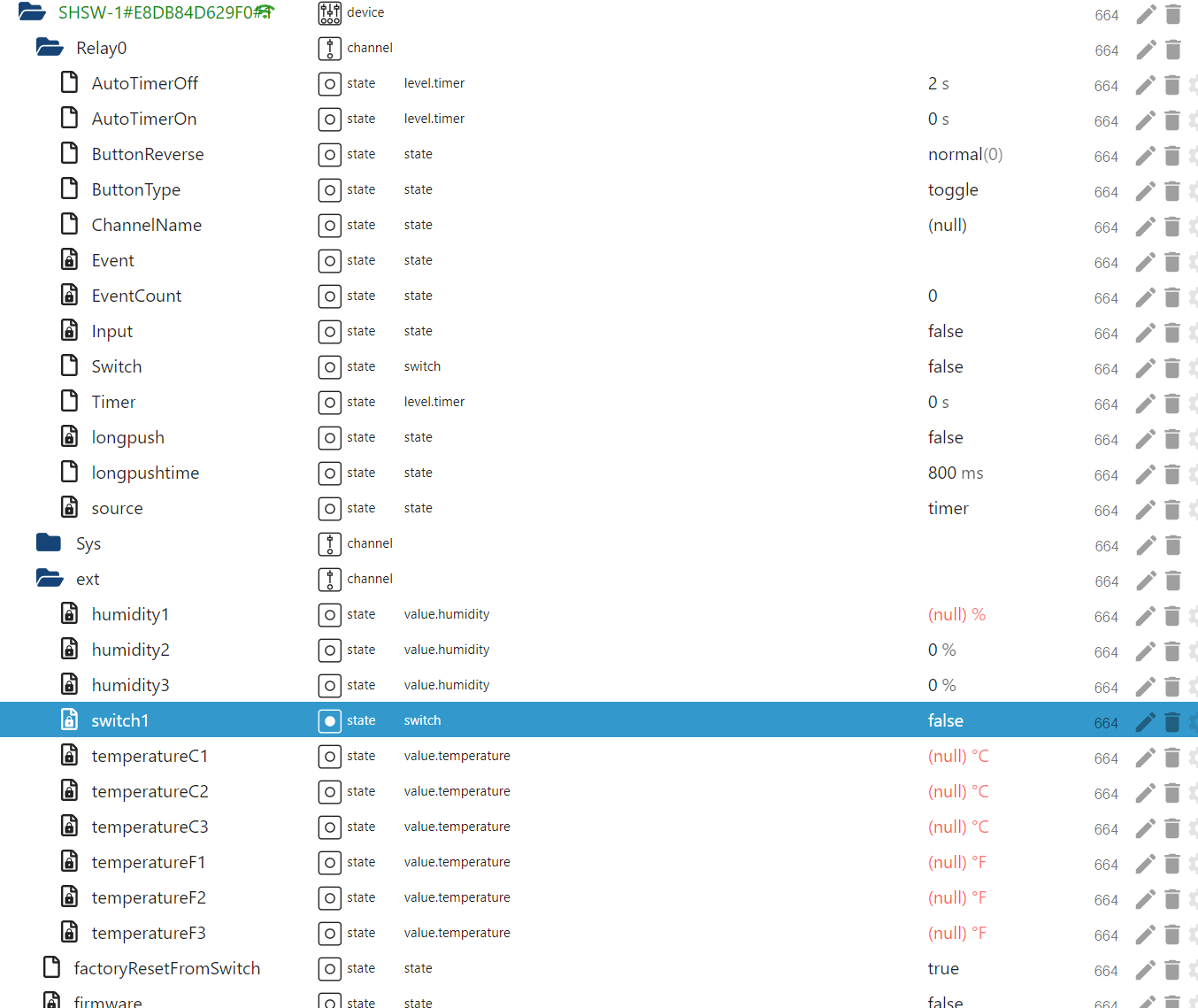

und hier der Shelly

Danke

MCU

@boskap Schau dir mal das Binding an

Da der DP vom Zustand ein anderer als der Schalter ist muss man mit dem Binding arbeiten.

https://mcuiobroker.gitbook.io/jarvis-infos/jarvis/besonderheiten-v3/geraet/binding

picky

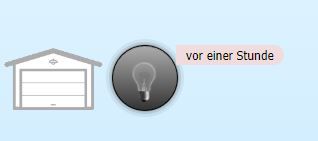

@boskap Benutze zwar den sonoff SV für mein Rolltor dafür, in der VIS zeigt er an Bilder für geöffnet, zu, läuft und wenn keine Wlan Verbindung da ist, und der Taster dafür, vielleicht hilft dir ja der Widget Export. und das Blockly Script.
Abends geht zusätzlich noch das Hoflicht an, das kannst ja deaktivieren.
Vielleicht hilft es Dir ja als Beispiel.

[{"tpl":"i-vis-image-new","data":{"g_fixed":false,"g_visibility":false,"g_css_font_text":false,"g_css_background":true,"g_css_shadow_padding":false,"g_css_border":false,"g_gestures":false,"g_signals":false,"g_last_change":false,"visibility-cond":"==","visibility-val":1,"visibility-groups-action":"hide","iCornerRadiusUL":"0","iCornerRadiusUR":"0","iCornerRadiusLR":"0","iCornerRadiusLL":"0","iImgRotation":"0","iOpacityCtn":"1","iImgBlinkFalse":"0","iImgBlinkTrue":"0","iImgColorFalse":"","iImgColorTrue":"","iImgScaleType":"Normal","iImgTileSize":"","iShadowSpread":"0","iShadowSpreadInner":"0","iShadowBlur":"0","iShadowColor":"#111111","iShadowColorActive":"#111111","signals-cond-0":"==","signals-val-0":true,"signals-icon-0":"/vis/signals/lowbattery.png","signals-icon-size-0":0,"signals-blink-0":false,"signals-horz-0":0,"signals-vert-0":0,"signals-hide-edit-0":false,"signals-cond-1":"==","signals-val-1":true,"signals-icon-1":"/vis/signals/lowbattery.png","signals-icon-size-1":0,"signals-blink-1":false,"signals-horz-1":0,"signals-vert-1":0,"signals-hide-edit-1":false,"signals-cond-2":"==","signals-val-2":true,"signals-icon-2":"/vis/signals/lowbattery.png","signals-icon-size-2":0,"signals-blink-2":false,"signals-horz-2":0,"signals-vert-2":0,"signals-hide-edit-2":false,"lc-type":"last-change","lc-is-interval":true,"lc-is-moment":false,"lc-format":"","lc-position-vert":"top","lc-position-horz":"right","lc-offset-vert":0,"lc-offset-horz":0,"lc-font-size":"12px","lc-font-family":"","lc-font-style":"","lc-bkg-color":"","lc-color":"","lc-border-width":"0","lc-border-style":"","lc-border-color":"","lc-border-radius":10,"lc-zindex":0,"oid":"0_userdata.0.Datenpunkte.lk.rolltor.esrollt","iImageFalse":"","iImageTrue":"/vis.0/main/gear-icon-md.png","iValue":"ON","iPointerEvents":true},"style":{"left":"21px","top":"348px","z-index":"3","width":"100px","height":"100px"},"widgetSet":"vis-inventwo"},{"tpl":"i-vis-image-new","data":{"g_fixed":false,"g_visibility":true,"g_css_font_text":false,"g_css_background":true,"g_css_shadow_padding":false,"g_css_border":false,"g_gestures":false,"g_signals":true,"g_last_change":false,"visibility-cond":"==","visibility-val":1,"visibility-groups-action":"hide","iCornerRadiusUL":"0","iCornerRadiusUR":"0","iCornerRadiusLR":"0","iCornerRadiusLL":"0","iImgRotation":"0","iOpacityCtn":"1","iImgBlinkFalse":"0","iImgBlinkTrue":"0","iImgColorFalse":"","iImgColorTrue":"","iImgScaleType":"Normal","iImgTileSize":"","iShadowSpread":"0","iShadowSpreadInner":"0","iShadowBlur":"0","iShadowColor":"#111111","iShadowColorActive":"#111111","signals-cond-0":"consist","signals-val-0":"Offline","signals-icon-0":"/vis.0/main/wifiColorRed.png","signals-icon-size-0":"87","signals-blink-0":false,"signals-horz-0":0,"signals-vert-0":0,"signals-hide-edit-0":false,"signals-cond-1":"==","signals-val-1":true,"signals-icon-1":"/vis/signals/lowbattery.png","signals-icon-size-1":0,"signals-blink-1":false,"signals-horz-1":0,"signals-vert-1":0,"signals-hide-edit-1":false,"signals-cond-2":"==","signals-val-2":true,"signals-icon-2":"/vis/signals/lowbattery.png","signals-icon-size-2":0,"signals-blink-2":false,"signals-horz-2":0,"signals-vert-2":0,"signals-hide-edit-2":false,"lc-type":"last-change","lc-is-interval":true,"lc-is-moment":false,"lc-format":"","lc-position-vert":"top","lc-position-horz":"right","lc-offset-vert":0,"lc-offset-horz":0,"lc-font-size":"12px","lc-font-family":"","lc-font-style":"","lc-bkg-color":"","lc-color":"","lc-border-width":"0","lc-border-style":"","lc-border-color":"","lc-border-radius":10,"lc-zindex":0,"oid":"mqtt.0.Rolltor.stat.POWER3","iImageFalse":"","iImageTrue":"/vis.0/main/garage-door-opened.png","iValue":"ON","signals-oid-0":"mqtt.0.Rolltor.tele.LWT","iPointerEvents":true},"style":{"left":"20px","top":"347px","z-index":"7","width":"100px","height":"100px"},"widgetSet":"vis-inventwo"},{"tpl":"i-vis-image-new","data":{"g_fixed":false,"g_visibility":false,"g_css_font_text":false,"g_css_background":true,"g_css_shadow_padding":false,"g_css_border":false,"g_gestures":false,"g_signals":false,"g_last_change":false,"visibility-cond":"==","visibility-val":1,"visibility-groups-action":"hide","iCornerRadiusUL":"0","iCornerRadiusUR":"0","iCornerRadiusLR":"0","iCornerRadiusLL":"0","iImgRotation":"0","iOpacityCtn":"1","iImgBlinkFalse":"0","iImgBlinkTrue":"0","iImgColorFalse":"","iImgColorTrue":"","iImgScaleType":"Normal","iImgTileSize":"","iShadowSpread":"0","iShadowSpreadInner":"0","iShadowBlur":"0","iShadowColor":"#111111","iShadowColorActive":"#111111","signals-cond-0":"==","signals-val-0":true,"signals-icon-0":"/vis/signals/lowbattery.png","signals-icon-size-0":0,"signals-blink-0":false,"signals-horz-0":0,"signals-vert-0":0,"signals-hide-edit-0":false,"signals-cond-1":"==","signals-val-1":true,"signals-icon-1":"/vis/signals/lowbattery.png","signals-icon-size-1":0,"signals-blink-1":false,"signals-horz-1":0,"signals-vert-1":0,"signals-hide-edit-1":false,"signals-cond-2":"==","signals-val-2":true,"signals-icon-2":"/vis/signals/lowbattery.png","signals-icon-size-2":0,"signals-blink-2":false,"signals-horz-2":0,"signals-vert-2":0,"signals-hide-edit-2":false,"lc-type":"last-change","lc-is-interval":true,"lc-is-moment":false,"lc-format":"","lc-position-vert":"top","lc-position-horz":"right","lc-offset-vert":0,"lc-offset-horz":0,"lc-font-size":"12px","lc-font-family":"","lc-font-style":"","lc-bkg-color":"","lc-color":"","lc-border-width":"0","lc-border-style":"","lc-border-color":"","lc-border-radius":10,"lc-zindex":0,"oid":"mqtt.0.Rolltor.stat.POWER2","iImageFalse":"","iImageTrue":"/vis.0/main/garage-door-closed.png","iValue":"ON","iPointerEvents":true},"style":{"left":"20px","top":"353px","z-index":"5","width":"100px","height":"100px"},"widgetSet":"vis-inventwo"},{"tpl":"tplHqButton","data":{"g_fixed":false,"g_visibility":false,"g_css_font_text":true,"g_css_background":true,"g_css_shadow_padding":false,"g_css_border":false,"g_gestures":false,"g_signals":false,"g_last_change":true,"visibility-cond":"==","visibility-val":1,"visibility-groups-action":"hide","oid":"0_userdata.0.Datenpunkte.lk.rolltor.POWER","min":"0","max":"1","iconName":"img/bulb_off.png","btIconWidth":"56","offsetAuto":"true","leftOffset":"15","topOffset":"55","timeAsInterval":"true","infoLeftFontSize":"12","infoFontRightSize":"12","infoLeftPaddingLeft":"15","infoLeftPaddingRight":"50","infoRightPaddingRight":"15","signals-cond-0":"==","signals-val-0":true,"signals-icon-0":"/vis/signals/lowbattery.png","signals-icon-size-0":0,"signals-blink-0":false,"signals-horz-0":0,"signals-vert-0":0,"signals-hide-edit-0":false,"signals-cond-1":"==","signals-val-1":true,"signals-icon-1":"/vis/signals/lowbattery.png","signals-icon-size-1":0,"signals-blink-1":false,"signals-horz-1":0,"signals-vert-1":0,"signals-hide-edit-1":false,"signals-cond-2":"==","signals-val-2":true,"signals-icon-2":"/vis/signals/lowbattery.png","signals-icon-size-2":0,"signals-blink-2":false,"signals-horz-2":0,"signals-vert-2":0,"signals-hide-edit-2":false,"lc-type":"last-change","lc-is-interval":true,"lc-is-moment":true,"lc-format":"","lc-position-vert":"top","lc-position-horz":"right","lc-offset-vert":0,"lc-offset-horz":0,"lc-font-size":"12px","lc-font-family":"","lc-font-style":"","lc-bkg-color":"#efdcdc","lc-color":"","lc-border-width":"0","lc-border-style":"","lc-border-color":"","lc-border-radius":10,"lc-zindex":0,"descriptionLeft":"An (=true) oder AUS (=false)","pushButton":true,"descriptionLeftDisabled":true,"lc-oid":"0_userdata.0.Datenpunkte.lk.rolltor.esrollt","oid-working":"0_userdata.0.Datenpunkte.lk.rolltor.POWER","styleActive":"hq-button-base-outtemp"},"style":{"left":"129px","top":"371px","z-index":"30","opacity":""},"widgetSet":"hqwidgets"}]

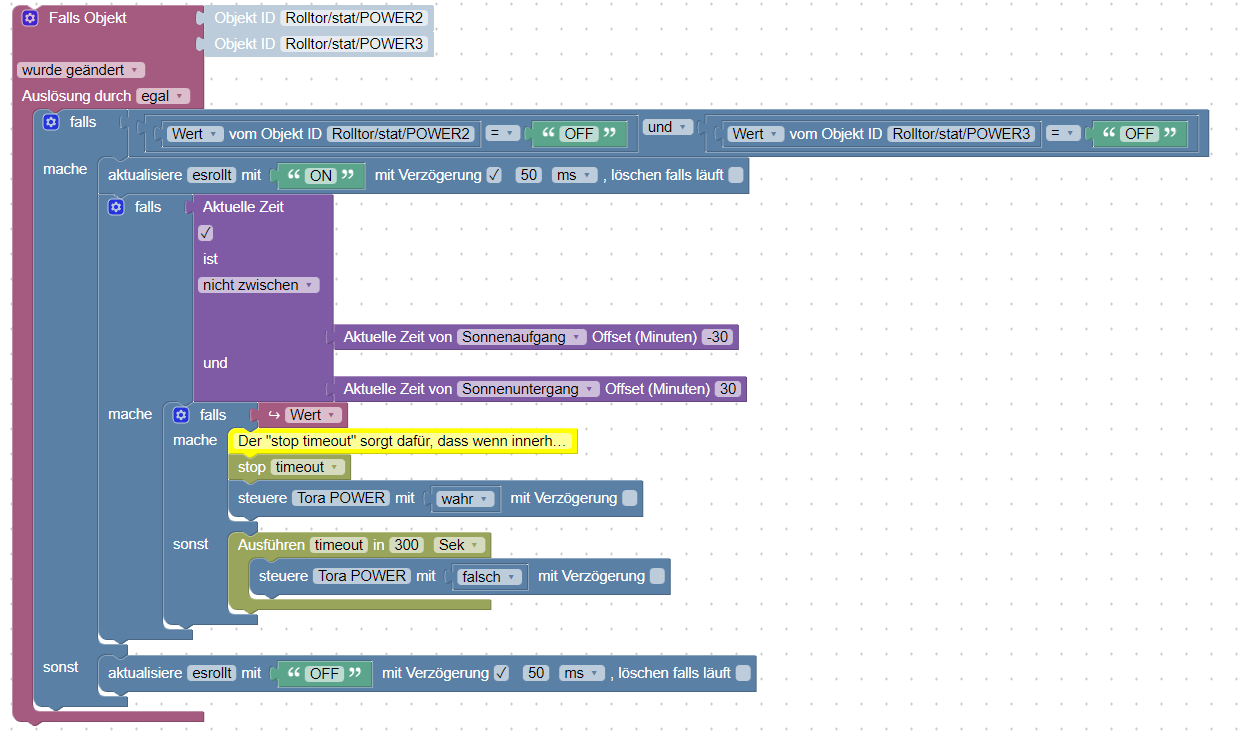

<xml xmlns="https://developers.google.com/blockly/xml">
  <variables>
    <variable type="timeout" id="timeout">timeout</variable>
  </variables>
  <block type="on_ext" id="ZJqDfv#s}dDHN8[BGJ8(" x="-237" y="-987">
    <mutation xmlns="http://www.w3.org/1999/xhtml" items="2"></mutation>
    <field name="CONDITION">ne</field>
    <field name="ACK_CONDITION"></field>
    <value name="OID0">
      <shadow type="field_oid" id="@#B-T]Wsdd5S/rD1c|[k">
        <field name="oid">mqtt.0.Rolltor.stat.POWER2</field>
      </shadow>
    </value>
    <value name="OID1">
      <shadow type="field_oid" id="/APwrn2[`$_VSpb;//mP">
        <field name="oid">mqtt.0.Rolltor.stat.POWER3</field>
      </shadow>
    </value>
    <statement name="STATEMENT">
      <block type="controls_if" id="w~:gx4!t5Lj*U1QE(1$B">
        <mutation else="1"></mutation>
        <value name="IF0">
          <block type="logic_operation" id="$+_FB$iT/f(4~@-W/PwY">
            <field name="OP">AND</field>
            <value name="A">
              <block type="logic_compare" id=")h]ZV3tlC%J0yn1~GmNL">
                <field name="OP">EQ</field>
                <value name="A">
                  <block type="get_value" id="ovD2{U-T4iN://tv~)NS">
                    <field name="ATTR">val</field>
                    <field name="OID">mqtt.0.Rolltor.stat.POWER2</field>
                  </block>
                </value>
                <value name="B">
                  <block type="text" id="V-5uXOaqc1%*UhjB$_]k">
                    <field name="TEXT">OFF</field>
                  </block>
                </value>
              </block>
            </value>
            <value name="B">
              <block type="logic_compare" id="a/6SH*3M-.3h[6k,QQ?2">
                <field name="OP">EQ</field>
                <value name="A">
                  <block type="get_value" id="eGfUY/r;tAJ3E@3F5^-q">
                    <field name="ATTR">val</field>
                    <field name="OID">mqtt.0.Rolltor.stat.POWER3</field>
                  </block>
                </value>
                <value name="B">
                  <block type="text" id="gblH883.R2Q*.z5Xbgql">
                    <field name="TEXT">OFF</field>
                  </block>
                </value>
              </block>
            </value>
          </block>
        </value>
        <statement name="DO0">
          <block type="update" id="zS!||T!+!p!Ix!Ps/(0:">
            <mutation xmlns="http://www.w3.org/1999/xhtml" delay_input="true"></mutation>
            <field name="OID">0_userdata.0.Datenpunkte.lk.rolltor.esrollt</field>
            <field name="WITH_DELAY">TRUE</field>
            <field name="DELAY_MS">50</field>
            <field name="UNIT">ms</field>
            <field name="CLEAR_RUNNING">FALSE</field>
            <value name="VALUE">
              <block type="text" id="BTv.WUKog~rAM22FL~pv">
                <field name="TEXT">ON</field>
              </block>
            </value>
            <next>
              <block type="controls_if" id="PcKXh~(im*qgZ305OmAc">
                <value name="IF0">
                  <block type="time_compare_ex" id="$o@o_4^A?U+@Oorp:O0Z" inline="false">
                    <mutation xmlns="http://www.w3.org/1999/xhtml" end_time="true" actual_time="true"></mutation>
                    <field name="USE_ACTUAL_TIME">TRUE</field>
                    <field name="OPTION">not between</field>
                    <value name="START_TIME">
                      <shadow type="text" id="`=Yb{P+sx*n*7OUxUEuu">
                        <field name="TEXT">12:00</field>
                      </shadow>
                      <block type="time_astro" id="TDI9rMjr:e}4H8Z,t6OY">
                        <field name="TYPE">sunrise</field>
                        <field name="OFFSET">-30</field>
                      </block>
                    </value>
                    <value name="END_TIME">
                      <shadow type="text" id="!Ql/o6ow*dfx+XyN+OQ}">
                        <field name="TEXT">18:00</field>
                      </shadow>
                      <block type="time_astro" id="aZ6rs45J{6CbluIeHHFV">
                        <field name="TYPE">sunset</field>
                        <field name="OFFSET">30</field>
                      </block>
                    </value>
                  </block>
                </value>
                <statement name="DO0">
                  <block type="controls_if" id="Ql%dwTU,1niSyhrfd8]{">
                    <mutation else="1"></mutation>
                    <value name="IF0">
                      <block type="on_source" id="pW0rT0*bF8+.x)smeVuI">
                        <field name="ATTR">state.val</field>
                      </block>
                    </value>
                    <statement name="DO0">
                      <block type="comment" id=")g~$88uk(w6V8f8|g(+o">
                        <field name="COMMENT">Der "stop timeout" sorgt dafür, dass wenn innerhalb der 2 Minuten Ausschaltverzögerung wieder Bewegung erkannt wird, das Ausschalten verhindert wird, damit man nicht plötzlich im Dunkeln steht.</field>
                        <next>
                          <block type="timeouts_cleartimeout" id="}3;J9t_!N~hFWKr|tyuo">
                            <field name="NAME">timeout</field>
                            <next>
                              <block type="control" id="u|g{!8H5m4~2*}LL=l3m">
                                <mutation xmlns="http://www.w3.org/1999/xhtml" delay_input="false"></mutation>
                                <field name="OID">sonoff.0.Tora.POWER</field>
                                <field name="WITH_DELAY">FALSE</field>
                                <value name="VALUE">
                                  <block type="logic_boolean" id="_u%ai!KxK9AVP]W:A)E)">
                                    <field name="BOOL">TRUE</field>
                                  </block>
                                </value>
                              </block>
                            </next>
                          </block>
                        </next>
                      </block>
                    </statement>
                    <statement name="ELSE">
                      <block type="timeouts_settimeout" id="6wo@1cImD4uK:v7ToYuA">
                        <field name="NAME">timeout</field>
                        <field name="DELAY">300</field>
                        <field name="UNIT">sec</field>
                        <statement name="STATEMENT">
                          <block type="control" id="h.i*ziw=]S7-?0B+bims">
                            <mutation xmlns="http://www.w3.org/1999/xhtml" delay_input="false"></mutation>
                            <field name="OID">sonoff.0.Tora.POWER</field>
                            <field name="WITH_DELAY">FALSE</field>
                            <value name="VALUE">
                              <block type="logic_boolean" id="EI{ig(L}$+6cgpCQ(Jm(">
                                <field name="BOOL">FALSE</field>
                              </block>
                            </value>
                          </block>
                        </statement>
                      </block>
                    </statement>
                  </block>
                </statement>
              </block>
            </next>
          </block>
        </statement>
        <statement name="ELSE">
          <block type="update" id="2KqTCx:Sg;5DMJAL3?3N">
            <mutation xmlns="http://www.w3.org/1999/xhtml" delay_input="true"></mutation>
            <field name="OID">0_userdata.0.Datenpunkte.lk.rolltor.esrollt</field>
            <field name="WITH_DELAY">TRUE</field>
            <field name="DELAY_MS">50</field>
            <field name="UNIT">ms</field>
            <field name="CLEAR_RUNNING">FALSE</field>
            <value name="VALUE">
              <block type="text" id="`b0a)aUUsRxP^r2e)#bC">
                <field name="TEXT">OFF</field>
              </block>
            </value>
          </block>
        </statement>
      </block>
    </statement>
  </block>
</xml>

MCU

@picky Das ist ein Beispiel für VIS , aber nicht für jarvis.

picky

@mcu aso, dann sorry

boskap

leider bin ich zu doof

habe jetzt folgendes eingefügt

{
"{shelly.1.SHSW-1#E8DB84D629F0#1.ext.switch1}=true": "mdi:garage-open-variant",
"{shelly.1.SHSW-1#E8DB84D629F0#1.ext.switch1}=false": "mdi:garage-variant"
}

es wird mir aber immer das geschlossene angezeigt

boskap

alles retour
ich sollte dazwischen f5 drücken dann läuft es auch

bin so happy danke
