    Thermometer mit WS2811 oder WS 2812

    This topic has been deleted. Only users with topic management privileges can see it.
    • Chaot
      Chaot last edited by Chaot

      Ich benötige mal ein paar kleine Tips.

      Ich möchte gerne einen Streifen als Thermometer in den Schuppen gegenüber ans Fenster bauen.
      Dazu möchte ich jede LED entsprechend der Temperatur verschiedenfarbig ansteuern und eventuell jede 5. LED in einer einzelnen Farbe.
      Denkst das lässt sich irgendwie umsetzen?

      Gedacht wäre das als Script das dann am Ende so aussehen soll:

      Eine LED für Temperatur zwischen -20°C und +30°C soll sich von Blau über Grün nach Rot verändern und auf die entsprechende Position wandern.

      Alle 5 oder 10 LEDs (je nach Länge des Streifens) soll eine LED fest leuchten als Digitalstrich bei -10; 0; +10 usw.

      Eventuell sollte die LED bei 0°C noch in einer anderen Farbe leuchten.

      In einem anderen Tread hat mir @liv-in-sky gezeigt das er das umgesetzt hat.
      Jetzt hoffe ich das er doch so nett ist und mir das hier erklärt wie er das gemacht hat.

      liv-in-sky joergeli 3 Replies Last reply Reply Quote 0
      • liv-in-sky
        liv-in-sky @Chaot last edited by liv-in-sky

        @Chaot wie schon erwähnt

        ich habe das thermometer mit tasmota (geflasht auf nodeMCU) - gelöst - wird also mit dem sonoff-adapter gesteuert bzw http - befehlen


        • geht von -5 bis +34
        • die aktuelle außentemp wird mit den 3 bauen punkten angezeigt
        • der rest der leds sind ein "leichtes" blau
        • das ganze ist in bereiche aufgeteilt: sind es über 20° werden die 3 punkte orange und die anderen ein "leichtes" orange - bei z.b über 30 ist die hauptfarbe lila ...

        dieser teil wird für dich wohl nicht so interessant sein:
        der grüne punkt zeigt die innentemperatur und je nachdem ob geheizt wird werden aus dem einem grünen punkt 2 punkte : ein soll- und ein ist-wert des zimmers

        als nächstes werde ich vielleicht noch meine handy akku kapazität anzeigen - in abwechslung mit der temp

        zurück zum thema

        • kannst du einen sonoff, nodeMCU oder einen wemos mit tasmota flashen ?
        • ich habe eine 5 volt usv stromversorgung für 1 Ampere genutzt - ist der aufbau klar für dich ?

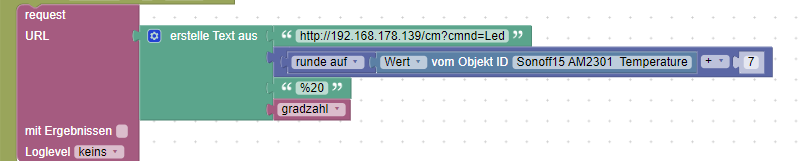

        • der rest sind nur http befehle, die gestartet werden z.b.

        Image 4.png

        1 Reply Last reply Reply Quote 0
        • liv-in-sky
          liv-in-sky @Chaot last edited by liv-in-sky

          @Chaot nochmal etwas detailierter:

          • WLan und strom am installationsort vorhanden (wassergeschützt)

          • hardware - nodemcu, sonoff, wemos

          • 5 volt 2812b stripe - wassergeschützt

          • kleine stromversorgung (wie fürs handy) - habe ende des usb kabels abgeschnitten und die plus- und minus-leitung verwendet

          • evtl schrumpfschläuche

          • einen widerstand 470 ohm zwischen pin (nodemcu) und datenleitung des stripes

          • wenn es im außenbereich oder scheune ist, evtl eine kleine "tuppadose" in die man die nodemcu steckt

          • nodemcu geflasht, auf meine sonoffinstanz eingestellt und pixels (anzahl leds) auf die anzahl eingestellt

          • gescriptet - je nach anforderung

          Chaot 1 Reply Last reply Reply Quote 0
          • Chaot
            Chaot @liv-in-sky last edited by

            @liv-in-sky
            Danke schön.
            Ok checkliste:

            • WLan und Strom vorhanden

            • Wemos - Ne Handvoll minis und ein paar ESP32. Den letzten Wemos habe ich an der Decke mit den großen WLEDs verbaut. Muss ich mir schnell mal besorgen. Beim Mini reicht der Ausgang nicht aus für den Strip

            • Ich habe 7811 mit 12V. Wemos ran sollte kein Problem darstellen

            • 12V Netzteil mit 6A vorhanden. Sollte locker reichen

            • Widerstände vorhanden

            • Flashen und einbinden kein Problem

            • Script --- ja, da haperts. Das habe ich leider keinen so richtigen Plan wie ich das mit den Farben hinbekomme. Kannst du mir da bischen Schnipsel posten?

            liv-in-sky 1 Reply Last reply Reply Quote 0
            • liv-in-sky
              liv-in-sky @Chaot last edited by liv-in-sky

              @Chaot klasse - ein mann vom fach

              der nächste codeschnipsel enthält meine steuerung

              • getiggert auf meine aussentemp-anzeige - hängt an einem anderen sonoff und macht teleperiod1 alle 2 minuten - daher wird auch alle 2 minuten getriggert
              • ich habe ein anderes script, dass definiert mir die zonen für die temperatur - das benötige ich für meine vis. es teilt einfach die werte (je nach sommer oder winter) in verschiedene farben auf - d.h. alles unter 0 wird bereich 1 (weiß) - alles zw. 0 und 8 ist (blau) - alles zw. 8 und 16 ist bereich 3 (orange) alles zw. 16 und 20 ist bereich 4 (rot) und darüber heiß (lila) bereich 5 - im sommer sind die bereiche etwas anders definiert - im dp TemperaturWidget steht dann die zahl für den bereich
              • erster block (die if abfragen) die setzen die bereich-farbe und die gradzahl-farbe in abhängigkeit des datenpunktes Temperaturwidget - damit die gradzahlfarbe nicht zu hell wird, nutze ich eine hexzahl, die z.b zu blau gehört aber der letzte wert vor schwarz ist - sonst blendet das ! (https://www.w3schools.com/colors/colors_picker.asp
              • jetzt habe ich also definiert - dass die drei gradpunkte eine farbe haben (z.b. dunkles blau) und der restliche bereich ist hellblau ( ich zeige die tasächlichen grad mit 3 punkten an) - gültig für den bereich zwischen 0 und 8 grad - der bereich ist sowas wie die "hintergrundfarbe"
                als nächstes werden die leds gesteuert - in jedem request ist ein anderer befehl
              • der dimmwert gesetzt (10)
              • anschliessend der "hintergrund" (bereich) - alle leds werden z.b hellblau - die sind gedimmt
              • anschliessend die eigentliche gradzahl (der befehl, der einzelne leds schaltet, ist nicht vom dimmwert gesteuert - die werden mit 100 als dimmwert gesetzt - bisher konnte mir niemand sagen, wie man einzelne leds dimmt - alles oder nix ist die devise
                der grüne punkt - ganz oben ist für die heizungsanzeige - ist ein extra teil im script - für dich nicht wichtig, da du die scheune nicht heizt 🙂
