@bananajoe
mit der neuen Version von
msmart-ng -v
Ausgabe: msmart-ng version: 2025.7.0

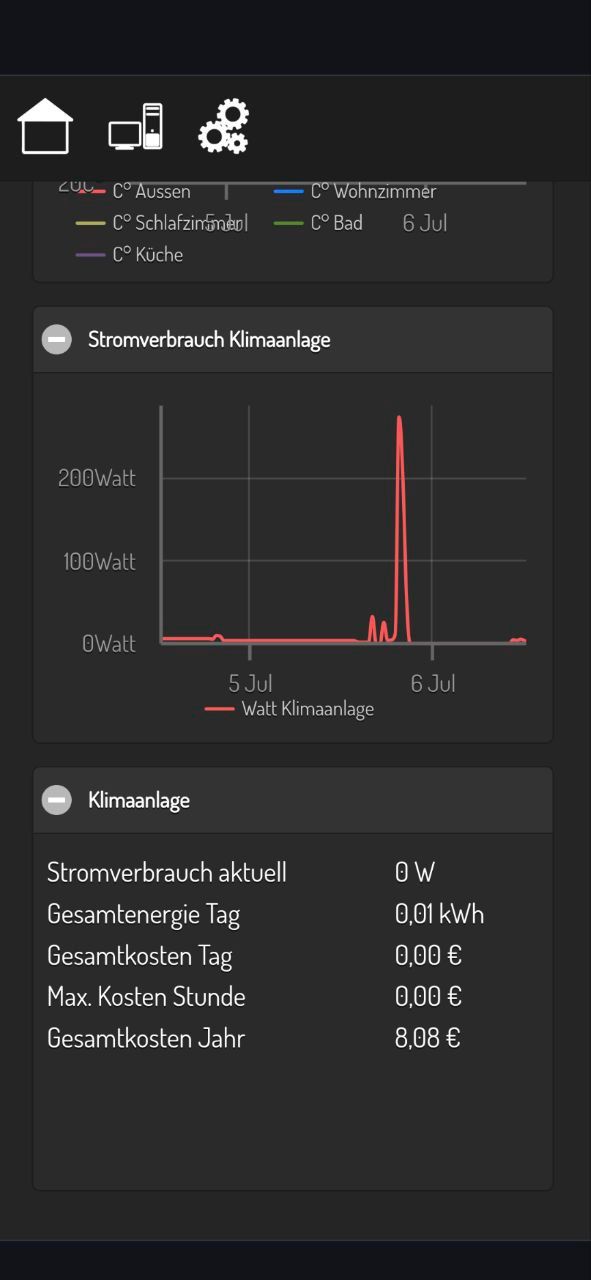

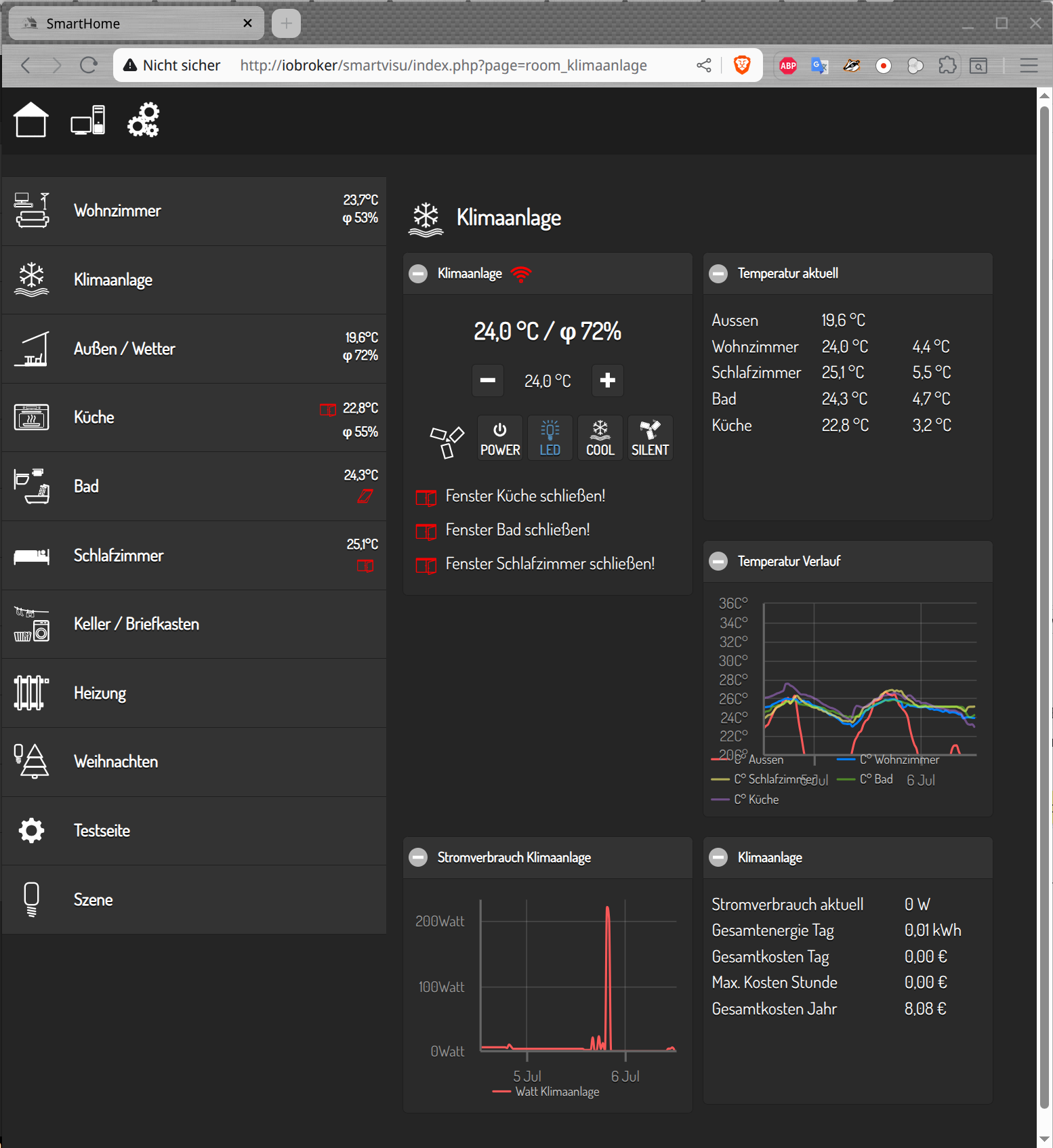

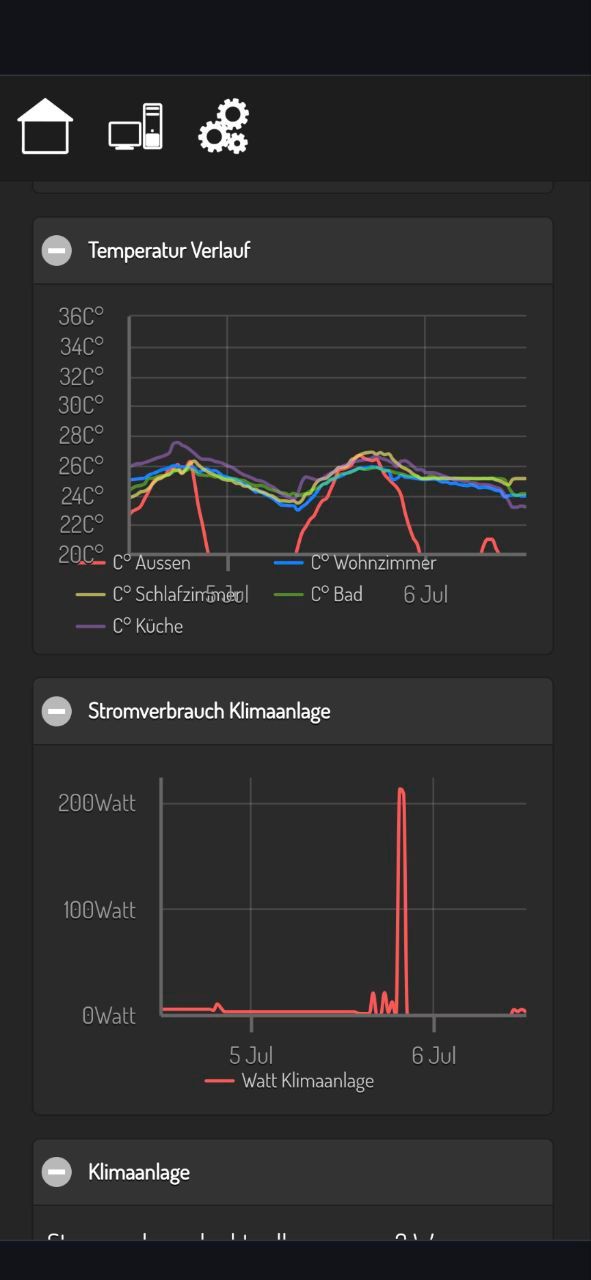

werden auch die Energiewerte im ioBroker gefüllt.
Hier die neue Version des JavaScripts (vorher die alten midea-Objekte, den ganzen Baum, löschen):
/*
Version 06.07.2025 Add option to CLI to request energy information
ID & Token & Key for msmart-ng are automatically determined
Steuert eine Midea-Klimaanlage direkt über das Python-Programm 'msmart-ng' (siehe unten Installation 'msmart-ng') lokal im WLAN.
Das Gerät wurde einmalig mit der Android-App in das WLAN integriert.
Anschließend wurde der Internetzugang für diese Gerät über die FritzBox deaktiviert, um eine Fremdsteuerung zu unterbinden.
Keine Cloud erforderlich für dieses JavaScript!
Dieses JavaScript übernimmt folgende Funktionen:
- Es liest die aktuellen Werte des Geräts im lokalen Netzwerk ab, siehe dazu Variable 'mideaPortaSplit'.
IP in Variable 'mideaPortaSplit' muss entsprechend geändert werden.
ID + Token + Key werden über 'msmart-ng query --region DE --auto <ip>' automatisch ermittelt.
- Es erstellt eigenständig die passenden Objekte in ioBroker (unter javascript.0.midea.*).
- Wird ein schreibbares Objekt geändert, so schreibt das JavaScript die Änderung direkt ins Gerät,
indem es die Befehle über 'msmart-ng' sendet.
Gültige Werte für FanSpeed / OperationalMode / SwingMode / SwingAngle / RateSelect / BreezeMode / AuxHeatMode
siehe Variable 'AirConditioner'.
- Der Loglevel (javascript.0.media.loglevel) kann während der Laufzeit des Skripts angepasst werden.
Mögliche Werte sind 0=aus, 1=minimal, 2=alles.
Idee abgeleitet aus den Beitrag: https://forum.iobroker.net/topic/33198/test-adapter-midea-dimstal-klimaanlagen-v0-0-x/346?lang=de
Installation 'msmart-ng':
=========================
Zum Benutzer ioBroker wechseln:
sudo -u iobroker /usr/bin/bash
In das Home-Verzeichnis des Benutzers ioBroker wechseln
cd ~
Python Environment anlegen (falls noch nicht vorhanden):
python3 -m venv python-venv
und in die Umgebung wechseln:
source python-venv/bin/activate
Jetzt kann man per pip das Modul installieren
pip install msmart-ng
und dann Version anzeigen:
msmart-ng -v
Ausgabe:
msmart-ng version: 2025.7.0
Vor der Nutzung muss dann aber immer erst das Envirtonment geladen werden.
Intelligenter weise wird das in den nachinstallierten Python-Modulen gleich richtig hinterlegt:
which msmart-ng
Ausgabe:
/home/iobroker/python-venv/bin/msmart-ng
Inhalt:
cat /home/iobroker/python-venv/bin/msmart-ng
Die erste Zeile ist
#!/home/iobroker/python-venv/bin/python3
Womit die richtige Umgebung genutzt wird.
In ioBroker Skripten den ganzen Pfad aufrufen:
/home/iobroker/python-venv/bin/msmart-ng
*/
// id + token + key ermittelbar über 'msmart-ng query --region DE --auto 192.168.178.205'
const mideaPortaSplit = {
ip: '192.168.178.205',
id: null, // Temporary storage, ID for msmart-ng is automatically determined
token: null, // Temporary storage, token for msmart-ng is automatically determined
key: null, // Temporary storage, key for msmart-ng is automatically determined
controlSettings: [], // Temporary storage for all modifiable objects, used in on({id: mideaPortaSplit.controlSettings, change: 'any'}...
};
let controlListener;
const basePath = 'javascript.0.midea'; // Base object path
var LOGLEVEL = 2; // 0=off, 1=minimal, 2=all
const msmartLoglevel = basePath + '.loglevel';
const region = 'DE'; // --region {DE,KR,US}
const msmart_ng = '/home/iobroker/python-venv/bin/msmart-ng';
// Enums see https://github.com/mill1000/midea-msmart/blob/main/msmart/device/AC/device.py
// Note: The above link is for reference; it contains enum definitions for the device.
class AirConditioner {
static FanSpeed = {
AUTO: 102,
MAX: 100,
HIGH: 80,
MEDIUM: 60,
LOW: 40,
SILENT: 20,
DEFAULT: 102
};
static OperationalMode = {
AUTO: 1,
COOL: 2,
DRY: 3,
HEAT: 4,
FAN_ONLY: 5,
SMART_DRY: 6,
DEFAULT: 5
};
static SwingMode = {
OFF: 0,
VERTICAL: 12,
HORIZONTAL: 3,
BOTH: 15,
DEFAULT: 0
};
static SwingAngle = {
OFF: 0,
POS_1: 1,
POS_2: 25,
POS_3: 50,
POS_4: 75,
POS_5: 100,
DEFAULT: 0
};
static RateSelect = {
OFF: 100,
GEAR_50: 50,
GEAR_75: 75,
LEVEL_1: 1,
LEVEL_2: 20,
LEVEL_3: 40,
LEVEL_4: 60,
LEVEL_5: 80,
DEFAULT: 100
};
static BreezeMode = {
OFF: 1,
BREEZE_AWAY: 2,
BREEZE_MILD: 3,
BREEZELESS: 4,
DEFAULT: 1
};
static AuxHeatMode = {
OFF: 0,
AUX_HEAT: 1,
AUX_ONLY: 2,
DEFAULT: 0
};
}
function convertToValidJSON(str) {
return str
.replace(/<[^>]*:\s*(\d+)>/g, '$1') // Remove everything in <...>, keep number after :
.replace(/\bNone\b/g, 'null') // Replace 'None' with null
.replace(/'/g, '"') // Optional: replace single quotes with double quotes
.replace(/\bTrue\b/g, 'true').replace(/\bFalse\b/g, 'false') // Convert True/False to true/false
.replace('"power"', '"power_state"') // name correction for power control
.replace('"mode"', '"operational_mode"'); // name correction for operational mode control
}
function extractJsonFromLine(line) {
const index = line.indexOf('{');
if (index !== -1) {
try {
const jsonStr = convertToValidJSON(line.substring(index));
if (LOGLEVEL > 1) log(jsonStr);
return JSON.parse(jsonStr);
} catch (e) {
console.error(`Could not parse JSON ${e}`);
return null;
}
}
return null;
}
// msmart-ng query
// usage: msmart-ng query [-h] [-d] [--region {DE,KR,US}] [--account ACCOUNT] [--password PASSWORD] [--capabilities]
// [--auto] [--energy]
// [--id DEVICE_ID] [--token TOKEN] [--key KEY]
// host
function queryDevice(device) {
const auto = (device.token == null); // query with --auto is slow, login with token,key&id it is faster
const login = auto ?
' --auto' :
` --region ${region}` +
` --token ${device.token}` +
` --key ${device.key}` +
` --id ${device.id}`;
const queryMsmart = msmart_ng +
' query' + login +
' --energy' +
` ${device.ip}`;
if (LOGLEVEL > 1) log(queryMsmart);
const devicePath = `${basePath}.${device.id}`;
exec(queryMsmart, (error, stdout, stderr) => {
if (error) {
var s = `${error}`;
if (s.includes('Connect failed') || s.includes('Connect timeout')) {
if (getState(`${devicePath}.online`).val) {
log(`${devicePath}.online=false`);
setState(`${devicePath}.online`, false, true);
}
} else {
console.error(`Error executing query: ${error}`);
}
return;
}
// Function to search for JSON in output
[stdout, stderr].forEach(output => {
const lines = output.split('\n');
for (let line of lines) {
if (line.includes('INFO:msmart.cli:')) {
const data = extractJsonFromLine(line);
if (data) {
handleData(device, data);
break; // only the first found JSON line
}
}
}
});
});
}
/*
const stateName = [
{control: true, key: 'eco', name: 'Energy Saving Mode'},
{control: true, key: 'power_save', name: 'Power Saving'},
{control: true, key: 'swing_mode', name: 'Airflow Direction'},
{control: true, key: 'fan_speed', name: 'Fan Speed'},
{control: true, key: 'operational_mode', name: 'Operating Mode'},
{control: true, key: 'power_state', name: 'On/Off'},
{control: false, key: 'indoor_temperature', name: 'Indoor Temperature'},
{control: false, key: 'outdoor_temperature', name: 'Outdoor Temperature'},
{control: true, key: 'target_temperature', name: 'Target Temperature'},
{control: true, key: 'fahrenheit', name: 'Temperature Unit'},
{control: true, key: 'target_humidity', name: 'Target Humidity'},
{control: true, key: 'horizontal_swing_angle', name: 'Horizontal Swing Angle'},
{control: false, key: 'indoor_humidity', name: 'Indoor Humidity'},
{control: true, key: 'vertical_swing_angle', name: 'Vertical Swing Angle'},
{control: true, key: 'turbo', name: 'Turbo Mode'},
{control: true, key: 'freeze_protection', name: 'Frost Protection'},
{control: true, key: 'sleep', name: 'Sleep Mode'},
{control: true, key: 'display_on', name: 'Display On/Off'},
{control: true, key: 'beep', name: 'Beep Sound'},
{control: false, key: 'filter_alert', name: 'Filter Warning'},
{control: true, key: 'follow_me', name: 'Follow Me'},
{control: true, key: 'purifier', name: 'Air Purifier'},
{control: true, key: 'self_clean', name: 'Self-Cleaning'},
{control: false, key: 'total_energy_usage', name: 'Total Energy Usage'},
{control: false, key: 'current_energy_usage', name: 'Current Energy Usage'},
{control: false, key: 'real_time_power_usage', name: 'Real-Time Power Usage'},
{control: true, key: 'rate_select', name: 'Performance Level'},
{control: true, key: 'aux_mode', name: 'Auxiliary Mode'},
{control: false, key: 'ip', name: 'IP Address'},
{control: false, key: 'name', name: 'Device Name'},
{control: false, key: 'supported', name: 'Supported Features'},
{control: false, key: 'type', name: 'Device Type'},
{control: false, key: 'online', name: 'Connection Status'},
{control: false, key: 'port', name: 'Port'},
{control: false, key: 'cascade_mode', name: 'Cascade Control'},
{control: false, key: 'sn', name: 'Serial Number'},
];
*/
const stateName = [
{control: true, key: 'eco', name: 'Energiesparmodus'},
{control: true, key: 'power_save', name: 'Energiesparen'},
{control: true, key: 'swing_mode', name: 'Luftstromrichtung'},
{control: true, key: 'fan_speed', name: 'Lüftergeschwindigkeit'},
{control: true, key: 'operational_mode', name: 'Betriebsmodus'},
{control: true, key: 'power_state', name: 'Ein/Aus'},
{control: false, key: 'indoor_temperature', name: 'Innentemperatur'},
{control: false, key: 'outdoor_temperature', name: 'Außentemperatur'},
{control: true, key: 'target_temperature', name: 'Zieltemperatur'},
{control: true, key: 'fahrenheit', name: 'Temperatureinheit'},
{control: true, key: 'target_humidity', name: 'Zielfeuchtigkeit'},
{control: true, key: 'horizontal_swing_angle', name: 'Horizontaler Schwenkwinkel'},
{control: false, key: 'indoor_humidity', name: 'Raumluftfeuchtigkeit'},
{control: true, key: 'vertical_swing_angle', name: 'Vertikaler Schwenkwinkel'},
{control: true, key: 'turbo', name: 'Turbomodus'},
{control: true, key: 'freeze_protection', name: 'Frostschutz'},
{control: true, key: 'sleep', name: 'Schlafmodus'},
{control: true, key: 'display_on', name: 'Display Ein/Aus'},
{control: true, key: 'beep', name: 'Signalton'},
{control: false, key: 'filter_alert', name: 'Filterwarnung'},
{control: true, key: 'follow_me', name: 'Follow Me'},
{control: true, key: 'purifier', name: 'Luftreiniger'},
{control: true, key: 'self_clean', name: 'Selbstreinigung'},
{control: false, key: 'total_energy_usage', name: 'Gesamtenergieverbrauch'},
{control: false, key: 'current_energy_usage', name: 'Aktueller Energieverbrauch'},
{control: false, key: 'real_time_power_usage', name: 'Echtzeitleistung'},
{control: true, key: 'rate_select', name: 'Leistungsstufe'},
{control: true, key: 'aux_mode', name: 'Zusatzmodus'},
{control: false, key: 'ip', name: 'IP-Adresse'},
{control: false, key: 'name', name: 'Gerätename'},
{control: false, key: 'supported', name: 'Unterstützt'},
{control: false, key: 'type', name: 'Gerätetyp'},
{control: false, key: 'online', name: 'Verbindungsstatus'},
{control: false, key: 'port', name: 'Port'},
{control: false, key: 'cascade_mode', name: 'Kaskadensteuerung'},
{control: false, key: 'sn', name: 'Seriennummer'},
];
function initControlSettings(device) {
device.controlSettings = [];
const devicePath = `${basePath}.${device.id}`;
const controlStates = stateName.filter(state => state.control);
controlStates.forEach(state => {
const statePath = `${devicePath}.${state.key}`;
device.controlSettings.push(statePath);
});
log('initControlSettings() device.controlSettings.length=' + device.controlSettings.length);
}
function handleData(device, data) {
const id = data.id ? data.id.toString() : 'device';
const devicePath = `${basePath}.${id}`;
Object.keys(data).forEach(key => {
const value = data[key];
var keyL = key.toLowerCase();
if (keyL === 'id') {
if (device.id == null) device.id = value;
return;
} else if (keyL === 'key') {
if (device.key == null) device.key = value;
return;
} else if (keyL === 'token') {
if (device.token == null) device.token = value;
return;
}
if (['sn', 'name'].includes(keyL) && (value == null)) {
return;
}
const statePath = `${devicePath}.${key}`;
// Configuration for createState
const stateOptions = {
type: typeof value,
name: stateName.find(item => item.key === keyL)?.name || key,
write: stateName.find(item => item.key === keyL)?.control || false,
read: true,
};
if (value != null) stateOptions.def = value;
// Additional properties based on the key
if (typeof value !== 'boolean') {
if (keyL.includes('temperature')) {
stateOptions.unit = '°C';
stateOptions.role = 'value.temperature';
stateOptions.type = 'number';
} else if (keyL.includes('humidity')) {
stateOptions.unit = '%';
stateOptions.role = 'value.humidity';
stateOptions.min = 0;
stateOptions.max = 100;
stateOptions.type = 'number';
} else if (keyL.includes('energy')) {
stateOptions.unit = 'Wh';
stateOptions.min = 0;
stateOptions.max = 999999999;
stateOptions.type = 'number';
} else if (keyL.includes('power')) {
stateOptions.unit = 'W';
stateOptions.role = 'value.power';
stateOptions.min = 0;
stateOptions.max = 4000;
stateOptions.type = 'number';
}
}
// Create state if it does not exist
createState(statePath, stateOptions, () => {
// After creation, get the value and update if necessary
getState(statePath, (err, state) => {
if (err || !state) {
setState(statePath, value, true);
} else {
if (state.val !== value) {
if (LOGLEVEL > 1) log(`Updating ${statePath} to ${value}`);
setState(statePath, value, true);
}
}
});
});
});
if ((device.controlSettings.length == 0) && (device.id != null)) {
initControlSettings(device);
if (controlListener && typeof controlListener === 'function') controlListener(); // remove old listener
controlListener = on({id: mideaPortaSplit.controlSettings, change: 'any'}, function (obj) {
var parts = obj.id.split('.');
var setting = parts[4];
if ((setting == 'online') && obj.state.val) powerStateOnRepeat = -1;
if (obj.state.ack) return; // change was made by script, ignore
if (LOGLEVEL > 0) log(`Changed ${obj.id} to ${obj.state.val}`);
controlDevice(mideaPortaSplit, setting ,obj.state.val);
});
}
}
// msmart-ng control
// usage: msmart-ng control [-h] [-d] [--region {DE,KR,US}] [--account ACCOUNT] [--password PASSWORD]
// [--capabilities]
// [--auto]
// [--id DEVICE_ID] [--token TOKEN] [--key KEY]
// host setting=value [setting=value ...]
var powerStateOnRepeat = -1;
function controlDevice(device, setting, value) {
if (LOGLEVEL) log(`Controlling device ${device.id}, setting ${setting}=${value}`);
const stateEntry = stateName.find(entry => entry.key === setting);
if (!stateEntry || stateEntry.control === false) {
if (LOGLEVEL > 1) log(`${setting} is not controllable!`);
return;
}
if ((setting == 'power_state') && (value == false)) {
powerStateOnRepeat = -1;
setTimeout(function () {
queryDevice(device);
setTimeout(function () {
queryDevice(device);
}, 30 * 1000);
}, 30 * 1000);
}
var pyValue = value;
if (typeof pyValue == 'boolean') {
pyValue = value == true ? 'True':'False';
}
const controlMsmart = msmart_ng +
' control' +
` --region ${region}` +
` --token ${device.token}` +
` --key ${device.key}` +
` --id ${device.id}` +
` ${device.ip}` +
` ${setting}=${pyValue}`;
if (LOGLEVEL > 1) log(controlMsmart);
const devicePath = `${basePath}.${device.id}`;
exec(controlMsmart, (error, stdout, stderr) => {
if (error) {
var s = `${error}`;
if (s.includes('Connect failed') || s.includes('Connect timeout')) {
if (getState(`${devicePath}.online`).val) {
log(`${devicePath}.online=false`);
setState(`${devicePath}.online`, false, true);
}
if ((setting == 'power_state') && (powerStateOnRepeat < (25 * 1000))) {
setTimeout(function () {
log('Repeating control: power_state=True');
controlDevice(device, setting, value);
powerStateOnRepeat += 2 * 1000;
}, 2 * 1000);
}
} else {
console.error(`Error executing control: ${error}`);
}
return;
}
powerStateOnRepeat = -1;
// Funktion, um nach JSON zu suchen
[stdout, stderr].forEach(output => {
if (output.length) {
if (output.includes('ERROR:')) {
console.error(`Error during execution: ${output}`);
if (getState(`${devicePath}.online`).val)
setState(`${devicePath}.online`, false, true);
} else {
if (LOGLEVEL > 1) log(output);
if (getState(`${devicePath}.online`).val == false)
setState(`${devicePath}.online`, true, true);
}
}
});
});
}
function initVar() {
createState(msmartLoglevel, undefined, false, {
name: 'Loglevel',
type: 'number',
def: LOGLEVEL,
role: 'state'
});
LOGLEVEL = getState(msmartLoglevel).val;
}
// Main:
initVar();
queryDevice(mideaPortaSplit);
schedule("*/2 * * * *", function () { // every 2 minutes
queryDevice(mideaPortaSplit);
});
// Events:
on({id: msmartLoglevel, change: 'any'}, function (obj) {
// Log level changed
log(`msmartLoglevel is now ${obj.state.val}`);
LOGLEVEL = obj.state.val;
});
Die generierten Objekte im ioBroker sehen dann so aus:

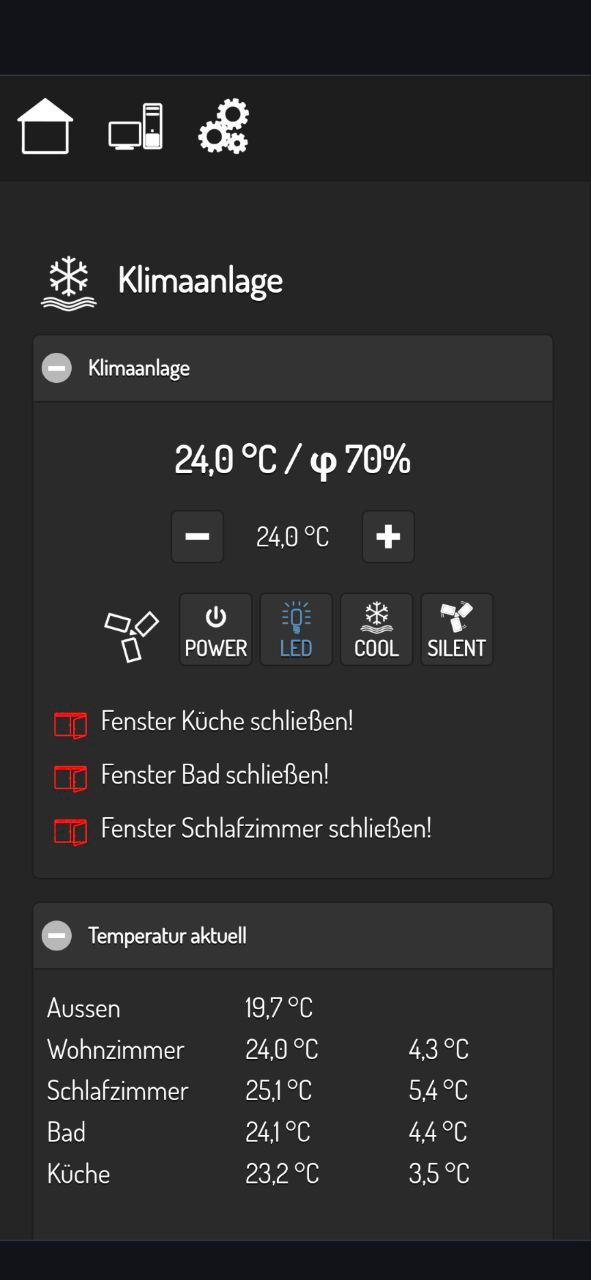

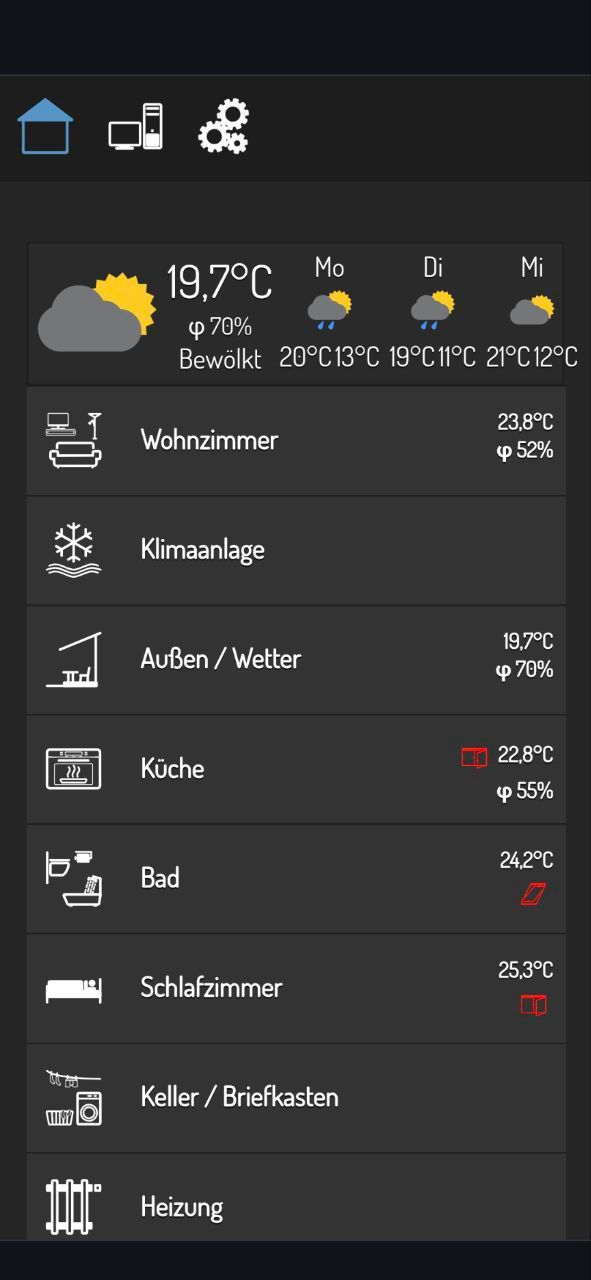

Und in meiner smartVisu (ja, ich benutze smartVisu!) sieht das so aus:
Handy:
Tablet:
